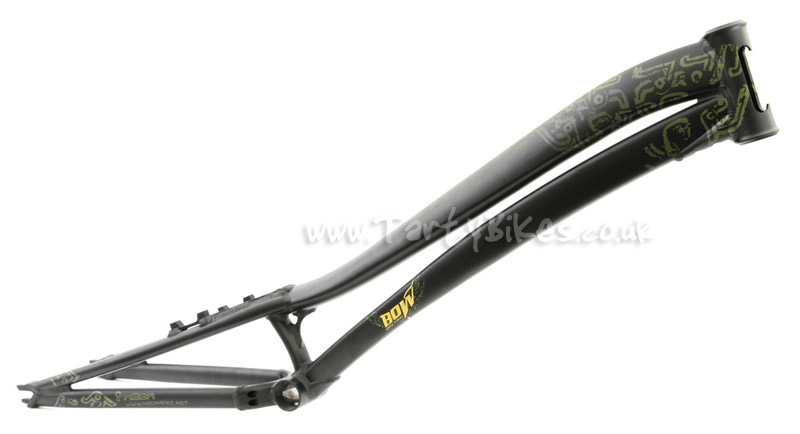

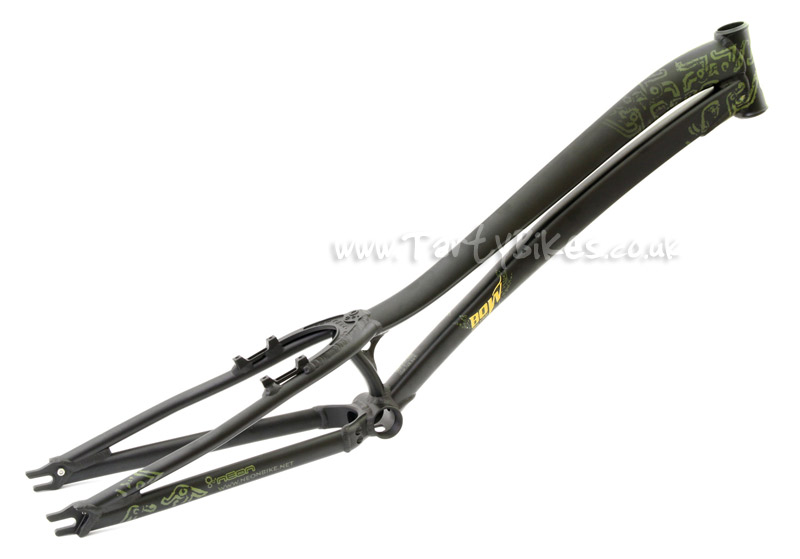

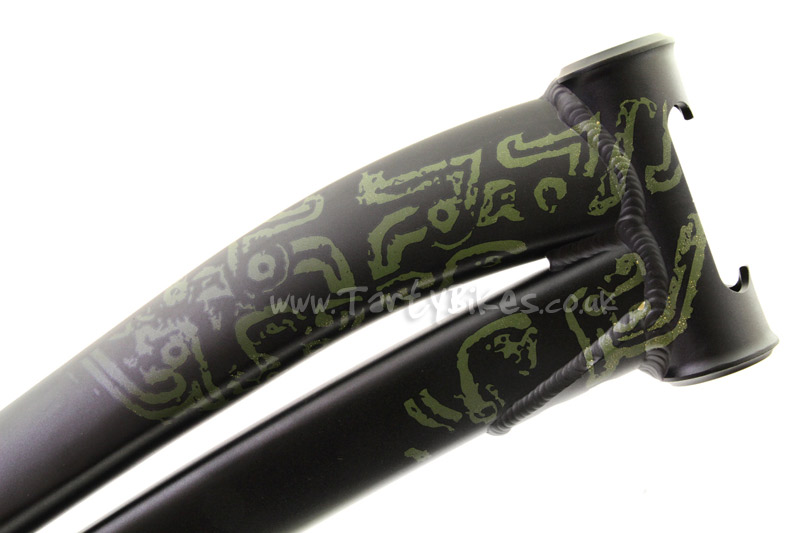

- Featuring Neon's new style head tube, externally butted with a large machined out hole to save weight.
- Sleek tubing profile reduces weight whilst increasing frame strength and giving a greater weld area.

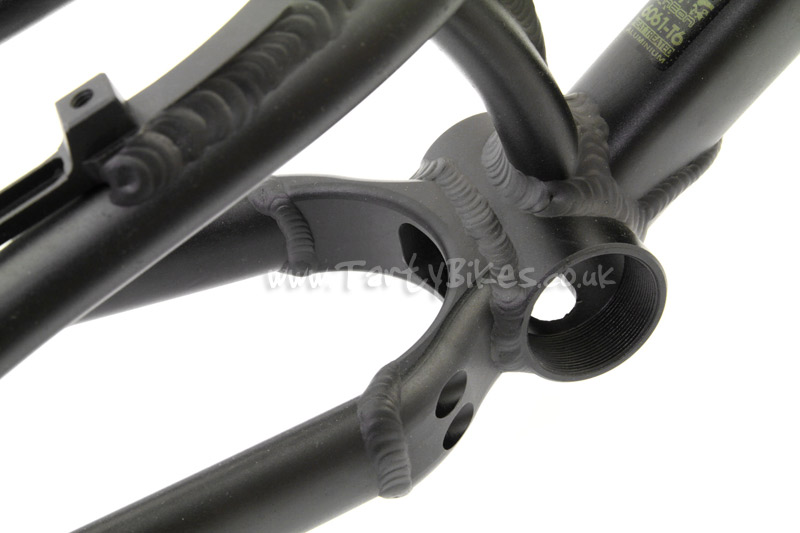

- Reinforced forged BB yoke is redesigned for 2012 to give the maximum possible tyre clearance whilst retaining strength and stiffness, and keeping weight low.
- Stylish CNC'd built-in brake booster gives a stiffer, more responsive brake feel.

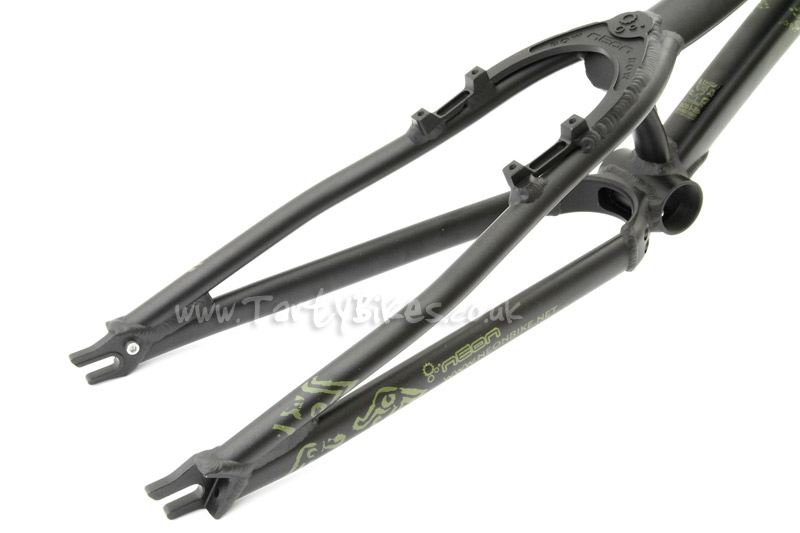

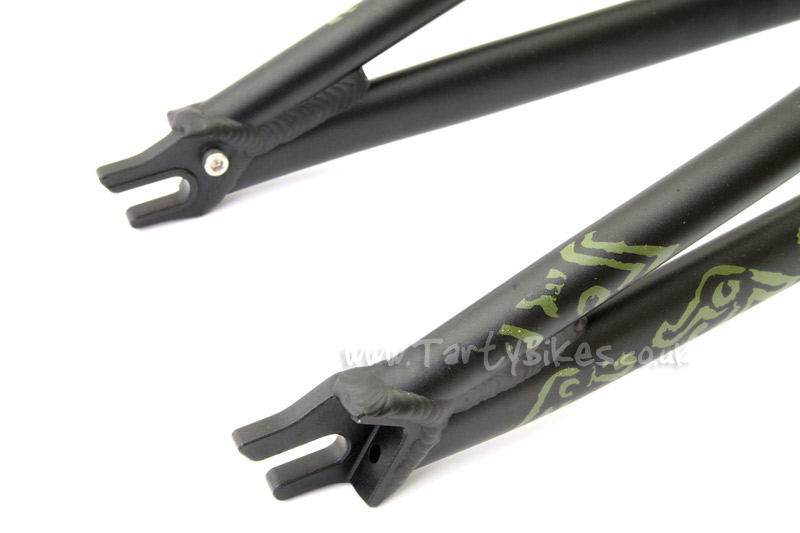

- Minimal horizontal dropouts spaced at 135mm offer a range of adjustment whilst being small and out of the way.
- Gussets placed at key points of the frame to add more strength and increase stiffness.
- Subtle water decals gives the frame a classy look.
- Available in anodised Black only.
- Only available with 4-bolt mounts, which are spaced at 100mm.
- Weight: 1.502kg
Geometry (When measured with Echo Urban fork, sold separately)
Wheelbase: 1095mm
Chainstay Length: 380mm
BB Rise: 40mm
Head Angle: 72 degrees
Centre of BB shell to top centre of head tube: 675mm (26.5")
Trialtech Race Welded
£25.53
Echo SL 26" 2011
£70.83
Echo SL Headset
£34.04
Trialtech Foam
£5.11
Echo TR Snail Cams (pair)
£10.21
Can i use My 1 1/8" chris king headset on both Zoo 2011 and neon 2011 frames? 68mm 128mm bottom brackets?
Posted by Benny on 28/12/2010
Reply from TartyBikes on 28/12/2010
Hi Benny - both of those frames use a standard 1 1/8" head tube so should fit your King fine. A 68mm x 128mm BB would work well with them too. Thanks, Mark
