Racing Line CNC Lever

Product code: 13051


Check Stock

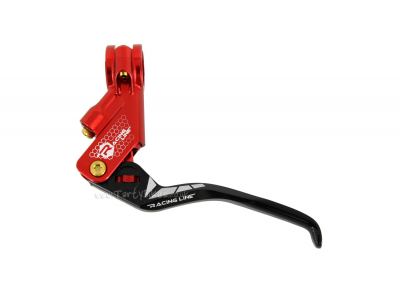

Racing Line CNC Lever

Black (with rainbow fittings and hardware)
Red (with gold fittings and hardware)
Silver (with rainbow fittings and hardware)

Sold out

  • Super pimp hydraulic rim brake levers!
- Racing Line's latest generation hydraulic rim brake lever!
- Super high quality CNC-machined construction throughout the lever ensures durability and offers improved lever feel.
- Flip-flop lever design means the lever can be run left or right handed (has logos both sides).
- Fully CNC-machined 4-finger lever blade offers 16% more power when compared with a standard 2005 series 2-finger Magura lever blade.
- The lever blade continues on from the previous generation, but with a slightly thicker mid-section to improve stiffness.
- The new lever features a 6mm pivot, so only lever blades with a 6mm drilling will work (which includes the Trialtech Sport Lite Rim Brake Lever Blade).
- Split bar clamp enables easy installation and removal, and the rear facing bolts allow a lower profile to make them more knee/leg friendly!.
- 14mm diameter piston (with twin seal), TPA pin and adjuster are all CNC machined from aluminium alloy to ensure longevity.
- Compatible with all years of Magura and Echo slave cylinders.
- Racing Line's previous bleed screw is replaced by a more conventional bleed bolt with nylon washer.
- Accepts M8 x 0.75mm (standard Magura and Stan Ti shroud nut - neither supplied with the lever) fitting for the main hose.
- Deep red, silver or black anodised body with laser etched graphics and a black lever blade finishes the product off nicely.
- We recommend Magura Royal Blood for use with this product. Other mineral oils can produce a 'stiction' feeling at the lever.
- Weight: 94.9g

Additional Information

Please Note: As with all the Hydraulic Rim Brakes we supply, these levers are only covered under warranty when used with mineral oil. This warranty period covers manufacturing and materials defects for 6 months. However, through our own testing we have found them to work when using Trialtech Rim Brake Fluid or a water and anti-freeze solution.


There are currently no questions relating to this product.


Write a review


Based on 1 customer rating


Really good but not excellent

Posted by URAN

Hi! I wanna make some review of this lever, cause i had couple of racing line levers before and offeder a huge hope to this lever... First of all i will tell about cons: 1. The bolts are screwed on the other side and they torx - need another tool and also spend more time to set on|off lever. 2. Very weak stock spring in lever for RACING LINE PISTON V2. I have ECHO Cylinders with this lever and with magura royal blood piston goes back with delay. I changed spring in this lever to the magura 2005 lever - this spring more hard than even new racing line spring. Pros: 1. New design amasing 2. All bolts made from titan 3. Really good desicion with bolt for pumping :)

Reply from TartyBikes

Hi Uran - Thanks for the detailed review! It's good to hear your feedback. We're sorry you had problems with your original spring. This isn't something we've heard of before, so apologies that you had those issues. I'm glad you've resolved them though.
