Jitsie Varial 370 20"

Product code: 13294

£112.50

In stock

Jitsie Varial 370 20"

4-Bolt Only
Post Mount Only

Sold out

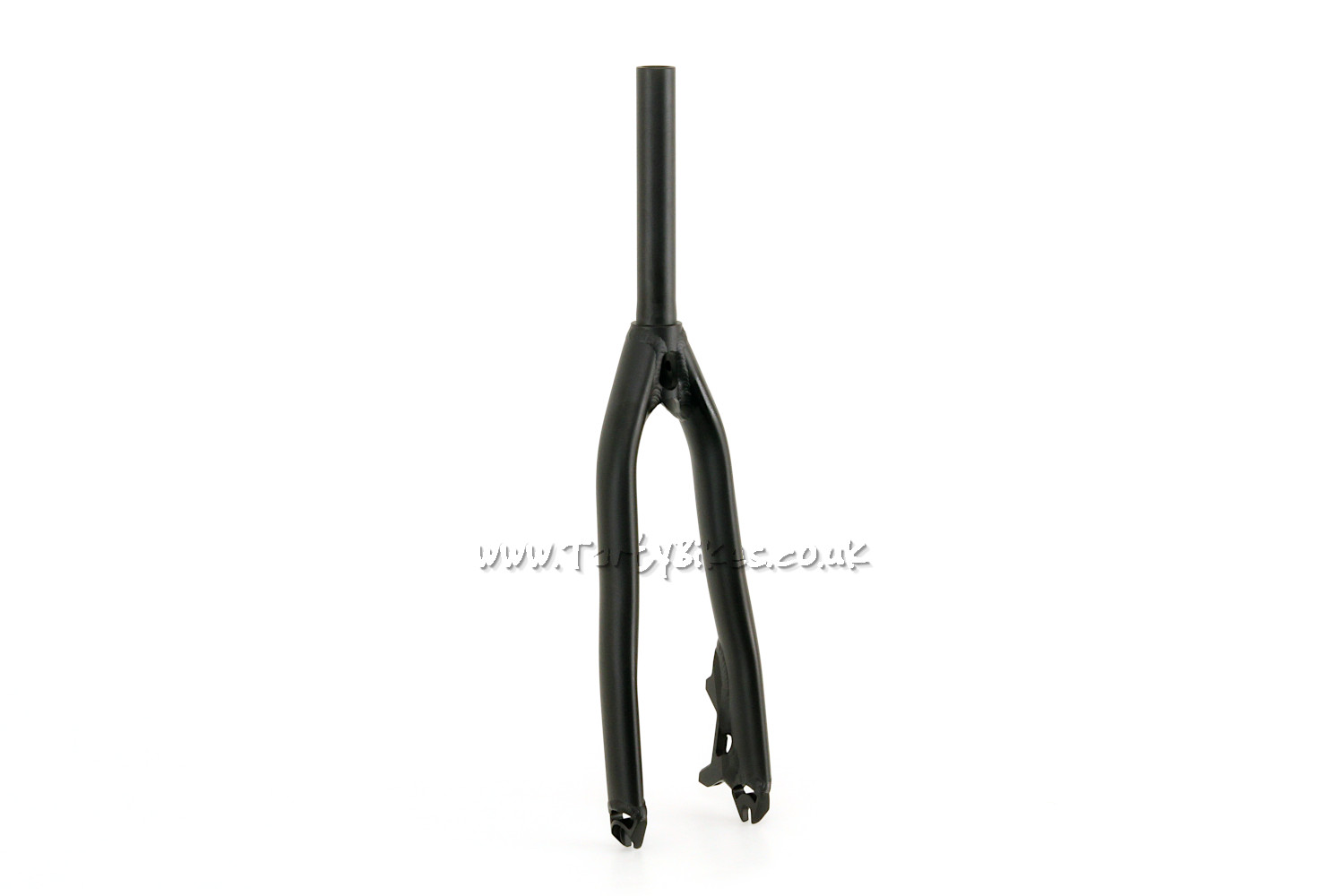

- 7005 T6 aluminium trials-specific fork from Jitsie, as fitted to their Varial complete bikes.
- Tested by the Jitsie team including Dani Comas and our very own Adam Morewood!
- Custom CNC machined dropouts have a larger top section to provide more weld contact area for the fork leg, improving strength.
- 10mm dropout slots are suitable for use with almost all trials hubs.
- One piece steerer tube with 4mm upper wall which becomes substantially thicker nearer the crown area overcomes problems seen on pressed and welded steerers (requires Large TartyBikes Star Nut).
- 4 bolt mounts on the rear of the fork, spaced at 85mm, feature a weld line that runs from the top of the mount up to the crown, removing the stress riser associated with the top of 4-bolt mount welds.
- Also available with CNC-machined Post Mount braking option.
- Ovalised tubing used for the fork blades provides an excellent strength to weight ratio (also giving a larger contact/weld area at the crown).
- Shot blast anodised black finish is complimented by striking white Jitsie graphics.
- Weight: 734g (4-Bolt Only)
- Please Note: Does not include star nut.

Fork Dimensions

- Axle to Crown length: 370mm
- Axle Offset: 45mm
- Steerer tube length: 195mm

Additional Information

Please note that due to the design limitations of 4-Bolt forks, they are always less durable than the same model without the 4-Bolt mount fitted. The stiff section where the mount is located causes a stress riser, and this makes the fork more likely to break. We therefore advise that forks fitted with a 4-Bolt brake mount will always fail earlier than the same fork without this mount attached.

Questions

Giovanni

Will this fork work echo hubs or not? If not, it's possible to machine/enlarge the dropouts? Also the headset race is not integrated right? Thank you!

Posted by Giovanni on 03/12/2016

Reply from TartyBikes on 05/12/2016

Hi Giovanni - The crown race is not an integrated design, so you would need to use a crown race on these forks. The forks have 10mm dropouts so will work fine with your Echo hub. Thanks, Mark
