Crewkerz WAW Disc Rear Hub

Product code: 14465

Overview
Additional Information
Questions

Equipped as standard on Crewkerz Jealousy 20" bikes!

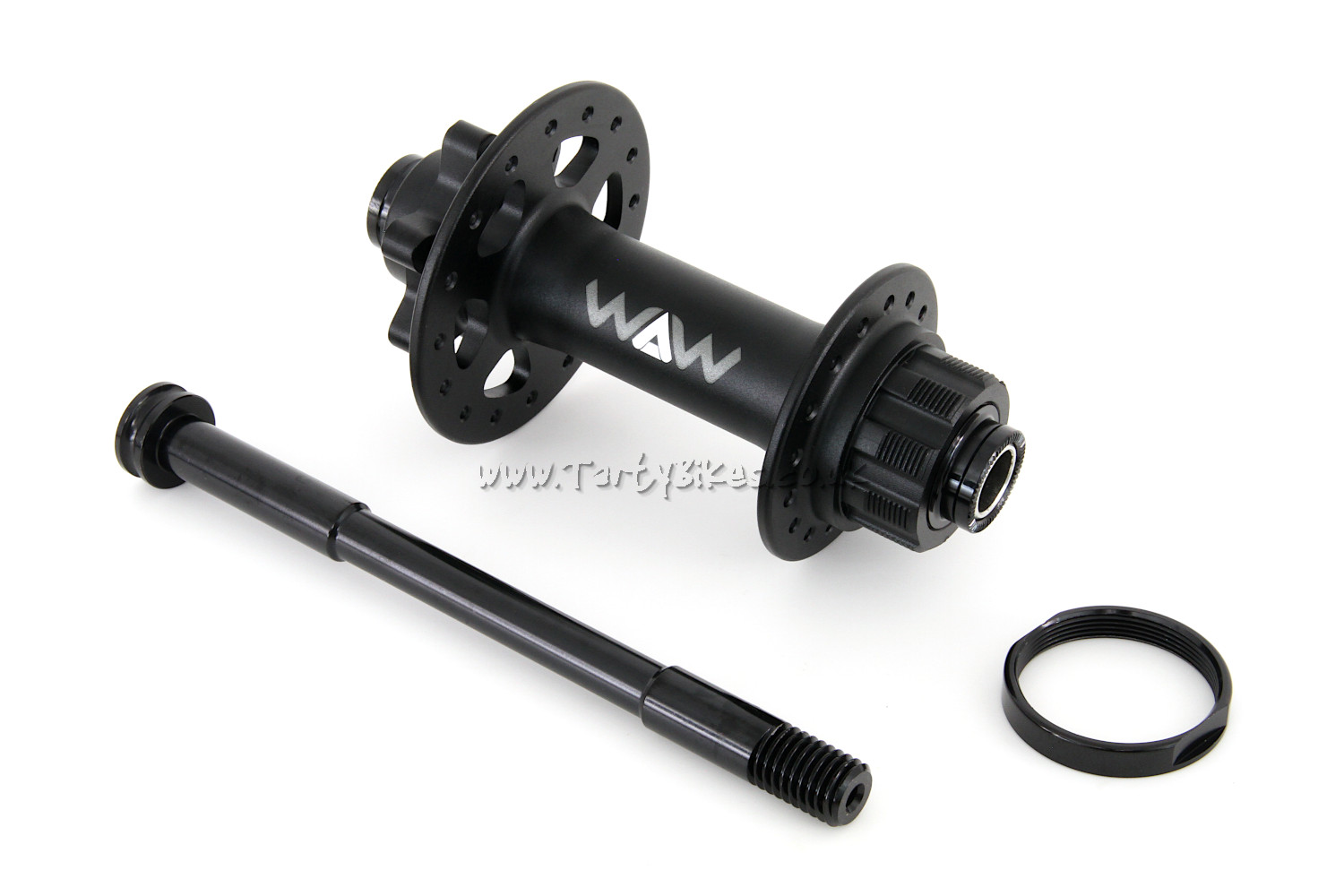

Supplied with 12mm through axle and sprocket lock ring.
Available in 32h only

- Top quality rear disc hub from Crewkerz as used on their Jealousy 20" bikes!
- 12mm through axle system improves strength and stiffness.
- Hub is supplied with a matching black WAW 12mm axle with a machined centre for reduced axle weight.
- Sealed cartridge bearings for smooth operation and long service life.
- Splined sprocket fitment is compatible with Shimano HG spline fixed sprockets, lock ring included!
- 32H spoke drilling ideal for use with modern rear, comp rims.
- 135mm OLD spacing, may be suitable for use with compatible 135 x 12mm frames.
- Tough anodised satin black finish with subtle Crewkerz WAW logos.
- Weight: 226.2g (with axle and lockring)

Hub Dimensions

Non Drive Side:
- Flange Diameter: 62mm
- Centre to Flange: 33mm

Drive Side:
- Flange Diameter: 46mm
- Centre to Flange: 38mm

Additional Information

We recommend a splined sprocket with a thickness of between 5 and 7.5mm. Sprockets less than 5mm thick at the spline will not allow the lockring to tighten fully. Sprockets wider than 7.5mm may mean the lock ring does not engage fully with the thread on the hub spline. Incorrect sprocket use may result in damage to the hub, which will not be covered under warranty.

We stock genuine replacement WAW spline sprockets from Crewkerz! You can find 15T WAW spline sprockets here. 12T WAW splined sprockets can be found here.

Questions

Ask a question

There are currently no questions relating to this product.
