- Packed with modern features: 135 x 12mm through axle, tapered head tube, and post tensioner mount!
- Modern geometry suitable for top level competition riding.

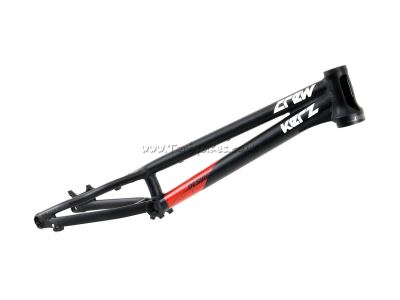

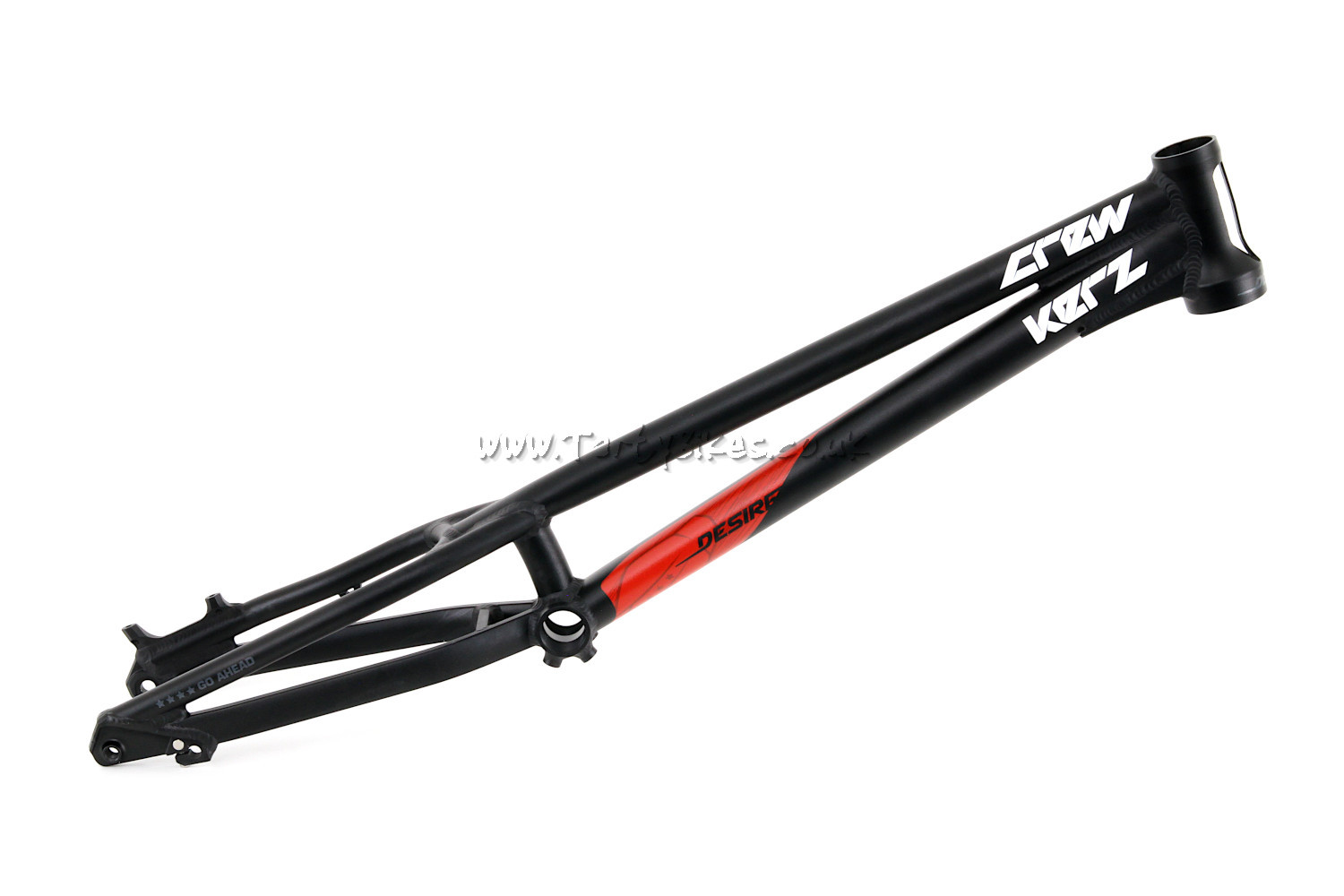

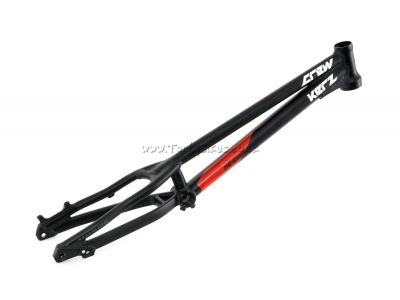

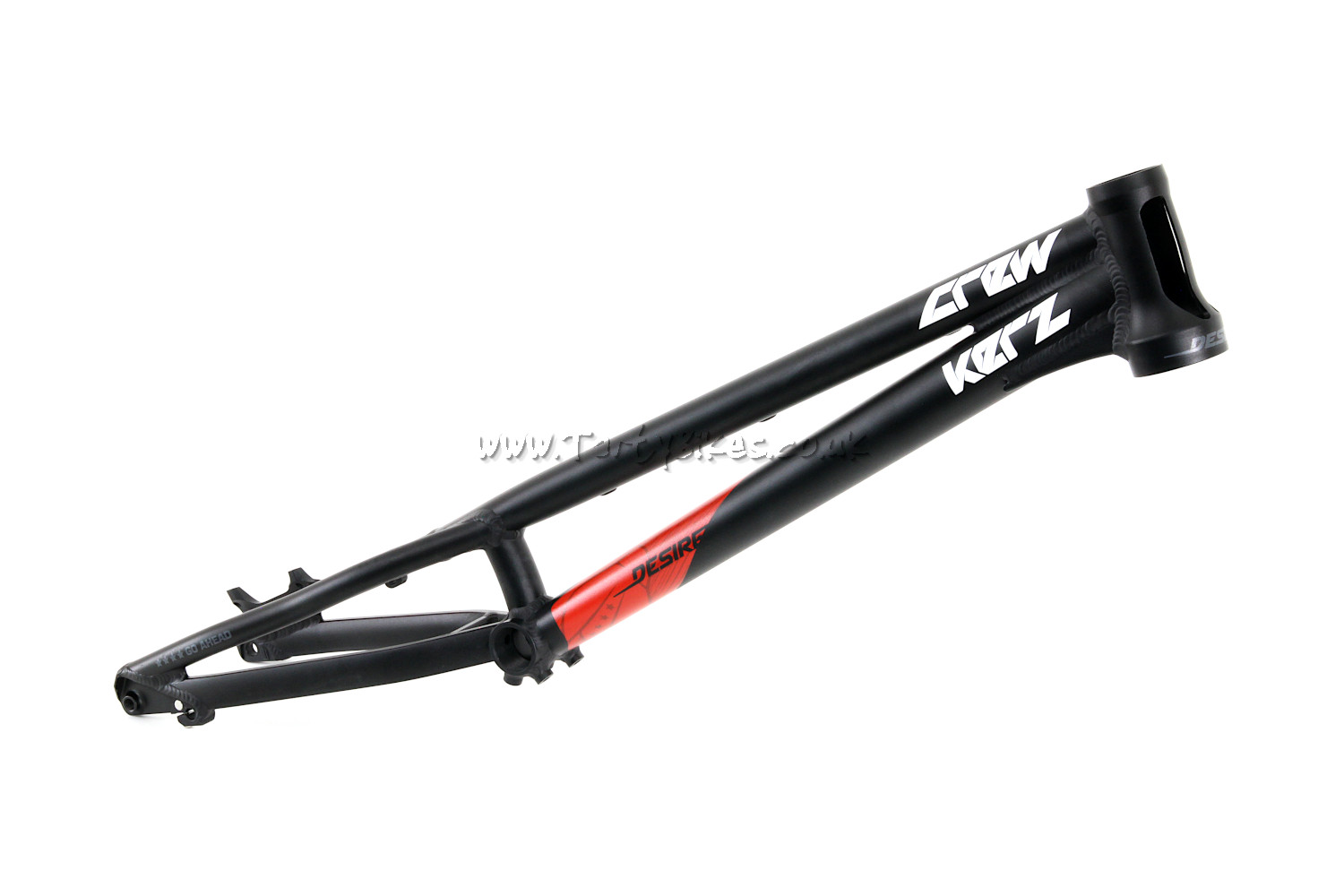

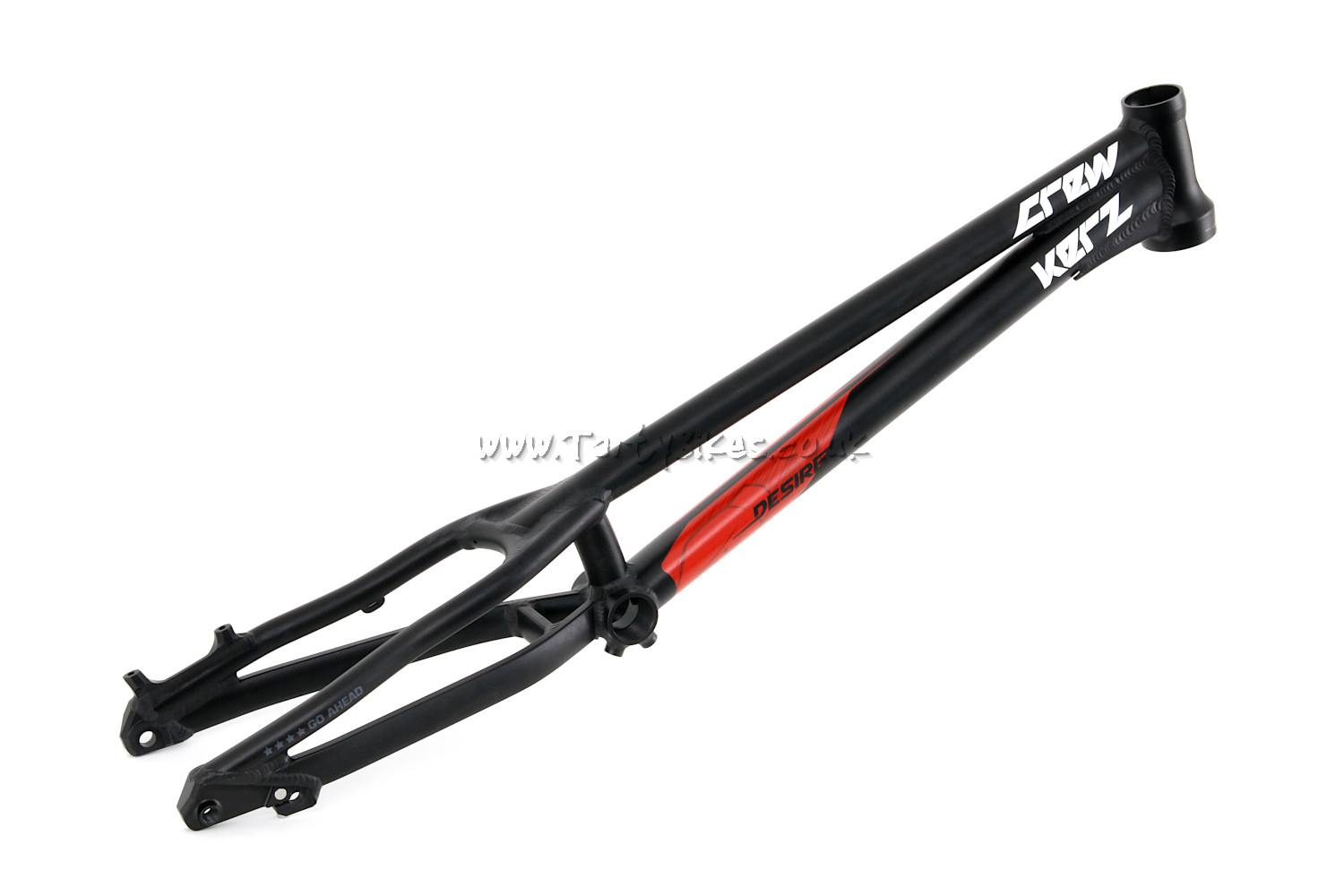

- Great value frame from French brand, Crewkerz, with modern features and geometry for a performance focussed ride!
- Constructed from 6061-T6 aluminium and utilizing stiffer 7075-T6 aluminium for CNC components for high strength, and low weight.

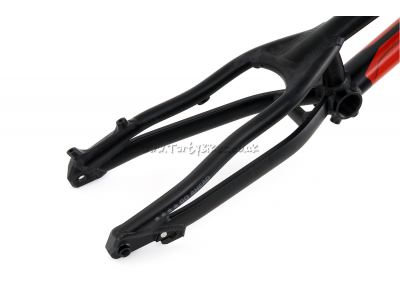

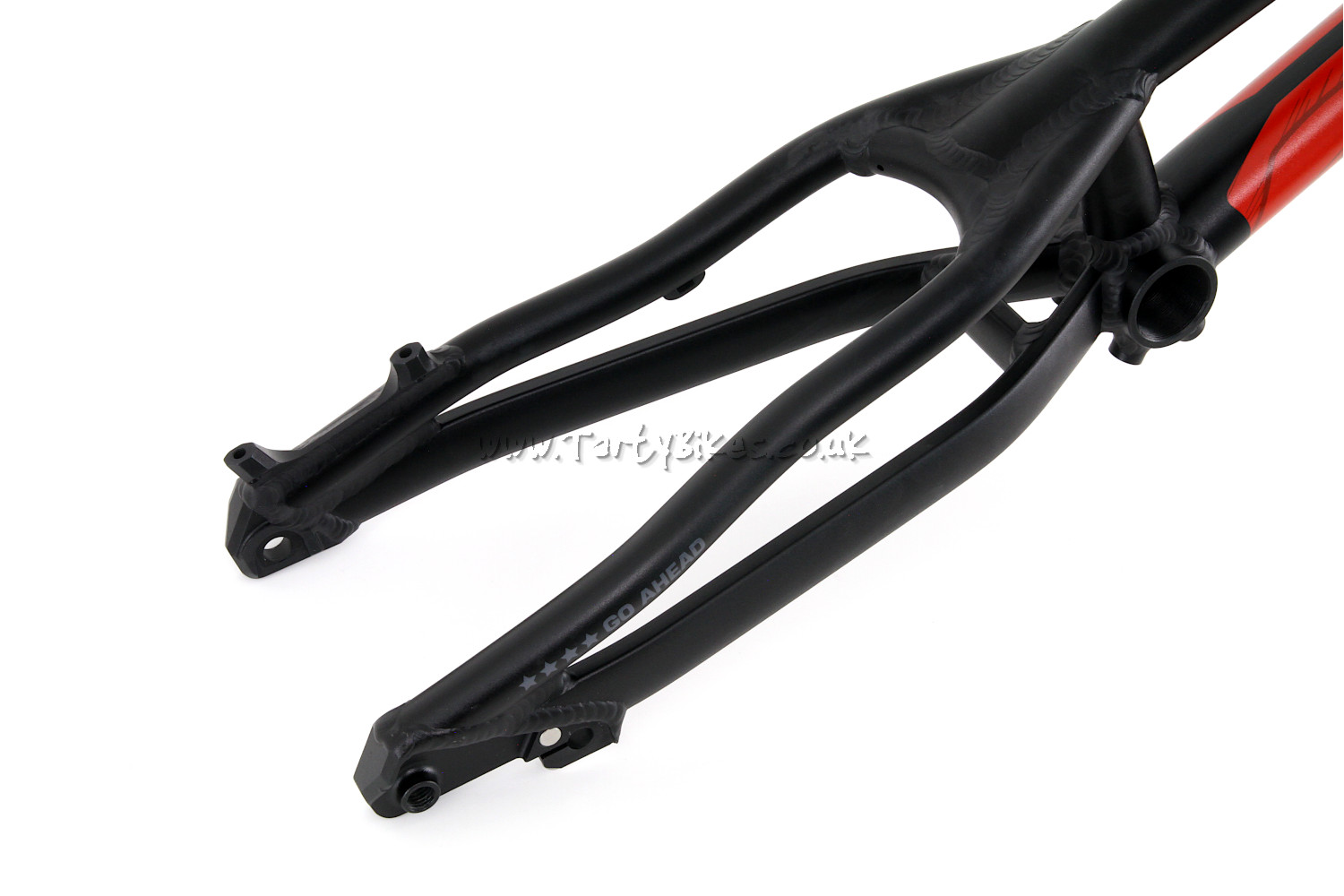

- 135 x 12mm rear through axle drop-outs work with a wide variety of fixed and free hubs. CNC machined dropouts ensure a precision fit, and high strength in this area.
Crewkerz WAW axles are available separately.
- 10mm post tensioner mount works perfectly with
Crewkerz and
Clean post mount tensioners.

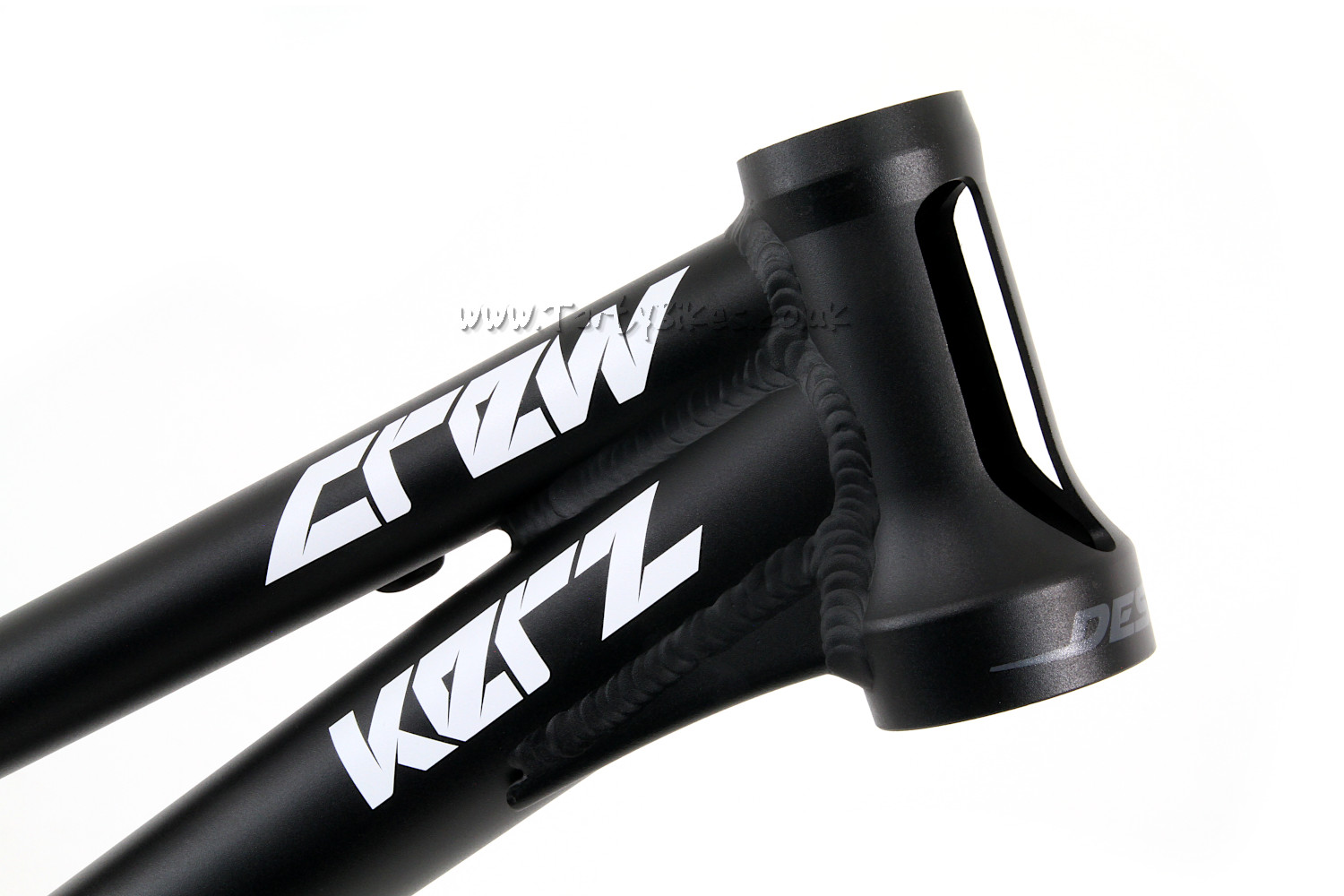

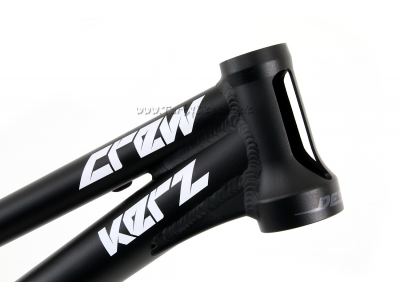

- A tapered 120mm head tube uses a
1-1/8" - 1.5" internal headset, compatible with modern tapered steerer forks. Chunky welds and a large down tube gusset ensure maximum strength in this high stress area.
- Standard 68mm BSA bottom bracket shell features mounts for a BB mounted bash guard. The
Crewkerz WAW Bash Plate is the perfect match!
- Box section chain stays, a completely welded seat tube / seat stay, junction and bracing piece behind the BB keep the rear end stiff and strong for those static power moves while allowing ample tyre clearance.
- A post mount calliper mount is welded along its entire length for increased strength. Callipers can be mounted directly to the frame when a 160mm rotor is used.
- Durable, satin black anodised finish with stylish, red printed Crewkerz graphics.
- Weight: 1.78kg
Geometry (Measured by TartyBikes, with Crewkerz Desire 20" fork):
- Wheelbase: 1010mm
- Chainstay: 350mm
- BB Height: +83mm
- Head Angle: 71.5°
- Reach (from centre of BB shell to top centre of head tube): 610mm
Reach: 480mm
Stack: 370mm
