Crewkerz Integrated Tapered Headset

Product code: 14523

Overview
Questions

Only compatible with integrated headset frames with tapered head tubes.

- Top quality sealed bearing headset from Crewkerz.
- As used on their latest range topping Crewkerz WAW Ultimate bikes.
- Integrated design sees the bearing run directly on the frame. NOT compatible with regular/standard or internal headsets.
- Tapered system features an upper bearing to suit a 1 1/8" steerer tube, and a lower bearing to suit a 1.5" steerer tube.

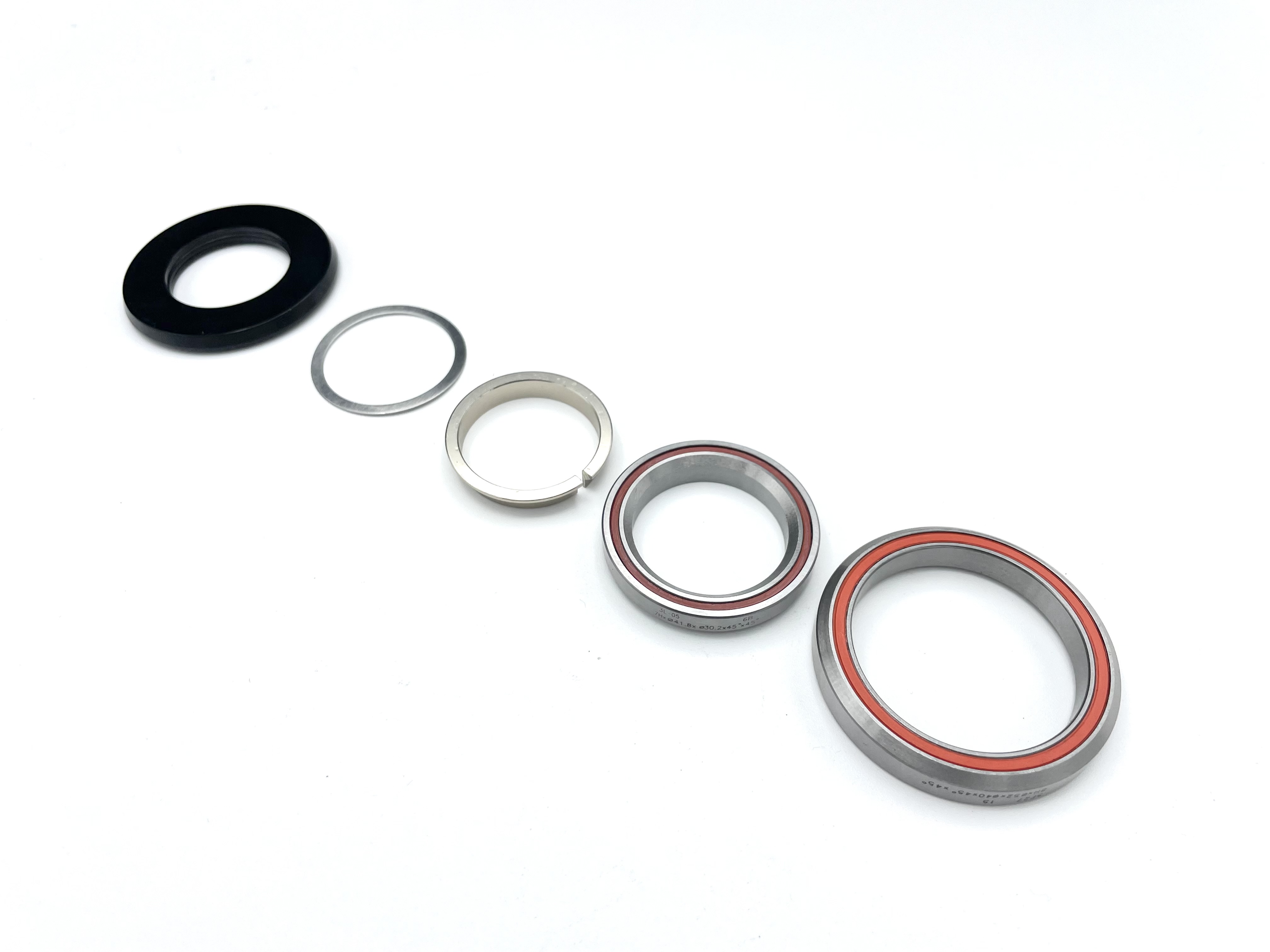

- Supplied as a kit comprised of a pair of bearings, crown race, top split wedge, shim and top bearing cover.
- Weight: 65g

Bearing Dimensions:
- Upper
45° inner race angle
45° outer race angle
41.8mm outside diameter
30.2mm inner diameter
7mm overall depth

- Lower
45° inner race angle
45° outer race angle
52mm outside diameter
40mm inner diameter
8mm overall depth
