Crewkerz AS30 WAW Forged Crank Set

Product code: 14106

$275.03

Check Stock

Crewkerz AS30 WAW Forged Crank Set

160mm, Black
165mm, Black / Red
170mm, Black

Sold out

Now available in 160mm length!

  • Compatible with AS30 frames (e.g. Clean K1/X2, Crewkerz Jealousy).
- Forged crank arm 7075-T6 aluminium alloy construction for strength, with CNC machining to get rid of excess material on the rear of the crank arms.
- Unique press fit crank spindle uses a proprietary splined design to secure the spindle to the right-hand crank. This increases strength and load capacity, but the installation process does leave minor marks on the outer edge of the spindle spline on the right-hand crank. This is the big 'ring' just behind the WAW logos on the right-hand crank.
- 30mm diameter axle combined with unique 8 spline interface for the left hand crank arm ensures maximum stiffness and rigidity.
- Centre of the crank axle is machined down to 29mm to save weight!
- Shimano style pinch bolts and preload bolts on the left-hand crank make installation and BB bearing adjustment easy.
- Shimano-HG splined section on the axle allows the use of a range of freewheels, including the Crewkerz Splined 108.9 and Clean 135.9 Splined freewheels.
- Can also be used with a Clean 18T BB30 Splined Sprocket if you're running a rear free hub instead of a front freewheel.
- 170mm kit is supplied with the Crewkerz WAW AS30 Bash Ring, which is also sold separately if you need a replacement!

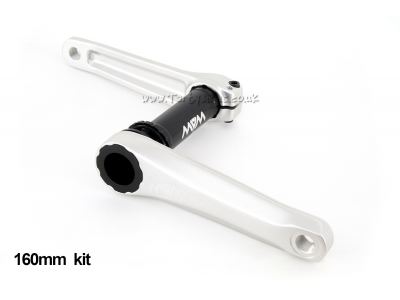

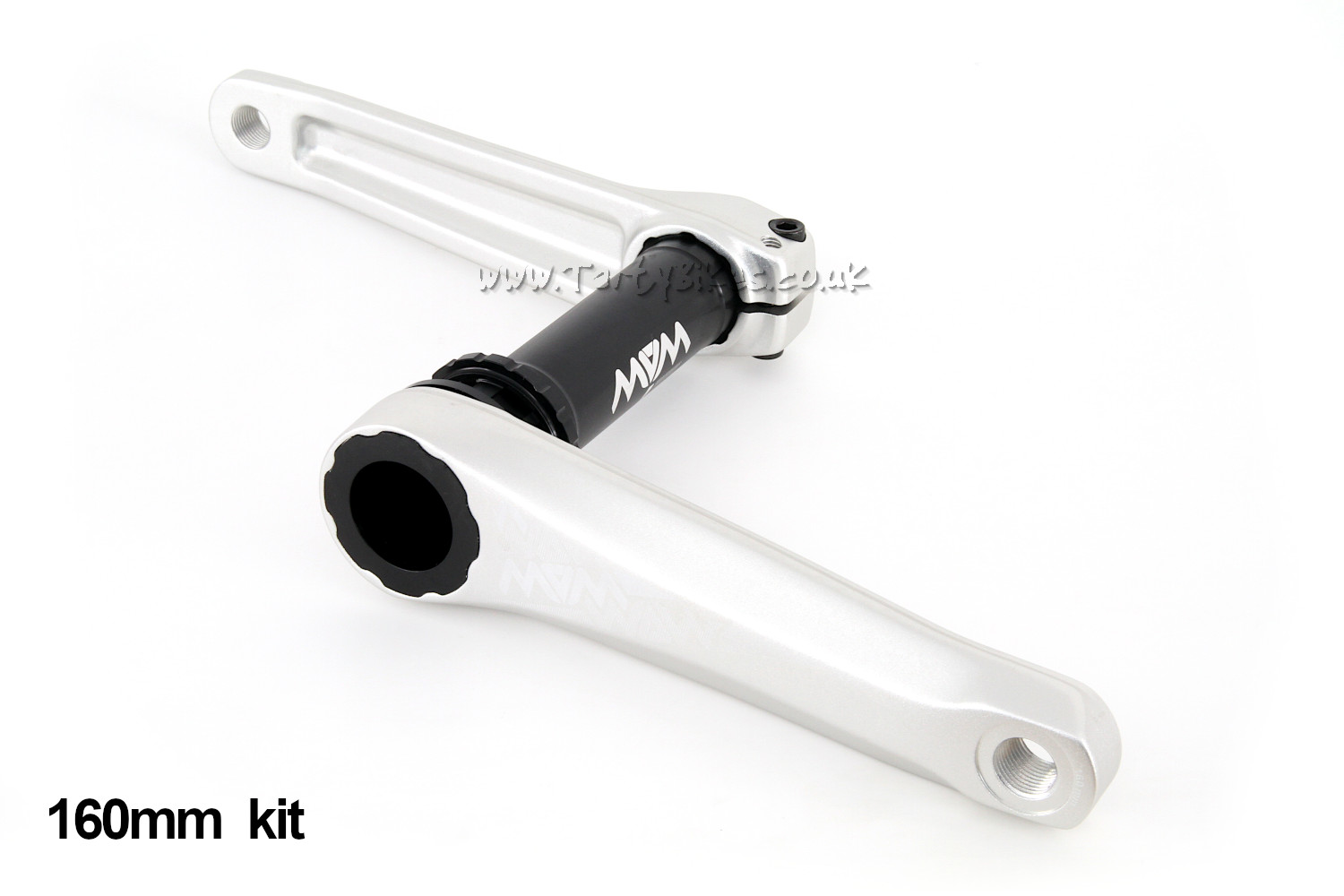

- 160mm kit is supplied with a 3mm alloy spacer instead of a bash ring.
- This splined freewheel system makes installing and removing freewheels super easy, and can help reduce chain tension fluctuations commonly found on screw-on crank arms.
- Threaded freewheel lockring means the freewheel is secured by this independently and does not rely on installing the crank into the BB to hold the freewheel in place.
- Neat steel pin locates the supplied bash ring in place (170mm cranks) or freewheel spacer in place (165mm cranks), preventing twisting in use and when installing the freewheel / crank.
- Can be used with or without a Crewkerz bash ring, but a spacer must be used instead. This spacer is not supplied with the 170mm crank, so if you need one, please get in touch.
- Please note: the preload bolt requires a Shimano splined BB preload tool to adjust.
- Supplied with anodized black press-fit Crewkerz sealed bearing BB.
- This BB is compatible with several frames, including the Clean K1 and X2 frames, Crewkerz Jealousy frames and any other frame that requires a 46mm diameter press-fit BB cup. For Clean X3 alloy frames, the BB bearings are removed from the cups and installed directly into the frame.
- Tough 7075-T6 alloy cups ensure good durability.
- Large diameter 6806-series sealed bearings are tough enough to withstand trials usage, whilst also having top quality seals to prevent ingress of water and dirt.
- Tough anodized black finish with laser etched Crewkerz WAW logos.

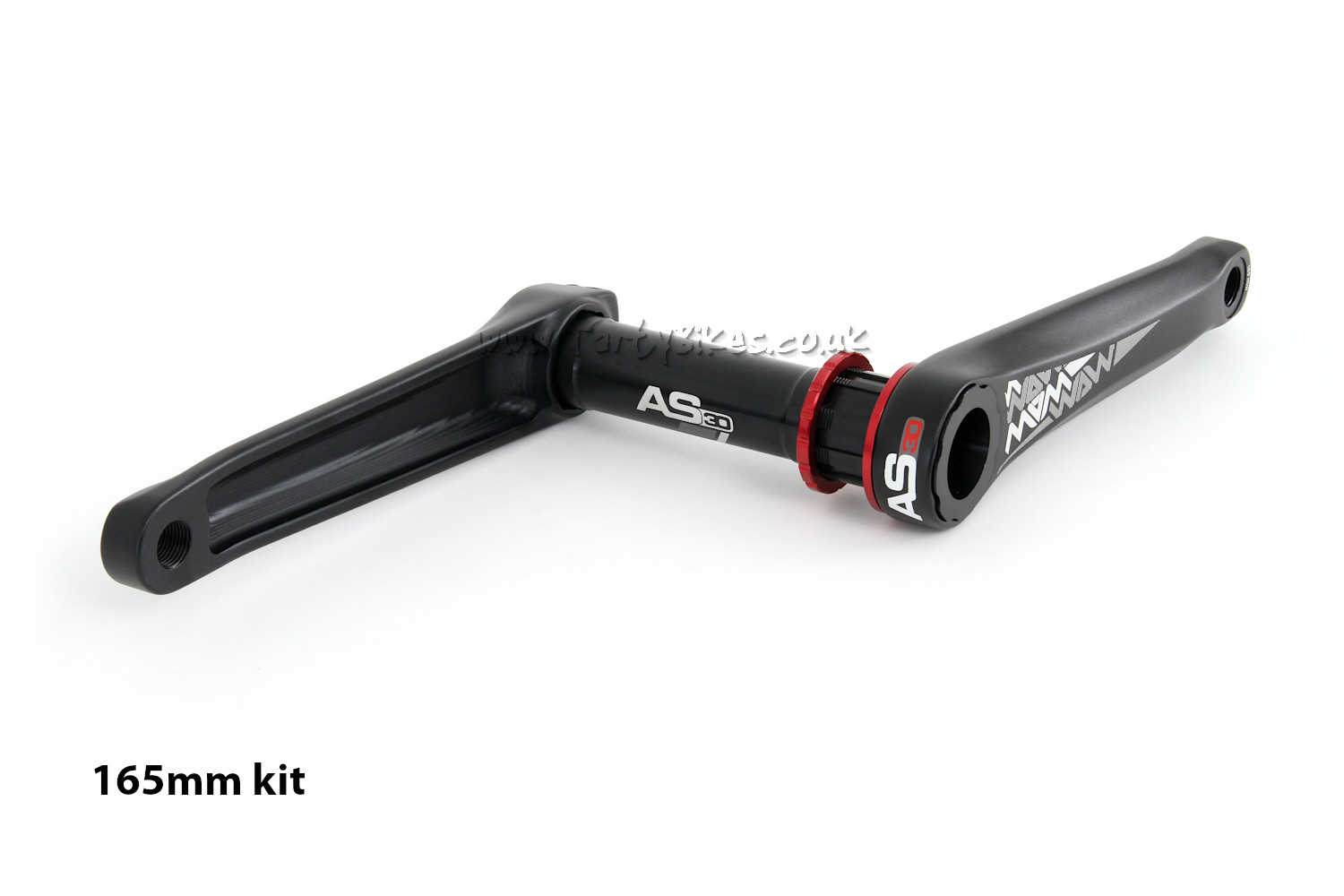

- Available in 170mm length, all black finish, and 165mm length black with anodized red crank bolt, freewheel spacer and lock ring.
- Total crank set kit weights:

170mm, including BB, bash guard, lockring and preload bolt: 680g
165mm, (includes freewheel spacer instead of bash guard): 660g
160mm, (includes freewheel spacer instead of bash guard): 656g

Additional Information

Ensure that your pedals are tightened to at least 310 in-lbs (35 Nm) every 5 minutes for the first few rides. Before fitting, it's also a good idea to make sure your pedal axles are clean (a wire brush works well) then greased before installation.
Similarly, always check the black, M5 pinch bolt torque is at least 70 in-lbs (8 Nm) every 5 minutes for the first few rides, then each and every ride after that.
Failure to keep your pedals or crank bolts tight as described above is likely damage your cranks and this will not be covered under warranty.

- Need a tool to adjust the crank preload bolt? We sell one, here!
