Magura MT4 (No rotor or adaptor)

Product code: 13505

£62.50

On order

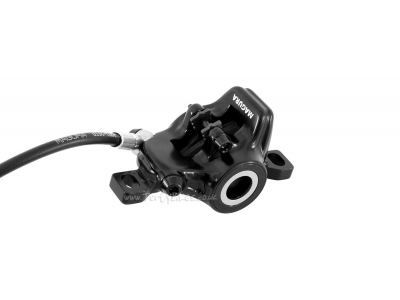

Magura MT4 (No rotor or adaptor)

  • Great value, high performance disc brake.

- Sitting above the MT2 in their range, the Magura MT4 brake is a great value, super powerful brake.
- Magura's "Carbotecture" material is again used to construct the brake lever.
- Ergonomic lever design feels comfortable to use, and gives a good amount of power.
- Alloy lever blade offers improved power and rigidity over the Carbotecture blade on the MT2.
- Split bar clamp allows easy fitting and removal, without having to take off your grips!
- Utilises Magura's tried and tested sealing system, designed to work flawlessly with mineral oil.
- Bleeding is quick and easy thanks to simple bleed plug.
- Specially selected hydraulic piston ratios give good mechanical advantage and enhanced braking power.
- Large, two-piston design gives ample power.
- Post mount fitting is ideal for many of the new frames on the market.
- Only available in Black.
- Brakes are supplied with 220cm hose, so can be used for front or rear, and come with all the necessary fittings to shorten the hose to your desired length (for assistance, you can refer to the manual supplied with the brake, or Magura's website).
- Brakes supplied pre-bled with bolts and hose fittings, without rotor or adaptor.. If you require an IS adaptor, please see the additional information tab.
- Sold individually.
- Weight: 241g

Upgrades over the MT2 brakes:
- Alloy lever blade.
- Upgraded hose.
- Upgraded brake fittings.
- Improved caliper body.

We have made a disc brake guidance and information sheet which will be very useful if you are not experienced with disc brakes (or even if you are!). We strongly recommend having a look over it before fitting your new brake. This can be downloaded here.

Important Information:

To correctly fit the lever to the handlebar, the bolt with the arrows pointing towards it must be gently tightened first until the gap is closed, then the other bolt should be nipped down. Do NOT tighten this bolt right down, normally there will be a gap of around 2-3mm when the lever is tight on the bars. Over-tightening the bolts or not following this procedure is likely to crack the lever clamp and this is not covered under warranty.

Additional Information

Please note that both Magura and Hope IS adaptors will work with these measurements.

Please read down the list of brake options to the one you wish to use, then you can see which rotor and adaptor to purchase separately:

- 160mm front brake with:
Post Mount fork = 160mm rotor and no adaptor
IS fork = 160mm rotor and adaptor A (please you will need to add 2.5mm of washers between the adaptor and the caliper).
+20 fork = Not possible
+30 fork = Not possible

- 180mm front brake with:
IS fork = 180mm rotor and adaptor F
+20 fork = 180mm rotor and adaptor A
+30 fork: Not possible

- 200mm front brake with:
IS fork = 200mm rotor and adaptor B
+20 fork = 200mm rotor and adaptor F
+30 fork: Not possible

- 160mm rear brake with:
Post Mount frame = 160mm rotor and no adaptor
IS frame = 160mm rotor and adaptor F
+20 frame = 160mm rotor and adaptor A
+40 frame = Not possible
+50 frame = Not possible

- 180mm rear brake with:
Post Mount frame = 180mm rotor and +20PM adaptor (we do not sell this item)
IS frame = 180mm rotor and adaptor B
+20 frame = 180mm rotor and adaptor F
+40 frame = 180mm rotor and adaptor A

- 200mm rear brake with:
Post Mount frame = 200mm rotor and +40PM adaptor
IS frame = Not possible using items we sell, and not recommended as it is highly likely to break your frame
+20 frame = 200mm rotor and adaptor B
+40 frame = 200mm rotor and adaptor F

Questions

Cody-Rhys

Hey I got an Echo czar 24inch and were looking at getting these brakes what adapters would I need.

Posted by Cody-Rhys

Reply from TartyBikes

Hi Cody-Rhys!
If you're looking to keep using the existing 180mm rotors supplied on the Czar 24", then you would need to add 2 of the QM12 Adaptors from this page.
Although it says that they are for a 160mm rear rotor, the Czar frame has a +20mm mount so it would actually make it suitable for a 180mm rear rotor. Hopefully that makes sense.
If you have any other questions feel free to ask!

Reviews

Write a review

100%

Based on 1 customer rating

emad

Fantastic braking

Posted by emad

The brakes are very powerful in braking, and give great control over the bike, and the black color gives it a wonderful view.

Reply from TartyBikes

Hi Emad - It's good to hear you like your new brakes, thanks for letting everyone know.
