Magura HC3 Lever Blade

Product code: 13376

£49.17

On order

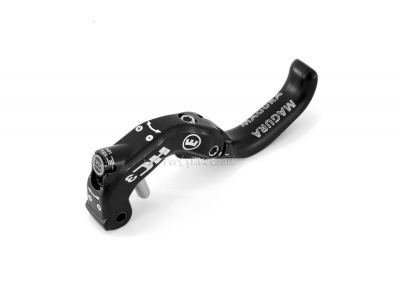

Magura HC3 Lever Blade

  • As fitted to the Magura Danny MacAskill MT7 brakes!
  • Independent Ratio and Reach Adjust.
- New from Magura, as fitted to the Magura MT7 Danny MacAskill Signature Series brakes, the HC3 Lever Blade!
- Compatible with the MT6, MT7 and MT8 disc brakes only, NOT Magura's hydraulic rim brakes.
- CNC-machined alloy blade is tougher than the standard MT6, MT7 or MT8 blades.
- Independent Ratio Adjust dial and Reach Adjust mean you can customise the feel of your brakes like never before.
- Reach Adjust is taken care of by a 3mm allen key, using the pivot in the centre of the lever. Adjusting the blade here means no change to the operation of the brake, simply moving the section of blade your finger will make contact with.
- Ratio Adjust Dial is located nearer the pivot, and is adjusted using a T25 Torx Key. This moves the pushrod relative to the pivot point, changing the mechanical advantage of the lever.
- The rear of the blade has flattened off edges to reduce the chances of cutting your middle finger when pulling the lever hard.
- Recesses machined into the centre of the blade help save weight.
- Supplied with replacement pivot pin and blanking plug - please note: you must replace your BAT adjuster dial (if fitted) with this blanking plug.
- Blades are sold individually, and can be used on either left hand or right hand levers.
- Weight: 38.5g

Questions

jonathan

placing the spring of the handle mt5, 100% function, without having game the handle hc3 in the mt5,thanks!!!!

Posted by jonathan

Reply from TartyBikes

Hi Jonathan!
I'm not sure what you mean, sorry - this can be fitted to the MT4/5 body without the spring and still function correctly, although there can be a small amount of play/float when the lever isn't in use.
It is possible to modify the lever/body slightly to reduce this, but as it doesn't affect the performance of the brake most riders we know with that combination use them without changing anything.

jonathan

this level, is compatible with magura mt5?,thanks!!

Posted by jonathan

Reply from TartyBikes

Hi Jonathan!
It is possible to use these lever blades with the MT5 bodies, but you may notice a very small amount of movement/play in the lever blade when it's not in use. It isn't a large amount and doesn't affect the performance of the brake, but thought you should be aware of it.

Justin Broderick

Hi, I have tried to fit the HC3 lever blades to my Magura MT Sport Trail brakes, they fit great however the return springs are non-existent. Are those available seperately?

Posted by Justin Broderick

Reply from TartyBikes

Hi Justin - Are you referring to springs on the lever blades or inside the lever body? I've fitted those blades to those bodies before and they transferred over without needing to change or adapt anything. If you can e-mail us (tartybikes@gmail.com) with some more info we'll do our best to help out. Thanks, Mark

Tharun Shiv

Hello tartybikes! Would these blades work for magura mt trail brake set!? Thanks!

Posted by Tharun Shiv

Reply from TartyBikes

Hi Tharun - Yes, these should fit those lever bodies fine. Thanks, Mark
