Inspired Hex Pro, 2024

Product code: 14283

From $1864.69 to $2215.90

Check Stock

Inspired Hex Pro, 2024

Hope Tech 3 Trial Zone Brakes
Hope Tech 4 Trial Zone Brakes
Magura MT4 Brakes
Magura MT7 HC3 Brakes

Special order - usually 3-5 working days.

Sold out

This bike is built in our workshop before dispatch, and we often have a queue. The current lead time can be seen by adding this bike to your basket. Some basic assembly is required on arrival, we are happy to help if you need.

New colour for 2024!

  • Tapered head tube, 15mm front through axle and more...
  • Suggested rider height: 5ft 3in / 1.60m and up.
  • New improved integrated bearing head tube!

Need help working out which Inspired bike is best for you? Check out our Buyer's Guide here for all the info you'll need!

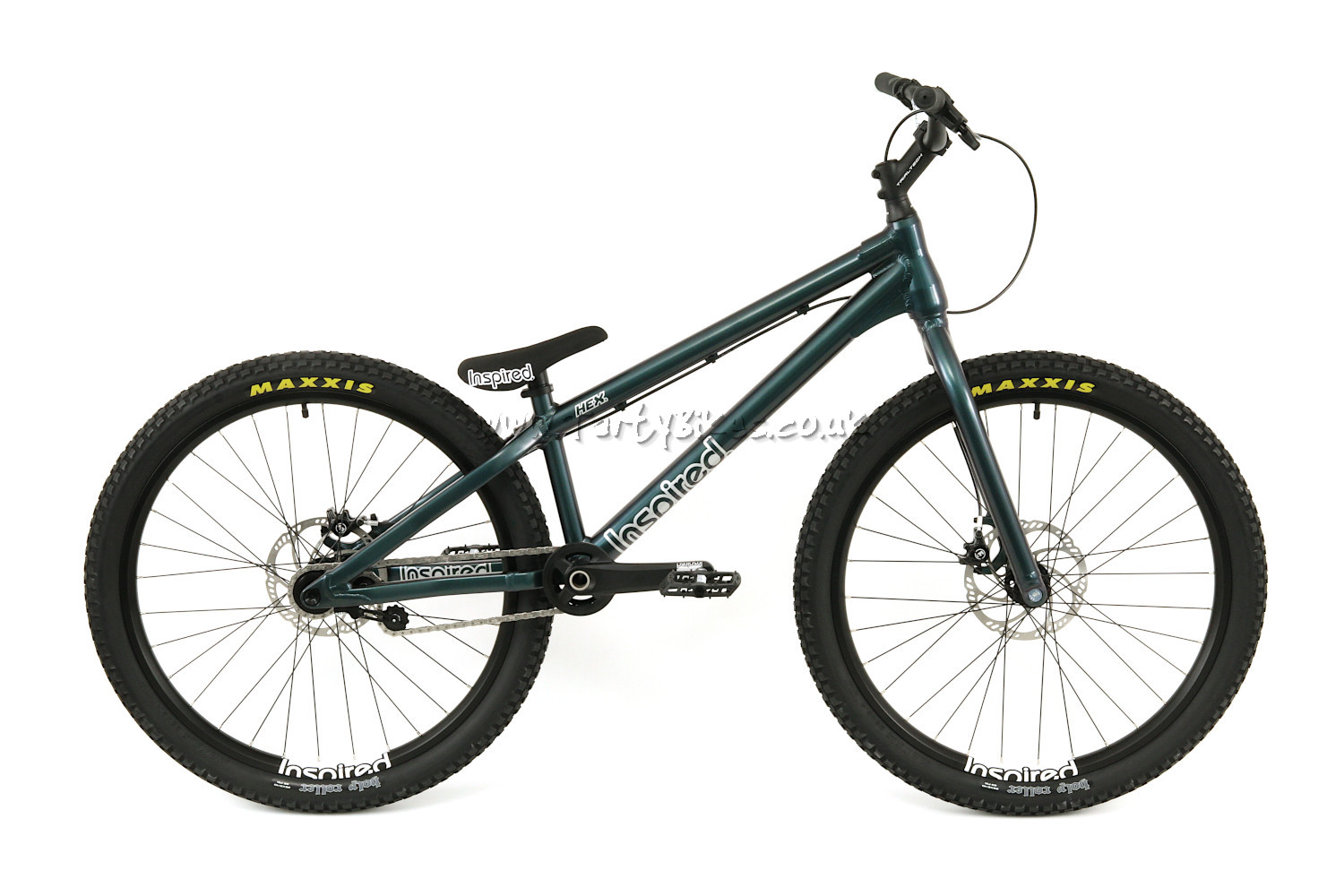

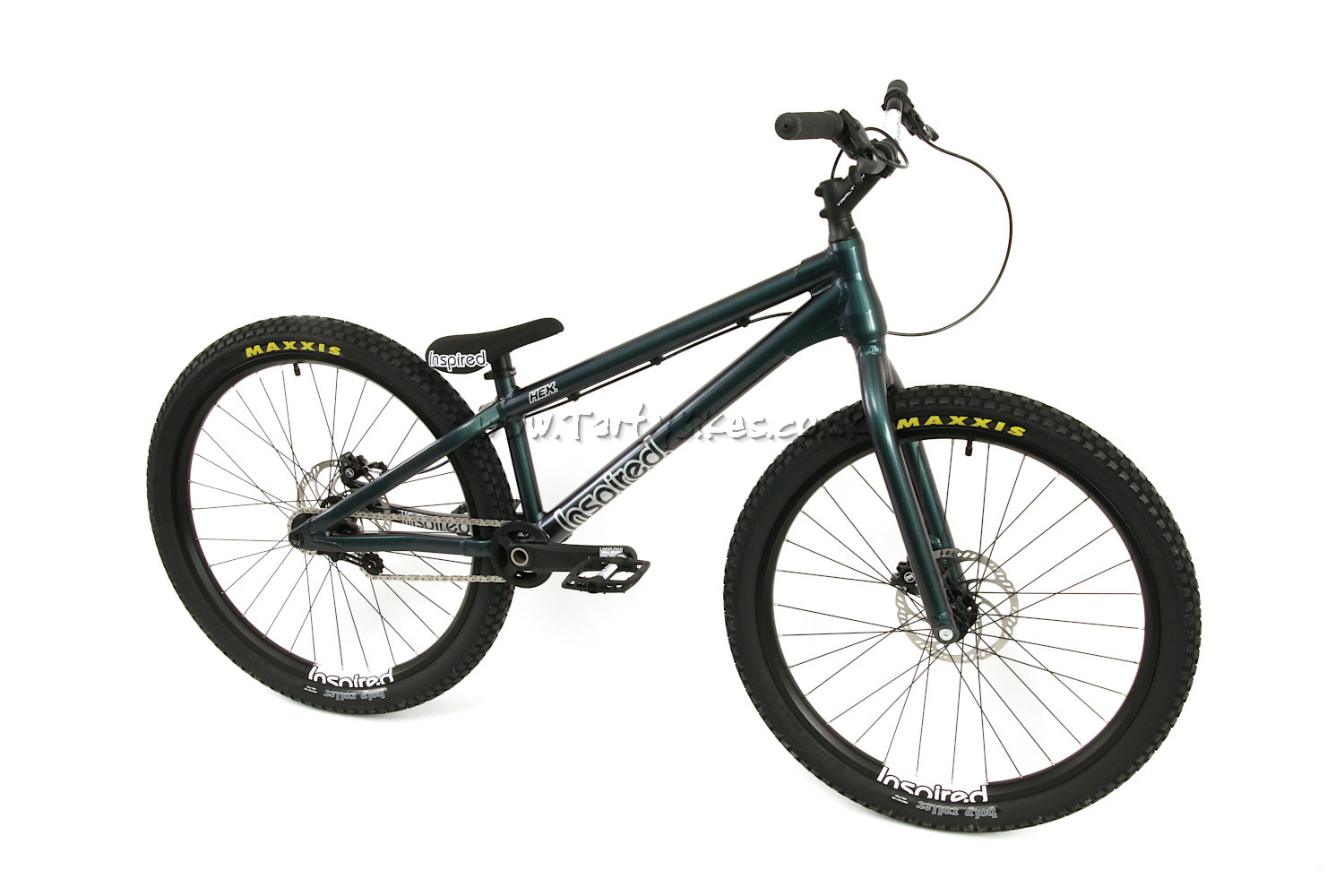

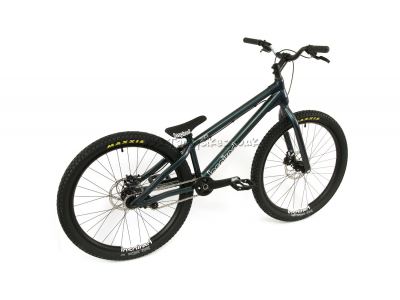

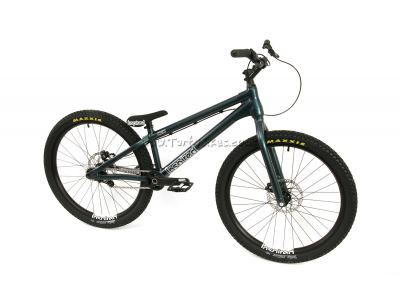

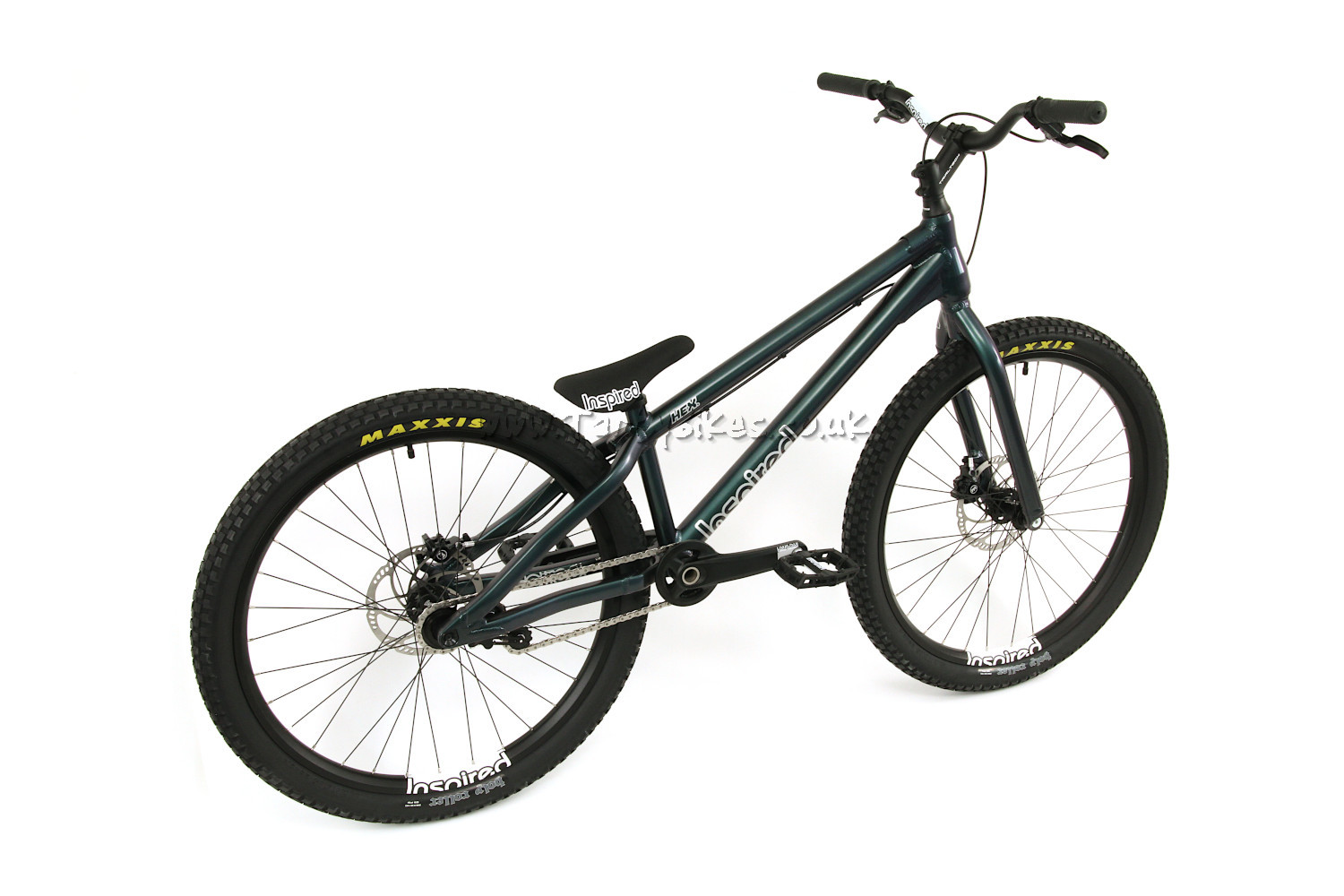

- The Inspired Hex Pro gets a brand-new colour for 2024. The frame and fork are finished in a stunning satin paint that flips between green and purple, depending on the light and viewing angle.
- Based around the latest generation Fourplay, the Hex Pro brings the best of the 24" market to 26"!

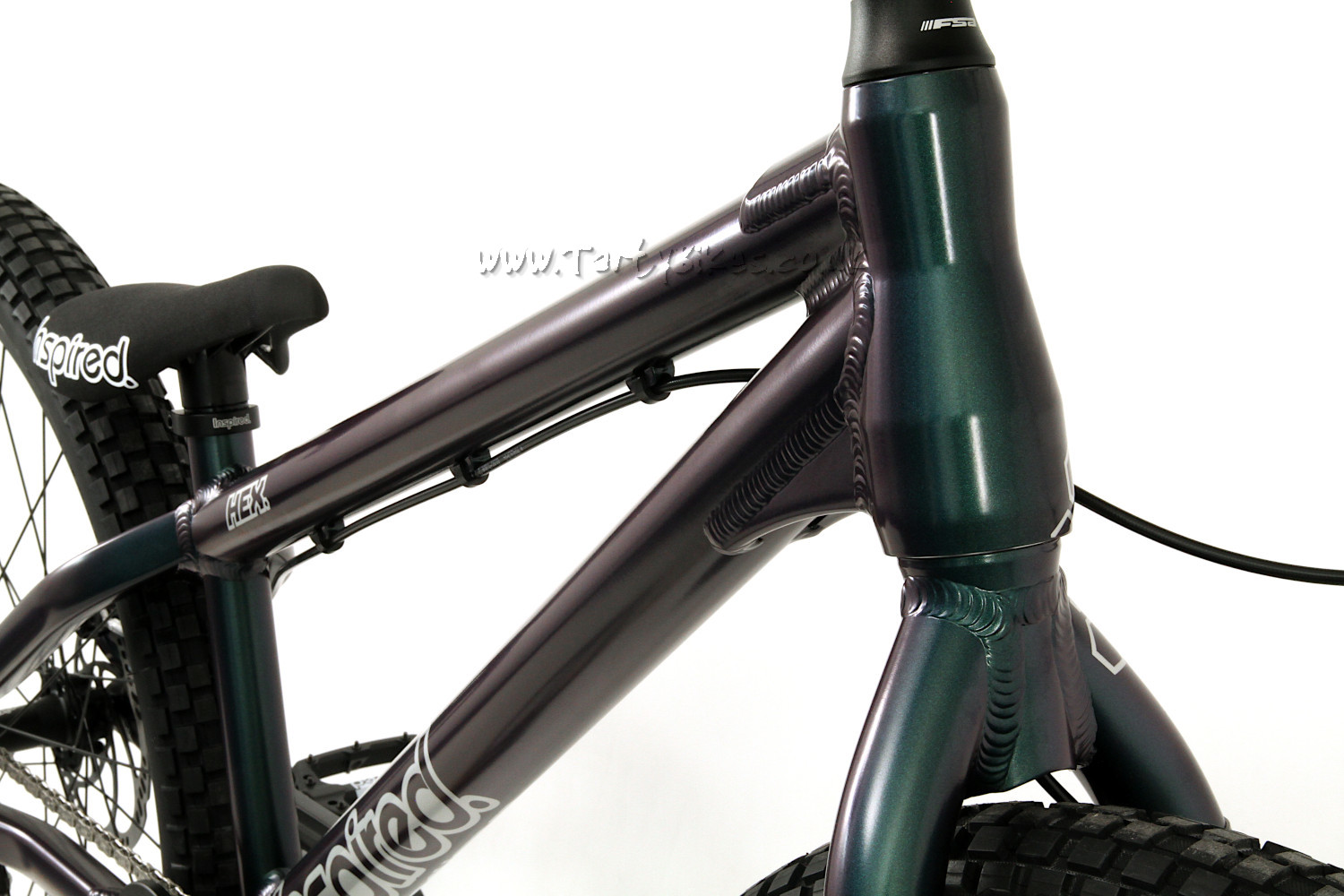

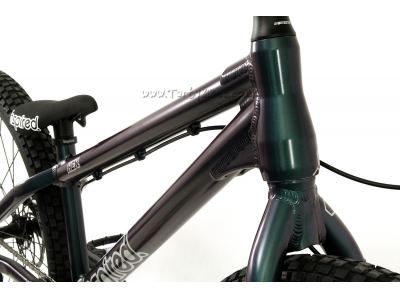

- New head tube design now features fully integrated headset bearings for a cleaner front end whilst saving weight.

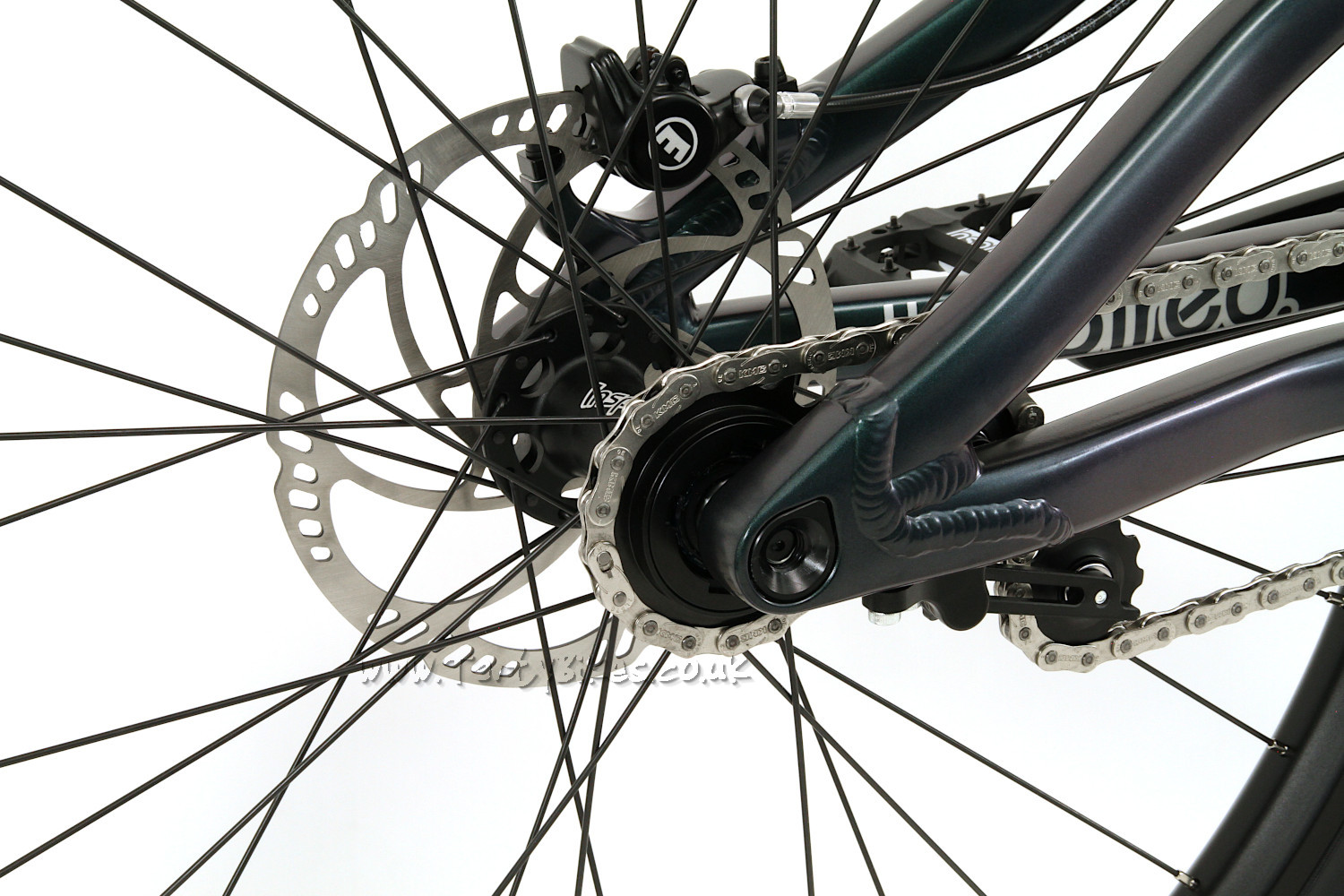

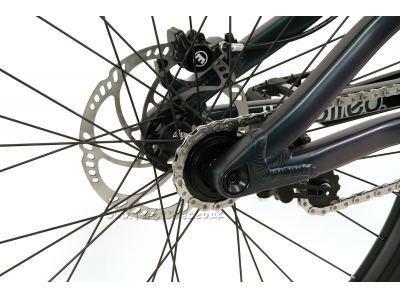

- Features include a tapered head tube, 15mm front through axle, 12mm rear through axle, one-piece drop out/rear Post Mount disc mount, hollow BB yoke and lighter, upgraded tubeset.
- New top cap design screws into the threaded steerer tube and allows the hose to be routed through the steerer if required. We can send the bikes with the hose through the steerer if you like, please also purchase the correct brake model option of this Workshop Item if you would like the hose to be routed through the steerer. If you do not add this item, the bike will be sent with the hose NOT routed through the steerer as shown in the pictures.
- Available in green / purple flip colour only!

Frame and Forks
- Frame: Inspired Hex, Post Mount, 12mm x 135mm Through Axle

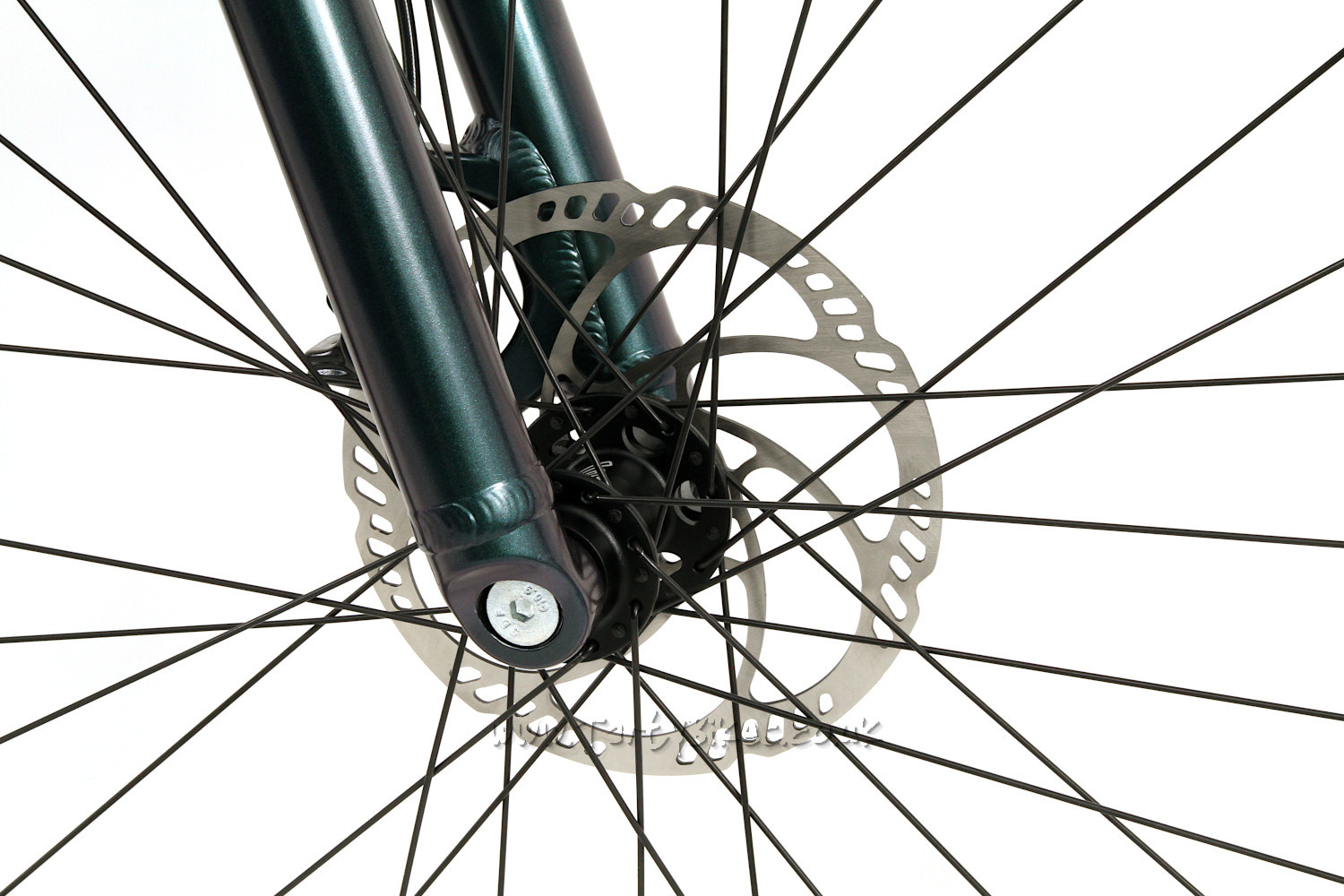

- Forks: Inspired Hex Tapered, Post Mount, 15mm x 100mm Through Axle

Wheels

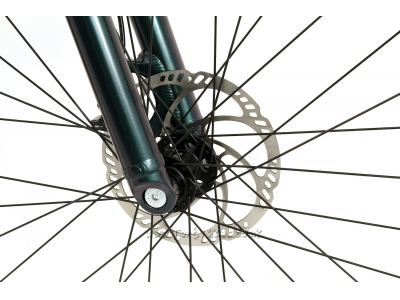

- Front Hub: Inspired Disc V2, 32h, 15mm through axle
- Rear Hub: Inspired Disc V2 Rear, 32h
- Front Rim: Inspired Pro V2 Rim
- Rear Rim: Inspired Pro V2 Rim
- Spokes: Plain Gauge, Stainless
- Rim Tape: Trialtech, Black
- Inner Tubes: Maxxis
- Tyres: Maxxis Holy Roller 26" x 2.4" (pictured)

Brakes
The bike is available with various brake options, listed above. The brake option includes 180mm rotors of matching brand, the brakes are supplied fully bled, fitted to the bike, and ready to go. The photos show the bike with Magura MT4 brake option. The brake hose is not routed through the steerer tube as standard, this is an additional cost which can be added at the time of purchase.
Please note: the warranty for this bike is void if rotors larger than 185mm are used either front or rear.

Drivetrain

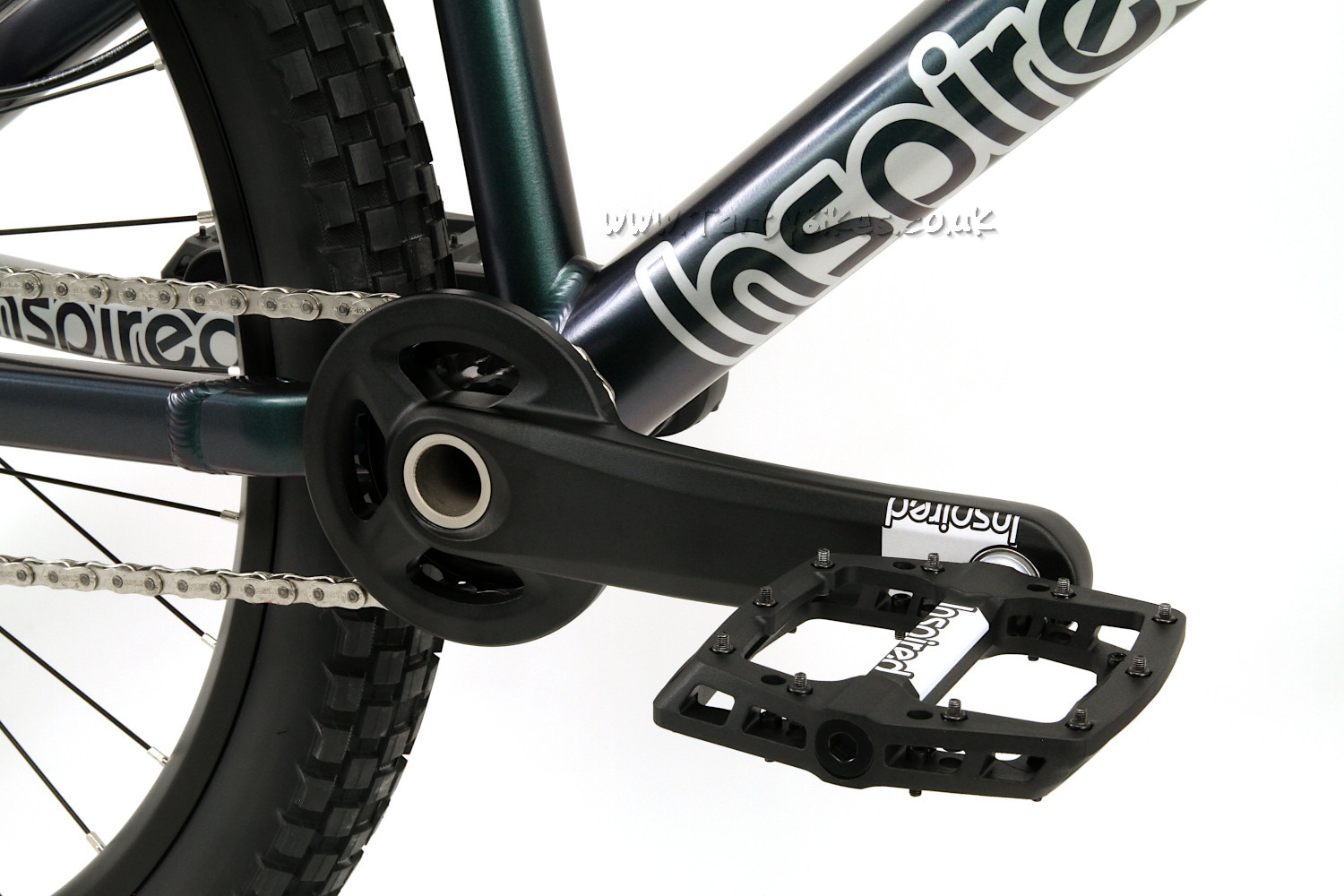

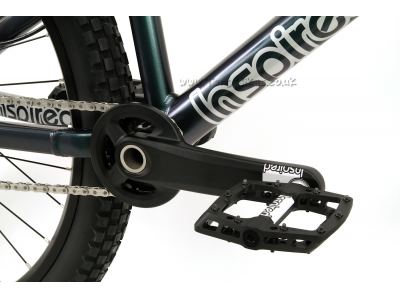

- Cranks: Inspired Pro Crankset, 175mm, 24mm axle, Satin Black
- Bashring: Inspired Pro Integrated
- Chainring: Inspired, 22t
- Chain: KMC Z1eHX
- Rear Sprocket: Trialtech Sport 18T 72-click Freewheel
- Pedals: Inspired Pro Composite
- Bottom Bracket: Inspired Pro Sealed, 24mm Axle
- Tensioner: Inspired Team, 18T

Seating

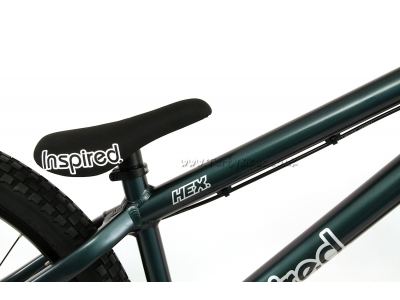

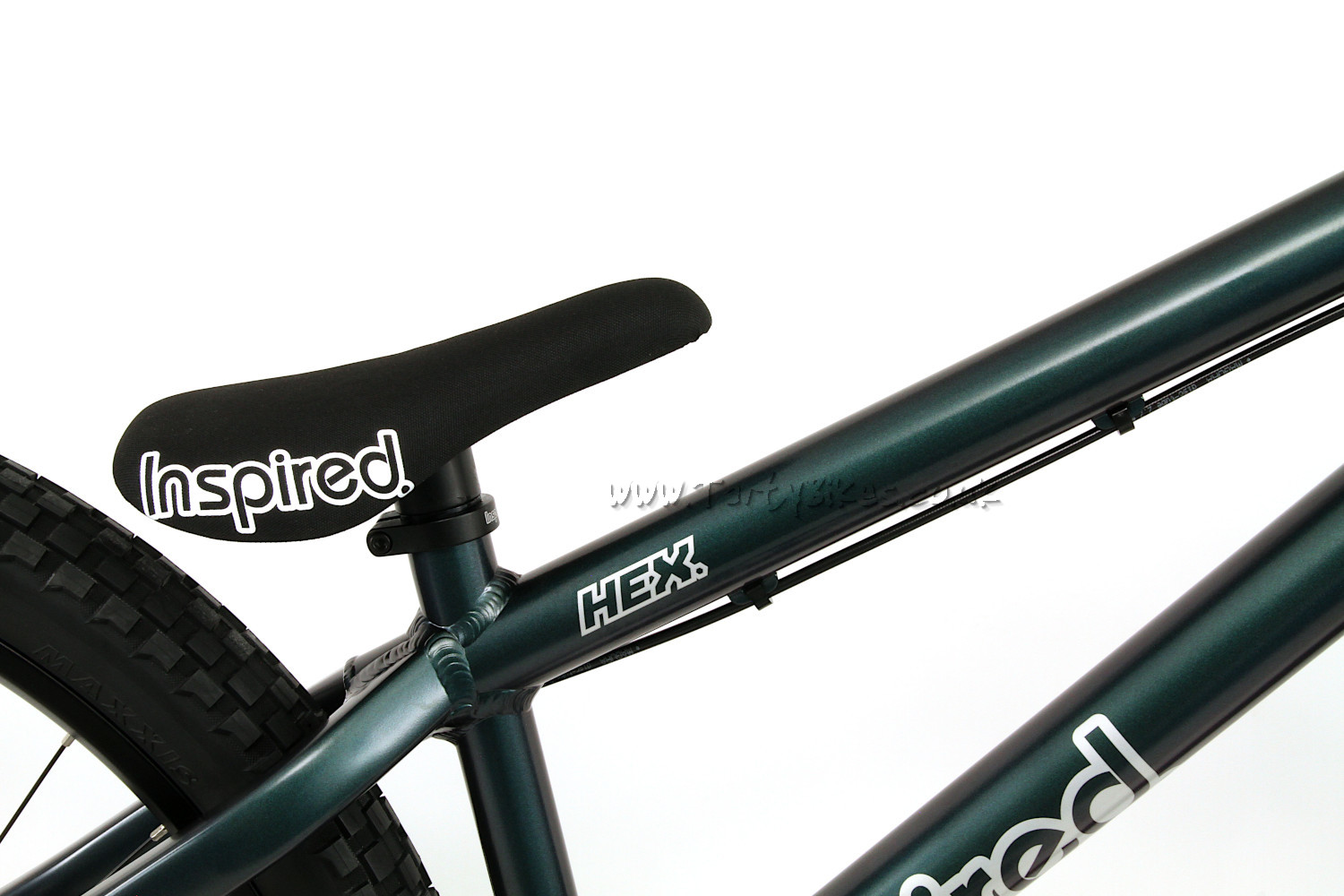

- Saddle: Inspired Integrated, Padded
- Seatpost: Inspired Integrated Alloy
- Seat Clamp: Inspired 31.8mm, Black

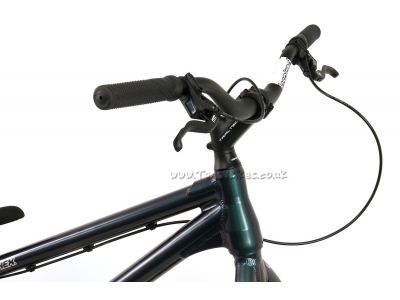

Steering

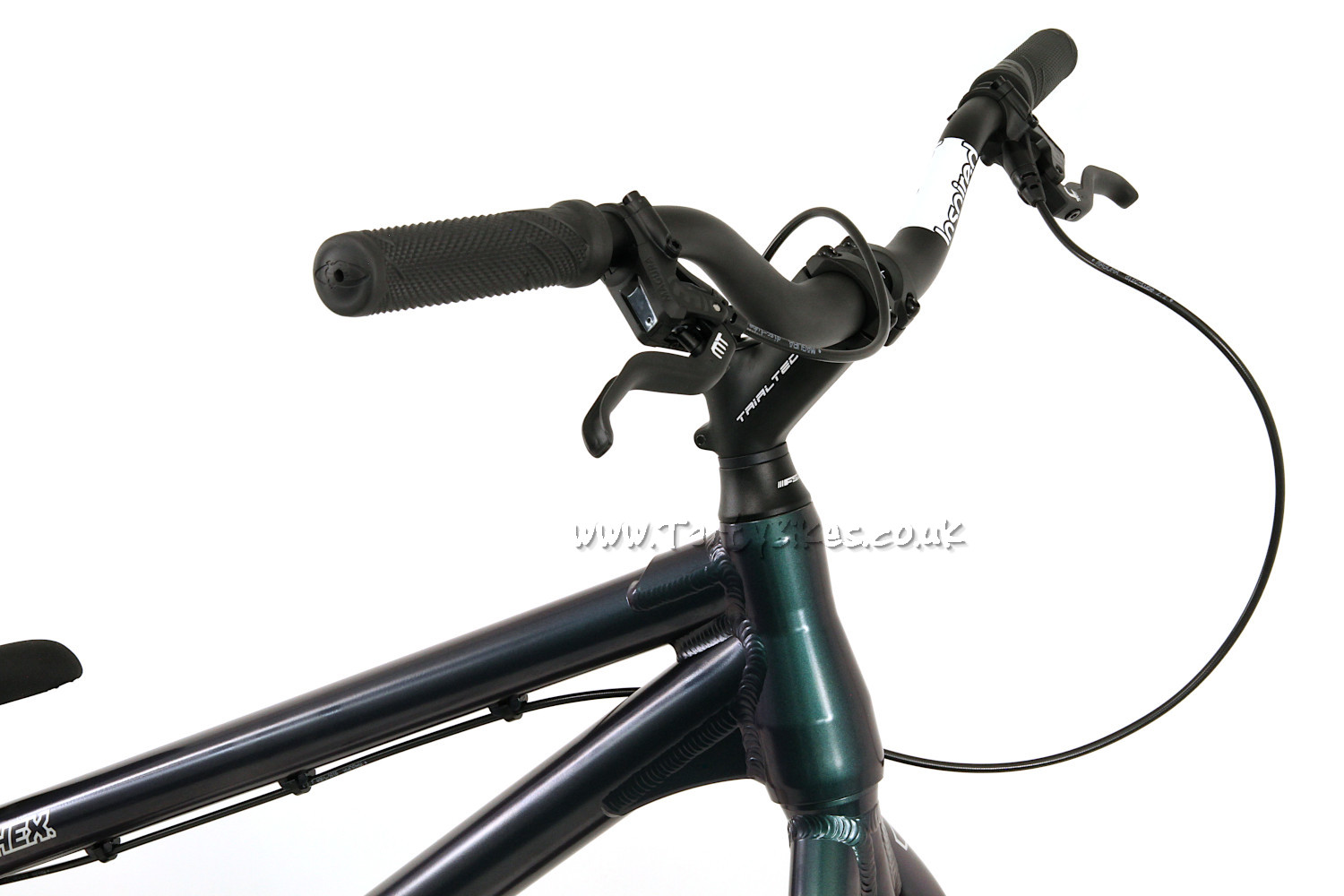

- Headset: FSA, 1-1/8" Integrated Upper, 1.5" Integrated Lower

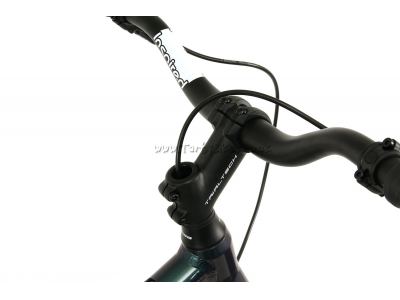

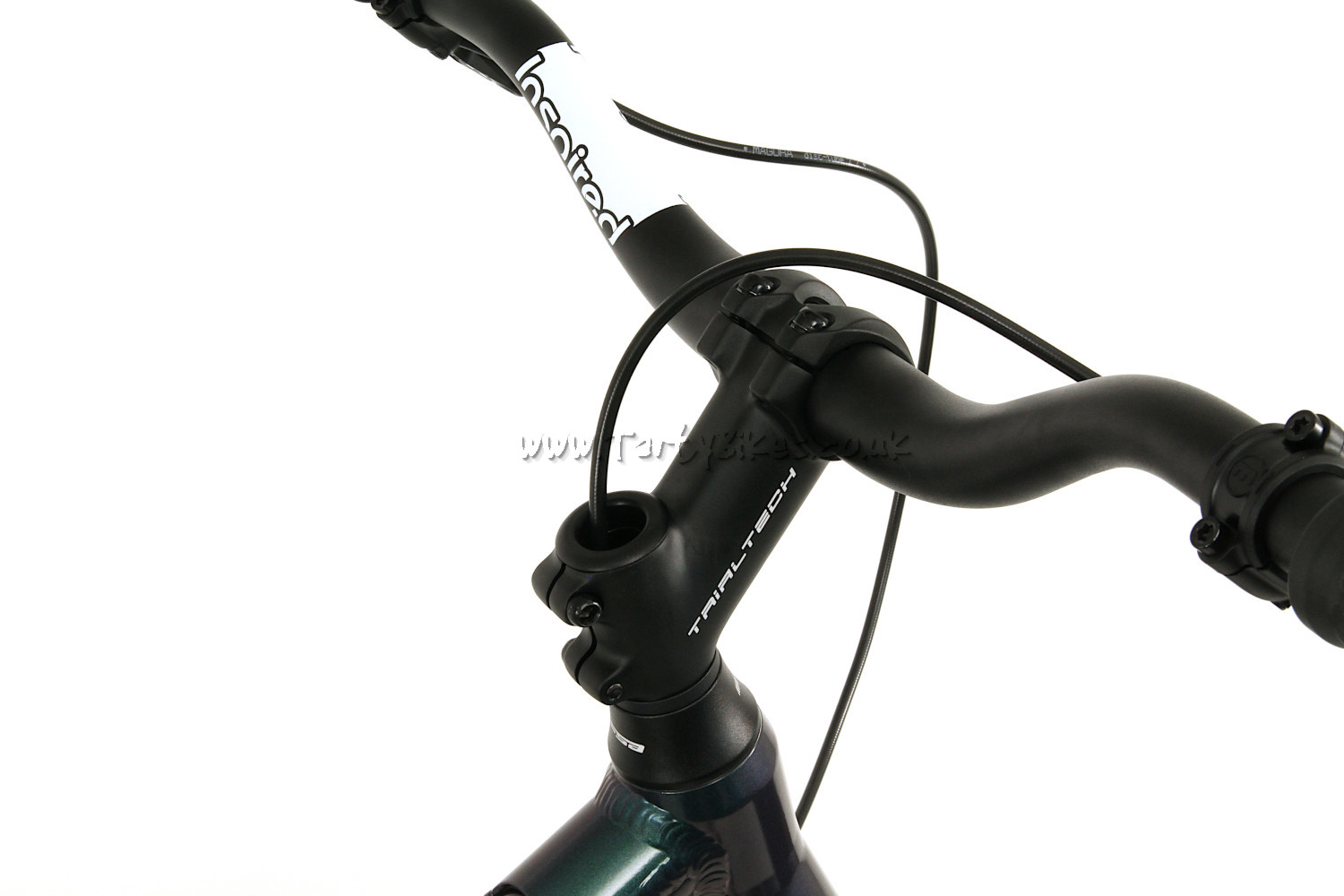

- Stem: Trialtech Sport, 90mm x 35˚
- Grips: Lizard Skins Danny MacAskill Single Compound Rubber Grips, Black
- Handlebars: Inspired Pro

Geometry
- Wheelbase: 1023mm
- Chainstay: 380mm
- BB Height: +20mm
- Head Angle: 73.5˚
- Centre of BB shell to centre top of head tube: 685mm
Reach: 448mm
Stack: 497mm

Weight (Magura MT4 with pedals)
- 11.36kg


This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.

We build this bike to a 100% complete state in our workshop before dispatch to ensure all items are manufactured correctly and nothing is missing, but we do have to remove some parts to ensure there is no damage during transit. You will need some basic tools (usually 4mm, 5mm, 6mm and 8mm allen keys and a 15mm spanner) for final assembly upon arrival. We have a video guide here to help, but please don't hesitate to contact us if you require any further assistance.

Please note that the specification on the bike may occasionally vary slightly from the photos and description. If this happens then the overall effect will be an upgrade and it will not affect the cosmetic appearance of the bike drastically.
