New to Tarty Bikes, the Jitsie Varial 1085, 26" Frame!
- Great value 26" frame from Jitsie!

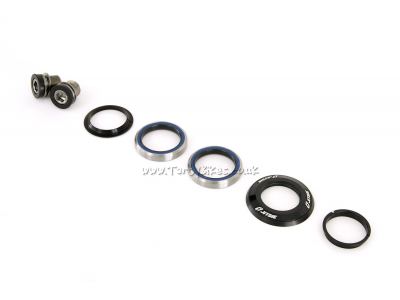

- Supplied with ISIS BB and sealed bearing headset.
- New 1085mm V4 frame comes supplied with sealed bearing ISIS BB and internal sealed bearing headset!
- New 1085mm V4 frame comes in a plain, satin black finish. Decals are supplied on a self-adhesive sheet, so you can customise the look of your frame!
- Constructed from 6061-T6 aluminium to give a great blend of strength and low weight.
- Minimalist design looks great and helps keep weight down.
- Gussets on the top and down tube help reinforce the crucial head tube join, ensuring good stiffness and durability.
- Down tube profile changes along its length, allowing the greatest possible weld contact at both the head tube and BB shell.
- CNC-machined dropouts are spaced at 116mm, suitable for use with snail cams (snail cam bolts provided with the frame).
- Tough anodised black finish looks great, especially when teamed up with striking Jitsie Varial self-adhesive graphics.
- 4-bolt CNC brake mounts spaced at 99mm feature an integrated brake booster to improve brake stiffness and frame longevity.
- Supplied with Jitsie branded silicone seat tube bung to cover up the seat tube hole.
-
Please note - frame is not supplied with a bash guard, instructions supplied with the frame are generic. All parts included are listed in the product description here.
- Available in 1085mm, in HS brake option.
- Weight - 1085mm HS including BB and complete headset: 2.1kg.
Geometry (measured with a 400mm x 35mm fork):
Wheelbase: 1085mm
Chainstay Length: 380mm
BB Rise: +70mm
Headtube Angle: 71.5°
Centre of BB shell to centre top of head tube: 660mm
Reach: 500mm
Stack: 417mm
Compatibility
- Headset type:
Internal
- Bottom bracket type: Screw-in, 68mm shell width
- Dropout spacing: 116mm
- Brake mount type: HS, spaced at 99mm.
- Bashguard type: N/A
