- V2 frame kit features the updated, integrated head tube design, and Inspired Team tensioner!
Inspired Fourplay V2 Team Frame Kit
- The updated V2 Fourplay, released in 2023, is now available as a complete frame kit!
- Updated geometry over the previous Fourplay model, with developments made with feedback from Inspired team riders Ben Travis and John Langlois. This has resulted in new geometry featuring a shorter wheelbase, steeper head angle and slightly higher BB, making the Fourplay even more capable and agile for the most demanding street riders.

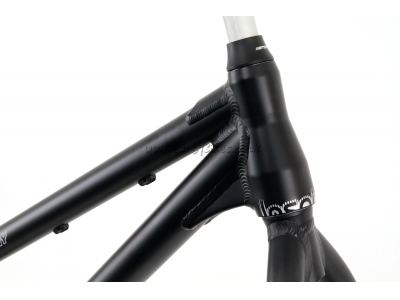

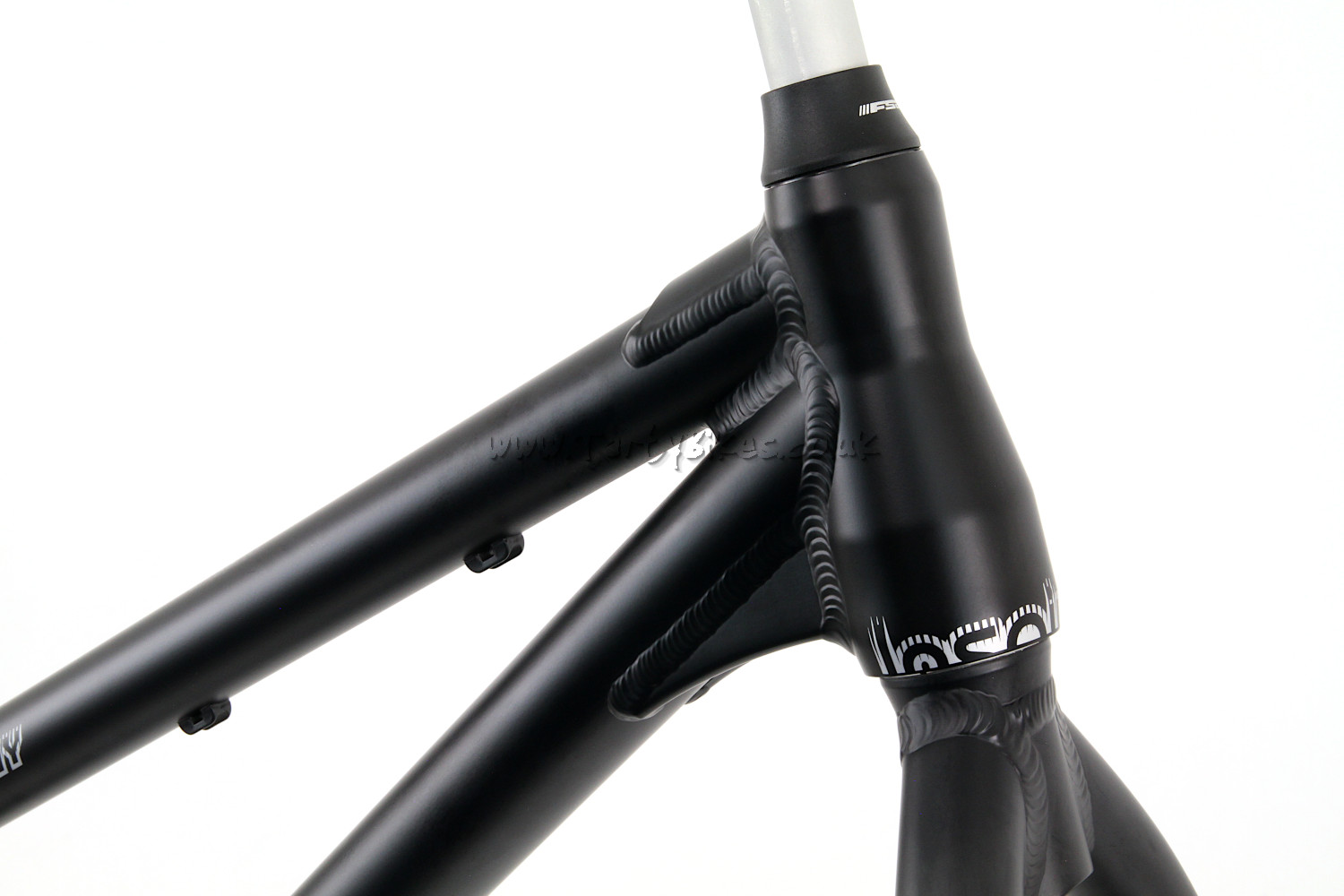

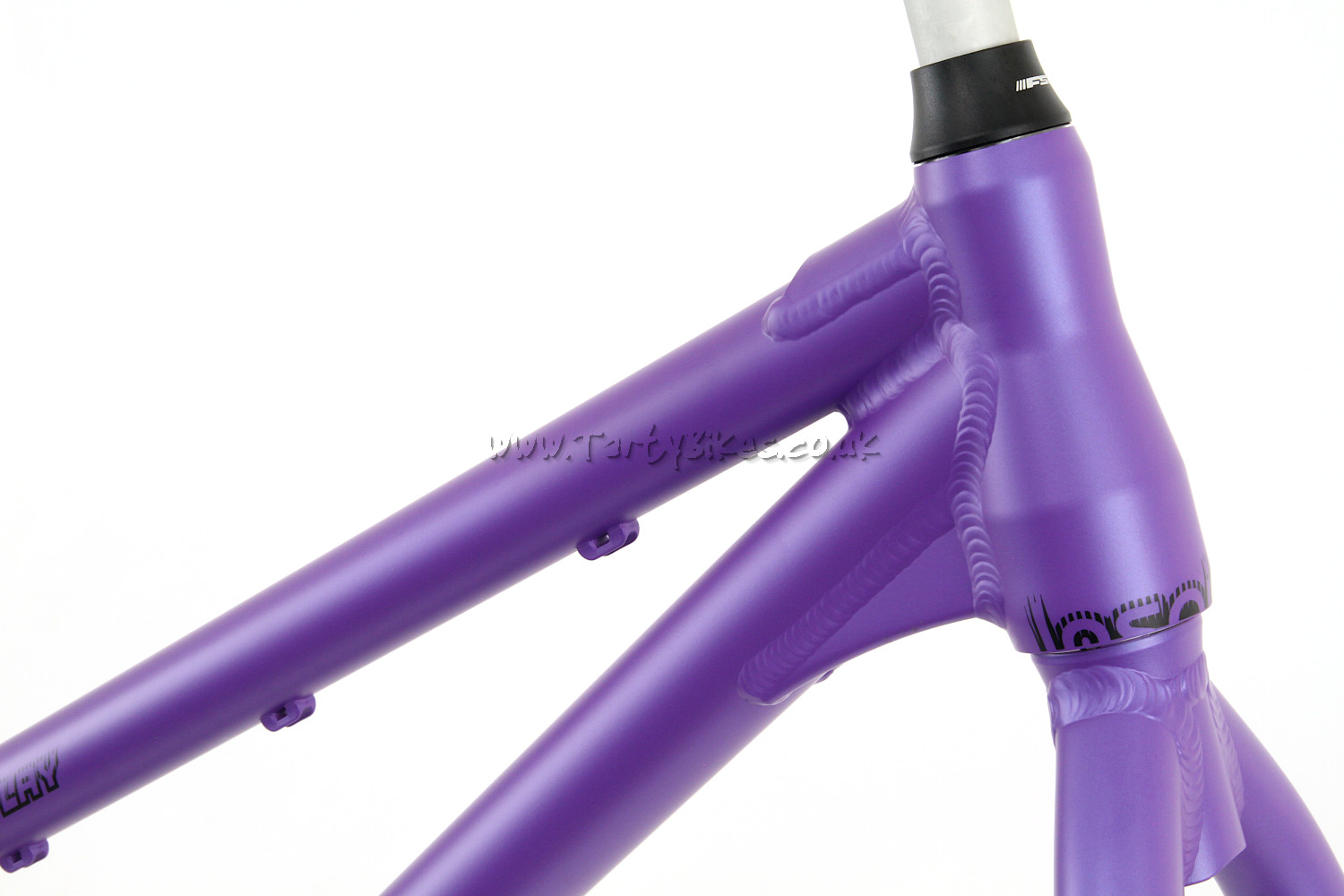

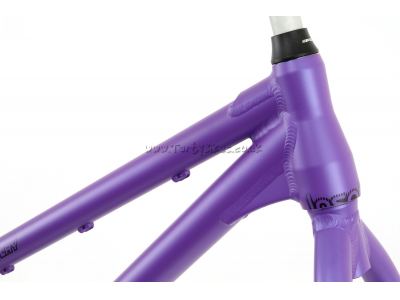

- The V2 frame kit features the updated, tapered head tube design using fully integrated headset bearings for lower weight and a cleaner front end.
- This kit is supplied with a tapered, Inspired Pro fork using a 15mm Inspired Pro through axle. The rear of the frame features a 12 x 135mm Inspired Pro through axle.
- The V2 Fourplay frame kit also benefits from the new Inspired Team tensioner, which gives improved chain wrap, improving chain retention. A neat tab to rest your thumb makes removing the chain much easier than previous versions!

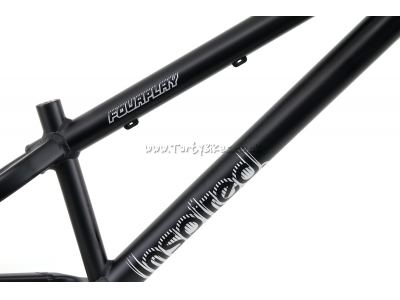

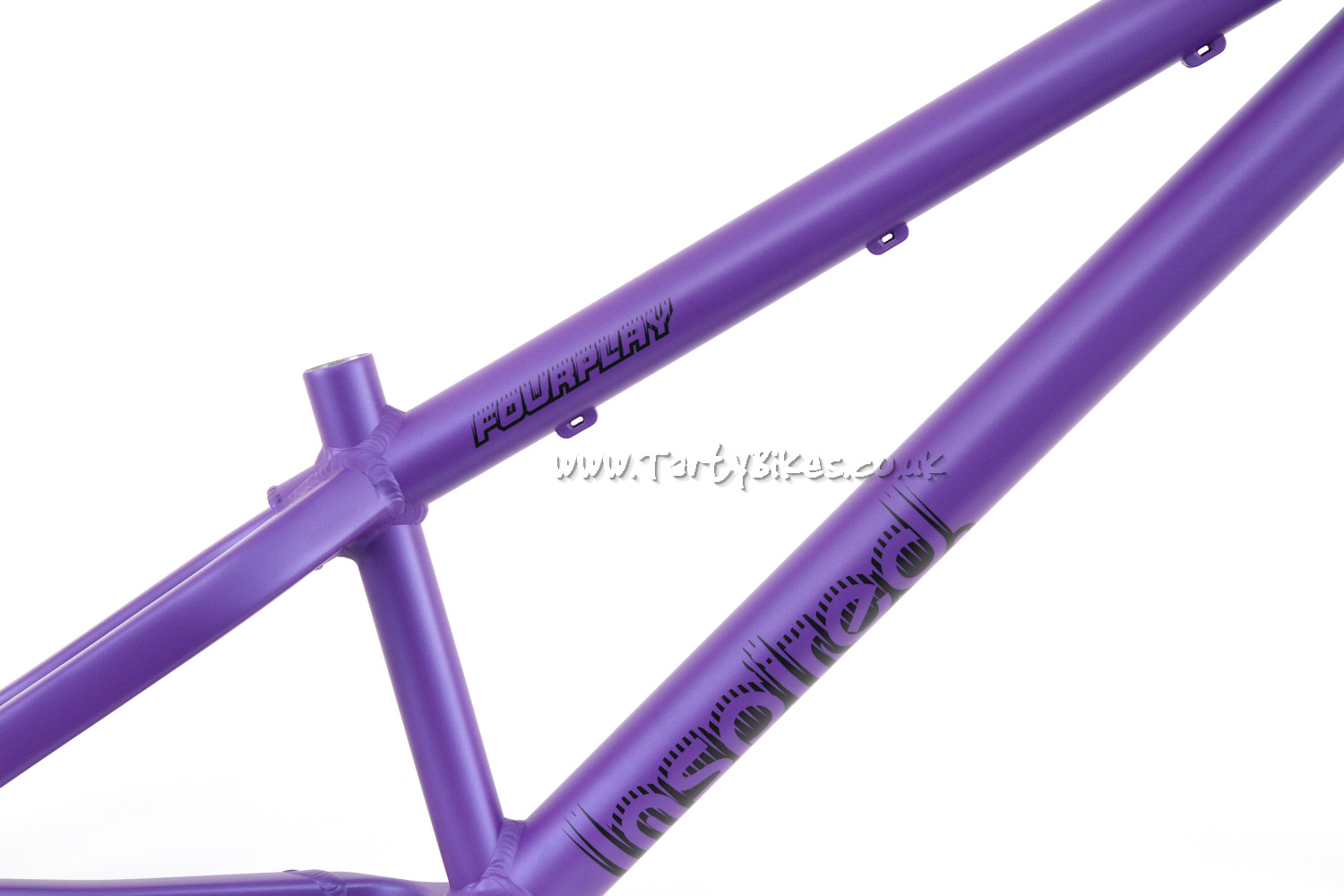

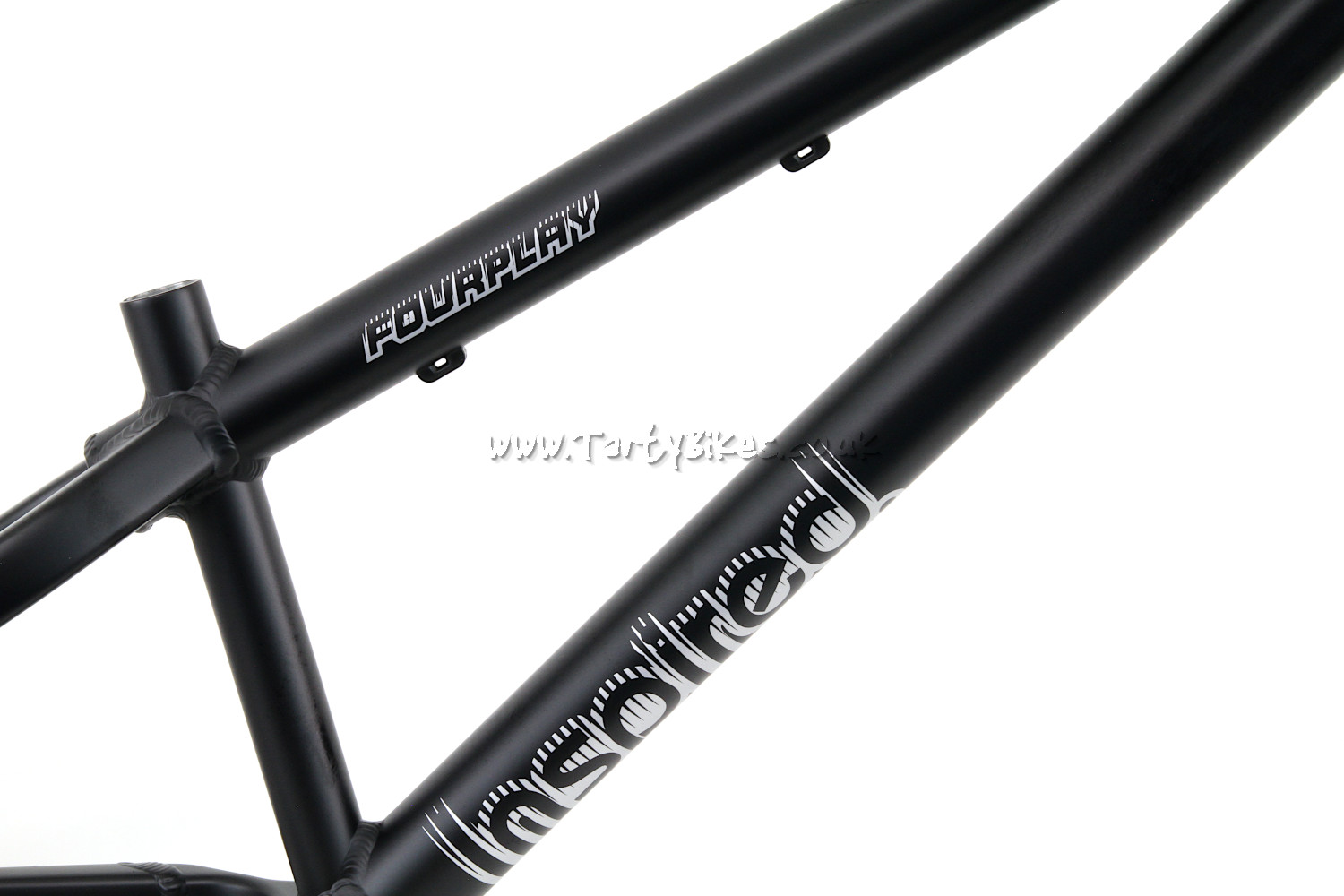

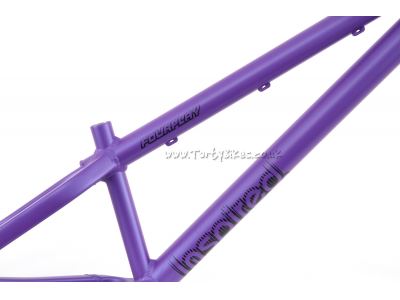

- High quality 6066 aluminium tube set includes double butted top and down tubes.

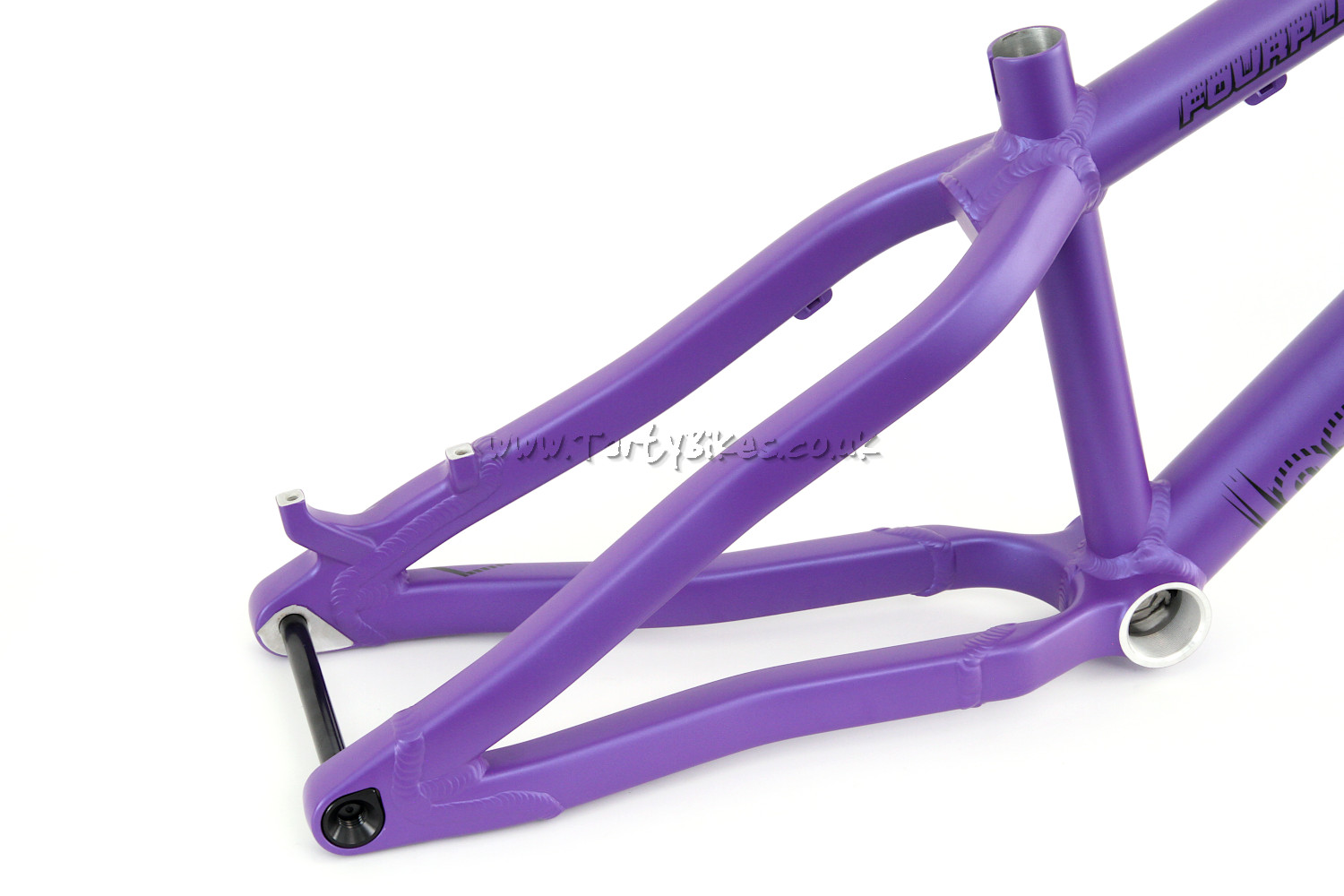

- Completely re-designed dropout is forged from high grade aluminium.
- The frame and fork feature 180mm position Post Mount disc mounts, allowing for directing mounting of your brake calliper when using 180mm disc rotors.
- Revised top tube and seat stay joints for improved strength.

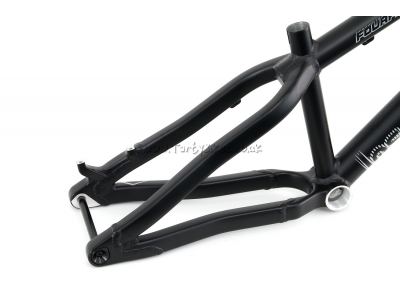

- Two-piece hollow forged BB yoke is super strong yet also saves weight.
- Euro style (threaded) 73mm bottom bracket features a 1.37" x 24tpi thread suitable for use with any 73mm shell compatible threaded bottom bracket we stock.
- Chain tensioner and mounting point design allows the rear wheel to be removed without having to loosen the tensioner first. The tensioner also only has a cage on one side, meaning the chain can be put on and taken off without having to split and rejoin it!

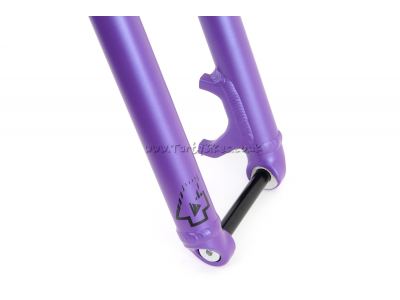

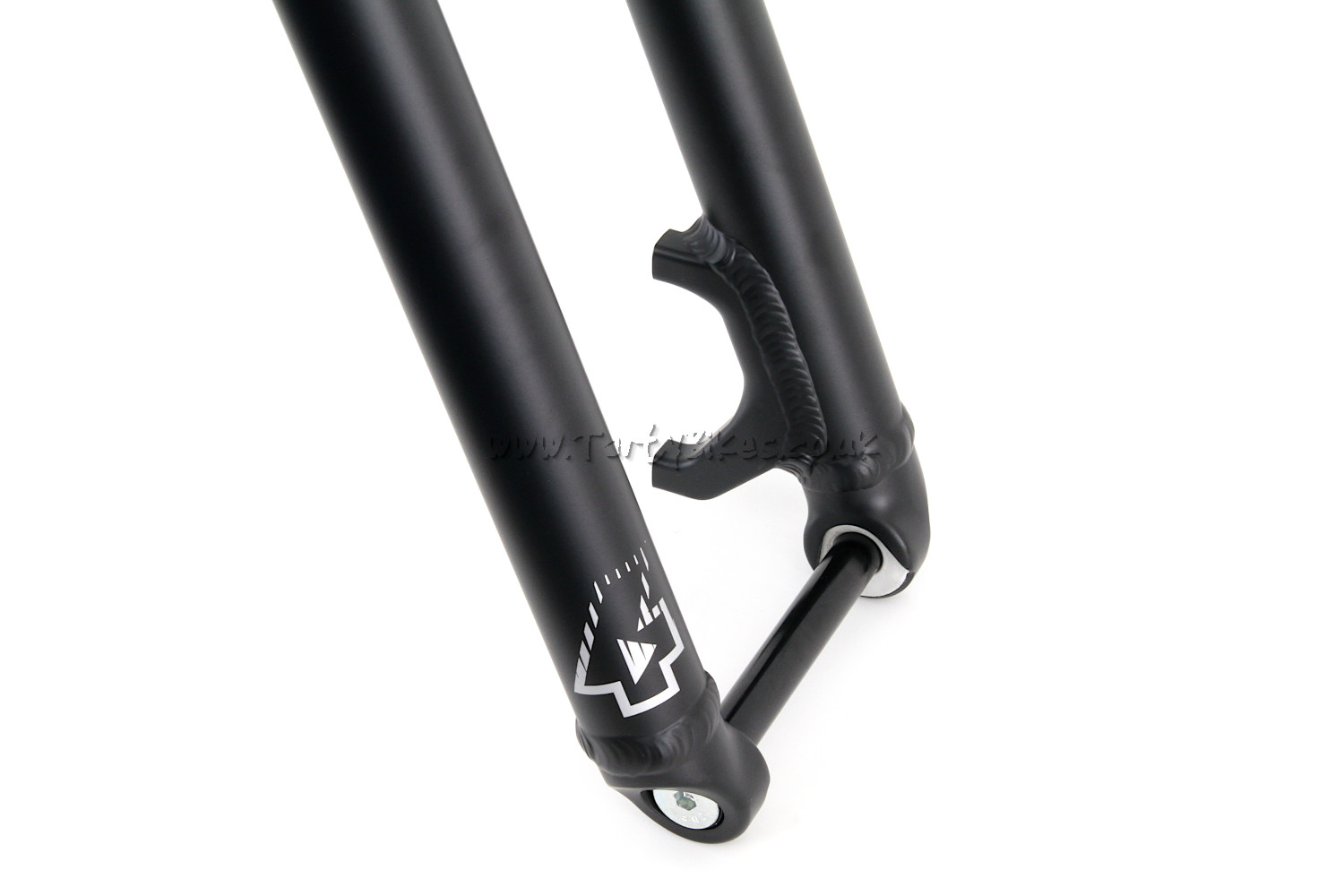

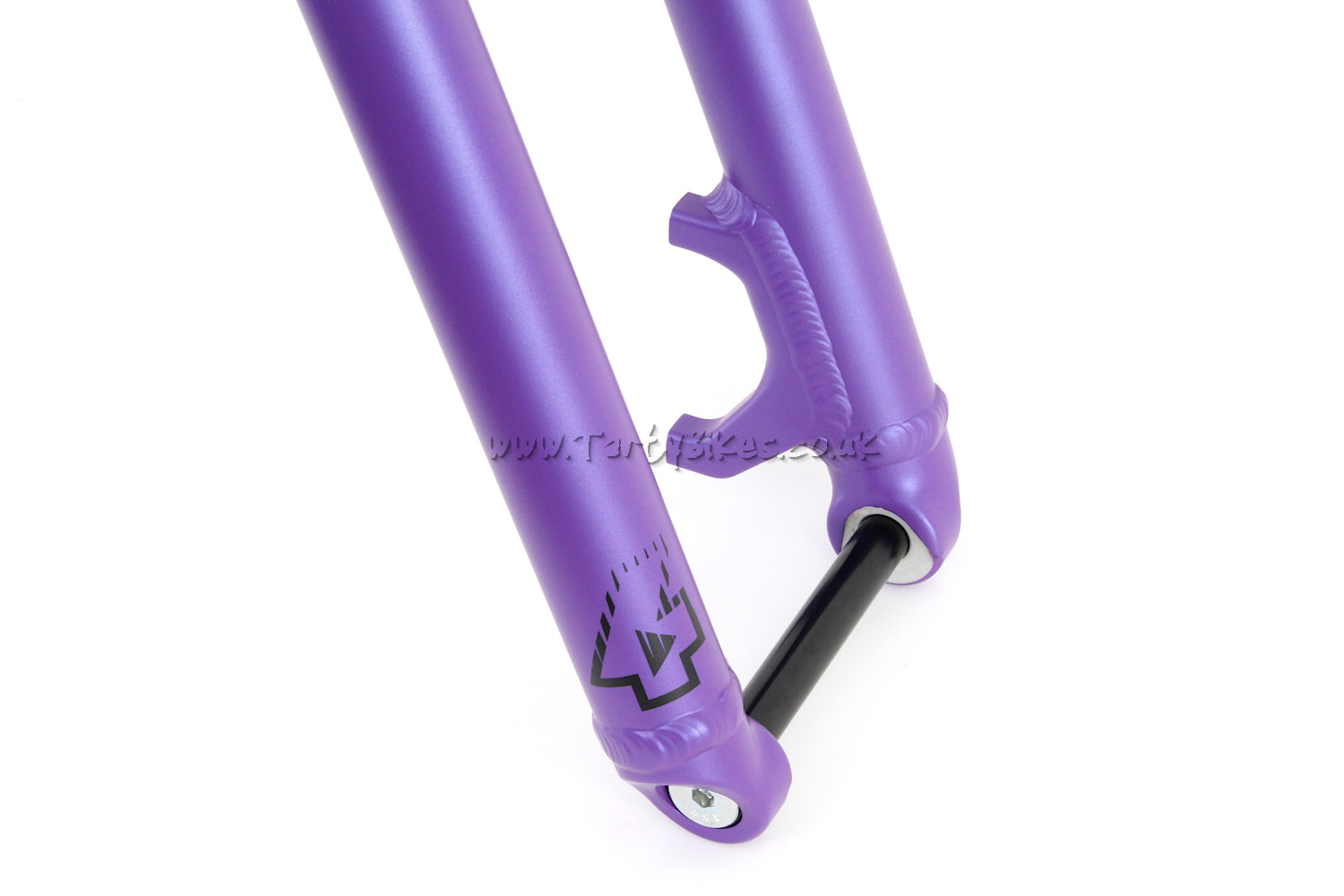

Inspired Pro Fork
- Pro fork features the new top cap design which screws into the threaded steerer tube and allows the hose to be routed through the steerer if required.
- Supplied with Inspired Pro 15mm axle.
- Forged triple butted steerer tube (210mm long) is made out of aircraft grade 6066 aluminium.
- Screw-in top cap replaces the traditional star nut assembly, and also allows easy steerer tube hose routing.

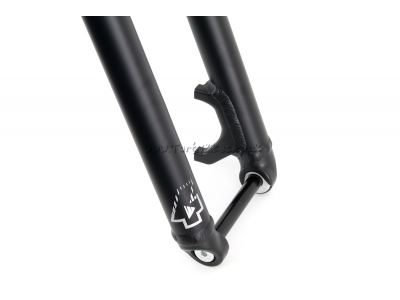

- Chunky fork legs add extra stiffness for hooks, and for moves on the front wheel.
- Unique CNC'd dropouts feature tapered interface for bolt through 20mm axle.
-

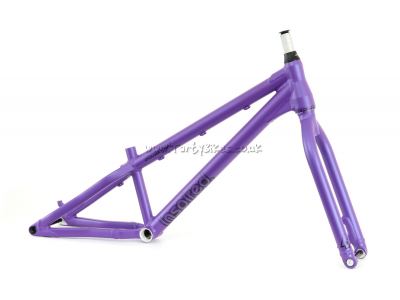

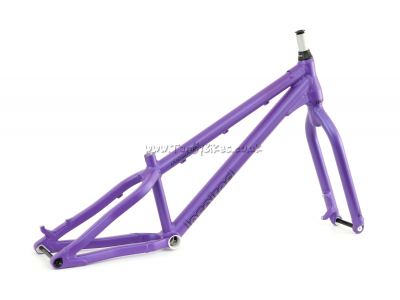

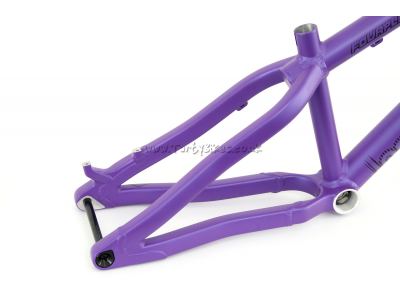

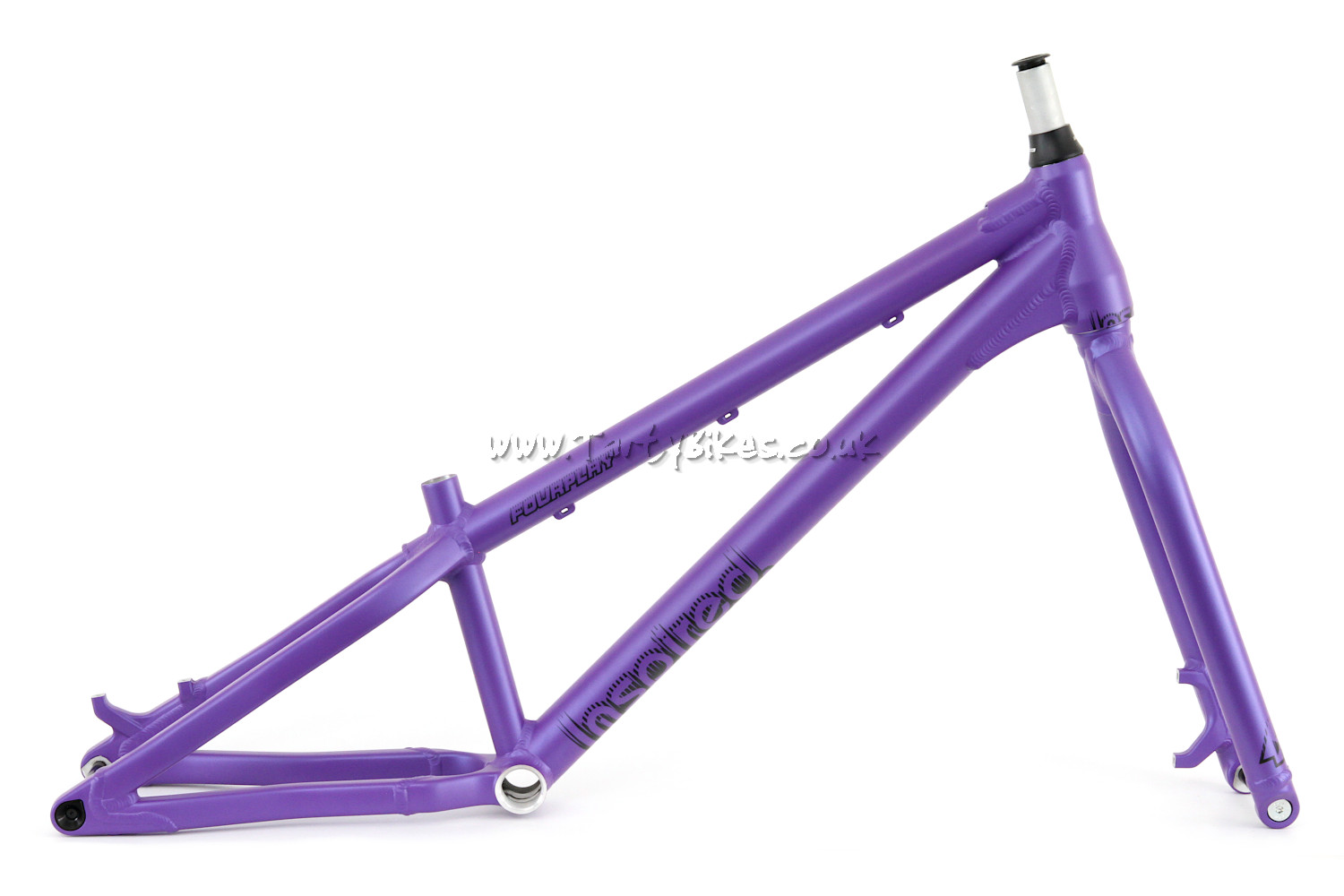

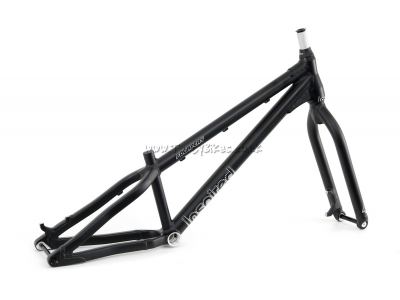

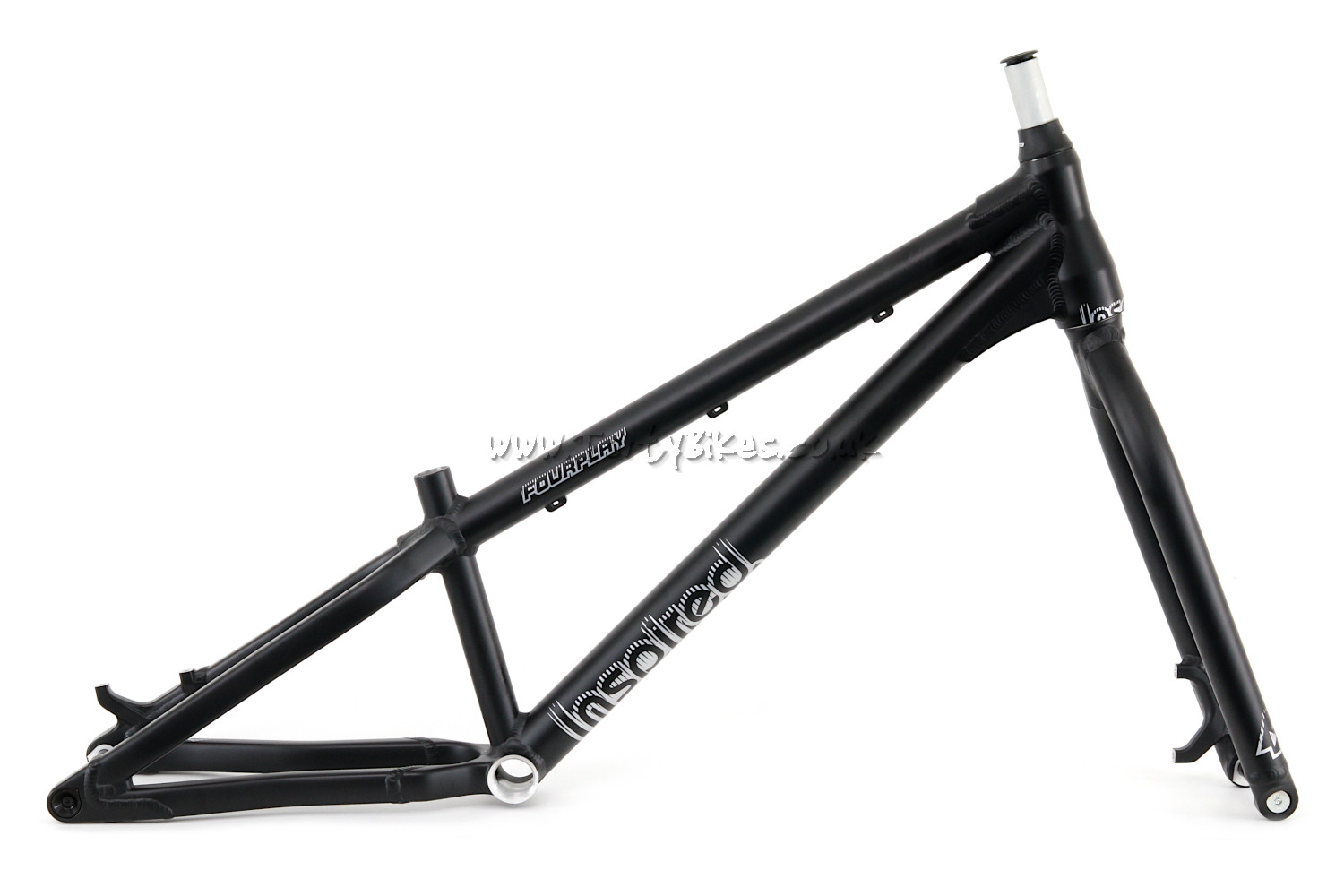

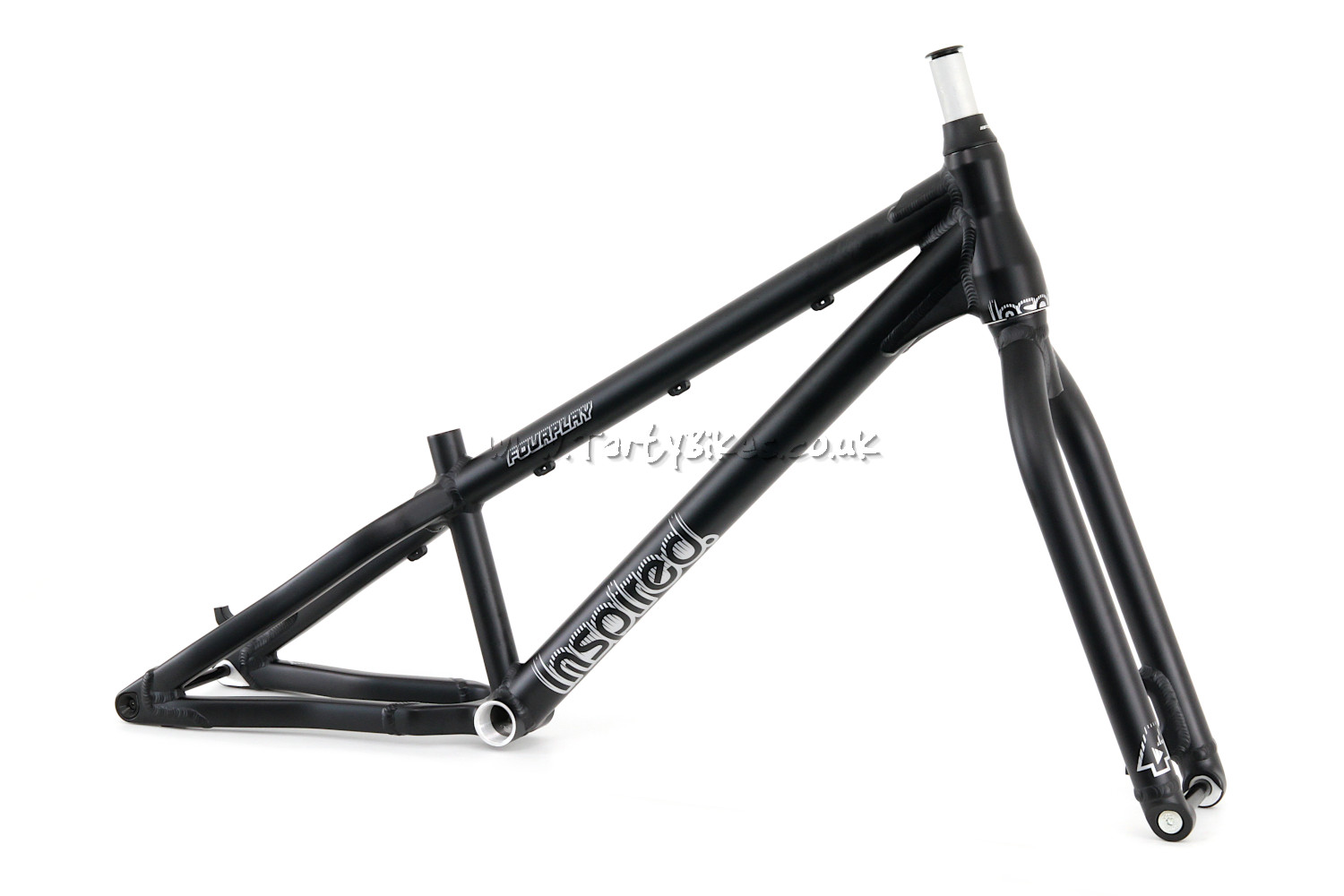

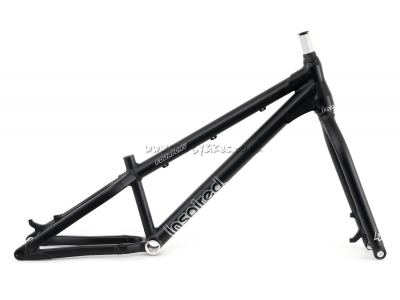

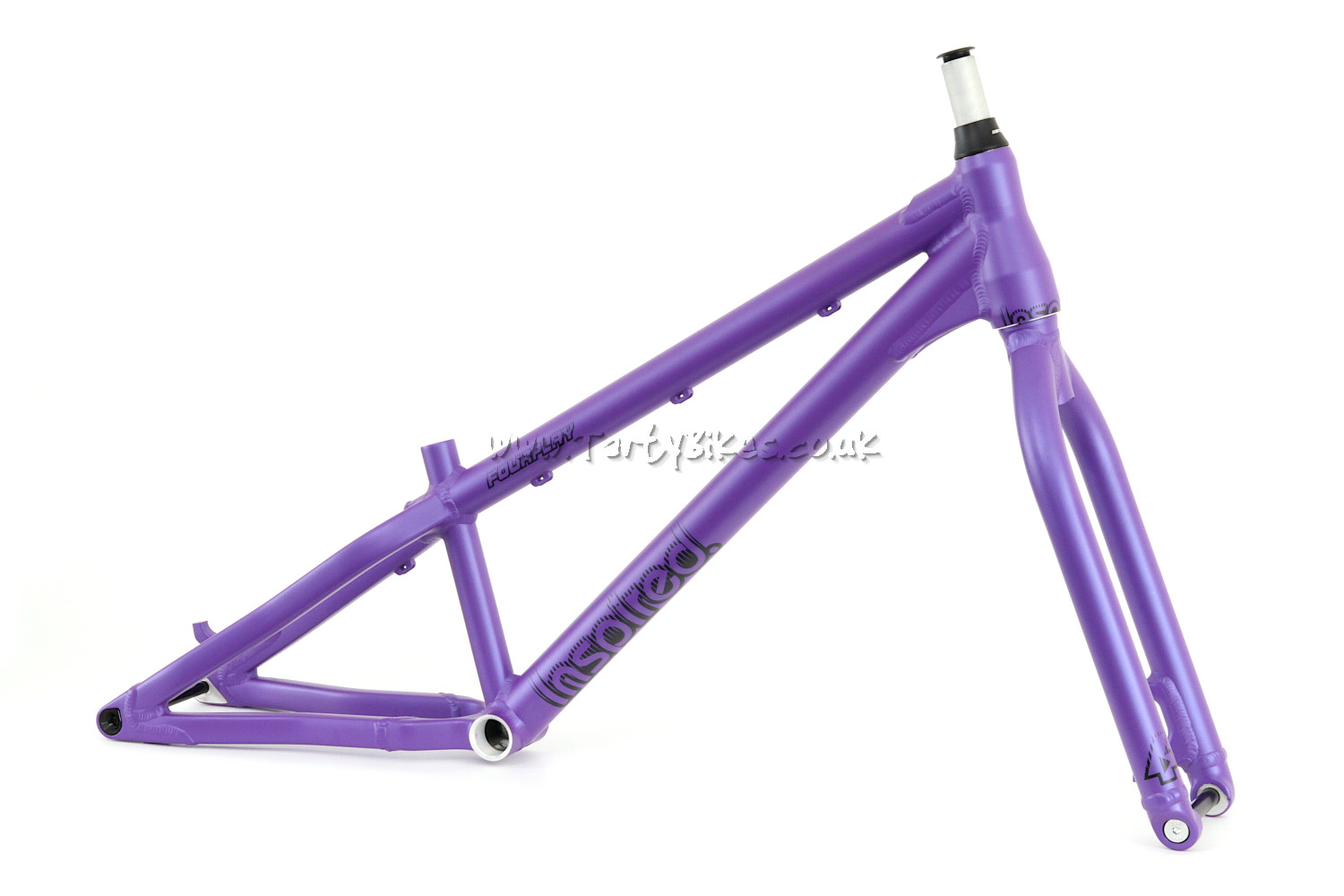

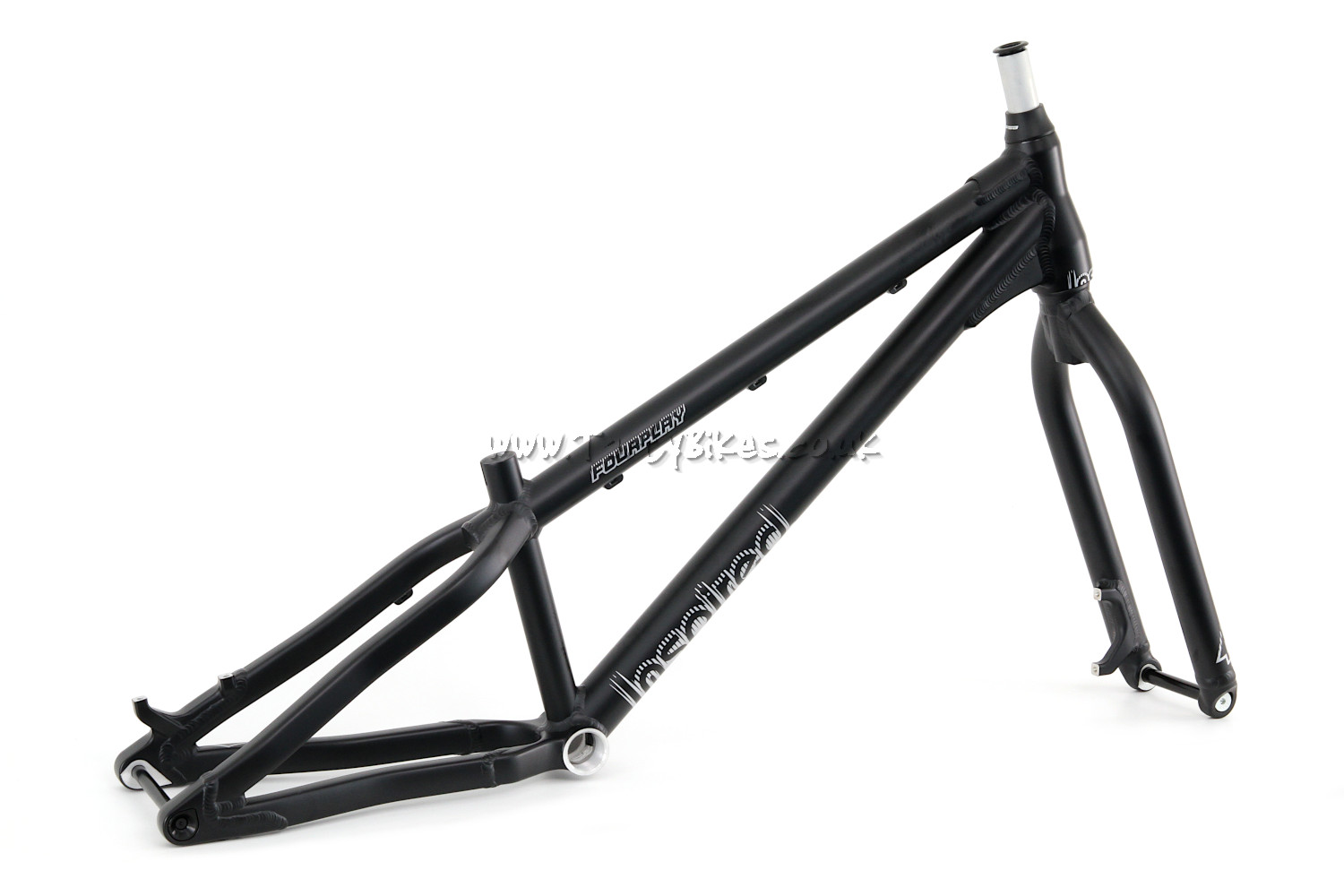

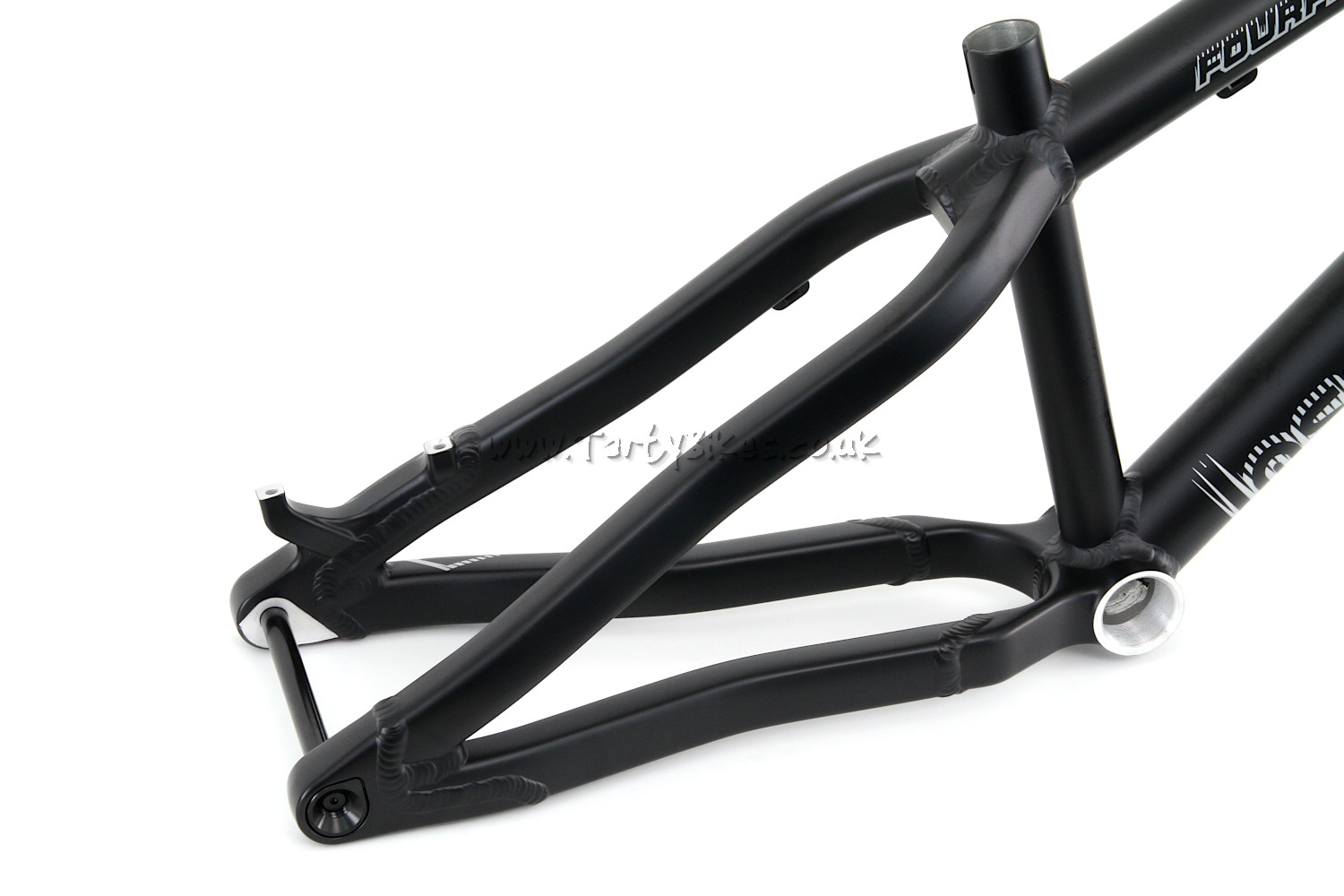

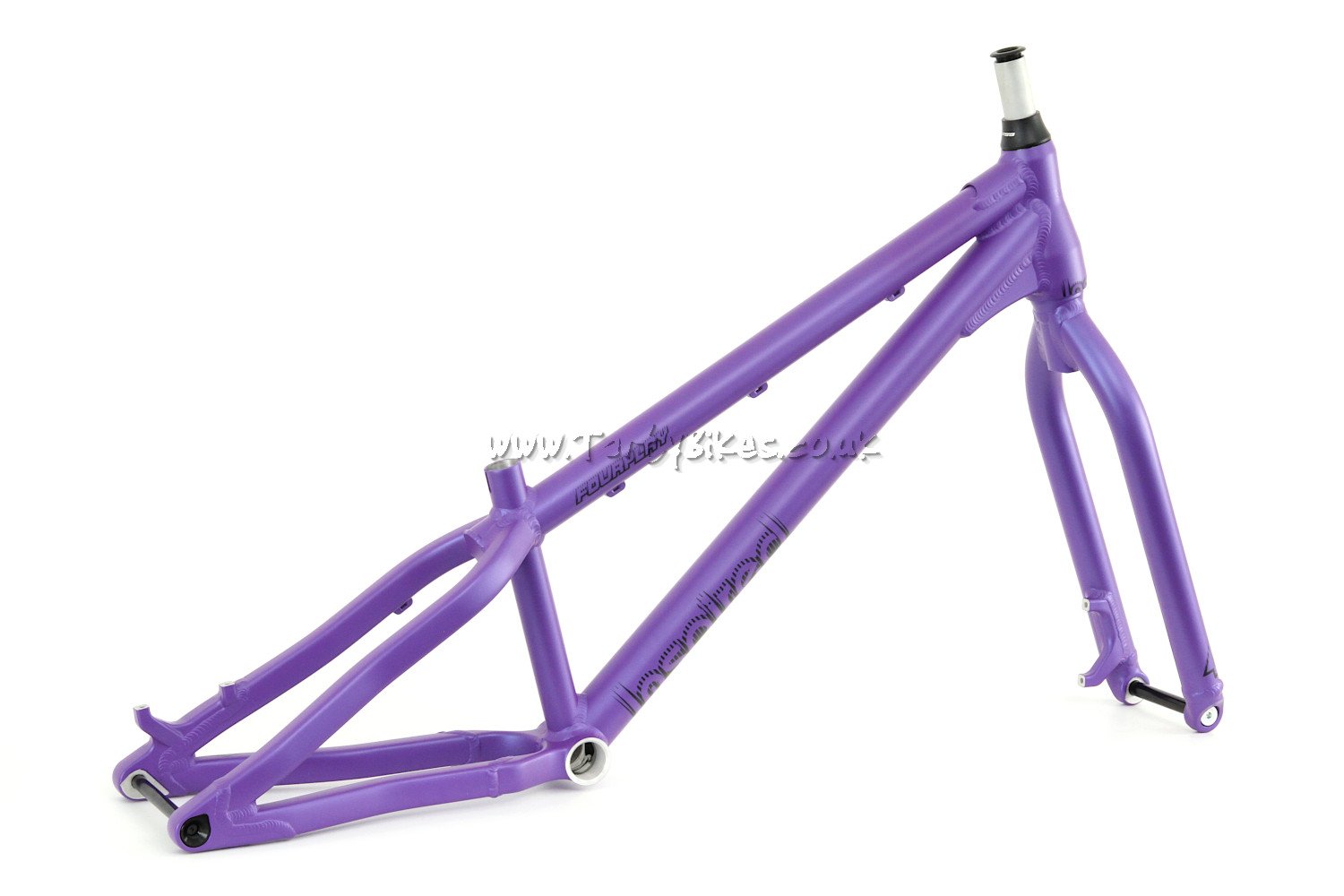

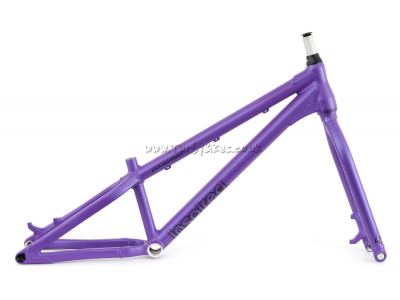

Frame kit only available in Satin Black, and Satin Purple.
Full kit includes:
Fourplay V2 Frame
Inspired Pro Forks
FSA Integral Headset & Inspired Top Cap
Single-sided Inspired Team Tensioner
Inspired Pro 15mm and 12mm axles
Weights:
- Total frame kit weight (Frame, fork, rear and front axel, tensioner, headset and top cap): 3.34kg
- Tensioner and mount: 56.8g
- Fork: 1008g
- Rear Axle: 65g
Geometry:
- Wheelbase: 988mm
- Chainstay length: 362mm
- BB Height: +15mm
- Head Angle: 74°
- Centre of BB shell to centre top of head tube: 680mm
Reach: 452mm
Stack: 515mm
Compatibility
- Headset type: 1-1/8" - 1.5" Integrated. Indvidual bearings for this head set are available on our
Tarty Bikes Bearings product page.
- Bottom bracket type: Screw-in, 73mm shell width
- Dropout spacing: Frame - 135mm / Fork 110mm (not boost)
- Brake mount type: +20mm Post Disc Mount
- Bashguard type: n/a - requires a bash ring
- Chain line: 51mm (Recommended minimum with 22T chain ring)
