Inspired Arcade Frame Kit

Product code: 14275

$994.17

In stock

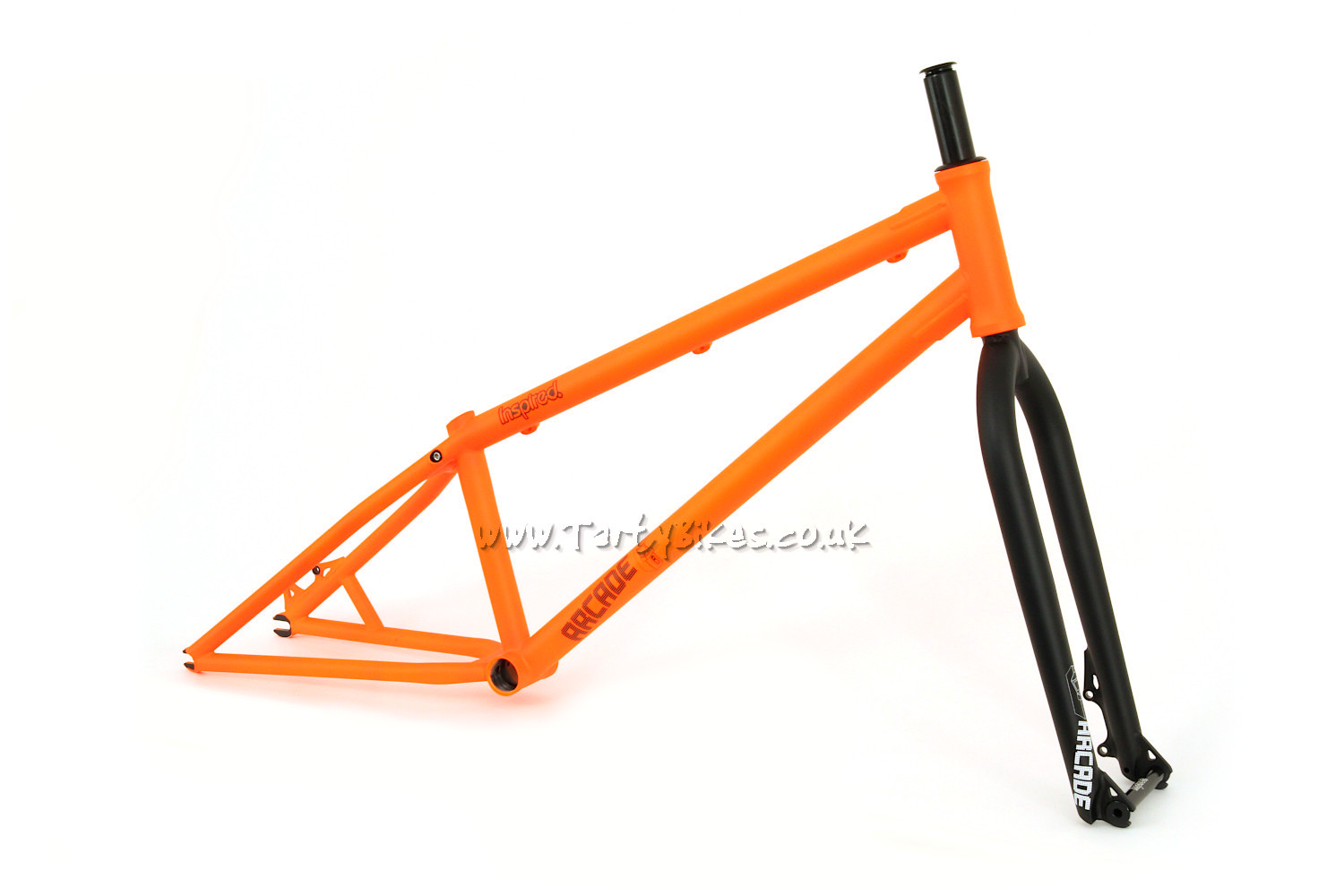

Inspired Arcade Frame Kit

For a limited time only, while stocks last!

  • Top quality frame kit from inspired!
  • Includes frame, forks, headset & chain tugs.
Inspired Arcade Frame

- Tested extensively by Inspired team riders, and used by Jack Heard!
- Constructed from high quality Cr-moly steel, and ED coated internally to help prevent corrosion.
- Revised seat stay-to-seat tube joining method and added support bridge between the seat stays increases stiffness and strength of this high-stress area.
- The middle of the frame is further stiffened by a revised chain stay-to-bottom bracket joint, featuring an extra support gusset.
- +20mm IS disc mount, designed for a maximum rotor size of 180mm.
- Standard BSA 68mm bottom bracket features a 1.37" x 24tpi thread, suitable for use with any 68mm shell compatible threaded bottom bracket we stock.
- Seat post diameter of 27.2mm. Please note: An alloy 27.2mm seat post (no shim), fitted to a minimum insertion depth of 100mm must be used on this frame to validate the warranty.
- Supplied with Inspired Arcade Micro Chain Tugs in pewter finish, Inspired Arcade Integrated Seat Clamp and Inspired Integrated headset

Inspired Arcade Fork

- The Arcade fork features the new top cap design which screws into the threaded steerer tube and allows the hose to be routed through the steerer if required.
- Full steel construction for maximum strength, with tapered and butted legs to keep the weight as low as possible without compromising performance.
- Supplied with Inspired 15mm Arcade axle. Axle adaptors for use with M6 bolt hubs can be purchased separately here.
- CNC machined, standard IS disc mount can be used with post mount adaptors for rotor sizes up to 180mm if required.

- Frame kit only available in Satin Fluro Orange with black Arcade fork.

Full kit includes:

Inspired Arcade Frame
Inspired Arcade Forks
Inspired Integrated Headset
Inspired Arcade Mirco Chain Tugs
Inspired Arcade Integrated Seat Clamp
Arcade 15mmfork axle

Weights:

- Total frame kit weight (Frame, fork, rear and front axle, chain tugs, headset and top cap): 3.99kg

Geometry
- Wheelbase: 992mm
- Chainstay: 362mm
- BB Rise: +25mm
- Head Angle: 74.5
- Centre of BB shell to centre top of head tube: 682mm
Reach: 443mm
Stack: 497mm


Compatibility
- Headset type: 1/18" integrated.
- Bottom bracket type: Screw-in, 68mm shell width
- Dropout spacing: Frame 135mm x 10mm / Fork 100mm x 15mm OR 100 x 9mm with M6 adaptors.
- Brake mount type: Frame +20mm IS Disc Mount / Fork Standard IS Disc Mount
- Bashguard type: n/a - requires a bash ring
- We recommend the Inspired Arcade V2 Crankset for use with this frame due to the increased width of the chain stays. Other cranks may fit, but tolerances could be tight!

Additional Information

This frame comes with a 6 month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any warranty claim. Use of disc rotors bigger than 185mm will void the frame and fork warranty. Use of seat post shims to increase a post size to 27.2mm will also void the frame warranty, 27.2 mm seat posts must be inserted a minium of 100mm into the frame.
