Extention Edith 24" Frame Kit

Product code: 14118

$608.23

Out of stock

Extention Edith 24" Frame Kit

New to Tarty Bikes, the Extention Edith 24" Frame Kit!

  • Great value 24" street frame from Extention!
  • Supplied with headset, tensioner, fork axle, M6 rear hub adaptors and seat clamp.
  • Threaded fork steerer tube for internal front brake routing!

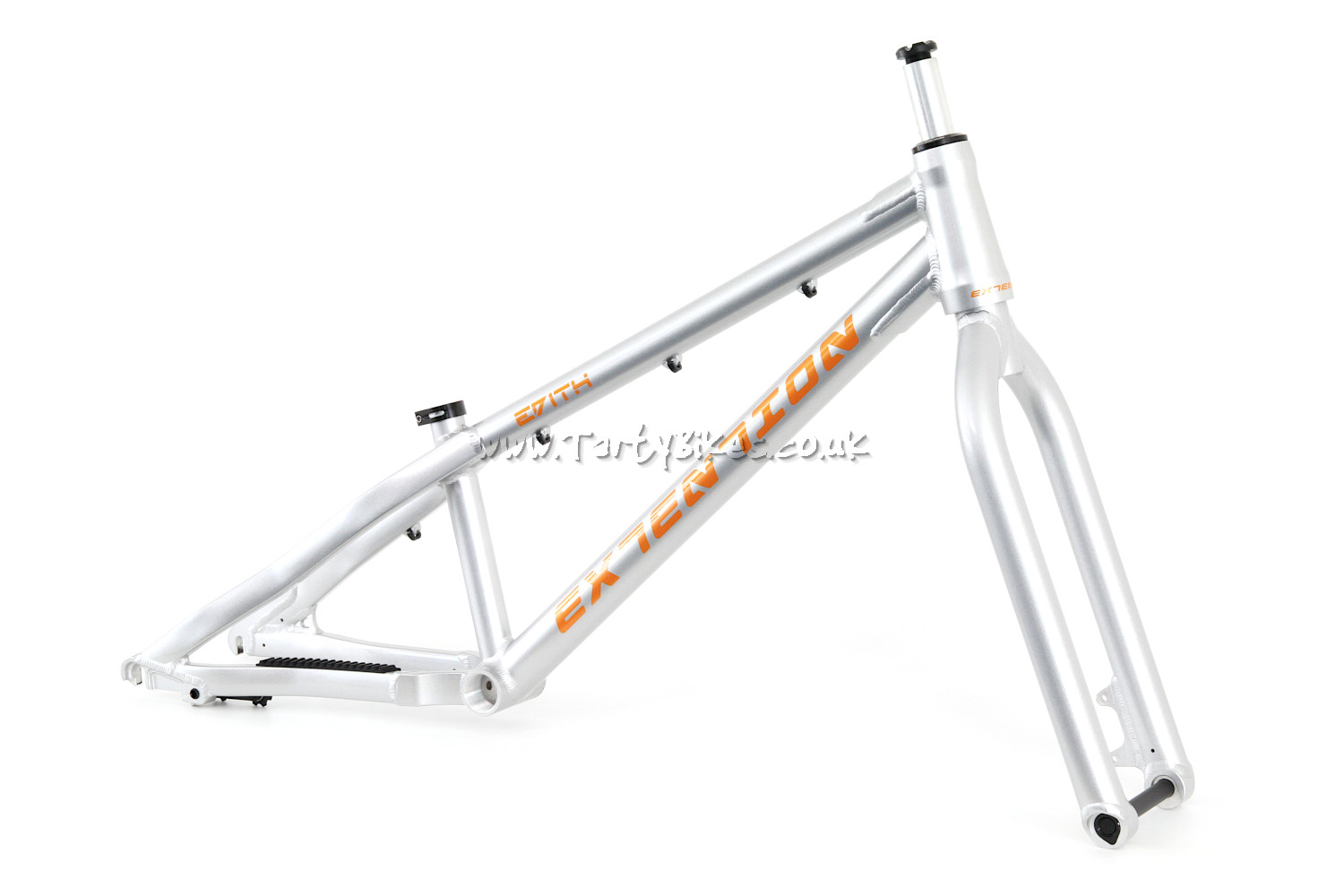

Extention Edith 24" Frame Kit

- Top quality 24" street trials frame kit from Extention in a stunning new colour for 2022!
- Featuring a tapered head tube, 135 x 10mm rear dropouts and 15 x 100mm front axle and clearance for 2.4" tyres.
- Please note, the rear drop-outs are designed for use with 10mm axle bolts like those found on the Hope Pro 4 trials S/S hub. We provide a free, custom machined pair of axle bolt washers so you can use a standard M6 bolt hub in this frame. The washers fit neatly in the outer facing recess of the drop-outs and if you are using a 10mm Hope style bolt you do not need to use the supplied serrated washer. The bolt head will fit neatly into the recess of the dropout.
- High quality 6061, T6 heat treated aluminium tube set with square rear drop out tubing for maximum stiffness and weld area whilst allowing better ankle clearance.
- +20 IS disc mount on the frame and standard IS disc mount on the fork. Compatible caliper adators can be found here.
- Integrated headset, with a fully integrated 1.5" lower bearing, allowing the use of a tapered steerer tube fork.

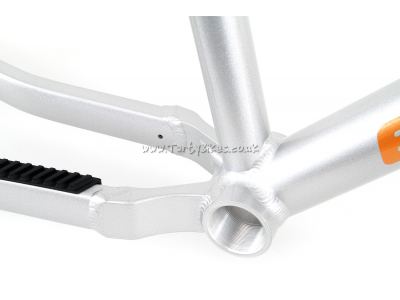

- Euro style (threaded) 68mm bottom bracket features a 1.37" x 24tpi thread suitable for use with any 68mm shell compatible threaded bottom bracket we stock. Please note: the BB shell is not faced. You can fit a BB without facing this part of the frame but we recommend purchasing a facing service here. Brake mounts are already faced.
- 27.2mm seatpost diameter. Frame is supplied with a bolt up aluminium clamp.

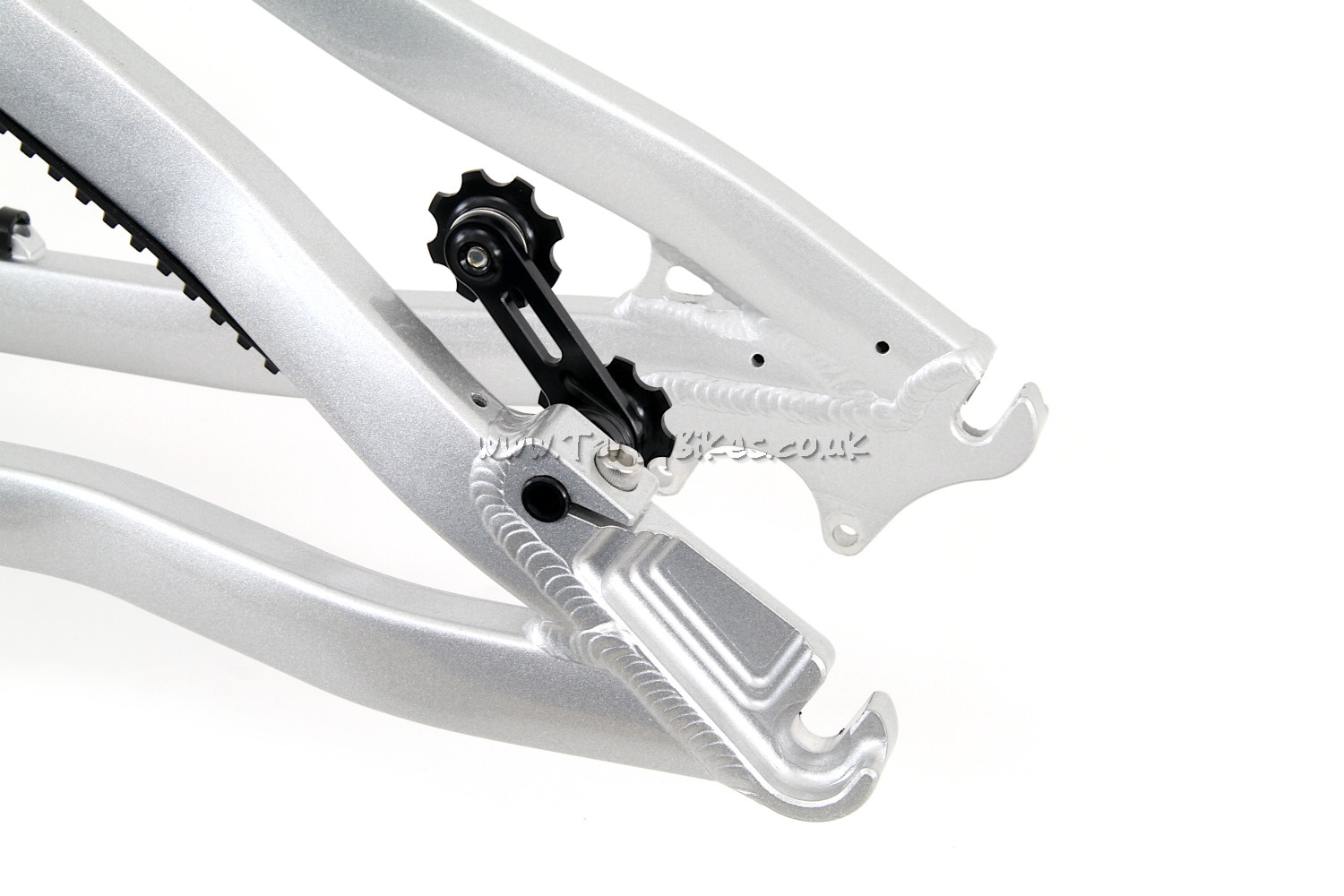

- Custom CNC Extention chain tensioner allows the rear wheel to be removed without having to loosen the tensioner first. The tensioner also only has a cage on one side, meaning the chain can be put on and taken off without having to split and rejoin it!

Edith 24" fork

- Threaded steerer with screw in top cap allows for steerer tube routing of the front brake line.
- CNC machined, butted, aluminium steerer tube (195mm long) has massively increased wall thickness at the fork crown for increased strength.
- Chunky fork legs give high levels of stiffness, ideal for accuracy and high load moves like taps and hooks.
- Dropouts feature a cut away to guide the hub axle into place for easier wheel fitting and use a replaceable axle nut.
- Frame kit only available in Sunburst Orange.

Full kit includes:

Extention Edith 24" Frame
Extention Edith 24" Forks
Extention Sealed Headset & Top Cap
Extention custom CNC chain tensioner
Alloy bolt up seat clamp
15mm Fork axle

Weights:

- Total frame kit weight as pictured (Frame, fork, front axle, tensioner, headset, seat clamp and top cap): 3.29kg

Geometry:

- Wheelbase: 972mm
- Chainstay length: 365mm
- BB Height: +17mm
- Head Angle: 74.5
- Reach: 435mm
- Stack: 496mm


Compatibility
- Headset type: Integrated Top Cup, 1-1/8" 1.5" Lower integrated headset bearing
- Bottom bracket type: Screw-in, 68mm shell width
- Dropout spacing: Frame - 135mm / Fork 100mm
- Brake mount type: +20mm IS Disc Mount Frame / Standard IS Mount Fork
- Bashguard type: n/a - requires a bashring

Additional Information

This frame comes with a 6 month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any warranty claim.The pearlescent paint will vary in tone depending on which way the light catches it, and minor differences in this style of paint finish are normal. There may be very minor blemishes or imperfections in the paint as a result of this finish, which is reflected in the retail price
