Jitsie Race with Sloping Top Cap

Product code: 13495

130mm x 25°	$85.05
150mm x 35°	$85.05
175mm x 35°	$85.05

Sold out

Innovative new design.
Knee-friendly steerer clamp!

- Brand new from Jitsie, their innovative Race stem!
- Forged from 7050 aluminium.
- Oversized 31.8mm clamp diameter to fit oversized handlebars and designed for use on 20", 24" and 26" wheeled bikes.
- Bar clamp sections machined from 7075 T6 aluminium for improved durability.
- Laser etched markings on the bar clamps help line your bars up correctly.
- Clever four bolt handlebar clamp allows easy fitting / removal of handlebars and provides even and dependable clamping. Please note that the top two bolts must be bottomed out gently before using the bottom two to clamp the handlebars in their final position. Failure to do this will crack the stem clamp and this is not covered under warranty. For clarity, the stem will finish looking like it does in the photos.
- Textured finish inside the bar clamp area gives better grip.

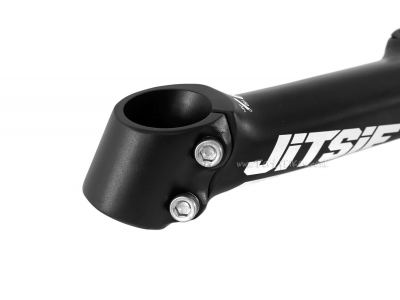

- Unique to the Jitsie stem, the steerer clamp bolts enter from the side of the stem - this provides a rounded back to the stem helping to reduce painful knee injuries.
- Black anodised finish with stylish laser etched graphics.
- Available in a range of modern geometries.
- 25° rise with 130mm length or 35° rise with 150mm or 175mm lengths.
- Supplied with top cap and bolt.
- Steerer bolts: M6 x 18. Lower bar clamp bolts: M6 x 15. Upper bar clamp bolts: M5 x 10.
- Weight - 130mm x 25°: 218g. 150mm x 25°: 222g. 150mm x 35°: 222g. 175mm x 35°: 234g.
- Clamp height - Rear: 34mm. Front: 48mm.

Compatibility
Steerer clamp diameter: 1 1/8"
Bar clamp diameter: 31.8mm

broken cover of stem

Posted by Yu

Hello, some Koreans have bought this system besides me. However, two users have already broken the cover of the stem. What we have in common is a problem with the Jitsie carbon handlebar system. My case was broken as soon as I hit the side hop.

Reply from TartyBikes

Hi Yu!
I'm sorry to hear you've had problems with your stem. If you can get in touch with us with some more information, we're happy to start up a warranty procedure for you with Jitsie.
Our latest stock all have revised, stronger bar clamps, so this should become a thing of the past all being well!
