The new 20" frame from Spanish brand, Comas!
- Great value frame from Comas, ideal for rebuilds of older bikes, or budget new builds!
- Great value 20" frame from Comas suitable for beginners and advanced riders alike.
- With well established BB, fork and drop out standards, this frame is ideal for replacing older frames, or building a bike from scratch with readily available parts!
- Constructed from 6061-T6 aluminium, for a good combination of low weight and strength. A minimalist frame design keeps the price down too!
-
Available, in1008mm wheelbase only. This measurement is achieved when paired with a 370mm axle to crown fork, with a 40mm offset.

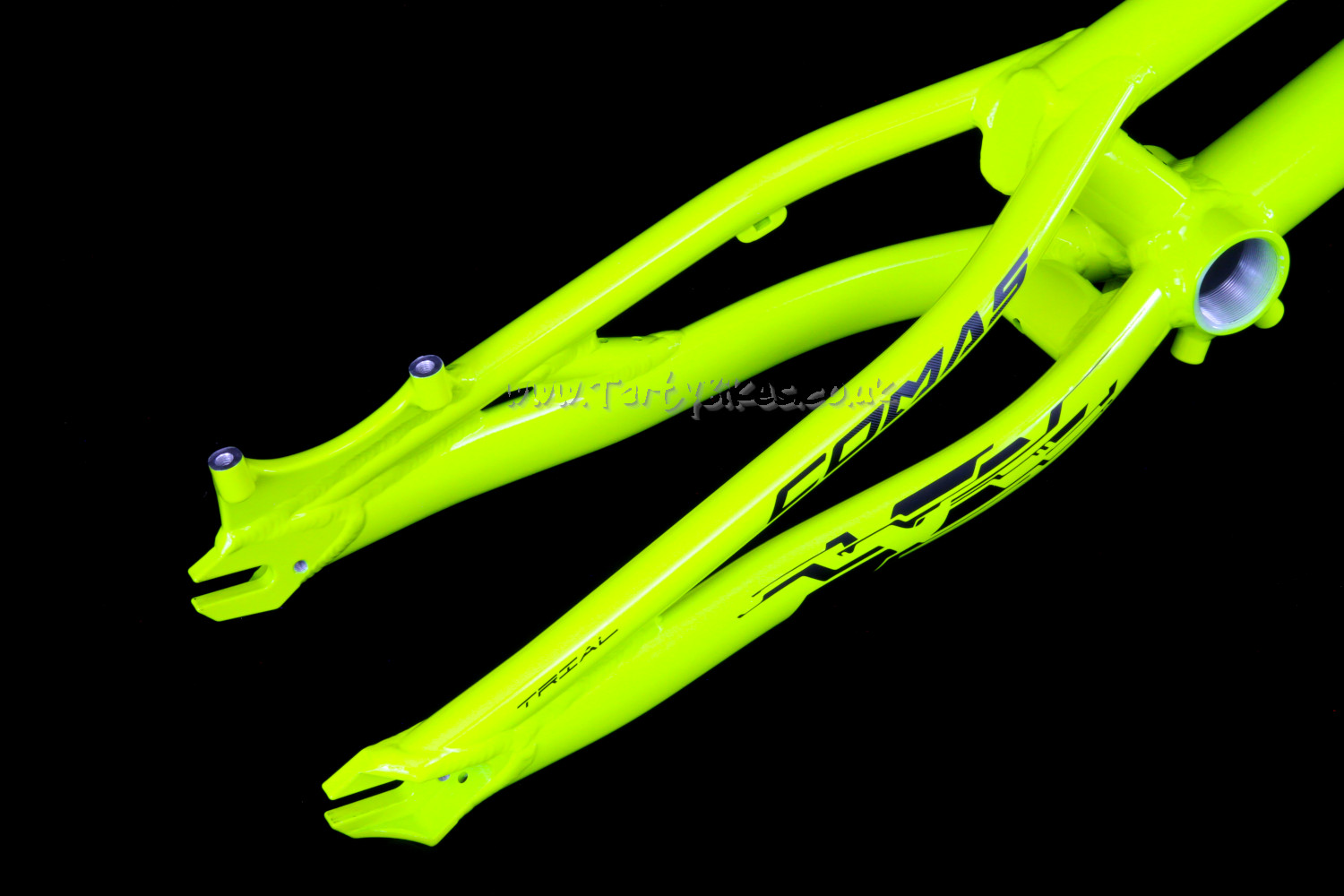

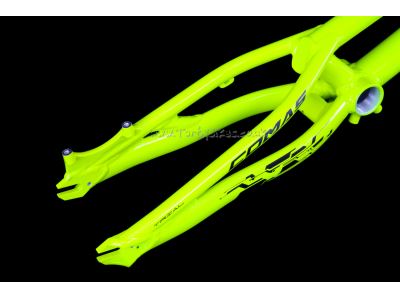

- CNC machined drop-outs spaced at 116mm for use with snail cams.

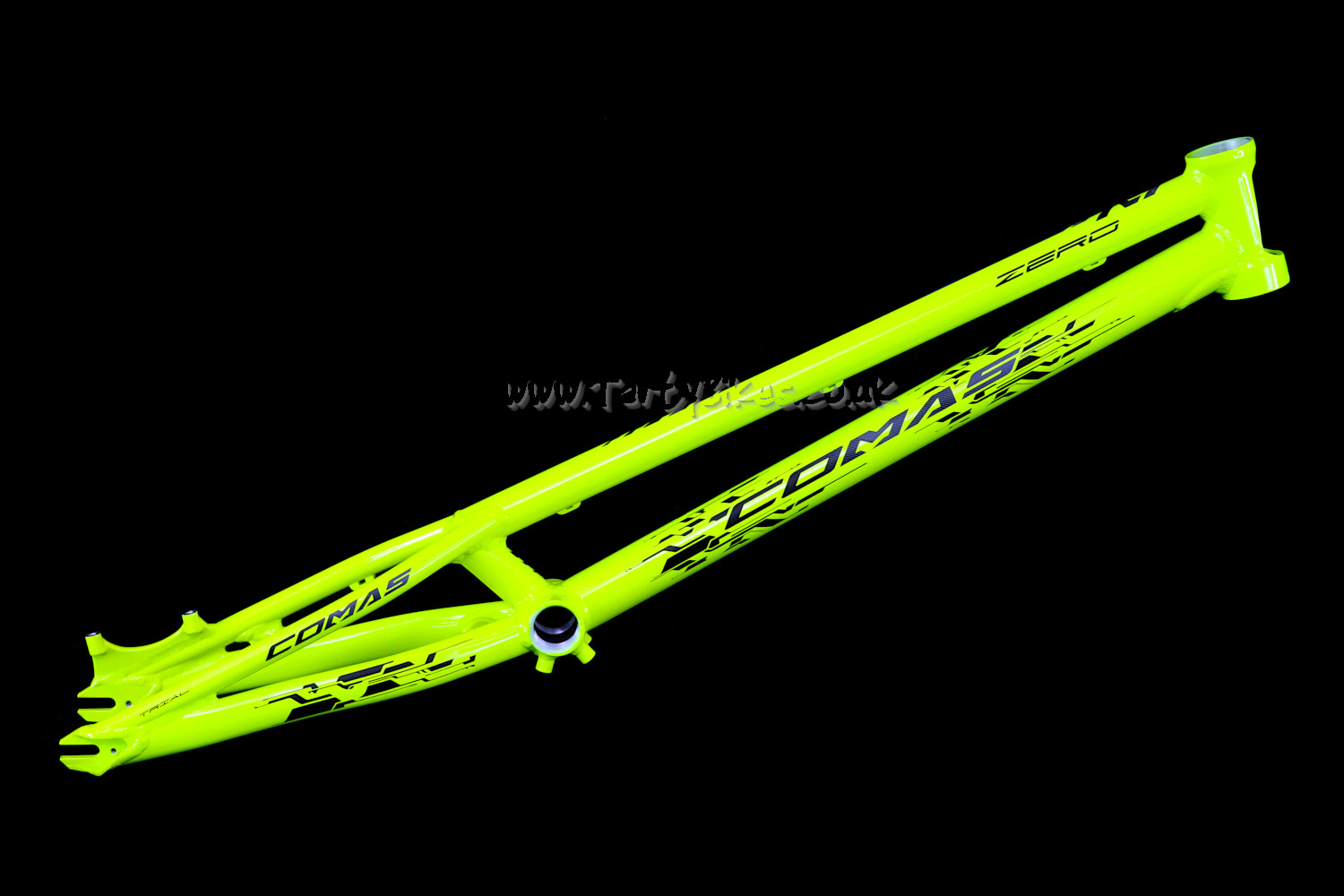

Please note: The frame is pictured without snail cam frame bolts - these will be provided with the frame!

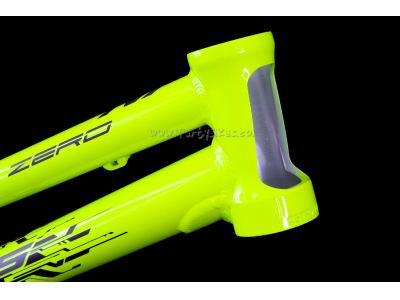

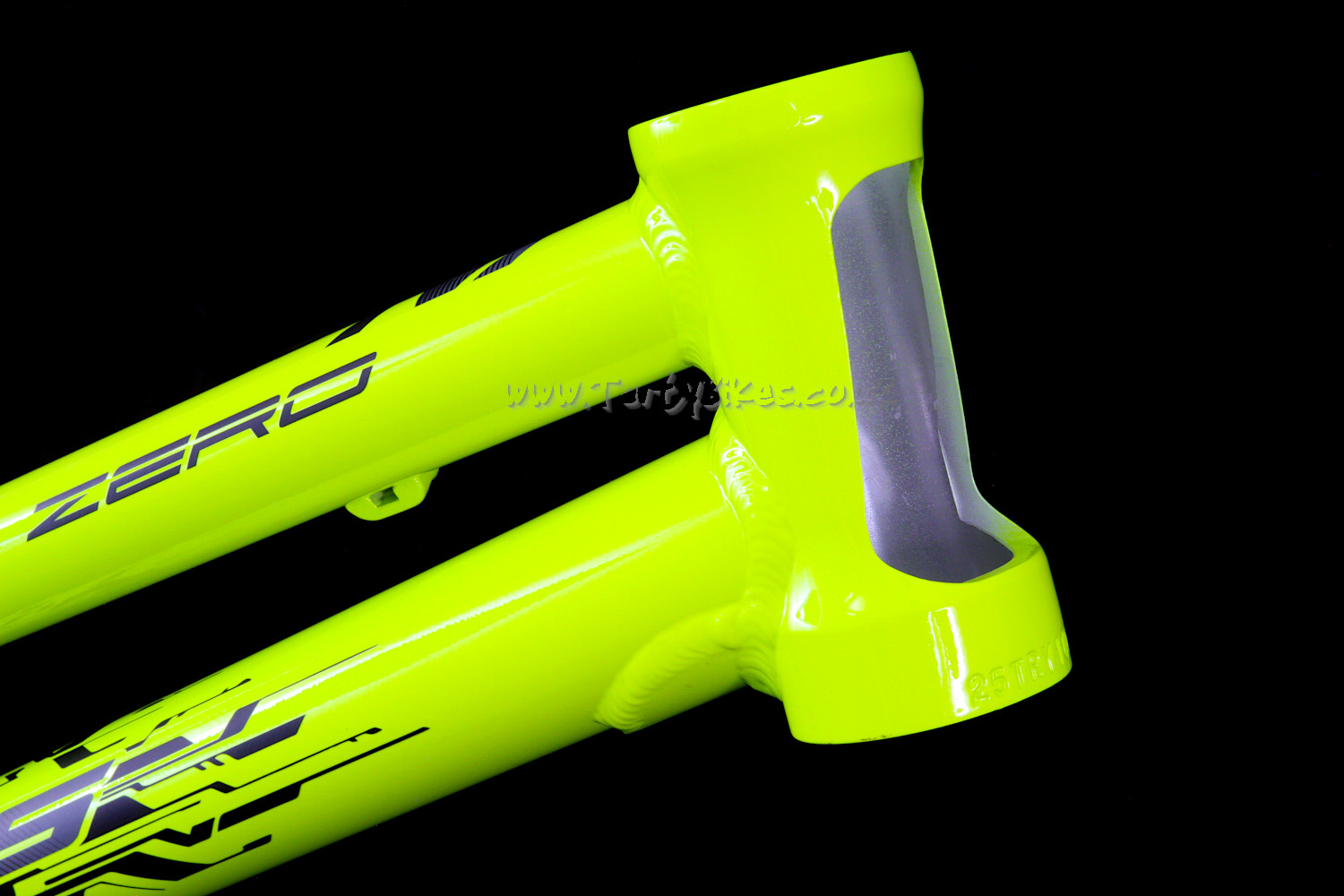

- Gusseted underside of the down tube / head tube junction helps increase strength in this high stress area.
- 44mm head tube for use with straight steerer 1-1/8" forks, and
1-1/8" Internal Headsets. Head tube measures 110mm.
- 68mm BSA BB shell to fit a wide variety of bottom bracket standards. Includes mounts for an underside bash plate, which measures 34mm in length between mounting holes, and 44mm in width between mounting holes.
- A one piece standard post mount rear disc brake mount for use with 160mm rotors, reinforced at the seat tube and chain stays for increased strength.
- Bright neon yellow frame with stylish Comas graphics looks stunning. You won't be able to hide from the competition marshals on this frame!

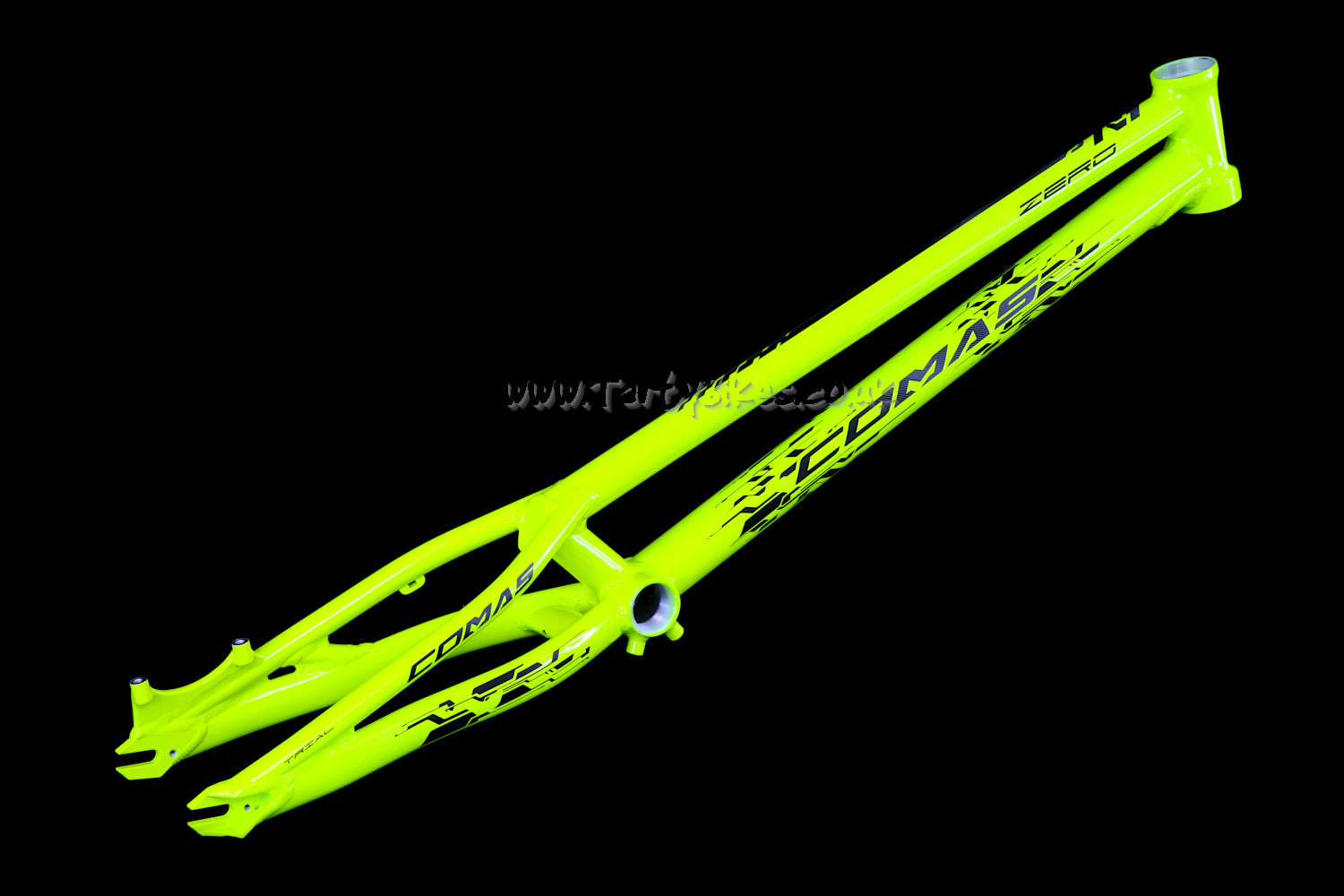

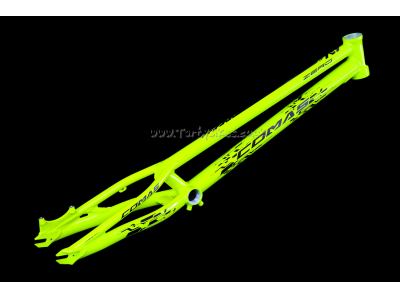

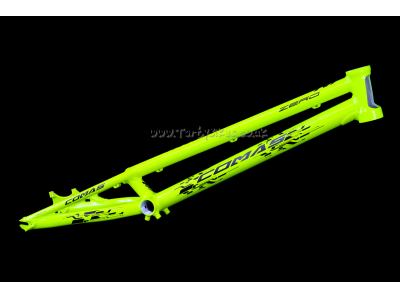

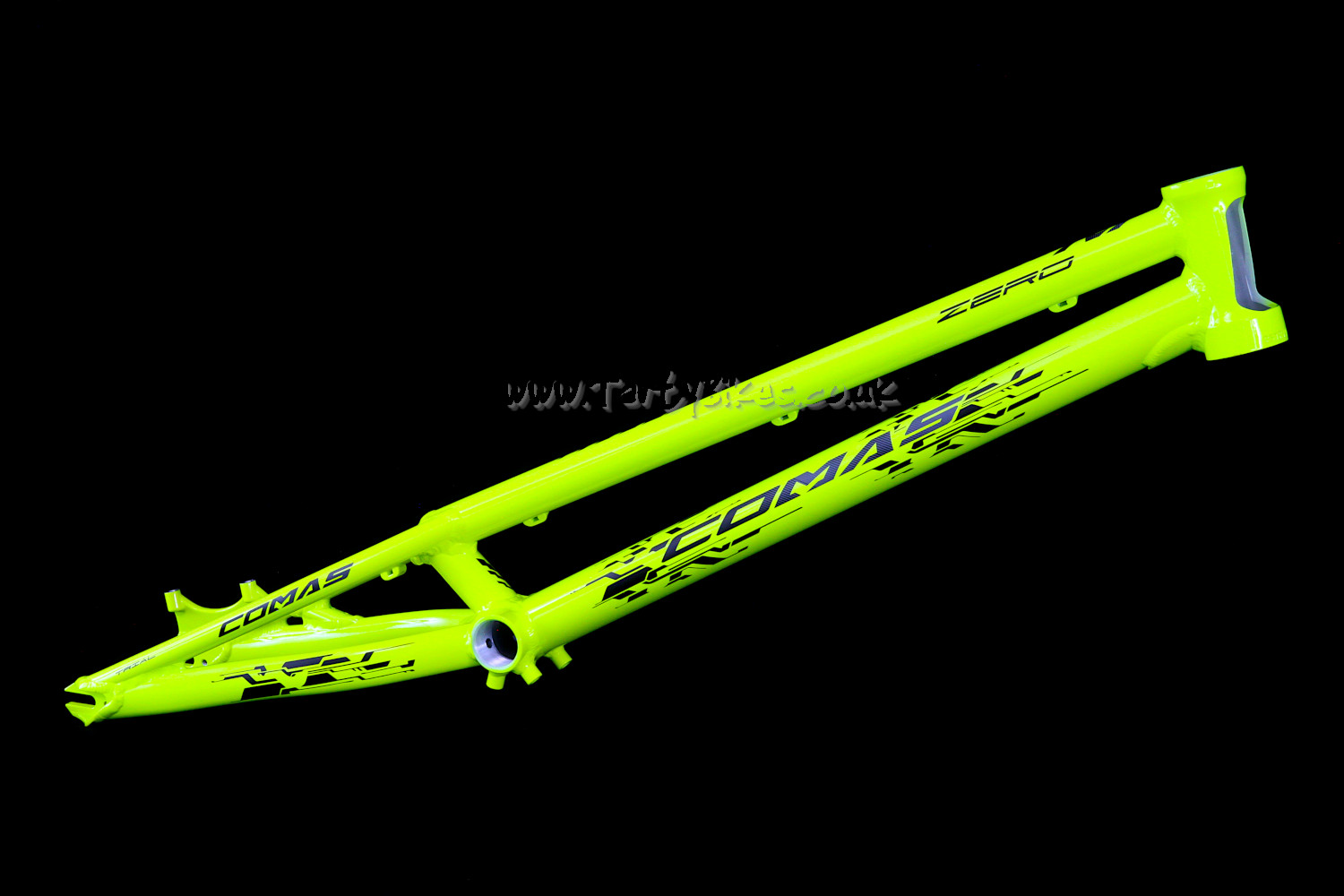

- Weight: (1008mm frame as pictured) 1.52kg
Geometry (measured with a 370mm x 40mm fork):
- Wheelbase: 1008mm
- Chainstay length: 350mm
- BB Rise: 85mm
- Head angle: 72°
- Centre of BB shell to centre top of head tube: 600mm.
Reach: 585mm from centre BB to centre head tube
Stack: 190mm from centre BB to top of head tube
Compatibility
- Headset type:
Internal
- Bottom bracket type: Screw-in, 68mm shell width
- Dropout spacing: 116mm
- Brake mount type: Post Mount Disc Mount Only.
- Bashguard type: 4-bolt Mini
