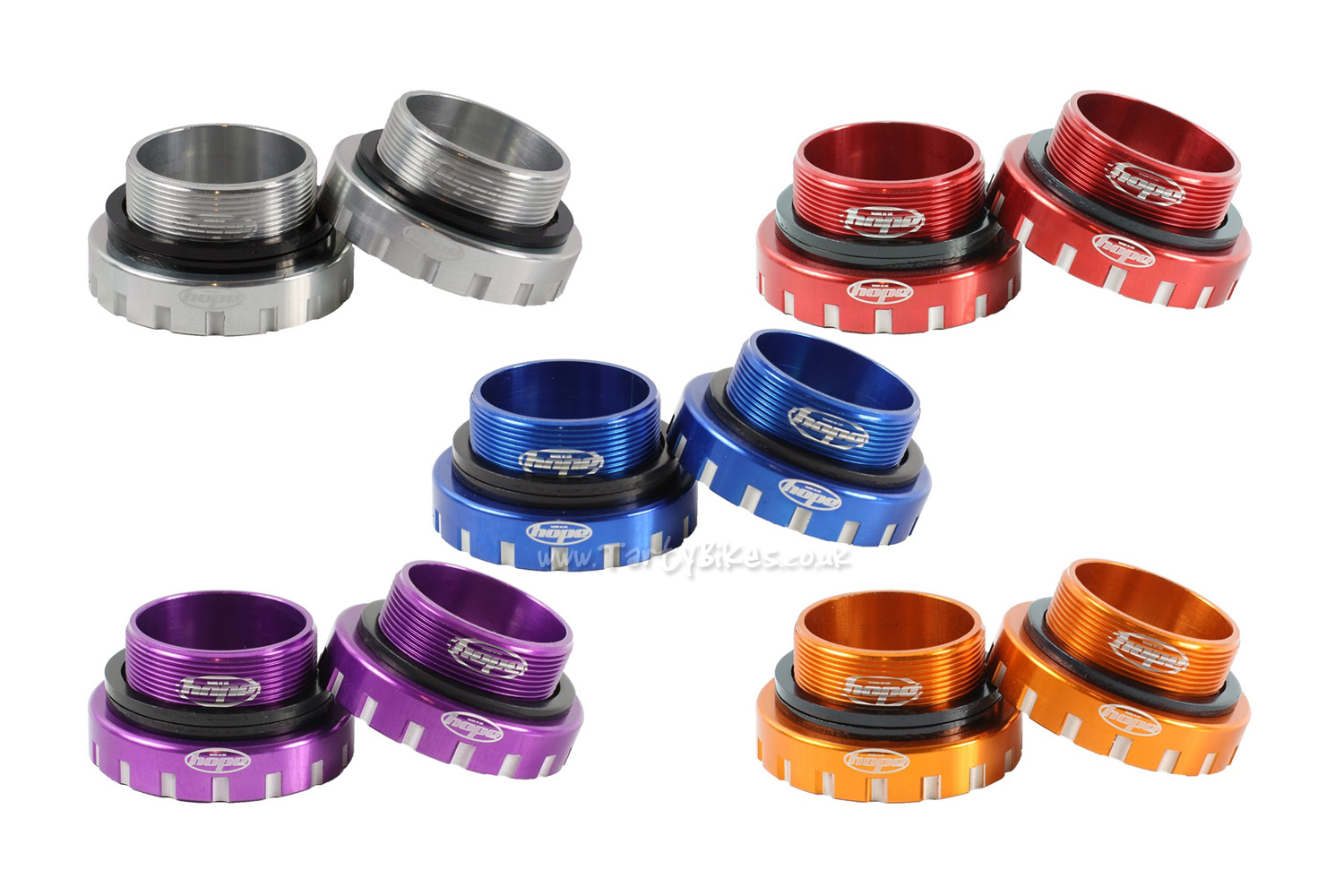

Hope Stainless Steel 30mm BB

Product code: 13129

- External bearing 30mm axle BB from Barnoldswick-based company Hope!
- CNC-machined alloy BB cups help keep down weight.
- Custom bearings use double seals to help keep out dirt and water, and are constructed from stainless steel to prevent corrosion.
- Also available with super durable ceramic bearings - please enquire for more information.
- Replacement bearings are available separately, helping extend the working lifespan of the BB.
- Free-running labyrinth seal provides additional protection from the ingress of mud, dirt and grime.
- Supplied with spacers making it suitable for use with either 68mm, 73mm or 83mm threaded bottom bracket shells.
- Only compatible with cranksets with 30mm axles.
- Available in Black (other colours available for special order).
- Requires the proprietary Hope 30mm BB Tool for installation and removal.
- Please note: To prolong the BB cup lifespan, we recommend having your BB shell faced to provide a flat surface for the cup to tighten up against.
- Weight: 101.8g

Hello, this BB can suit in the frame of the arcade v2 red édition ?

Posted by Ganaël LEFEBVRE on 27/09/2017

Reply from TartyBikes on 28/09/2017

Hello - This BB would fit the Arcade, but would not be compatible with the standard Arcade cranks (either V1 or V2). Thanks, Mark

Do you have a measurement for the thickness of the non-threaded portion of the BB cup? On the Hashtagg BB cup page it was measured 7mm. I'm wondering if this is wider?

Posted by Albert on 29/03/2018

Reply from TartyBikes on 29/03/2018

Hi Albert - The 7mm referenced is for the bearing itself, not the width of the external section of the BB cup. The Hope cup width is 10mm for reference. Thanks, Mark
