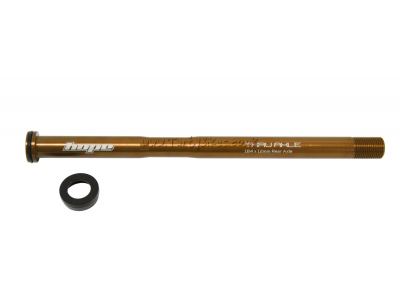

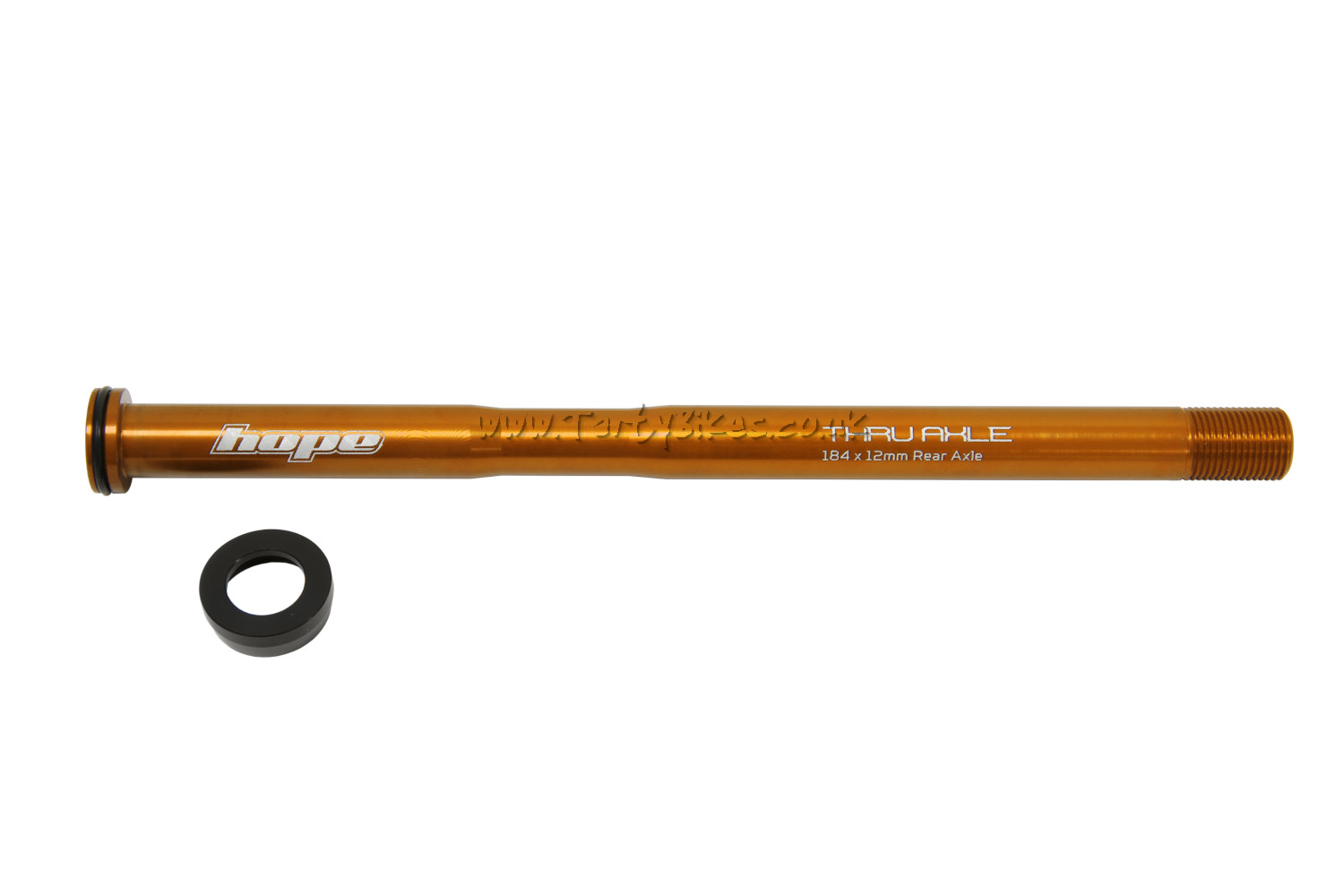

Hope Through Axle, Rear

New from Hope Technology, their range of bespoke frame through axles!

Now available to special order in the new Hope 'Smoke' colour!'

Pimp upgrade for Santa Cruz, Specialized, Trek, Transition, and Hope HB 916 frames!
Available in all current Hope colours!

- A range of axles to suit Santa Cruz, Specialized, Trek, Transition, and Hope HB916 frames from CNC specialists, Hope Technology.
- Made right here, in the UK, at the Hope Technology factory in Barnoldswick!
- Axles are supplied with washers to fit the bikes listed in the available options below.
- UDH compatible bolts are available separately to match the axles listed here!
- All axles feature a reduced centre profile to help reduce weight, maintaining strength.
- A hex key fitting for easy installation and removal.
- All axles are supplied with an M12 x 1mm thread, as found on bikes equipped with UDH rear mech hangers, or SRAM transmission drop outs.

Available Options

164.5mm to 167mm (to fit Specialized V1 mountain bikes)
172mm to 173mm (with tapered washer, to fit Specialized and Transition mountain bikes. With flat washer, to fit Santa Cruz mountain bikes)
184mm (to fit Trek mountain bikes)
186mm (to fit Hope HB916)

- Make sure to select the correct axle for your frame. We recommend only using these axles for the frames listed here. There is a handy guide in the product images with insertion measurements, and a table indicating which washer is required for a particular frame, so you can check your existing axle, and select the correct replacement. If you need any assistance, please get in touch!

Will this axle fit a non udh frame I have a axle which is 168.5

Posted by SHAUN WHARTON

Reply from TartyBikes

Hi Shaun

These axles should work fine with a non UDH frame, it's just a case of finding the correct length. Hope advise that if your measured length does not match any of the lengths they offer, then their axles are not compatible with your frame. I would advise measuring your axle / frame using the guidance detailed in the Hope document, which is in the product pictures. If you're still not sure, contacting Hope directly to confirm would be my advice!

Ben

164.5mm to 167mm	$40.80	$40.80	$40.80	$40.80	$40.80	$40.80	$40.80
172mm to 173mm	$40.80	$40.80	$40.80	$40.80	$40.80	$40.80	$40.80
184mm	$40.80	$40.80	$40.80	$40.80	$40.80	$40.80	$40.80
186mm	$40.80	$40.80	$40.80	$40.80	$40.80	$40.80	$40.80
