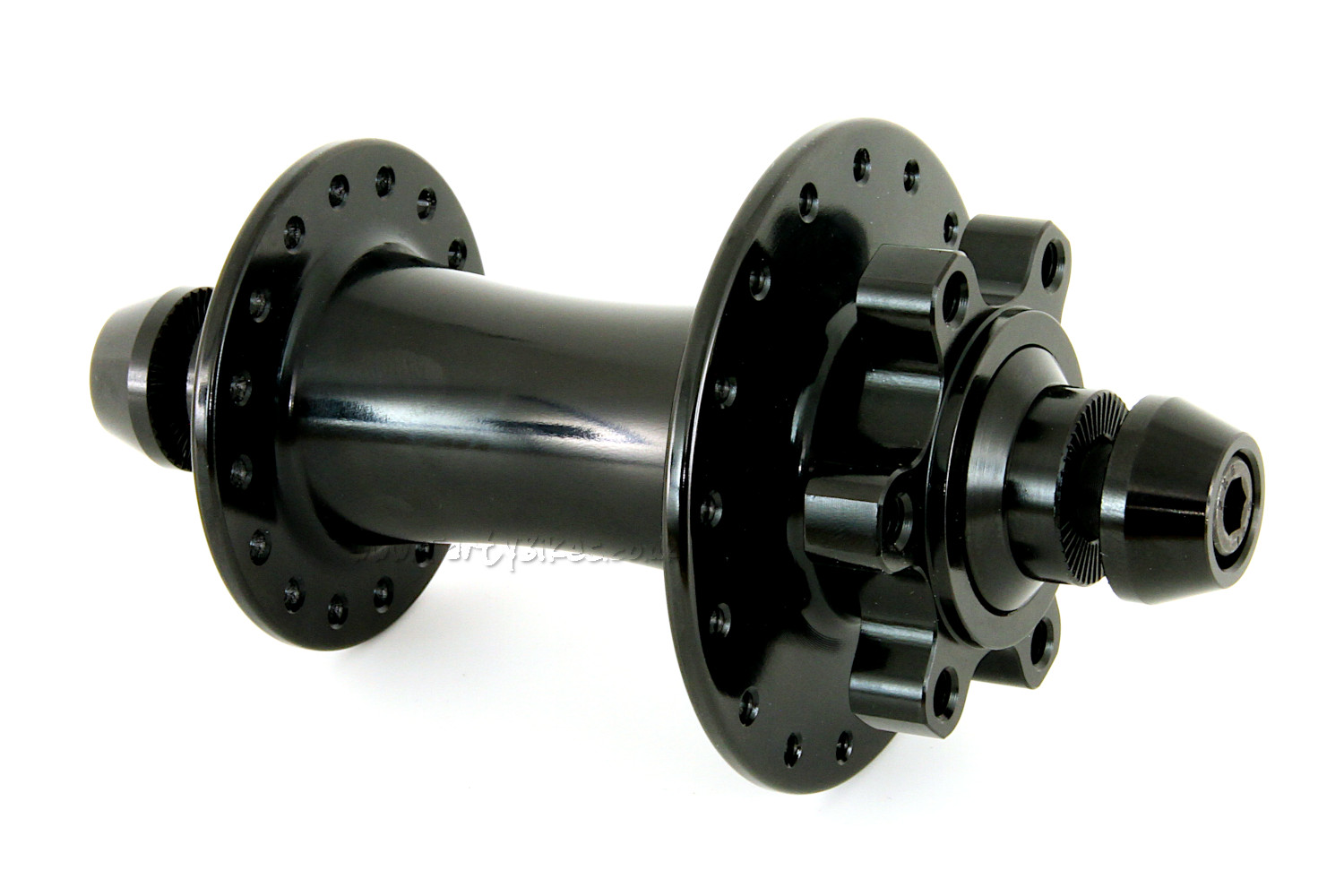

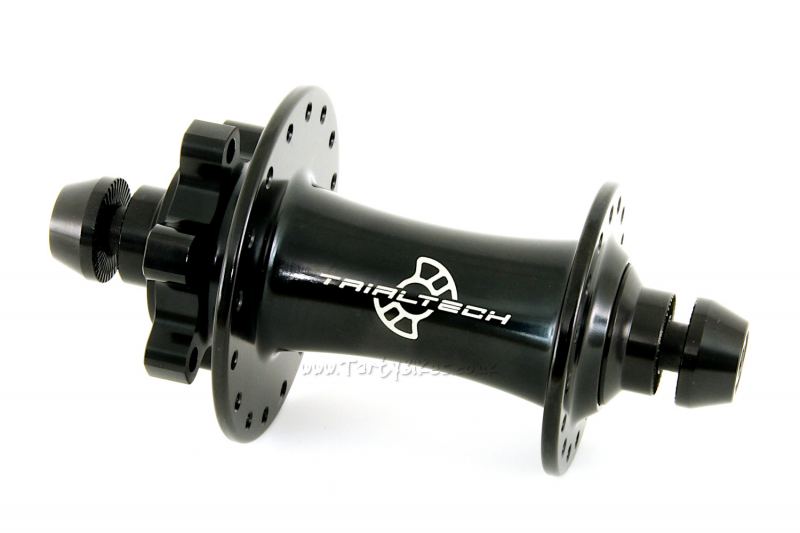

Trialtech Sport Disc Front Hub

Product code: 13114

Overview
Additional Information
Questions

Available in: 32h only

- High quality and super durable front hub from Trialtech!
- 100mm spacing is suitable for almost all bikes.
- Fully CNC machined aluminium hub shell.
- 10mm steel axle is hollow all the way through, providing great strength without adding too much weight.
- Fully sealed cartridge bearings throughout for maximum longevity.
- Serrated axle bolt washers help keep the wheel clamped in place rather than moving around in your dropouts.
- Features larger disc side flange for extra strength and grub screw secured end caps for longer bearing life.
- Available in black, 32h only.
- Available in Disc only.
- Weight: 200g (plus bolts and washers - 227g)

Hub Dimensions

Disc
- Flange Diameters: Disc side: 57mm / Non disc side: 45mm
- Centre to Flanges: Disc side: 22mm / Non disc side: 37mm.
