Clean BB30 3P Crankset

Product code: 13569

$367.04

Check Stock

Clean BB30 3P Crankset

160mm
165mm
170mm

Sold out

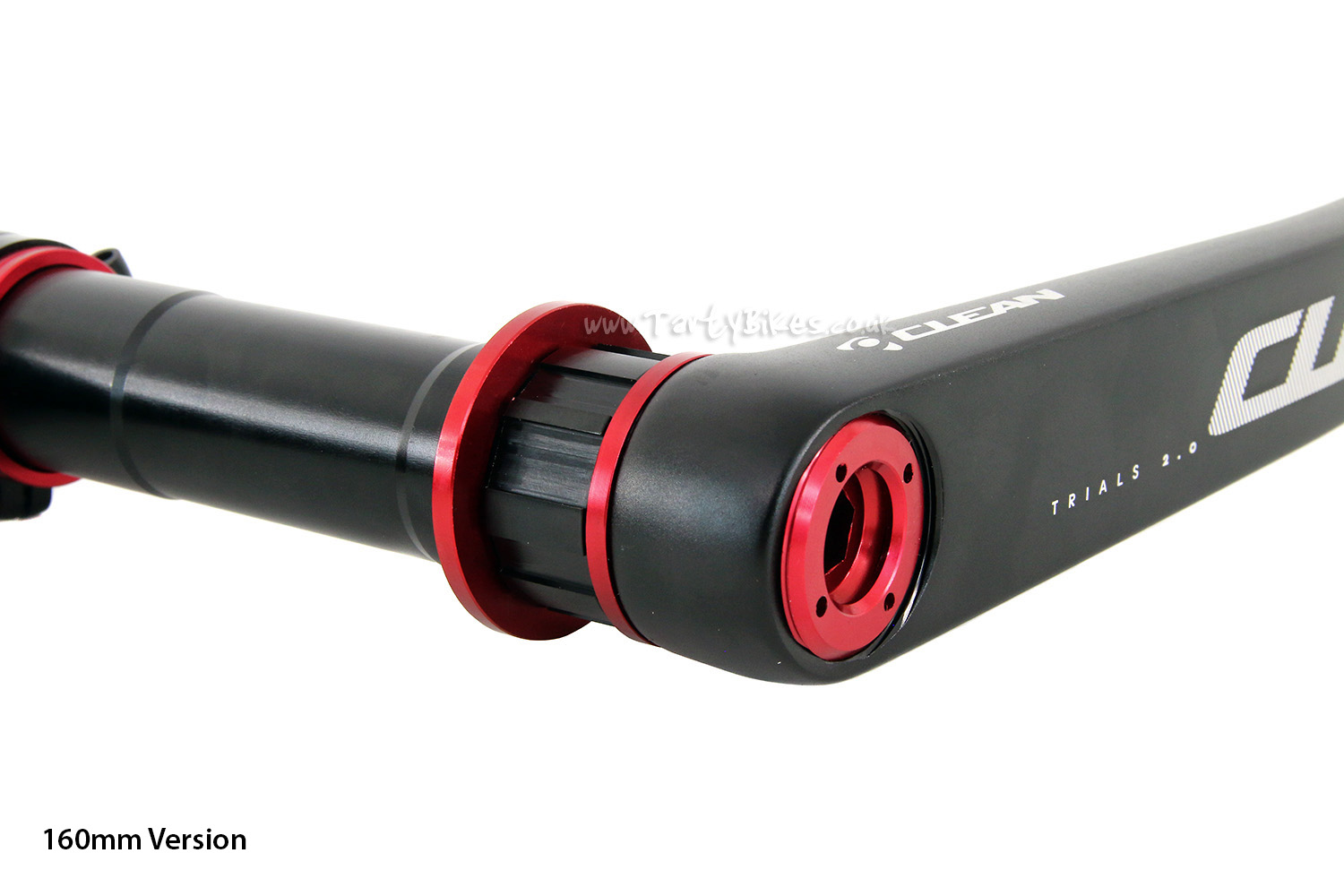

BB bearings supplied now in anodized red press fit cups, not the black pictured, this image is for illustration purposes only.

  • Strong, lightweight crankset from Clean!
  • Compatible with AS30 frames (e.g. Clean K1/X2, Crewkerz Jealousy).
- Top quality trials crankset from Spanish brand Clean!
- 30mm diameter axle combined with unique spline interface for the crank arms ensures maximum stiffness and rigidity.
- Crank arms are forged from 7075-T6 aluminium alloy, then CNC-machined to remove weight where it isn't required.
- Updated design on the 160 and 165mm model has a smoother finish, without the CNC-machining marks of the 170mm model.
- New 160 and 165mm model also features an updated preload collar on the non-drive crank arm!
- Shimano-HG splined section on the axle allows the use of a range of freewheels, including the Bonz Splined 108.9, Crewkerz Splined 108.9 and Clean 135.9 Splined freewheels.
- This splined freewheel system makes installing and removing freewheels super easy, and can help reduce chain tension fluctuations commonly found on screw-on crank arms.
- Can be used with or without a Clean splined bashring (supplied as standard with the 170mm cranks - 160 and 165mm cranks are fitted with a spacer instead of a bashring), which can be orientated for either right or left foot forward riders.
- M18 alloy crank bolts help keep weight down, and feature self-extracting rings which remove the need for a crank extractor!
- Please note: these crank bolts require a 10mm allen key.
- Supplied with anodized red press-fit Clean sealed bearing BB.
- This BB is compatible with several frames, including the Clean K1 and X2 frames, Crewkerz Jealousy frames and any other frame that requires a 46mm diameter press-fit BB cup.
- Tough 7075-T6 alloy cups ensure good durability.
- Large diameter 6806-series sealed bearings are tough enough to withstand trials usage, whilst also having top quality seals to prevent ingress of water and dirt.
- Supplied with alloy spacers allow you to align the crankset perfectly on your chosen frame.
- Tough anodised black finish with laser etched Clean logos.
- Total crankset kit weight - 160mm: 660g. 165mm: 670g. 170mm: 654g.

Additional Information

Ensure that your pedals are tightened to at least 310 in-lbs (35 Nm) every 5 minutes for the first few rides. Before fitting, it's also a good idea to make sure your pedal axles are clean (a wire brush works well) then greased before installation.
Similarly, always check crank bolt torque is at least 310 in-lbs (35 Nm) every 5 minutes for the first few rides, then each and every ride after that.
Failure to keep your pedals or crank bolts tight as described above is likely damage your cranks and this will not be covered under warranty.
