Inspired Arcade V2 Integrated Bashring

Product code: 12296


In stock

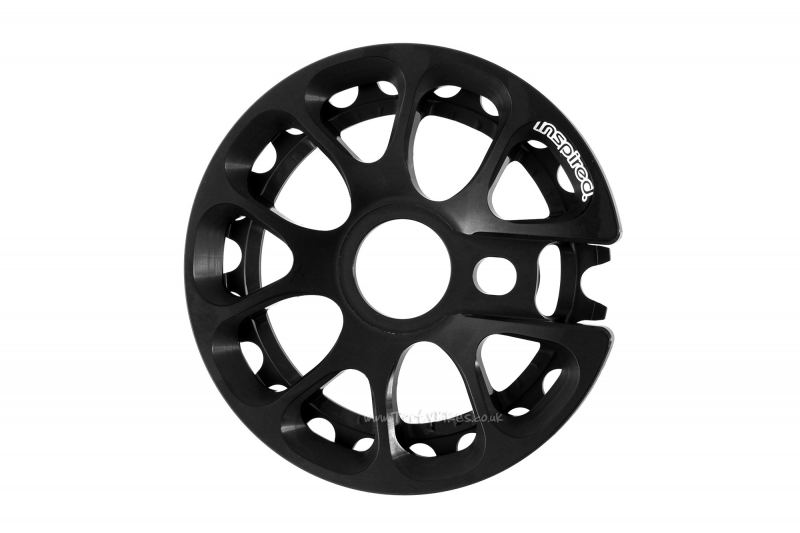

Inspired Arcade V2 Integrated Bashring

  • Updated design for 2018!
  • 10g lighter than previous model.
- New for 2018, the Arcade V2 Integrated Bashring!
- Based on the tried-and-tested Arcade Integrated Bashring, but with revised graphics and weight saving scoops on the 'spokes' of the bashring.
- As fitted to the Inspired Arcade complete bikes.
- Perfect partner for the Inspired Arcade and Arcade V2 Crankset.
- CNC machined from high strength 7075 aluminium.
- Compatible with most BMX style crank arms with micro sprocket bolt mount (NOT compatible with screw-on cranks, or cranks designed for use with bolt-on chainrings).
- 22T chainring fits 1/8" and 3/32" chains.
- 1-piece design helps to reduce weight and maximise stiffness.
- Unique tapered 'top hat' inserts ensure the sprocket remains tight during use and help to improve alignment.
- Fits 19mm or 22mm BB axles using the different inserts supplied.
- Tough, shot blast matt black anodised finish with subtle laser etched Inspired logo.
- Weight: 81g (with 22mm insert).

Please note that we recommend fitting a new chain at the same time as this product. With the chainring being in a 'fixed' position (not able to be rotated) and trials riding often being carried out with the same foot facing forward, this means that only a small portion of the chainring is loaded up. Using an old chain will increase wear drastically. It is for this same reason that we recommend replacing your chain more frequently when you use this item.

Crankset shown for illustration purposes only, and is supplied separately.



Hello, this inspired arcade converter suitable for Author Exe 24:00 with 170 mm cranks?

Posted by Frantisek on 10/02/2014

Reply from TartyBikes on 11/02/2014

Hi Frantisek - thanks for your question. That would depend on the cranks you are using. If you are using a BMX type crank with a "micro sprocket" mount then yes. If you are using BMX type cranks with the mount in the place for "normal" sprockets then it will not. If you are using threaded cranks, or cranks that require bolts to attach the chainring then it will not fit. Hope that helps. Thanks, Flipp.


dá sa dať ten prevodník na tento bicykel ? http://www.evanscycles.com/products/specialized/p20-2011-bmx-bike-ec024974#features

Posted by Frantisek on 16/02/2014

Reply from TartyBikes on 17/02/2014

Hi Frantisek - thanks for your question. If the cranks on this bike feature a micro-sprocket mount, then yes it will fit. If the cranks only feature a regular sprocket mount, it will not fit. Hope that helps. Thanks, Flipp.


This chainring is compatible with this BMX? ? : http://www.winstanleysbmx.com/product/43263/Haro_000_Brakeless_2012_BMX_Bike

Posted by Frantisek on 20/03/2014

Reply from TartyBikes on 21/03/2014

Hi Frantisek - thanks for your question. We don't know much about that bike so can't say for sure. It will only fit if your cranks feature a micro-sprocket bolt mount, some cranks do and some cranks don't. Typically a 25t sprocket uses a regular bolt mount, so if bought as a complete bike they typically will not fit a micro-sprocket. Thanks, Flipp.

does it fit a onza zoot pro 24"

Hey , Does that chainring fit a onza zoot pro 24"

Posted by does it fit a onza zoot pro 24" on 01/05/2014

Reply from TartyBikes on 02/05/2014

Hi there - thanks for your question. This sprocket and bash uses a BMX micro-sprocket mounting system, and will not work with regular, threaded style trials cranks as found on your Zoot. Thanks, Flipp.

Parker Jamison

Will this work with the Deity Vendetta 3.0 cranks. The cranks have a micro drive option.

Posted by Parker Jamison on 10/11/2017

Reply from TartyBikes on 13/11/2017

Hi Parker - If the Deity cranks have a micro drive option and either a 19mm or 22mm axle then this bashring should work fine. Thanks, Mark

Peter Hjort

Hi Tarty. Does this fit a 3pc crank?

Posted by Peter Hjort on 03/04/2018

Reply from TartyBikes on 04/04/2018

Hi Peter - This bashring is designed to run on either 19mm or 22mm axle 3-piece cranks. You just need to make sure you've got the micro-drive bolt option on your cranks too! Thanks, Mark


Will the INSPIRED ARCADE V2 INTEGRATED BASHRING work on the 2017 arcade team?

Posted by Lachlan on 04/08/2018

Reply from TartyBikes on 06/08/2018

Hi Lachlan - If you're still using the Arcade cranks fitted to the Team, this bashring will fit perfectly as it's the one supplied on the bike as standard. Thanks, Mark
