This bike is built in our workshop before dispatch, and we often have a queue. The current lead time can be seen by adding this bike to your basket. Some basic assembly is required on arrival, we are happy to help if you need.

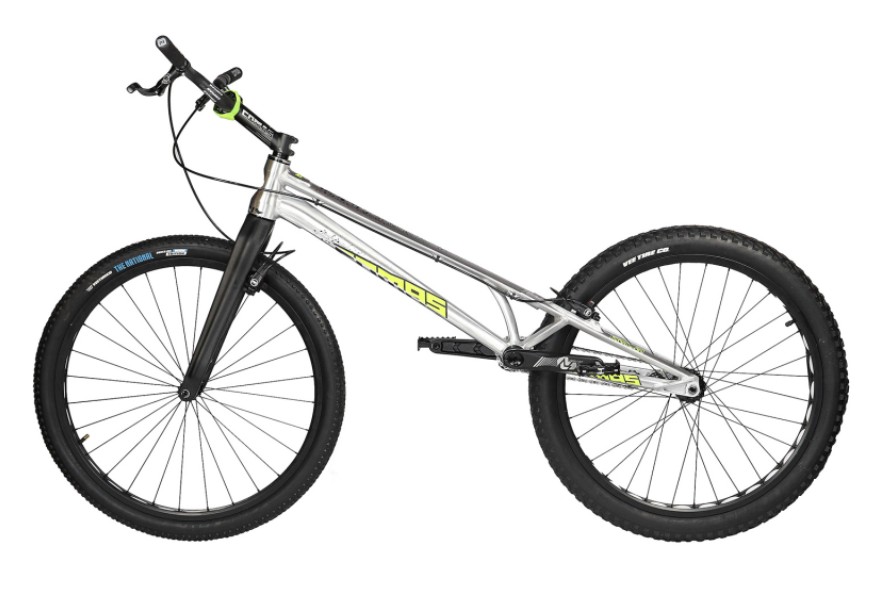

- New for 2026, top of the range complete bikes from Comas!
- Custom hydroformed 6061-T6 aluminium tubes with internal butting for a good combination of low weight and high strength.
- Available, in 1068mm wheelbase only (measured with a 400mm axle to crown fork, with a 35mm offset).
- The frame features CNC machined drop-outs with 12mm through axle (116mm spacing).
- Gussets on the down tube and top tube where they meet the head tube helps increase strength in this high stress area.
- Oversized head tube for use with tapered steerer 1-1/8" to 1.5" forks. Head tube measures 120mm.
- PressFit BB30 BB shell.
- Integrated tensioner mount for use with sprung chain tensioners.
- Brushed aluminium finish with stylish fluro yellow and black Comas graphics.
Frame and Forks
- Frame: Comas Kala 1068 26", 12mm rear thru-axle (116mm spacing), 4-Bolt mounts, 1068mm Wheelbase
- Forks: Carbon 26", Tapered 1.1/8″ - 1.5″ steerer, 12mm thru-axle, 4-Bolt mounts
Wheels
- Front hub: Comas Race 100, 28h
- Rear hub: Comas Race Cassette 116, 32h
- Front rim: Comas, 28h
- Rear rim: Comas, 32h
- Rim tape: Comas, White, no logos
- Front tyre: VeeTireCo National Synthesis Front, 26 x 2.0"
- Rear tyre: VeeTireCo Trax T-AM Synthesis Rear, 26 x 2.5"
Brakes
- Front brake: Trialtech Sport Lever, Trialtech Slave Cylinders, Trialtech Hose, Trialtech Fluid, Comas Brake Clamps
- Rear brake: Trialtech Sport Lever, Trialtech Slave Cylinders, Trialtech Hose, Trialtech Fluid, Comas Brake Clamps
Drivetrain
- Cranks: Comas Forged, 160mm, Black
- Front Sprocket: Comas 7075 Alloy, 18t
- Chain: KMC X9
- Rear Sprocket: Comas 7075 Alloy, 15t
- Chain tensioner: Comas Double Pulley Sprung Tensioner with Ceramic Bearings
- Pedals: Comas Caged, Black.
- Bottom bracket: Comas PressFit BB30
- Bashring: Comas 7075, Black
Steering
- Headset: Comas Internal tapered 1.1/8″ - 1.5″
- Stem: Comas 3D Forged, 140mm x 20° (Includes stem pad)
- Headset Spacers: Comas Carbon, 5mm
- Grips: Comas Foam, Black
- Handlebars: Comas Carbon Riser, 720mm Width x 105mm Rise
Geometry:
Wheelbase: 1068mm
Chainstay Length: 383mm
BB Rise: +70mm
Headtube Angle: 72°
Centre of BB shell to centre top of head tube: 657mm
Reach: TBC
Stack: TBC
Weight: 8.55kg
This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.
We build this bike to a 100% complete state in our workshop before dispatch to ensure all items are manufactured correctly and nothing is missing, but we do have to remove some parts to ensure there is no damage during transit. You will need some basic tools (usually 4mm, 5mm, 6mm and 8mm allen keys and a 15mm spanner) for final assembly upon arrival. We have a video guide here to help, but please don't hesitate to contact us if you require any further assistance.
