Inspired Hex Pro Frame Kit

Product code: 14263


In stock

Inspired Hex Pro Frame Kit

For a limited time only, while stocks last!

  • Top quality frame kit from inspired!
  • Includes frame, forks, headset & chain tensioner.

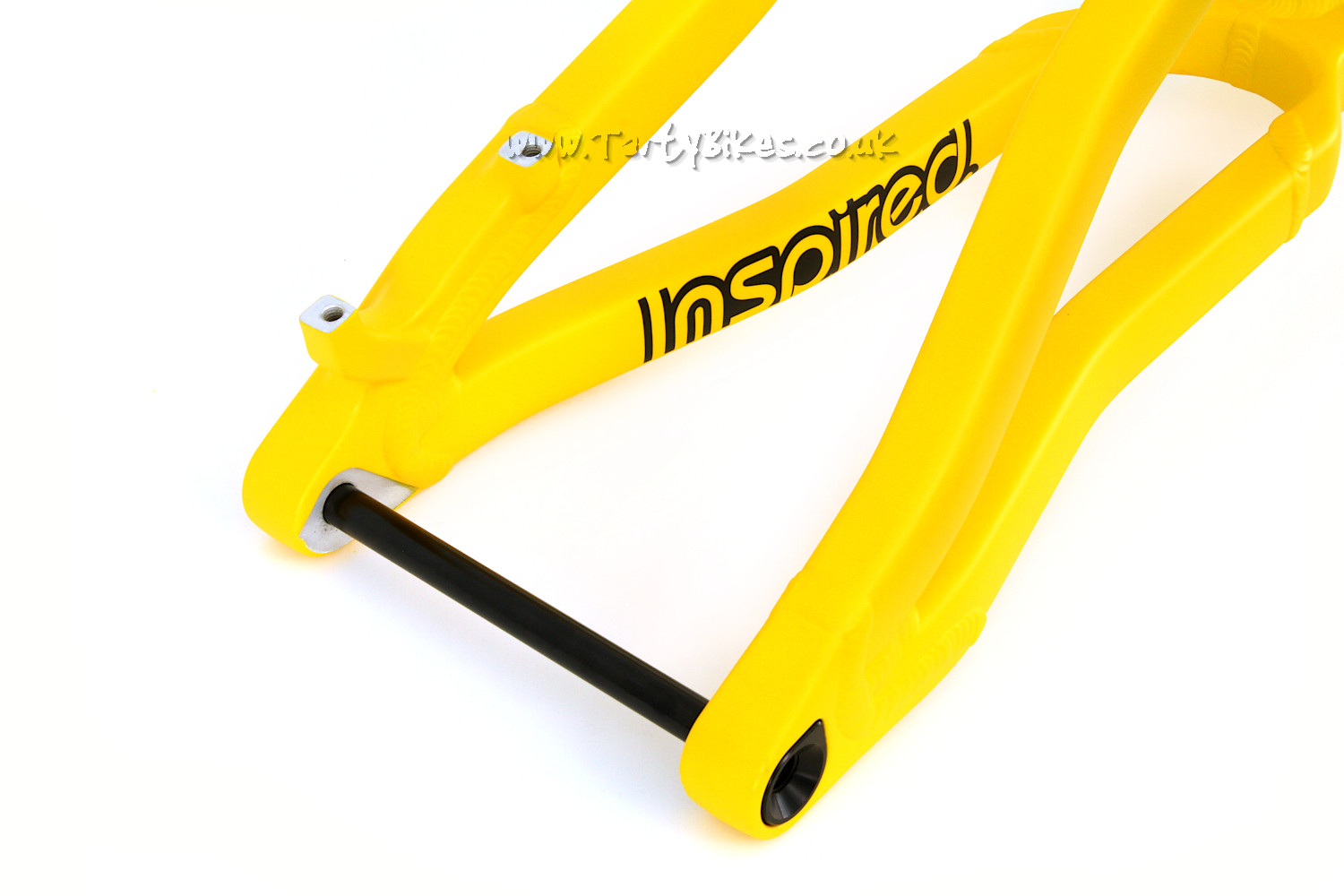

Inspired Hex Pro Frame

- Back for a limited time only, the super popular Hex Pro frame kit!
- Tested extensively by Inspired team riders.
- Pro frame kit includes the updated tapered head tube and 15mm Pro front through axle and 12mm rear Pro axle.
- New head tube design now features fully integrated headset bearings for a cleaner front end whilst saving weight.
- Pro frame kit also supplied with the updated Inspired Team Sprung Tensioner. This isn't pictured, as it's not possible to mount it for photographing!
- High quality 6066 aluminium tube set includes double butted top and down tubes.
- Completely re-designed dropout is forged from high grade aluminium.
-180mm position Post Mount disc mount.
- Revised top tube and seat stay joints for improved strength.
- Two-piece hollow forged BB yoke is super strong yet also saves weight.
- Euro style (threaded) 73mm bottom bracket features a 1.37" x 24tpi thread suitable for use with any 73mm shell compatible threaded bottom bracket we stock.
- Chain tensioner and mounting point design allows the rear wheel to be removed without having to loosen the tensioner first. The tensioner also only has a cage on one side, meaning the chain can be put on and taken off without having to split and rejoin it!

Inspired Pro Fork

- Pro fork features the new top cap design which screws into the threaded steerer tube and allows the hose to be routed through the steerer if required.
- 100 x 15mm (not boost) hub spacing compatible with a wide range of hubs!
- Supplied with Inspired 15mm Pro axle.
-180mm position Post Mount disc mount.
- Forged triple butted steerer tube (218mm long) is made out of 6066 aluminium.
- Screw-in top cap replaces the traditional star nut assembly, and also allows easy steerer tube hose routing.
- Chunky fork legs add extra stiffness for hooks, and for moves on the front wheel.
- Unique CNC'd dropouts feature tapered interface for bolt through 15mm axle.
- Frame kit only available in Satin Yellow.

Full kit includes:

Hex Pro Frame
Inspired Pro Forks
FSA Sealed Headset & Inspired Top Cap
Single-sided Inspired Team Tensioner
Pro 15mm and 12mm axles


- Total frame kit weight (Frame, fork, rear and front axle, tensioner, headset and top cap): 3.92kg

- Wheelbase: 1023mm
- Chainstay: 380mm
- BB Rise: +20mm
- Head Angle: 73.5°
- Centre of BB shell to centre top of head tube: 685mm
Reach: 448mm
Stack: 497mm

- Headset type: Tapered, integrated.
- Bottom bracket type: Screw-in, 73mm shell width
- Dropout spacing: Frame - 135mm x 12mm / Fork 110mm x15mm (not boost)
- Brake mount type: +20mm Post Disc Mount
- Bashguard type: n/a - requires a bash ring
- Chain line: 51mm (Recommended minimum with 22T chain ring)

Additional Information

This frame comes with a 6 month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any warranty claim.


Travis Gardner

I know the Team & Pro complete bikes are different based on mostly what I thought was components but is there a difference between a Team & Pro frame kit? Like is the Hex frame kit the same on Team & Pro complete bikes and that’s just the way the frame kit is labeled? Thank you and hope that makes sense.

Posted by Travis Gardner

Reply from TartyBikes

Hi Travis

The difference between the frame kits, is the Pro kit uses a fork with a 15mm through axle (20mm on the Team) and an Inspired Pro 12mm axle on the rear (Inspired Team 12mm axle on the Team frame). That's it! The frame kit comes with the Inspired Team Tensioner, so it's only the axle sizes that are different. The big differences are in the over all component specification of the Pro and Team complete bikes, which you can find in the product listing information of the complete bikes.
