- Packed with modern features: 135 x 12mm through axle, tapered head tube, and post tensioner mount!
- Modern geometry suitable for top level competition riding.

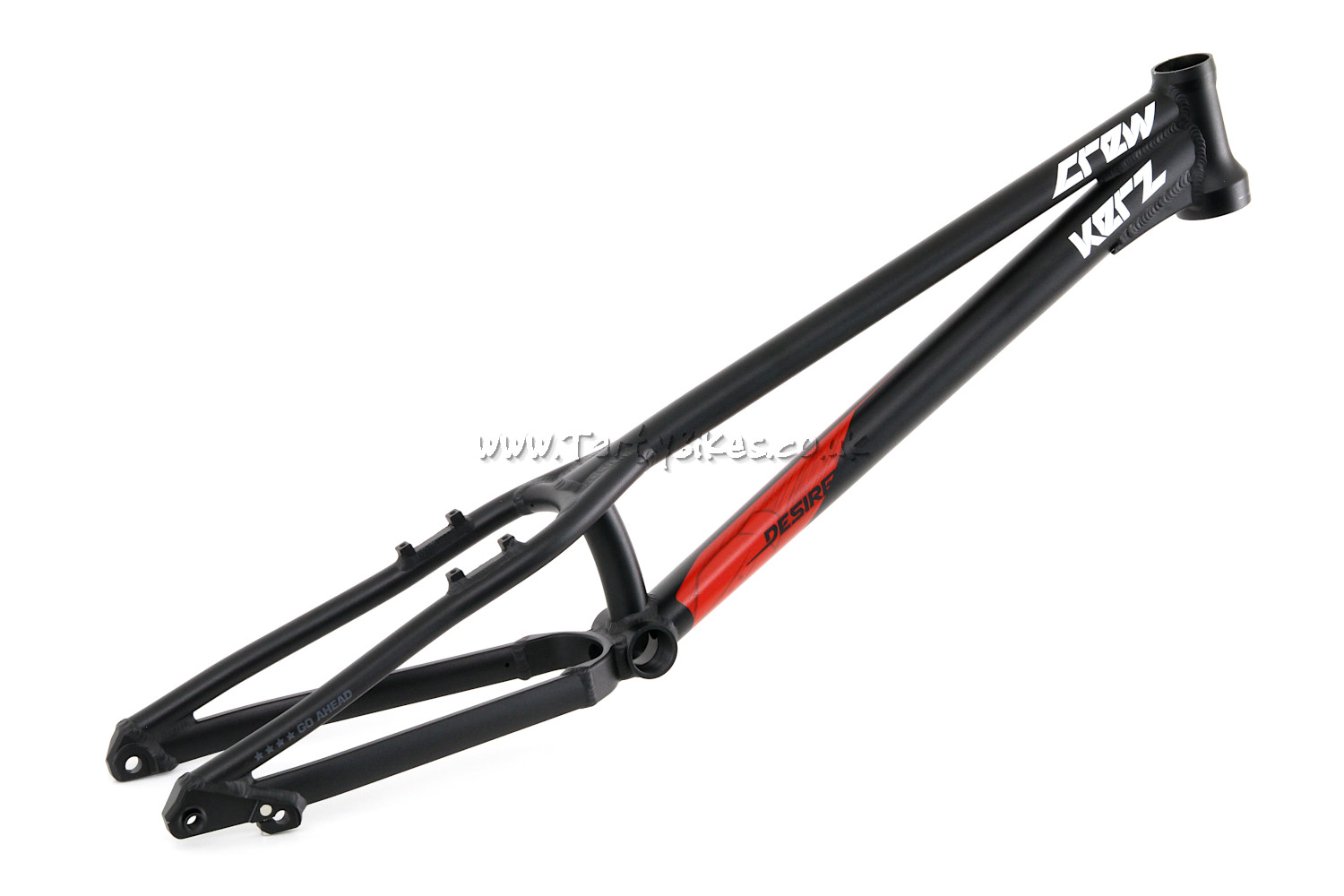

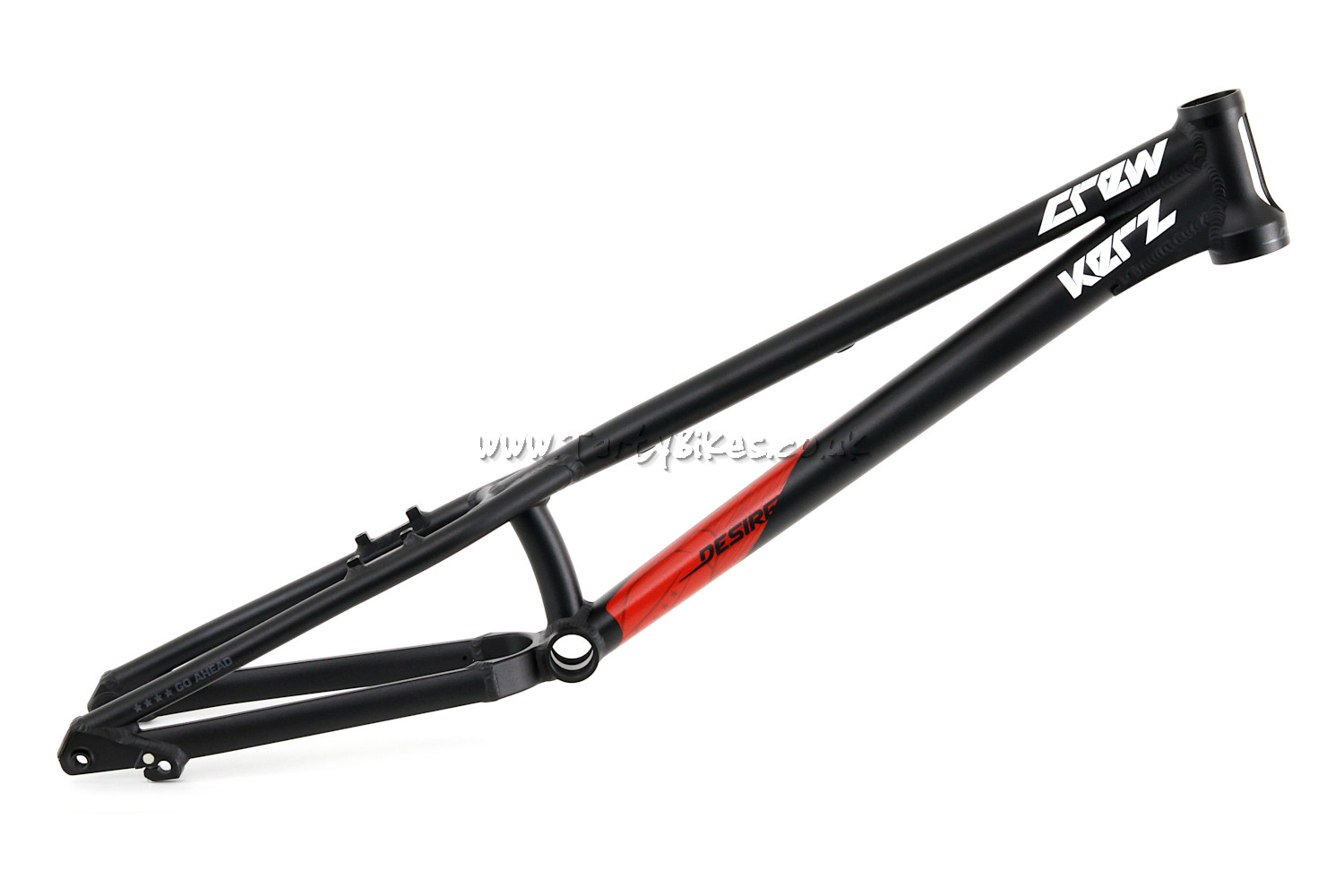

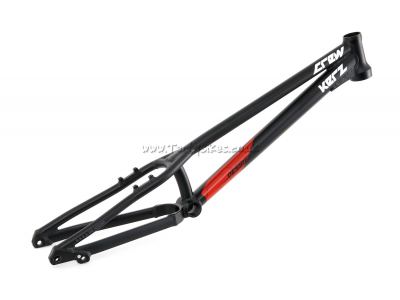

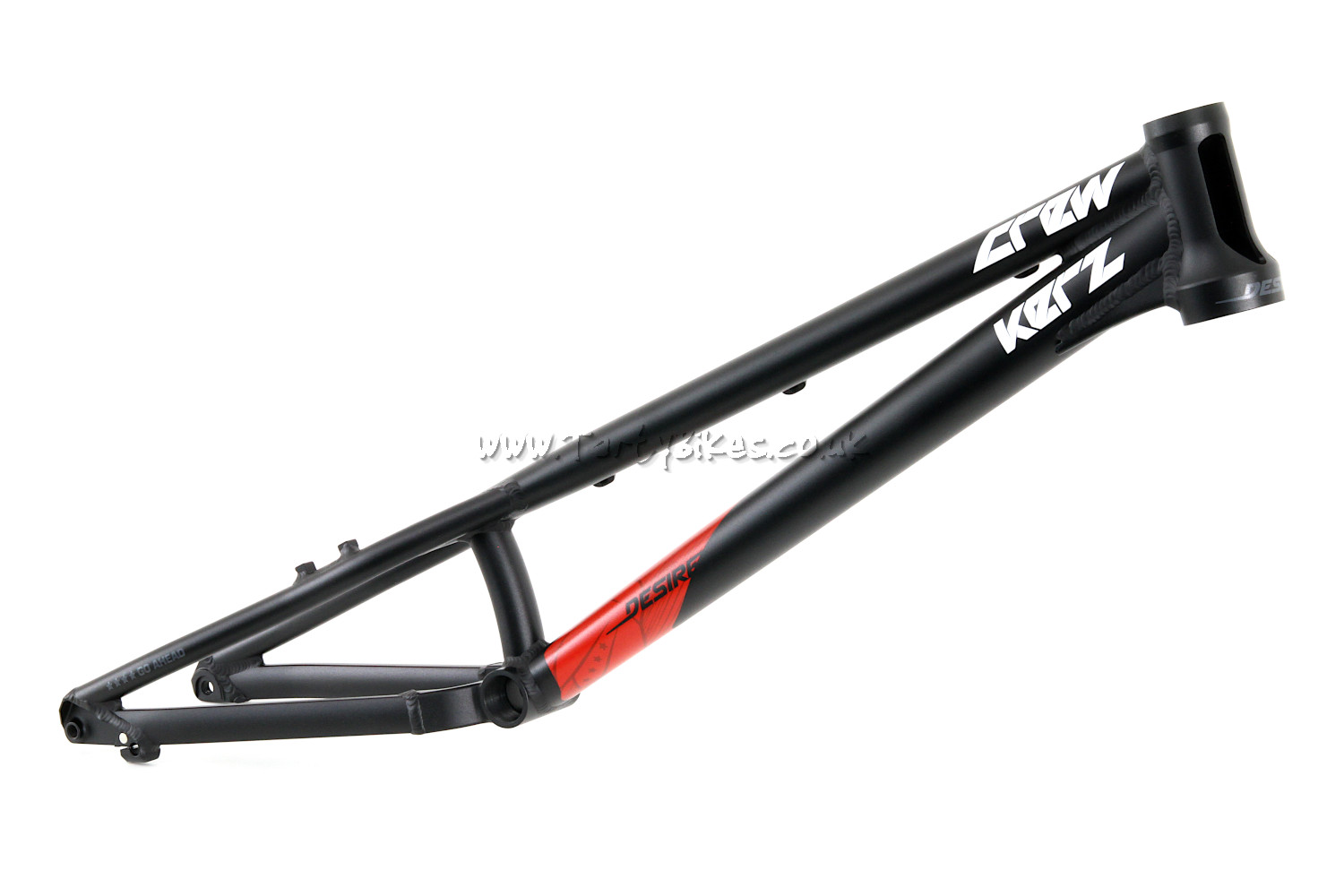

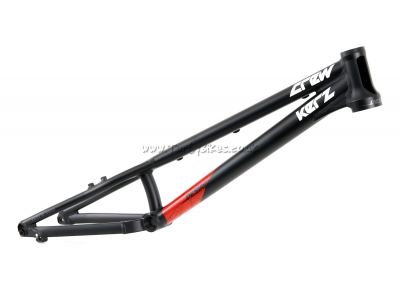

- Great value frame from French brand, Crewkerz, with modern features and geometry for a performance focussed ride!
- Constructed from 6061-T6 aluminium and utilizing stiffer 7075-T6 aluminium for CNC components for high strength, and low weight.

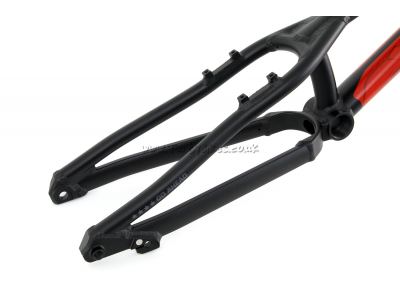

- 135 x 12mm rear through axle drop-outs work with a wide variety of fixed and free hubs. CNC machined dropouts ensure a precision fit, and high strength in this area.
Crewkerz WAW axles are available separately.
- 10mm post tensioner mount works perfectly with
Crewkerz and
Clean post mount tensioners.
- A tapered 120mm head tube uses a
1-1/8" - 1.5" internal headset, compatible with modern tapered steerer forks. Chunky welds and a large down tube gusset ensure maximum strength in this high stress area.
- Standard 68mm BSA bottom bracket shell to suit a wide variety of crank and BB combos.
- Box section chain stays, a completely welded seat tube / seat stay, junction and CNC machined yoke behind the BB keep the rear end stiff and strong for those static power moves while allowing ample tyre clearance.
- 4 bolt HS brake mounts are welded along their entire length for increased strength. The distance between the mounting holes is 100mm, allowing plenty of tyre clearance with modern 47mm wide rims, and the option to fit a brake booster if you choose!
- Durable, satin black anodised finish with stylish, red printed Crewkerz graphics.
- Weight: 1.89kg
Geometry (Measured by TartyBikes, with Crewkerz Desire 26" fork):
- Wheelbase: 1065mm
- Chainstay: 380mm
- BB Height: +65mm
- Head Angle: 72°
- Reach (from centre of BB shell to top centre of head tube): 660mm
Reach: 469mm
Stack: 420mm
