#Hashtagg Carbon 26" Forks (HS33)

Product code: 12956

£315.83

On order

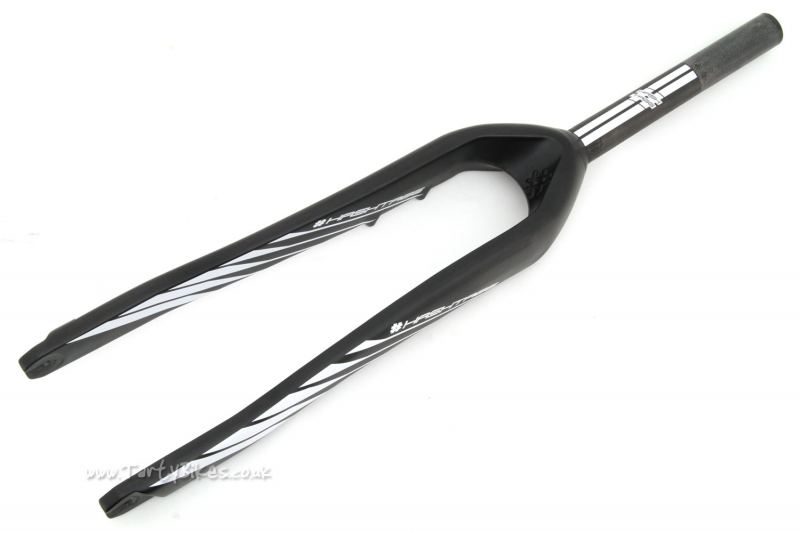

#Hashtagg Carbon 26" Forks (HS33)

- Ultra light weight carbon fibre forks from #Hashtagg!
- Developed with some of the world's top riders including Nico Vallee and TartyBikes team rider Vincent Hermance.
- Constructed from unidirectional carbon fibre, with an aluminium insert to support the steerer tube for extra strength.
- Unique leg profile gives distinctive, minimal appearance.

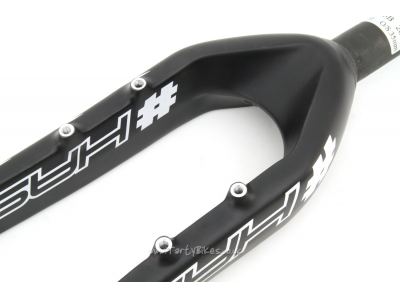

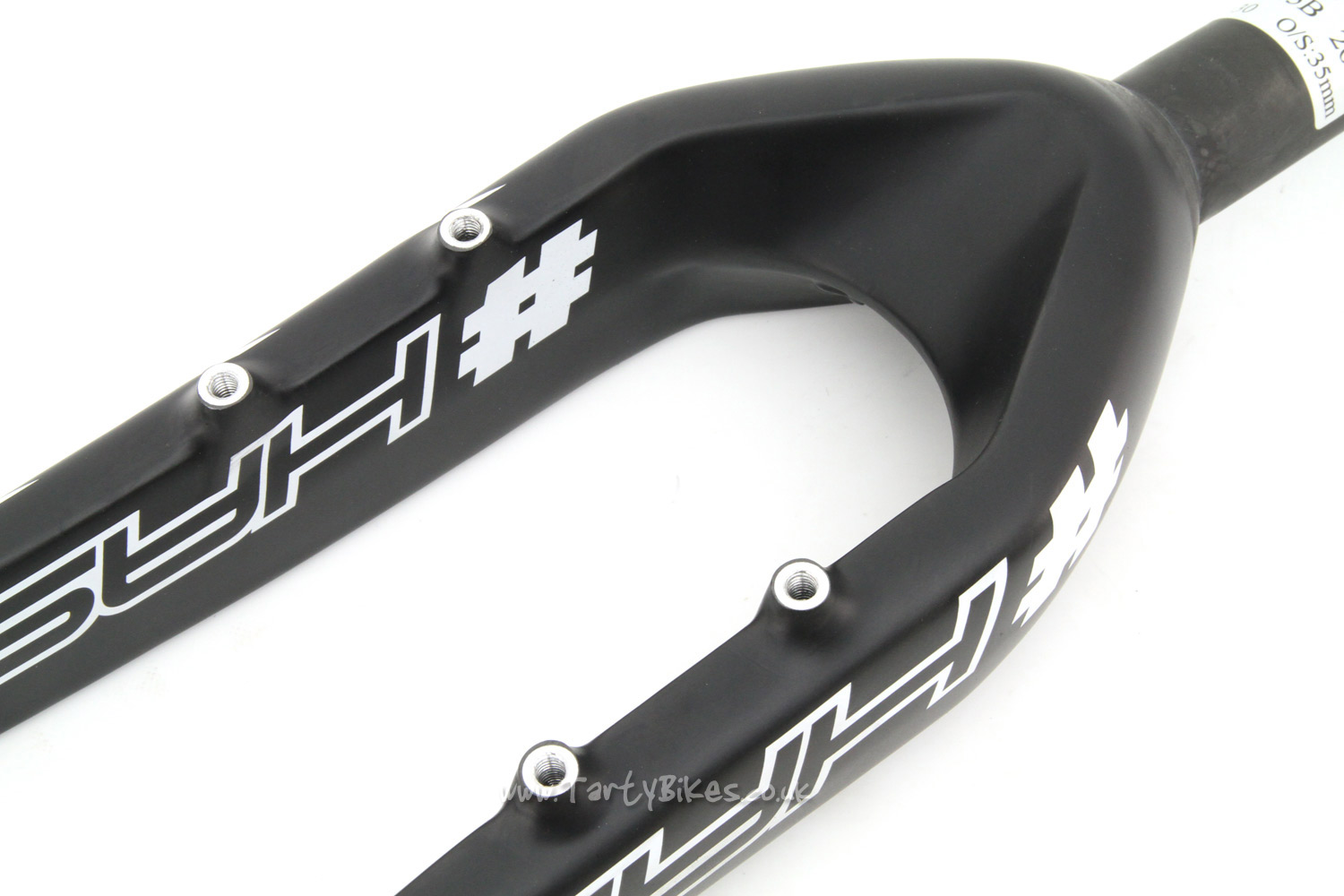

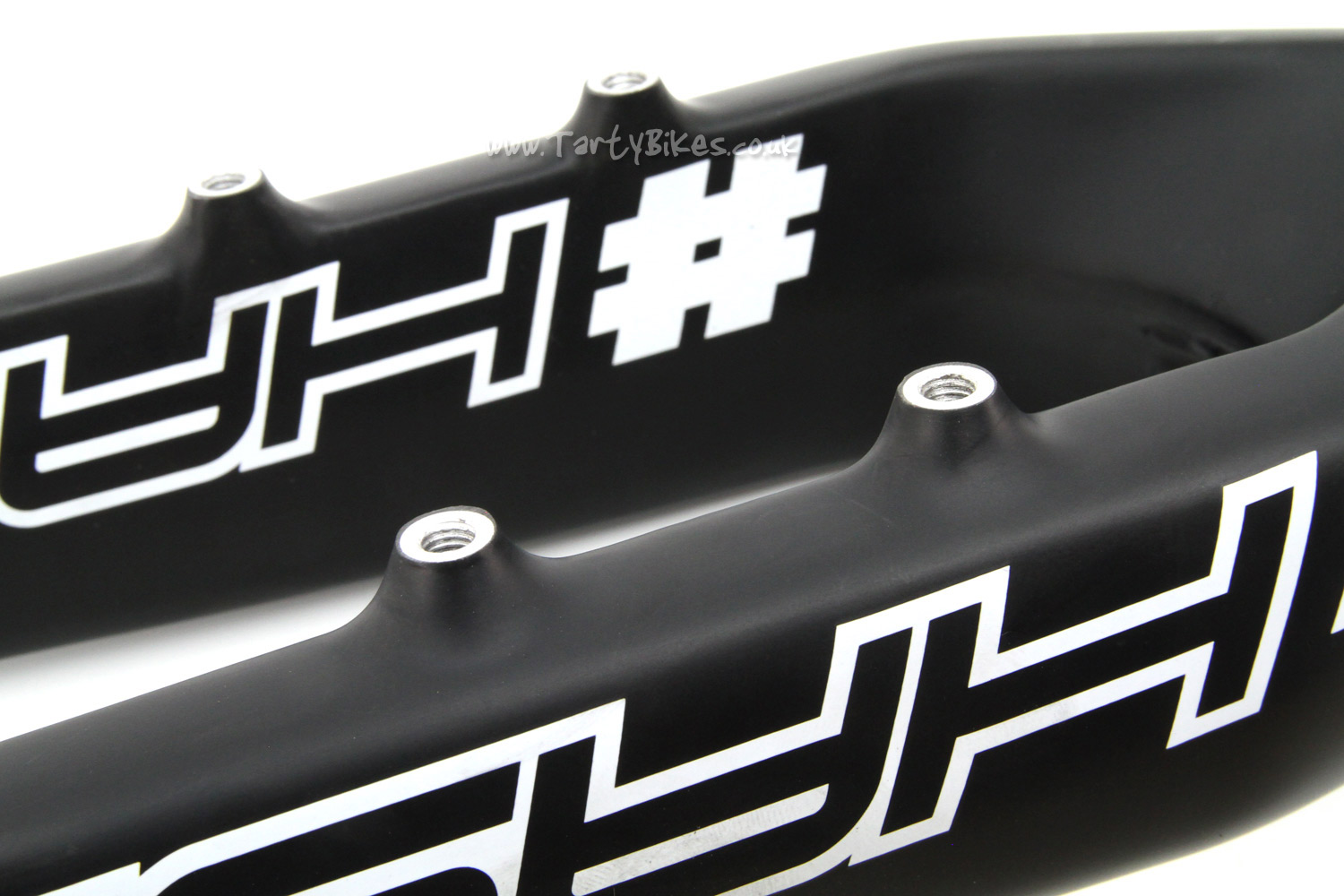

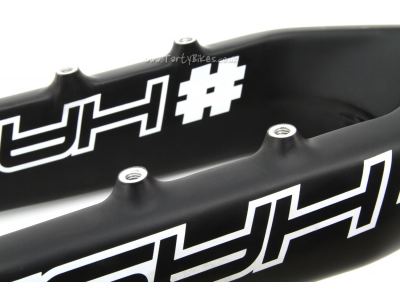

- Dedicated 4-bolt rim brake mounts spaced at 84mm use aluminium inserts, ensuring thread durability. Please note that the brake mounts are very low profile, so some clamps may require the use of one or two M5 washers between the brake clamps and the fork.
- 10mm thick dropouts are spaced at 100mm to be compatible with almost all hubs.

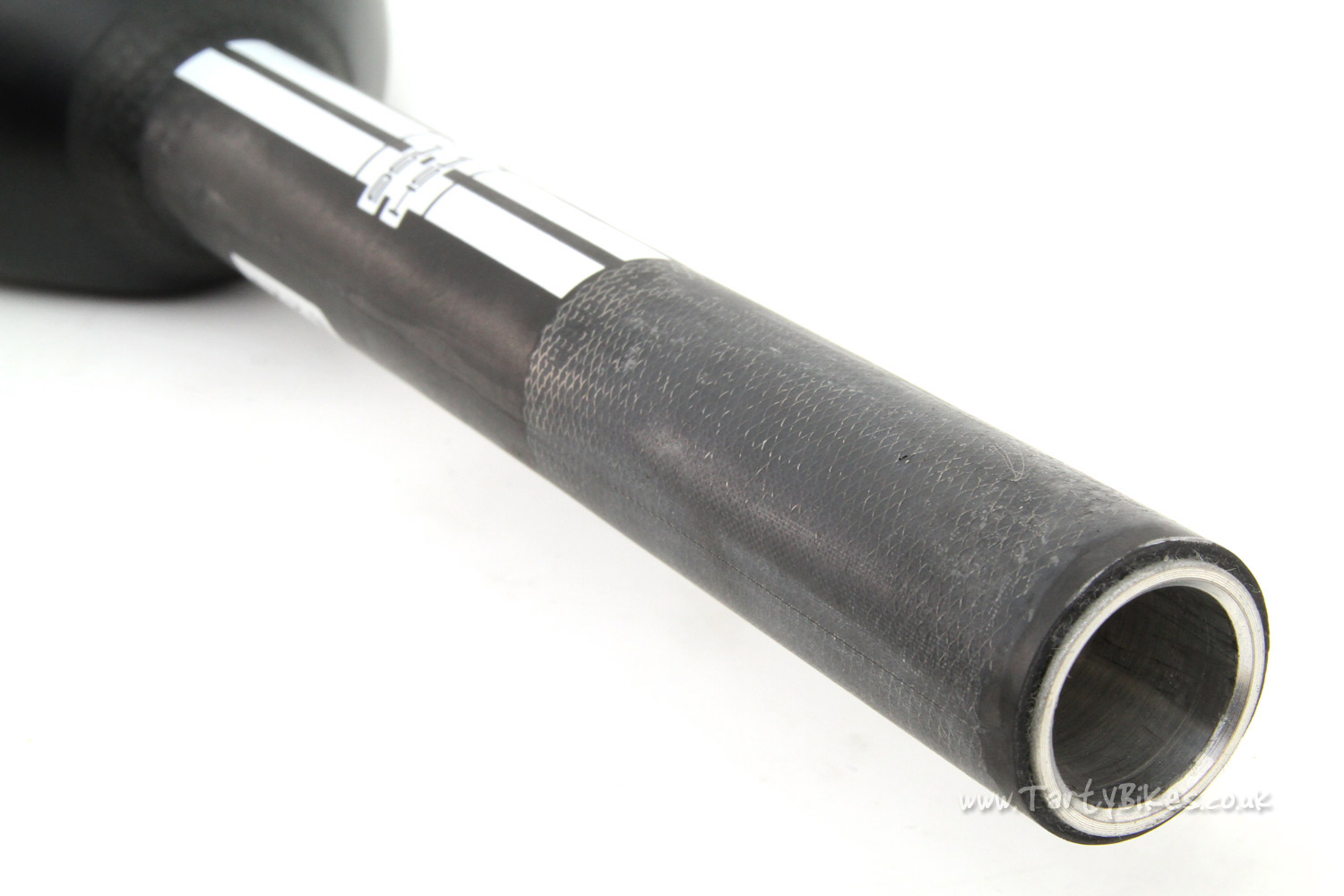

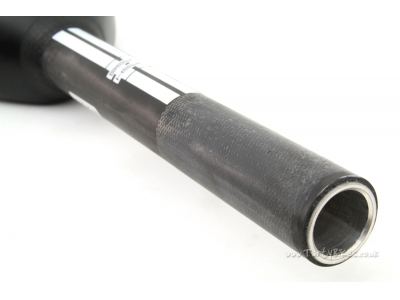

- The steerer insert also features an M6 threaded section, removing the need for a star nut. This threaded section starts 45mm below the top of the steerer tube.

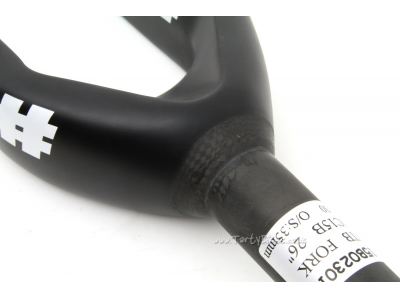

- Integrated crown race system - run your headset bearing directly onto the fork without using the crown race (requires sealed cartridge bearing headset), whether you are using a 1 1/8" or 1.5" lower headset cup.

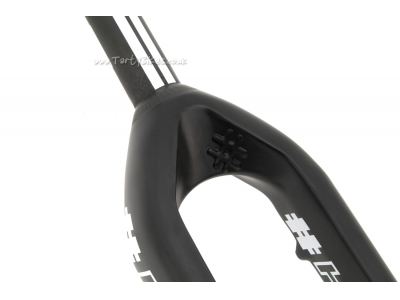

- Embossed "#" logo on the arch connecting the two legs beneath the crown.
- Large, white graphics boldly stand out against the black carbon finish.
- Weight: just 474g!

Fork Dimensions

- Axle to Crown length: 405mm
- Axle Offset: 35mm
- Steerer tube length: 200mm

Additional Information

Forks are supplied with a limited 3 month warranty covering manufacturing and materials defects (not crash damage). Maximum bolt torque for steerer tube stem bolts is 5Nm.

Questions

manuel carmelo

waranty?

Posted by manuel carmelo on 04/06/2015

Reply from TartyBikes on 04/06/2015

Hi Manuel - thanks for your question. As the Additional Information tab states, the warranty on this fork is 3 months: http://www.tartybikes.co.uk/26_inch_forks/hashtagg_carbon_forks/c40p12956.html?tab=additional_information#box Thanks, Flipp.

frank

Hello, how would I go about fitting this fork onto a new echo mk 4 with the tapered headset? The hope and crewkerz adapters look to be for flat crown races. Thank you

Posted by frank on 11/02/2016

Reply from TartyBikes on 11/02/2016

Hi Frank - You can run the bearing straight onto the fork, as you would with a regular 1 1/8" headset. Thanks, Mark

Ralf

Hi, is this fork compatible to a standard Trialtech Sport Lite Headset? If yes, do I just need to leave out the lower crown ring? If not, which headset is recommended for using the Hashtagg fork in a 1 1/8" Standard frame? Thanks...

Posted by Ralf on 02/08/2016

Reply from TartyBikes on 03/08/2016

Hi Ralf - That's correct, simply don't use the crown race supplied with the Trialtech headset and it will work perfectly. Thanks, Mark

Steve Rogers

Hi guys, Do these forks come per the first pic as there seems to be different graphics. I'm interested in the pair with the smaller logos and white stripes. Thanks Steve

Posted by Steve Rogers on 08/08/2016

Reply from TartyBikes on 08/08/2016

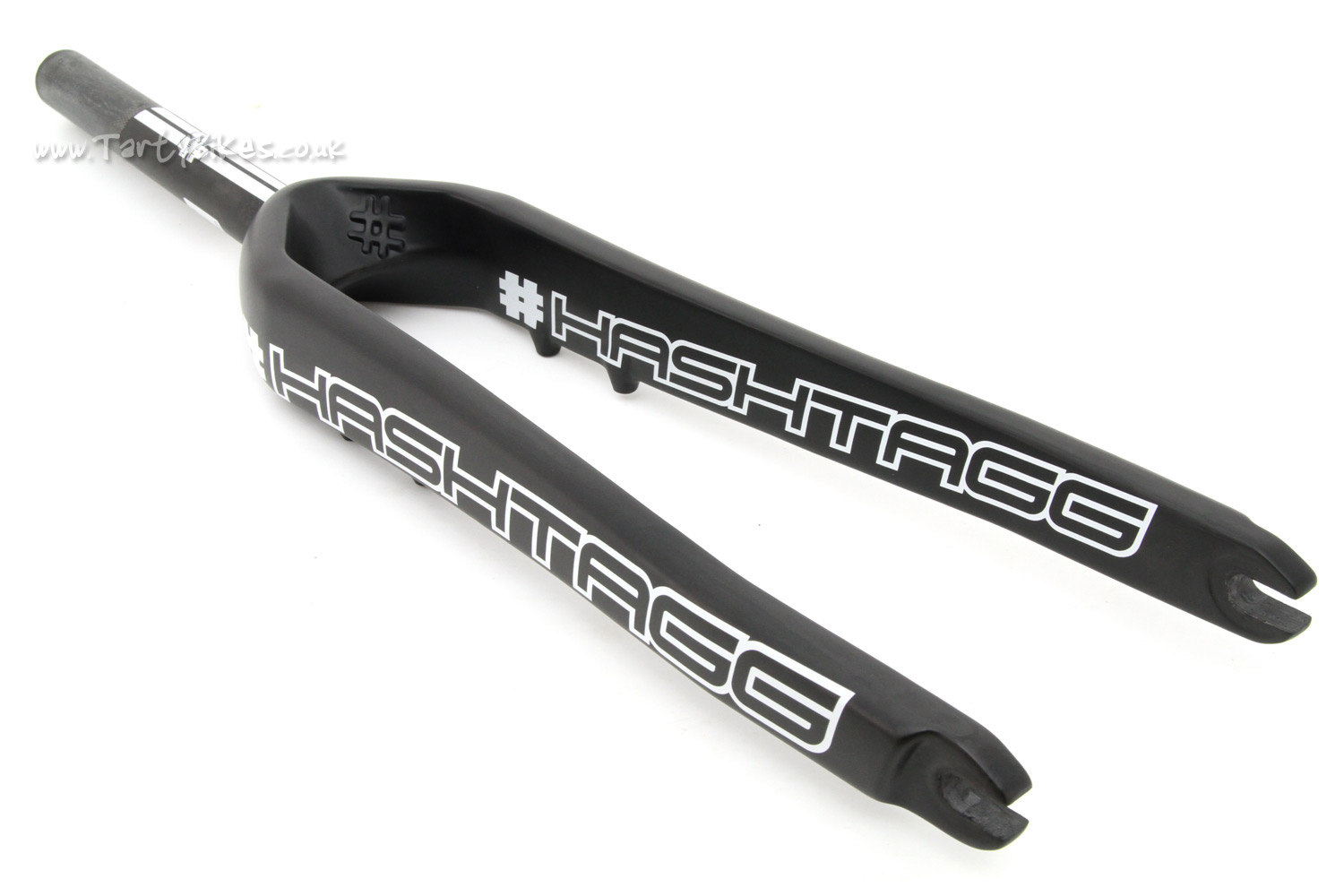

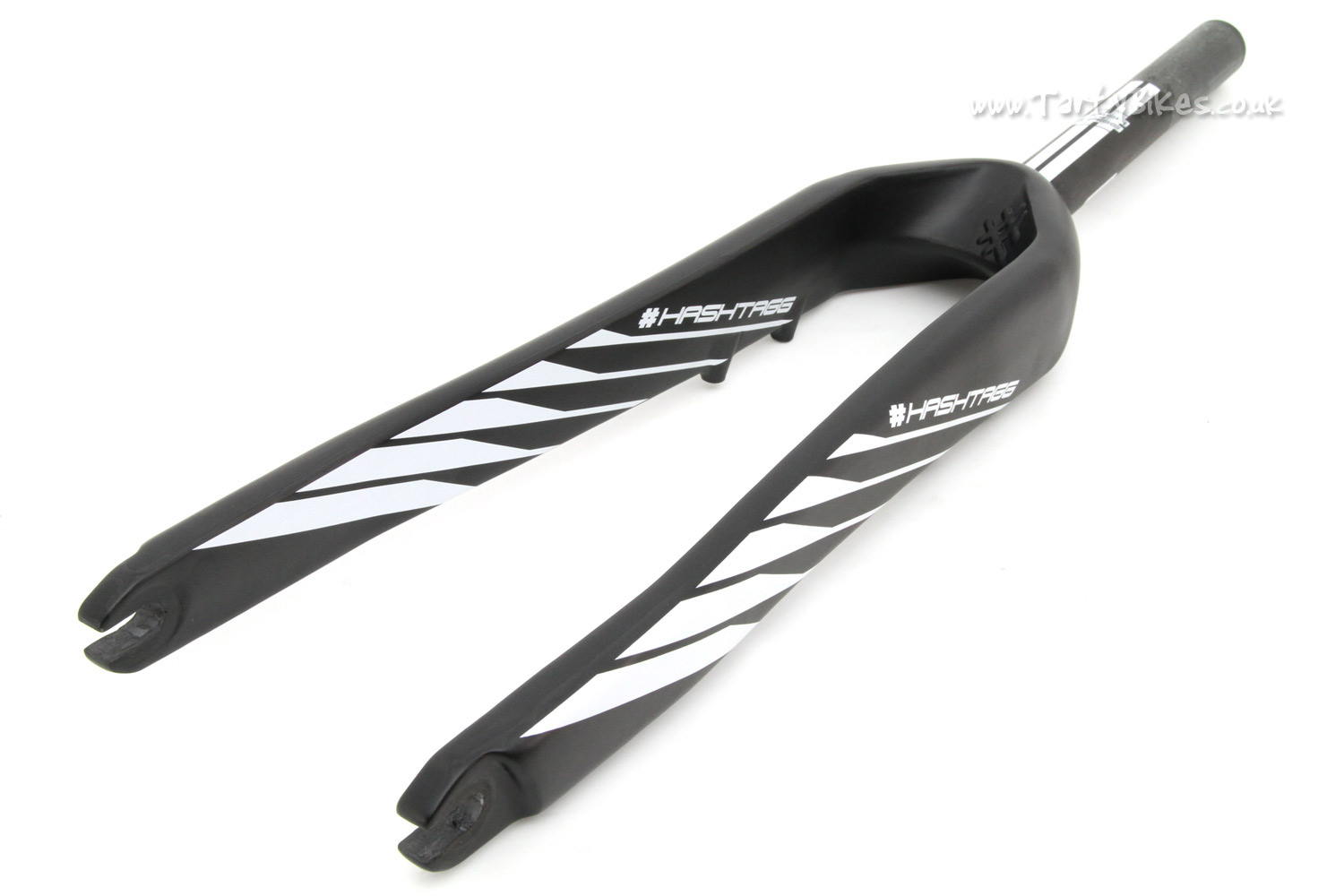

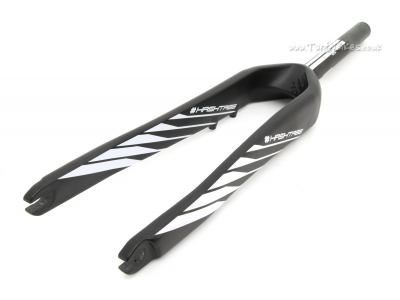

Hi Steve - The forks have the striped graphics on the left side of the fork legs, and the other Hashtagg logos on the right side of the fork legs - they're pretty unusual in that sense! Thanks, Mark
