Please note these frames may have small cosmetic marks to the surface in places - these do not affec the frame or warranty in any way.

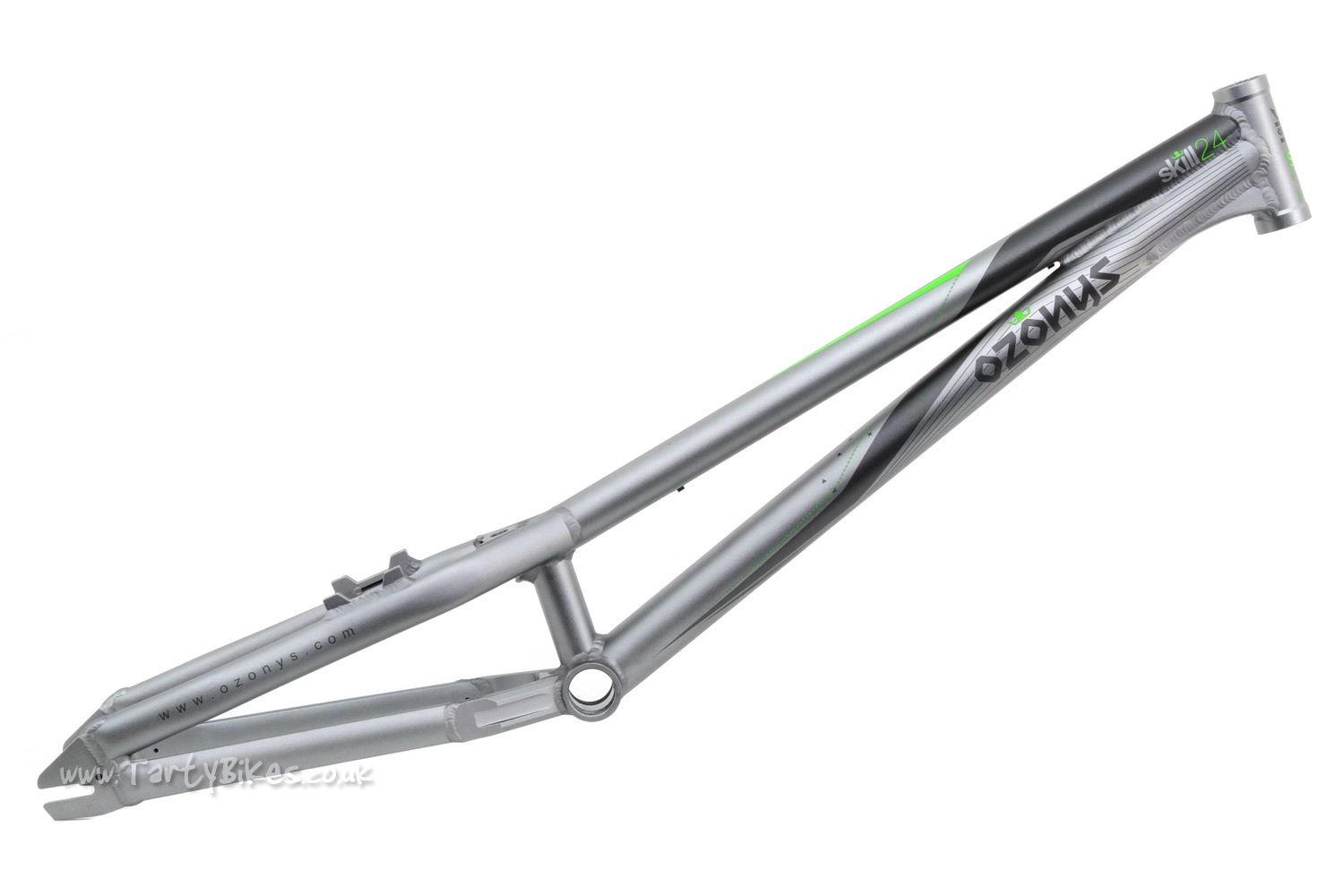

- Great frame with a real "all-rounder" geometry from Ozonys!
- Perfect for those who like to do a bit of everything!
- Extra long dropouts (spaced at 135mm) allow for plenty of adjustment.
- Chunky 4-bolt rim brake mounts are spaced at 99mm.
- Euro style (threaded) bottom bracket shell is 68mm wide accepts any of the 1.37" x 24tpi threaded bottom brackets we stock.
- Strengthening gusset between the seatstays and CNC machined bottom bracket yoke help to keep the middle of the frame as stiff as possible.
- Standard headtube is 110mm long and is supported at the downtube joint by a large gusset, helping to spread the stress in this key area.
- Available in dark silver with stylish dark grey and lime green graphics only.
- Supplied with snail cam bolts.
- Weight: 1.64kg
Geometry: (Measured with 400mm x 35mm fork - sold separately.)
- Wheelbase: 1045mm
- Chainstay length: 375mm
- BB Rise: 55mm
- Head angle: 72.5°
- Reach (from centre of BB shell to top centre of head tube): 650mm
