Frame comes supplied with the new Industry 9 Hydra 2 hubs, and a special edition multi-tool made for Inspired by Cane Creek!
LAUNCH SPECIAL OFFER - buy any pair of 24" rims with this frame, and we'll build your wheels for free using black, plain guage spokes and black brass nipples! Just add any pair of 24" rims to the basket when you buy this frame, and we'll ship everything out once your new wheels are built. Please note that wheel builds are subject to workshop lead times, and will delay the shipping of your new frame. If the rim you want is not in stock, please let us know before ordering, and we'll do our best to source them for you so you can take advantage of this offer!
- SE frame kit features the updated, integrated head tube design, and Inspired Team tensioner!

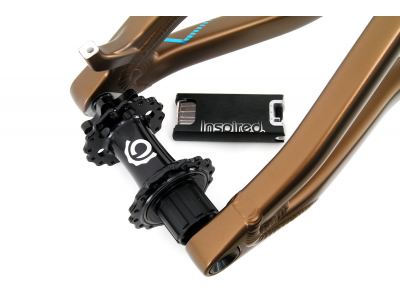

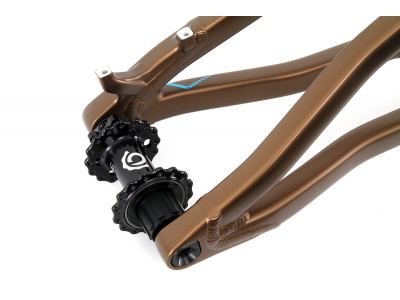

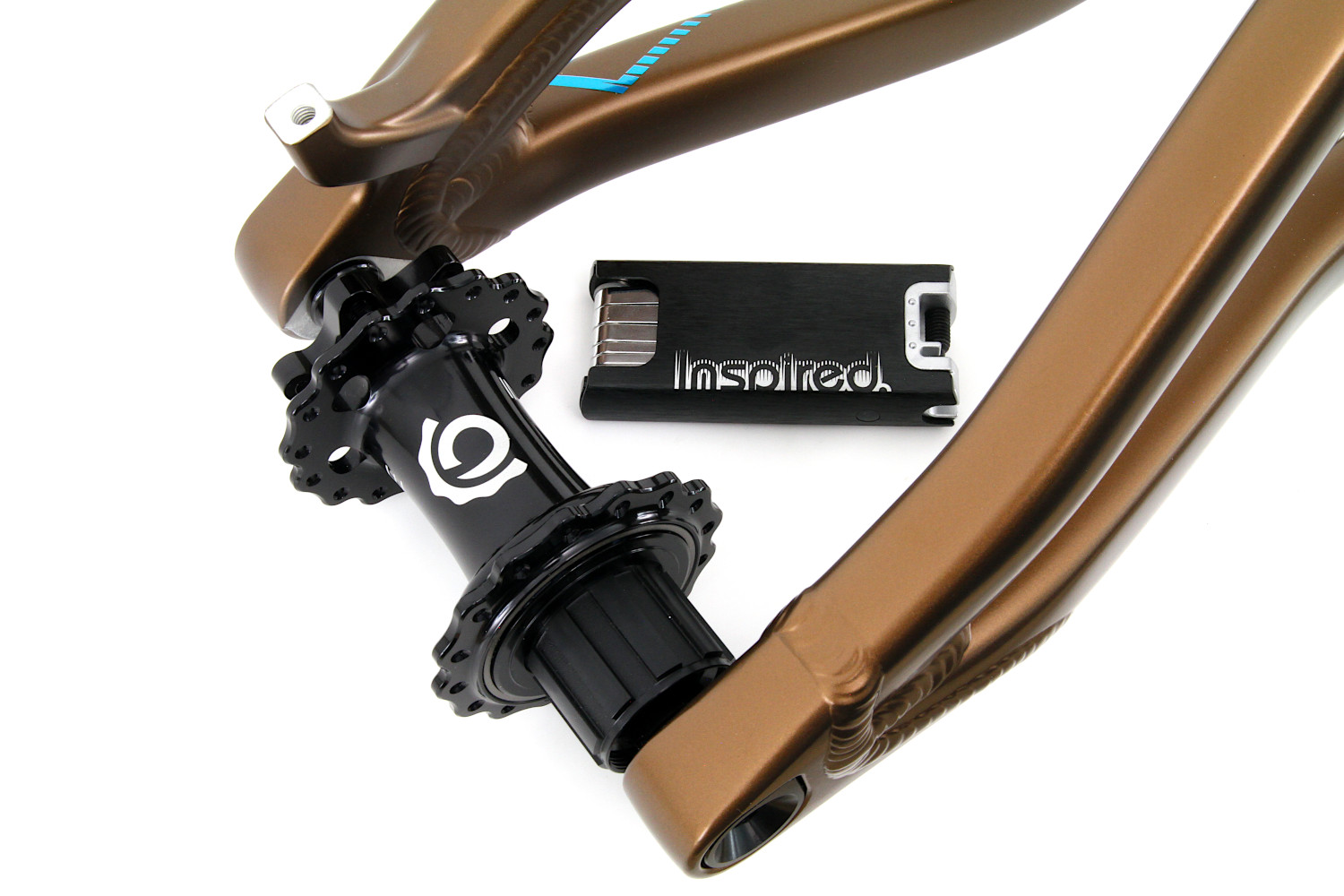

- Comes supplied with a pair of Industry 9 Hydra 2 hubs, and a special edition multi-tool made by Cane Creek for Inspired!
- Free wheel build is available when purchasing any pair of 24" rims with this frame! More information is in the product description below.

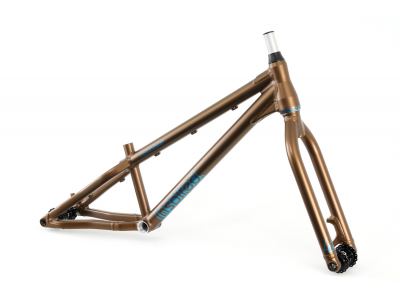

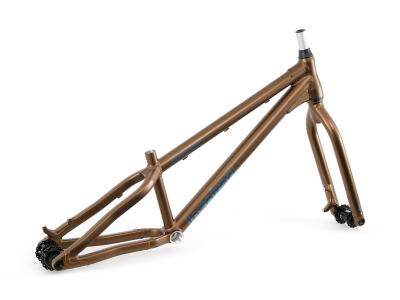

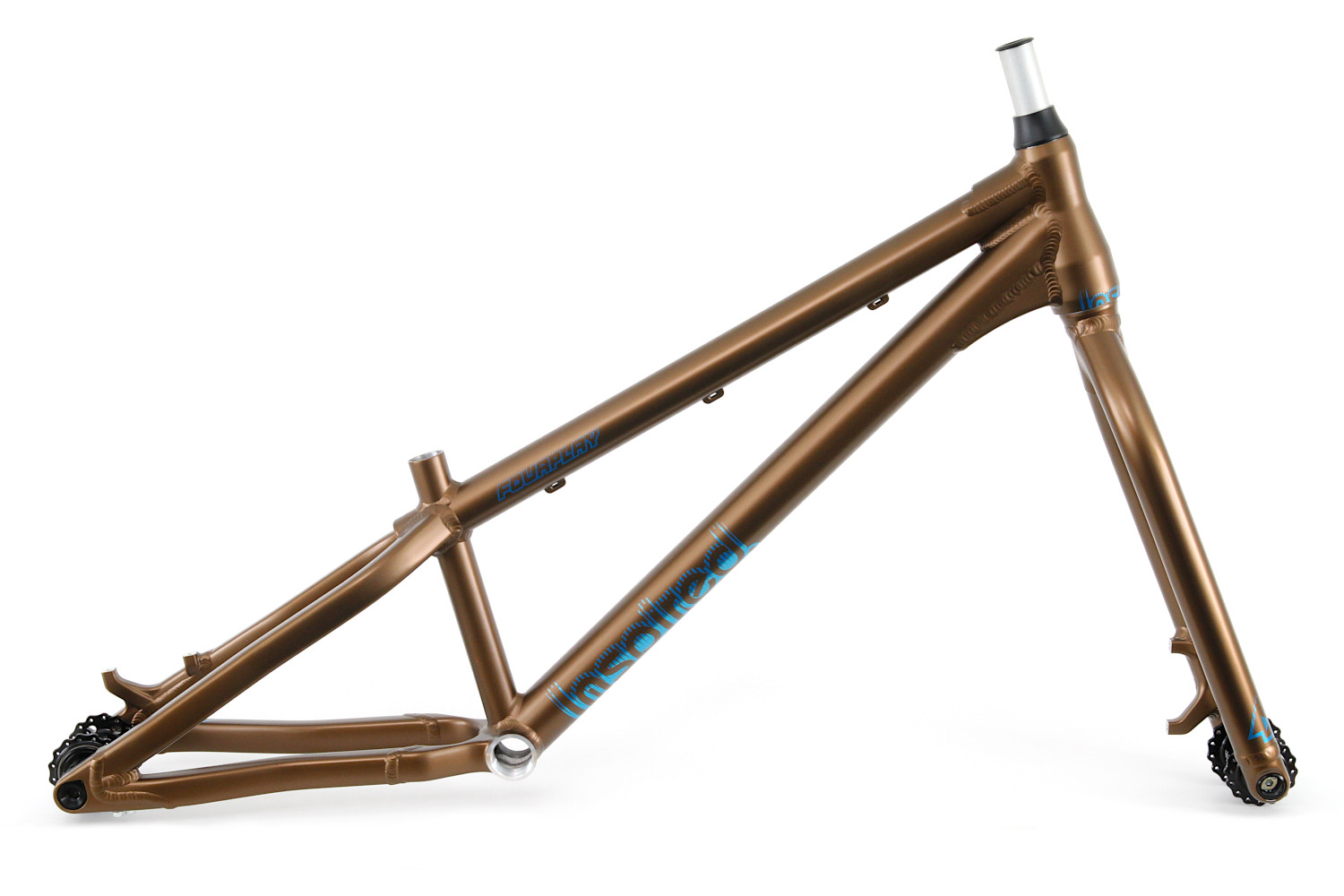

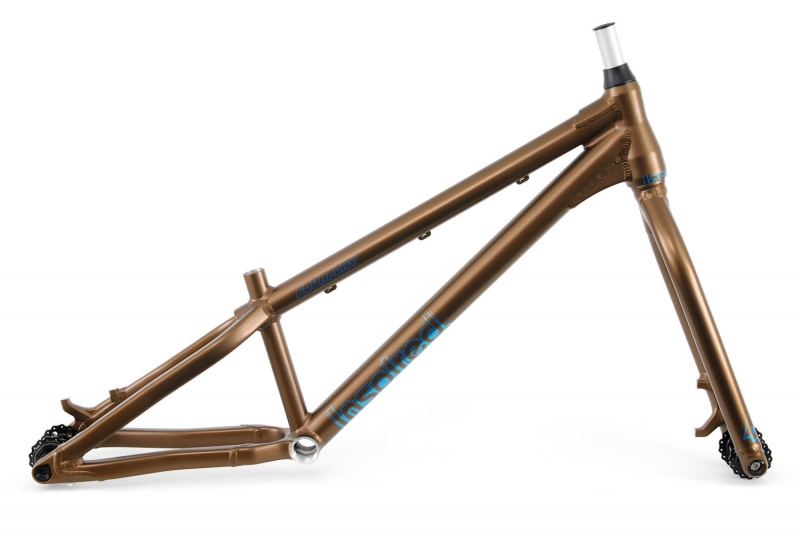

Inspired Fourplay SE Team Frame Kit
- The special edition Fourplay SE is now available as a frame kit, and comes supplied with Industry 9 hydra 2 hubs for the ultimate upgrade!
- As a special launch offer, we will build a pair of wheels using the hubs supplied with the frame when you purchase a pair of any 24" rims with this frame! This is a free wheel build service when you buy any pair of 24" rims with this frame. Wheels will be built using black plain gauge spokes and black brass nipples. Wheel builds are subject to workshop lead times, and will delay the shipping of your new frame.

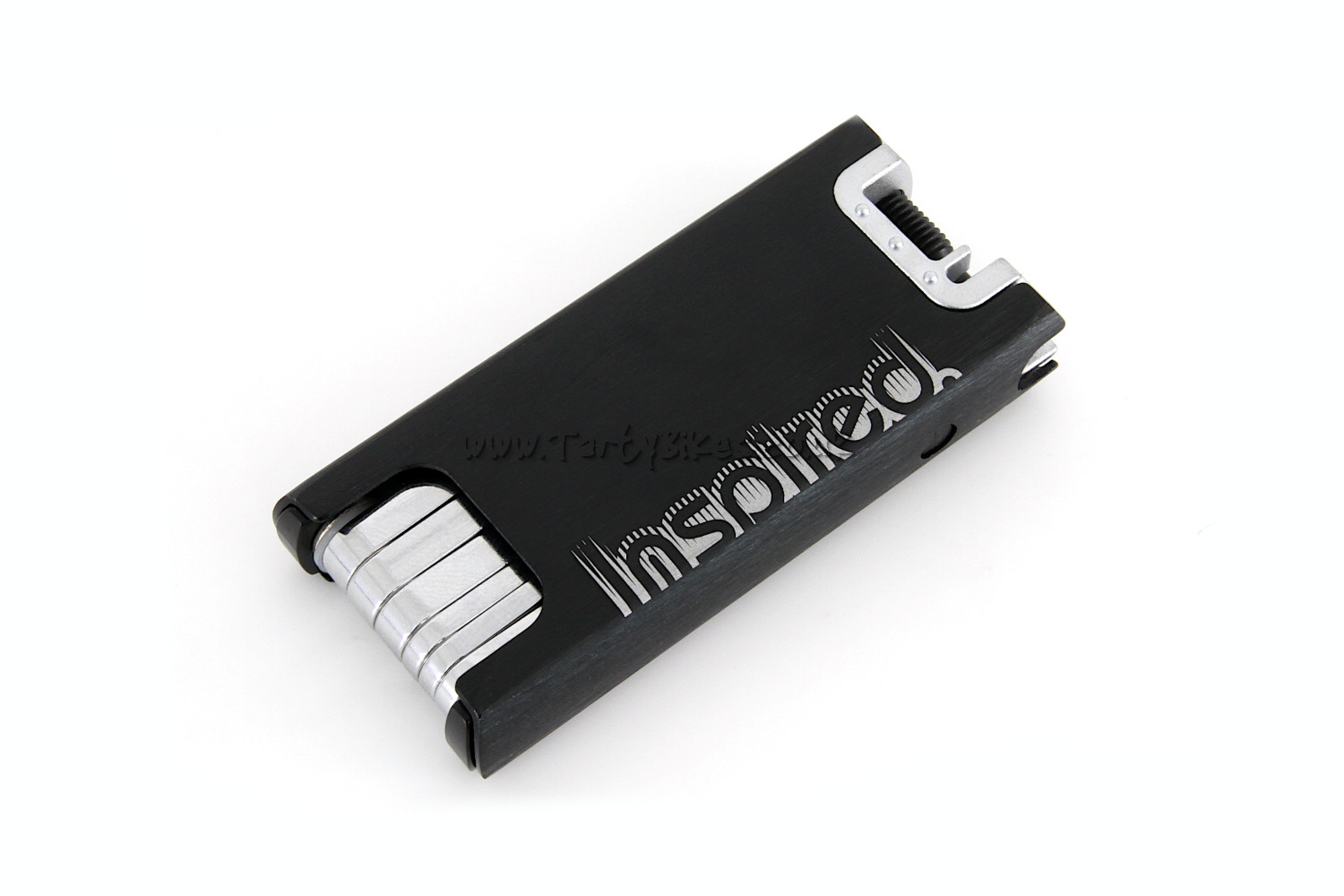

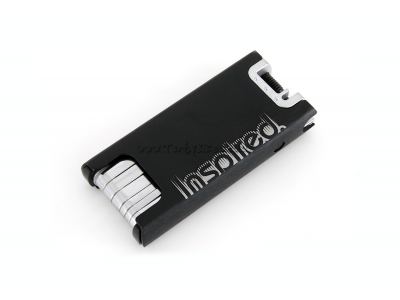

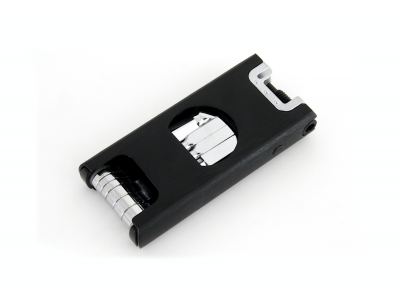

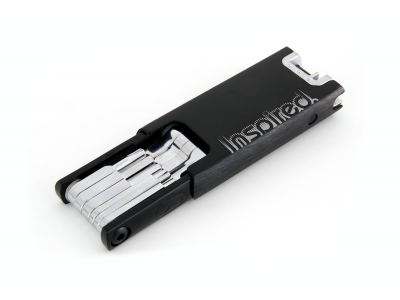

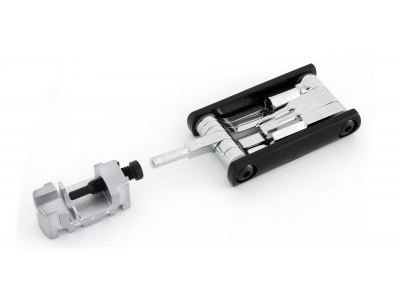

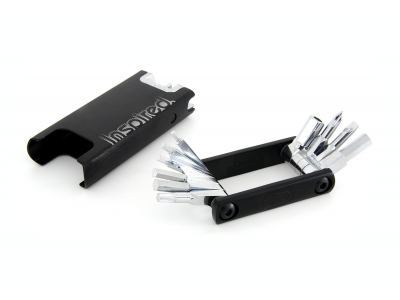

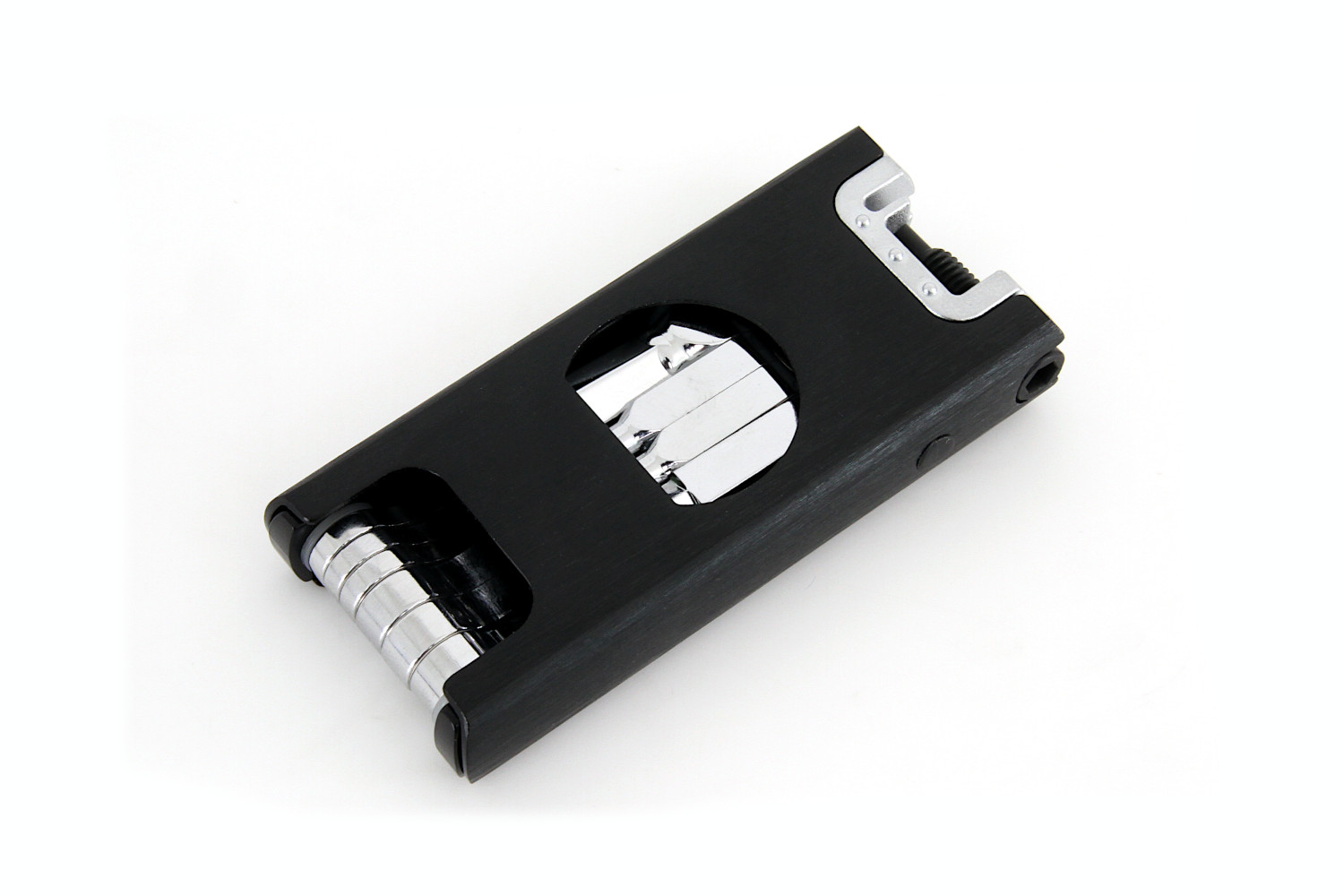

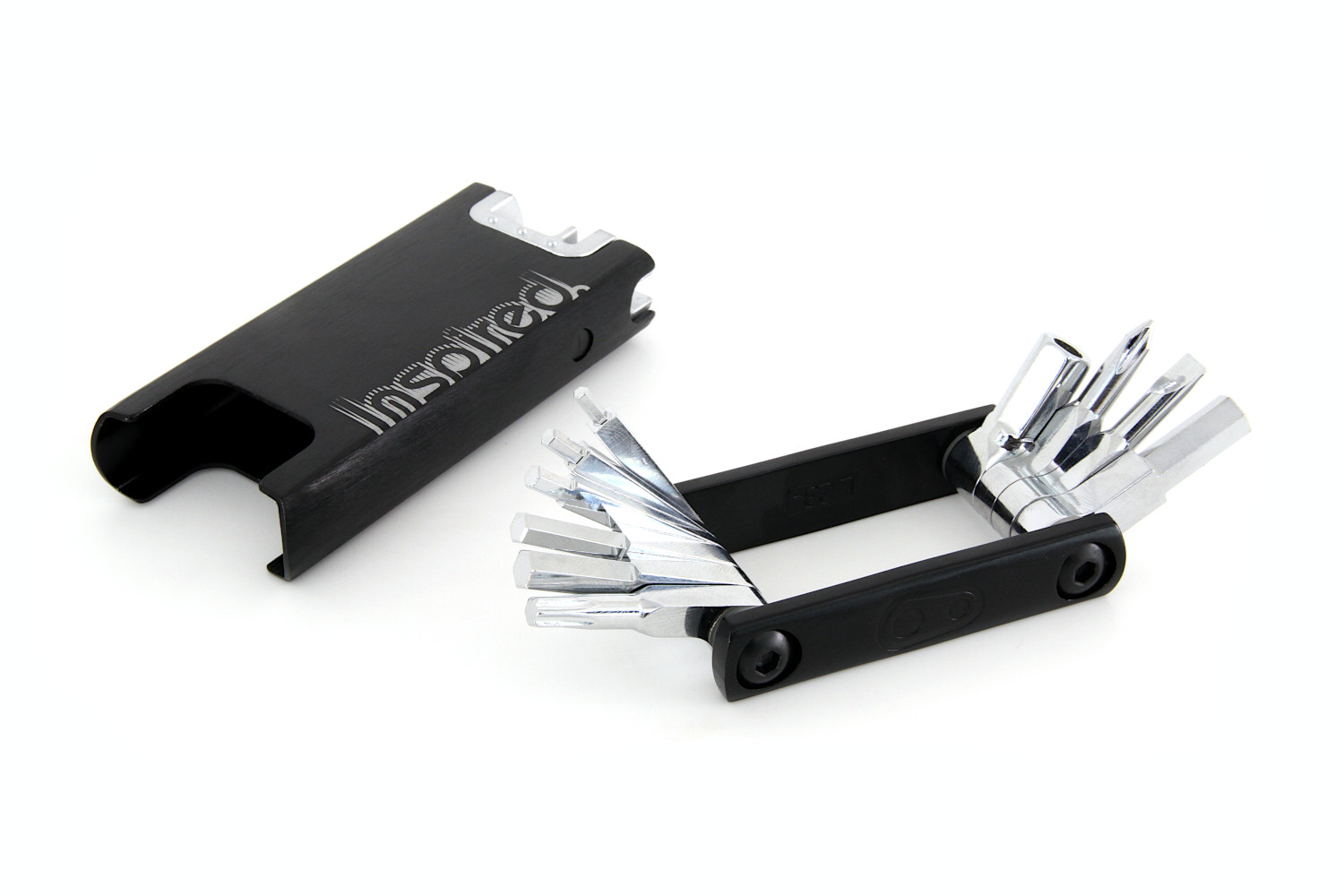

- This frame kit also comes supplied with a special edition multi-tool made for Inspired by Cane Creek! This high quality tool comes in a stylish brushed black anodised finish with laser etched Inspired logos. It includes the following tools: 1.5 / 2.5 / 3 / 4 / 5 / 6 / 8mm hex kes, T25 torx key, Phillips and flat blade screwdriver heads, and a mutli-speed chain tool. A super slick magnetic case holds the tool together when in storage, and makes opening it up a breeze.
- Updated geometry over the previous Fourplay model, with developments made with feedback from Inspired team riders Ben Travis and John Langlois. This has resulted in new geometry featuring a shorter wheelbase, steeper head angle and slightly higher BB, making the Fourplay even more capable and agile for the most demanding street riders.
- The SE frame kit features the updated, tapered head tube design using fully integrated headset bearings for lower weight and a cleaner front end.
- This kit is supplied with a tapered, Inspired Team fork using a 20mm Inspired team through axle. The rear of the frame features a 12 x 135mm Inspired Pro through axle.
- The SE Fourplay frame kit also benefits from the new Inspired Team tensioner, which gives improved chain wrap, improving chain retention. A neat tab to rest your thumb makes removing the chain much easier than previous versions!

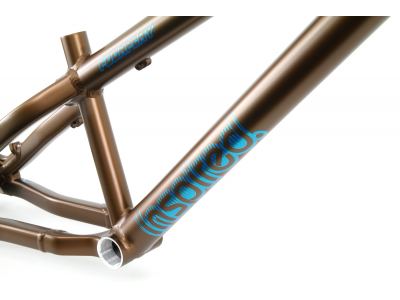

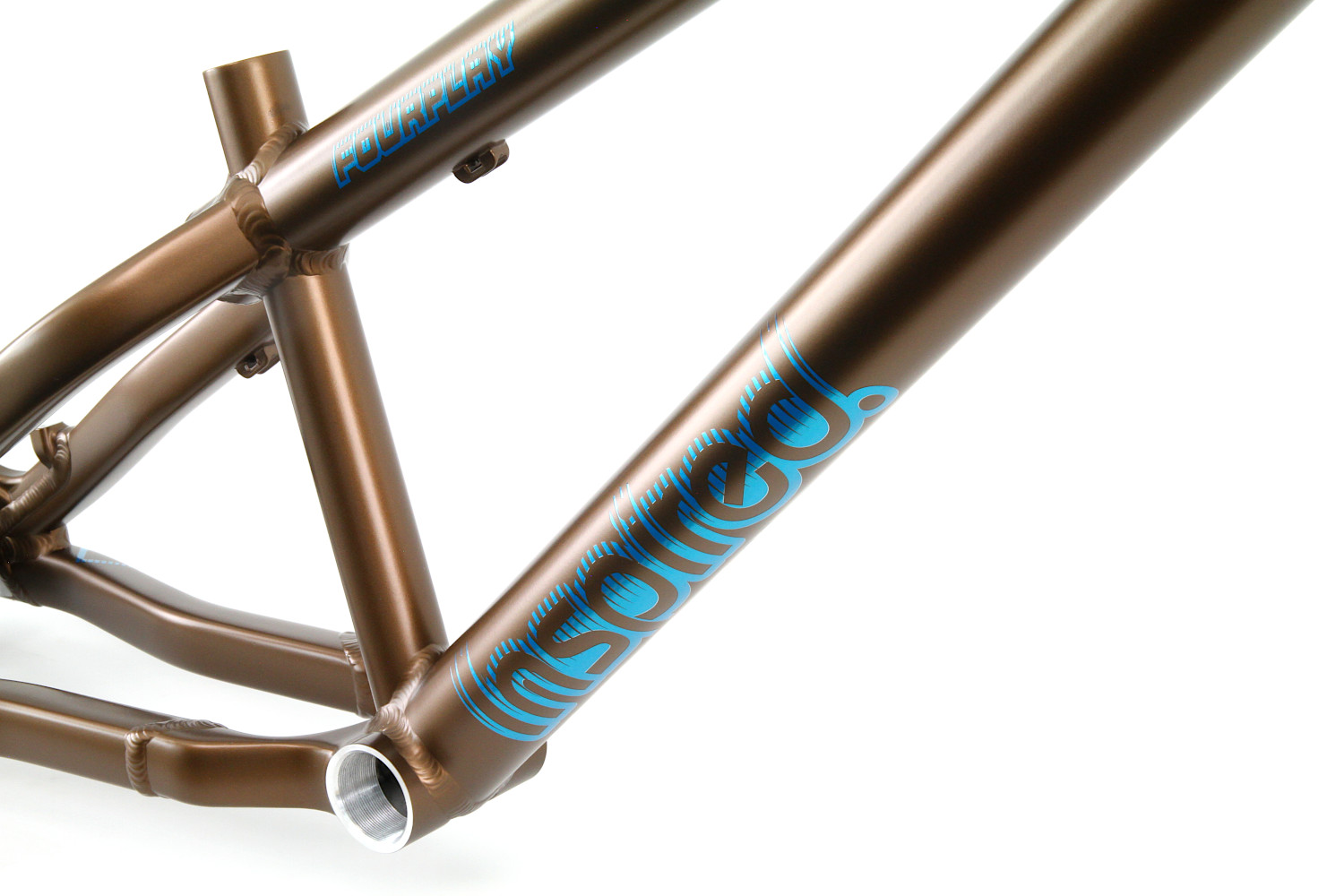

- High quality 6066 aluminium tube set includes double butted top and down tubes.

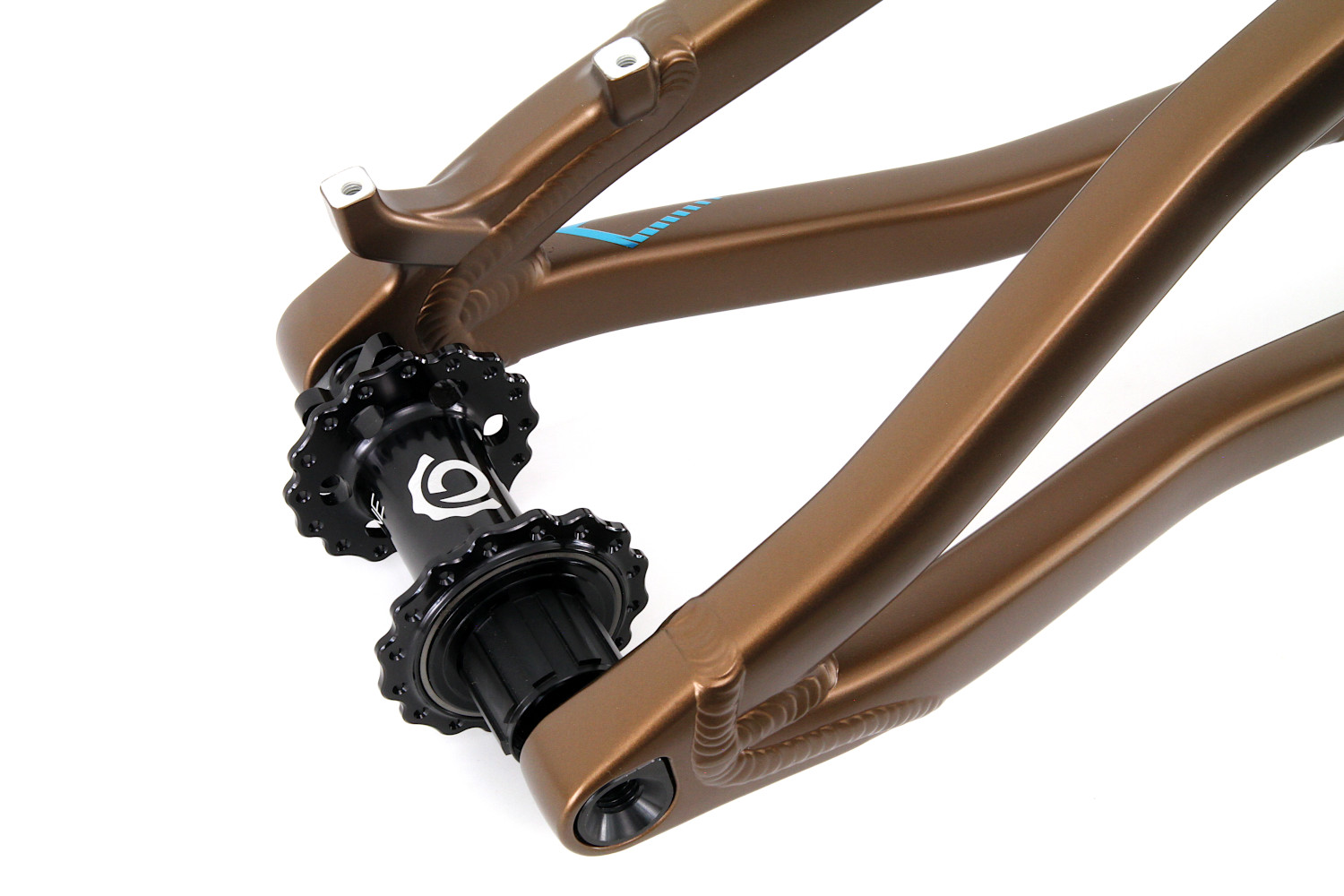

- Completely re-designed dropout is forged from high grade aluminium.
- The frame and fork feature 180mm position Post Mount disc mounts, allowing for directing mounting of your brake calliper when using 180mm disc rotors.
- Revised top tube and seat stay joints for improved strength.
- Two-piece hollow forged BB yoke is super strong yet also saves weight.
- Euro style (threaded) 73mm bottom bracket features a 1.37" x 24tpi thread suitable for use with any 73mm shell compatible threaded bottom bracket we stock.
- Chain tensioner and mounting point design allows the rear wheel to be removed without having to loosen the tensioner first. The tensioner also only has a cage on one side, meaning the chain can be put on and taken off without having to split and rejoin it!
Inspired SE Team Fork
- Team fork features the new top cap design which screws into the threaded steerer tube and allows the hose to be routed through the steerer if required.
- 20mm team axle supplied.
- Forged triple butted steerer tube (210mm long) is made out of aircraft grade 6066 aluminium.
- Screw-in top cap replaces the traditional star nut assembly, and also allows easy steerer tube hose routing.
- Chunky fork legs add extra stiffness for hooks, and for moves on the front wheel.

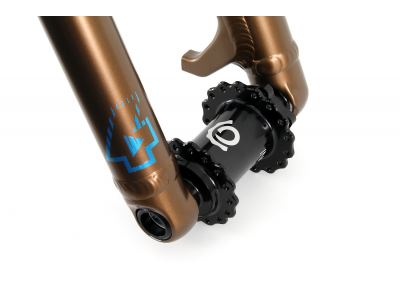

- Unique CNC'd dropouts feature tapered interface for bolt through 20mm axle.
-
Frame kit only available in satin brass with metallic blue graphics.
Full kit includes:
Fourplay SE Frame
Inspired SE Team Forks
FSA Integral Headset & Inspired Top Cap
Single-sided Inspired Team Tensioner
Inspired Pro 15mm and 12mm axles
Weights:
- Total frame kit weight (Frame, fork, rear and front axel, tensioner, headset and top cap, front and rear hubs): 3.81kg
- Tensioner and mount: 56.8g
- Fork: 1008g
- Rear Axle: 65g
Geometry:
- Wheelbase: 988mm
- Chainstay length: 362mm
- BB Height: +15mm
- Head Angle: 74°
- Centre of BB shell to centre top of head tube: 680mm
Reach: 452mm
Stack: 515mm
Compatibility
- Headset type: 1-1/8" - 1.5" Integrated. Indvidual bearings for this head set are available on our
Tarty Bikes Bearings product page.
- Bottom bracket type: Screw-in, 73mm shell width
- Dropout spacing: Frame - 135mm / Fork 110mm (not boost)
- Brake mount type: +20mm Post Disc Mount
- Bashguard type: n/a - requires a bash ring
- Chain line: 51mm (Recommended minimum with 22T chain ring)
