Inspired Link Team 22"

Product code: 14125

From $2749.50 to $3893.75

Check Stock

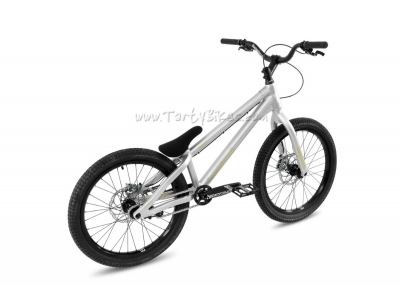

Inspired Link Team 22"

Satin Silver, Hope Tech 4 Trial Zone Brakes, Cane Creek eeWings Crankset
Satin Silver, Hope Tech 4 Trial Zone Brakes, Descendant Crankset
Satin Silver, Hope Tech 4 Trial Zone Brakes, Hope Crankset
Satin Silver, Magura MT7 HC3 Brakes, Cane Creek eeWings Crankset
Satin Silver, Magura MT7 HC3 Brakes, Descendant Crankset
Satin Silver, Magura MT7 HC3 Brakes, Hope Crankset

Special order - usually 3-5 working days.

Sold out

This bike is built in our workshop before dispatch, and we often have a queue. The current lead time can be seen by adding this bike to your basket. Some basic assembly is required on arrival, we are happy to help if you need.

Cane Creek eeWings crank set option now available to special order!

  • Top spec 22" street bike for shorter or younger riders!
  • Fully integrated headset bearings.
  • New improved Team sprung tensioner!
- Designed for the most demanding street riders, the new Link Team 22" shares the same frame features as the 24" and 26" Inspired Team bikes but in a smaller package! Ideal for shorter riders and youth riders looking for a bike to match their skill set and ride at the highest level.

Need help working out which Inspired bike is best for you? Check out our Buyer's Guide here for all the info you'll need! The Link Team 22" sits in the same category as the Flow XP and will be added shortly.

- New Cane Creek eeWings crank set option now available to special order. Extensively tested by Inspired team riders, the eeWings cranks have proven to be a super light, and strong crank option for trials use with a 10 year warranty! Supplied with a custom, individually numbered, integrated bash ring designed to fit perfectly with an integral axle spacer. Cane Creek's own Hellbender 70, sealed bottom bracket finishes off this ultimate drive train set up. Total weight for the cranks, BB and custom bash rings is only 576g! Please note The Cane Creek eeWings cranks are ONLY supplied on complete bikes and cannot be purchased separately.

- New head tube design now features fully integrated headset bearings for a cleaner front end whilst saving weight.
- A slightly longer front triangle than the Flow 22" gives more room for taller riders to take advantage of this wheel size.
- 2-peice BB yoke, Post Mount brake mounts and through axles front and rear are all borrowed from the Fourplay to make sure the Link is strong enough for whatever you can throw at it.
- The new Trialtech Team chain tensioner has been completely redesigned and now uses an integrated bracket, smaller spring with an additional thumb rest making removing the chain much easier. The more minimal design saves weight and tucks the tensioner further up into the chain stay. Chain wrap has been massively improved, with the new tensioner offering the most chain wrap we've seen from a sprung tensioner!
- Top cap design screws into the threaded steerer tube and allows the hose to be routed through the steerer if required. We can send the bikes with the hose through the steerer if you like, please also purchase the correct brake model option of this Workshop Item if you would like the hose to be routed through the steerer. If you do not add this item, the bike will be sent with the hose NOT routed through the steerer as shown in the pictures.
- High quality 6066 aluminium tube set includes double butted top and down tubes to save weight.
- Featuring a 12mm x135mm rear through axle, as well as 180mm position Post Mount disc mount.
- 15mm x 100mm through axle fork retains exceptional stiffness for a smaller wheel.
- Revised toptube and seatstay joints for improved strength.
- Hope Pro 4 hubs offer rock solid, silky smooth, dependable rolling and drive, and the rear is the latest generation Trials/SS model, offering 88 engagements per revolution! (This works out at 121 engagements per crank revolution with the featured 22:16 gear ratio.)
- Tapered fork steerer tube is made from 7075 aluminium and is both lighter and stronger than previous models.

-Available in Satin Silver only!

Frame and Forks
- Frame: Inspired Link 22", 12mm through axle, Post Mount disc mount
- Forks: Inspired Link, Tapered 1.5" steerer, 15mm through axle, Post Mount disc mount

Wheels
- Front Hub: Hope Pro 4, 32h
- Rear Hub: Hope Pro 4 Trials, 32h
- Chain Tensioner: Trialtech Team Single Sided Sprung
- Front Rim: Inspired Link 22" 32h
- Rear Rim: Inspired Link 22" 32h
- Spokes: Stainless plain gauge, black
- Rim Tapes: Trialtech, Black
- Inner Tubes: Maxxis (may be branded Cheng Shin, this is the same company as Maxxis)
- Tyres: S&M Mainline 22" x 2.4"

Brakes
The bike is available with various brake options, listed above. The brake option includes 180mm rotors of matching brand, the brakes are supplied fully bled, fitted to the bike, and ready to go. The photos show the bike with Magura MT7 HC3 brake option. The brake hose is not routed through the steerer tube as standard, this is an additional cost which can be added at the time of purchase.
Please note: the warranty for this bike is void if rotors larger than 185mm are used either front or rear.

Drivetrain
- Cranks: Truvativ Descendant 7K DUB, 175mm, Satin Black OR Hope Evo Crankset, 175mm OR Cane Creek eeWings Crankset, 175mm
- Bashring: Inspired Truvativ Integrated Bashring/Chainring V2 OR Hope Integrated Bashring OR Cane Creek Integrated Bashring
- Chain: KMC Z1eHX
- Rear Sprocket: Trialtech Sport Splined 16T
- Pedals: Inspired Team V3 Platform
- Bottom Bracket: Truvativ GXP DUB OR Hope Sealed BB OR Cane Creek Hellbender 70 BB

Seating
- Saddle: Inspired Tripod, Kevlar, Medium
- Seatpost: Inspired Tripod
- Seat Clamp: Inspired, 31.8mm

Steering
- Headset: FSA, 1-1/8" Integrated Upper, 1.5" Integrated Lower
- Stem: Trialtech Sport, 90mm x 35˚
- Grips: LizardSkins Danny MacAskill Lock-Ons
- Handlebars: Inspired Team 7075 Riser

Geometry:

- Wheelbase: 920mm
- Chainstay length: 337mm
- BB Height: +15mm
- Head Angle: 74
- Centre of BB shell to centre top of head tube: 640mm

Reach: 415mm
Stack: 480mm

Weight - MT7 Descendant as pictured
- 10.58kg (including pedals)




This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.

We build this bike to a 100% complete state in our workshop before dispatch to ensure all items are manufactured correctly and nothing is missing, but we do have to remove some parts to ensure there is no damage during transit. You will need some basic tools (usually 4mm, 5mm, 6mm and 8mm allen keys and a 15mm spanner) for final assembly upon arrival. We have a video guide here to help, but please don't hesitate to contact us if you require any further assistance.

Please note that the specification on the bike may occasionally vary slightly from the photos and description. If this happens then the overall effect will be an upgrade and it will not affect the cosmetic appearance of the bike drastically.
