Inspired Flow 22" - 2025

Product code: 14354

From $1042.30 to $1495.96

Check Stock

Inspired Flow 22" - 2025

Gloss Grey - Avid BB5 Brakes
Gloss Grey - Hope Tech 4 Trial Zone Brakes
Gloss Grey - Magura MT4 Brakes
Gloss Grey - Magura MT7 HC3 Brakes

Sold out

This bike is built in our workshop before dispatch, and we often have a queue. The current lead time can be seen by adding this bike to your basket. Some basic assembly is required on arrival, we are happy to help if you need.

  • Perfect for riders from 4ft 7in/1.40m - 5ft 3in/1.60m!
  • Great value street trials bike, ideal for beginners and more advanced riders alike.
  • Updated frame for 2025 at a lower price than the previous models!

Need help working out which Inspired bike is best for you? Check out our Buyer's Guide here for all the info you'll need!

- New from Inspired, the updated Flow 22"! - Featuring the same, updated frame as the Flow 24", the 2025 Flow 22" has a completely new chain stay yoke, further improving strength in this key area.
- Continuing from the previous model, the new Flow 22" comes equipped with an alloy fork, allowing for steerer tube front brake routing.
- The new Flow 22" keeps the same geometry as previous models ensuring a dependable and durable rider for beginners and advanced riders alike.
- A stylish, gloss grey paint colour complemented with fluro yellow Inspired logos looks great!

- Super high quality, robust bike from Inspired, at a new more attainable price point!
- The original Flow 22" was the first trials bike available with 22" wheels, making it an ideal fit for older children or short adults who find the Flow 20" too small and the Flow 24" too big.
- Suitable for riders from approx. 140cm to 160cm (4ft7" to 5ft3"), but capable of being used by slightly taller riders with higher rise bars and/or a longer stem.
- New top cap design screws into the threaded steerer tube and allows the hose to be routed through the steerer if required. We can send the bikes with the hose through the steerer if you like, please also purchase the correct brake model option of this Workshop Item if you would like the hose to be routed through the steerer. If you do not add this item, the bike will be sent with the hose NOT routed through the steerer as shown in the pictures.
- Only available in the colour shown in the photographs.

Frame and Forks
- Frame: Inspired Flow 22", Disc Only
- Forks: Inspired Flow 22", Alloy, Disc Only

Wheels
- Front hub: Trialtech Front Disc, Sealed Bearing, 32h, Black
- Rear hub: Trialtech Rear Disc, Sealed Bearing, 32h, Black
- Chain tensioner: Inspired Flow
- Front rim: Inspired Flow, 22", Black
- Rear rim: Inspired Flow, 22", Black
- Spokes: Stainless Plain Gauge
- Rim tape: Rubber
- Inner tube (front): Kenda
- Inner tube (rear): Kenda
- Front tyre: Inspired Street 22 x 2.3"
- Rear tyre: Inspired Street 22 x 2.3"

Brakes

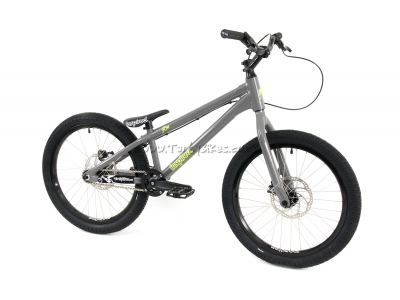

The bike is available with various brake options, listed above. The brake option includes 180mm rotors of matching brand, the brakes are supplied fully bled, fitted to the bike, and ready to go. The photos show the bike with Magura MT4 brake option.
Please note: the warranty for this bike is void if rotors larger than 185mm are used either front or rear.

Drivetrain
- Cranks: Trialtech Square Taper, 170mm, Black
- Chainring: Trialtech 22T 4-Bolt
- Chain: KMC S1, 1/8"
- Freewheel: Trialtech 16T, 36 engagement
- Pedals: Wellgo Nylon Platform, Black (NOT Trialtech Race as shown in photos)
- Bottom bracket: Sealed Square Taper

Seating
- Saddle and post: Black, Integrated
- Seat Clamp: Inspired, 28.6mm

Steering
- Headset: Trialtech, 1-1/8" Internal, Black
- Stem: Trialtech Forged, 4-bolt front clamp, 90mm x 35˚, Black
- Grips: Inspired Rubber, Black
- Handlebars: Inspired Flow Alloy Riser

Geometry
- Wheelbase: 905mm
- Chainstay: 337mm
- BB Rise: +15mm
- Head Angle: 73˚
- Centre of BB shell to centre top of head tube: 605mm
Reach: 379mm
Stack: 467mm

Weight
- Weight. 10.92kg (Mt4 brake option as pictured)




This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.

We build this bike to a 100% complete state in our workshop before dispatch to ensure all items are manufactured correctly and nothing is missing, but we do have to remove some parts to ensure there is no damage during transit. You will need some basic tools (usually 4mm, 5mm, 6mm and 8mm allen keys and a 15mm spanner) for final assembly upon arrival. We have a video guide here to help, but please don't hesitate to contact us if you require any further assistance.

Please note that the specification on the bike may occasionally vary slightly from the photos and description. If this happens then the overall effect will be an upgrade and it will not affect the cosmetic appearance of the bike drastically.

Questions

There are currently no questions relating to this product.

Reviews

Write a review

Not yet rated
