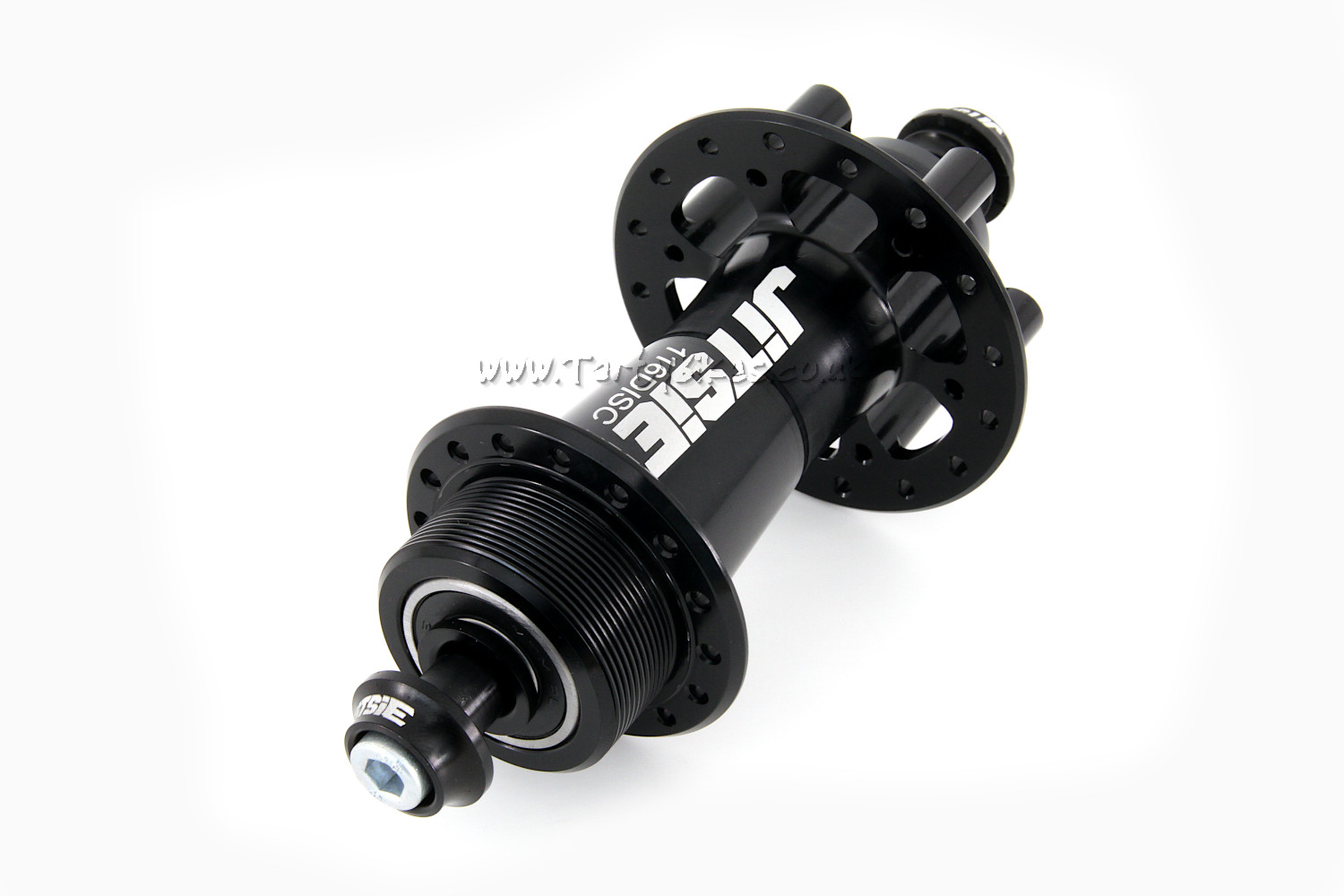

Jitsie 116 Disc Race Rear

Product code: 14340

Overview
Questions

Back in stock for a limited time only, Jitsie are clearing out older stock at a reduced price, and we're passing the saving onto you while stock lasts!

Super lightweight rear 116mm disc hub!

- Lightweight rear disc hub from Jitsie!
- Tapered hub shell increases in diameter towards the drive side to increase hub strength, and stiffness.
- Extra CNC machining around the rotor mount reduces weight while maintaining strength in this key area.
- Hollow aluminium axle and minimal axle bolt washers keep the weight as low as possible.
- Sealed cartridge bearings for smooth operation and long service life.
- To fit 116mm spaced drop outs when used with snail cams.
- Standard 6 bolt rotor fitting.
- Standard 1.37" x 24tpi thread to accept threaded sprockets and freewheels.
- 32 hole spoke drilling only.
- Available in black only.
- Weight: 160g

Hub Dimensions

Disc Side:
- Flange Diameter: 56mm
- Centre to Flange: 25mm

Non Disc Side:
- Flange Diameter: 42mm
- Centre to Flange: 34mm

Questions

Ask a question

Good morning I wanted to know if it could fit on a monty m5 carbon rear thanks

Posted by massimiliano

Reply from TartyBikes

Hi Massimiliano
Yes, you can! The Monty M5 uses a 116mm OLD rear drop out spacing, which means any disc 116mm compatible hub will work. The Jitsie hub is supplied without snail cams, which you will need to make the spacing up to 116mm.

Ben
