RockMan Manus 2 (Inc Bashplate Rubber)

Quick find code: 011068

(Not yet rated)

From £316.66 to £333.32

Select an option below to add to your basket

RRP: £356.60 (Save up to 11%)

Key:

In Stock

On Order

Discontinued

Click an image to enlarge

Black	£333.32 £356.60
Light Blue	£333.32 £356.60
Light Blue (Slight scuff underside of frame, hence discount)	£316.66 £356.60
Orange	£333.32 £356.60

Choose quantity

Description

Additional Information

Reviews (0)

Questions (2)

- Following on from the extremely popular Manus, the new Manus 2 has a few tweaks but mainly remains the same.
- Seatstays are a little less curved than previously, increasing crank clearance.
- Lightened downtube bashplate mount.
- New profile top tube is stiffer than before.
- Constructed from U6 aluminium alloy.

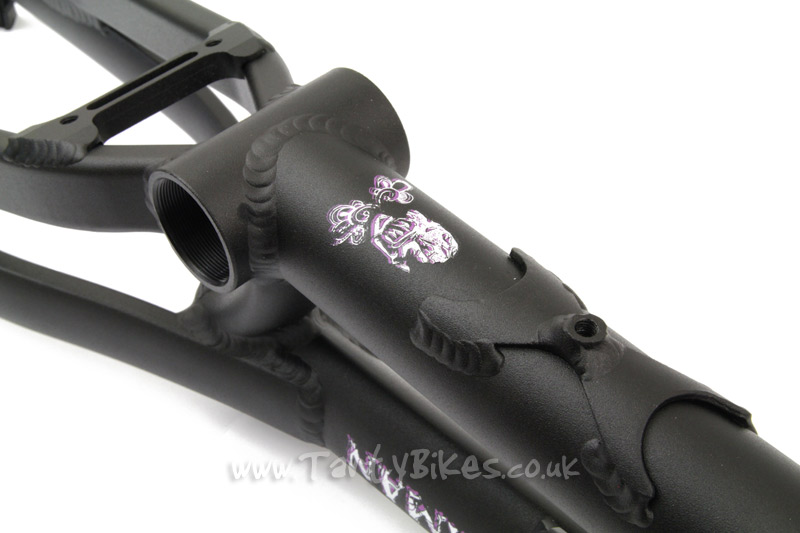

- 68mm BB shell.
- Externally butted standard 1 1/8" head tube (110mm length) with downtube gusset to increase strength.

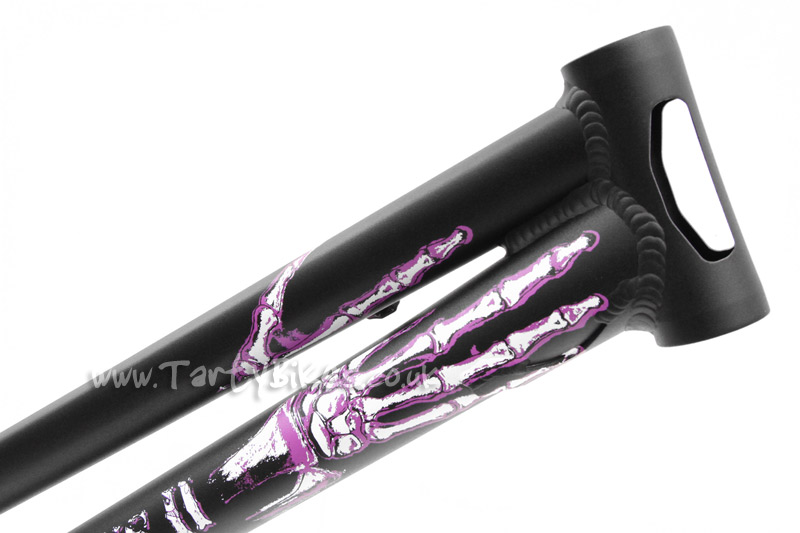

- Hole in the front of the head tube looks cool and reduces weight.

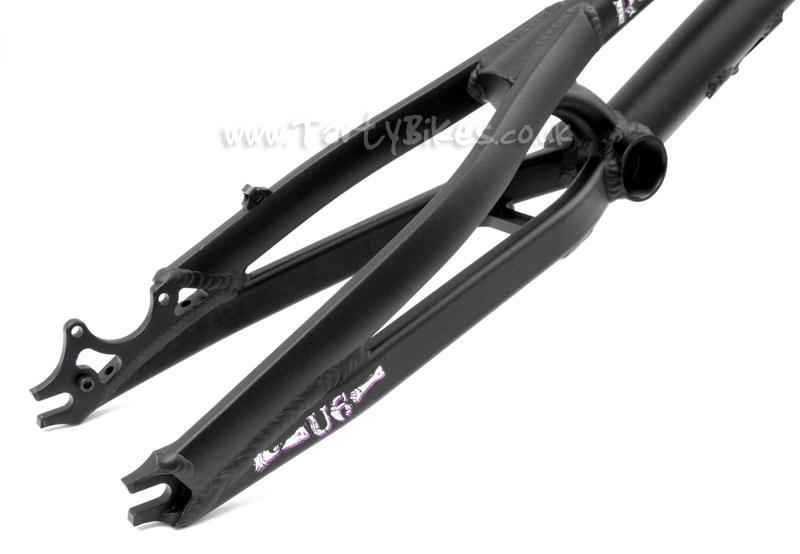

- Neat and simple CNC machined dropouts are spaced at 116mm and can be used with snail cams to tension the chain.
- Relatively thin tubing keeps the weight down, this is a serious competition frame.
- Disc Only (international standard spacing, use #3 Hope caliper for 160mm rotor, Try-All brake will not fit).
- Anodised Orange, Black and Blue available.
- Weight: 1.291kg/2.85lbs

Geometry (when measured with Echo Urban fork, sold separately)

Wheelbase: 1000mm
Chainstay Length: 350mm
BB Rise: +85mm
Head Angle: 71 degrees
Centre of BB shell to top centre of head tube: 590mm (23.2")
