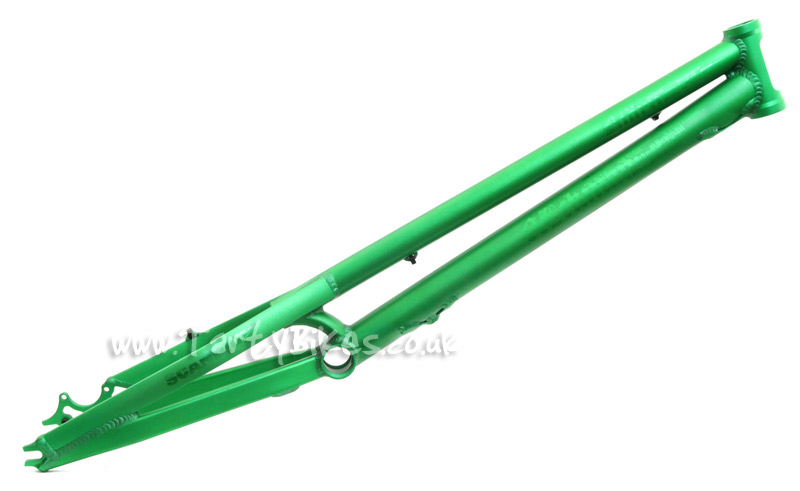

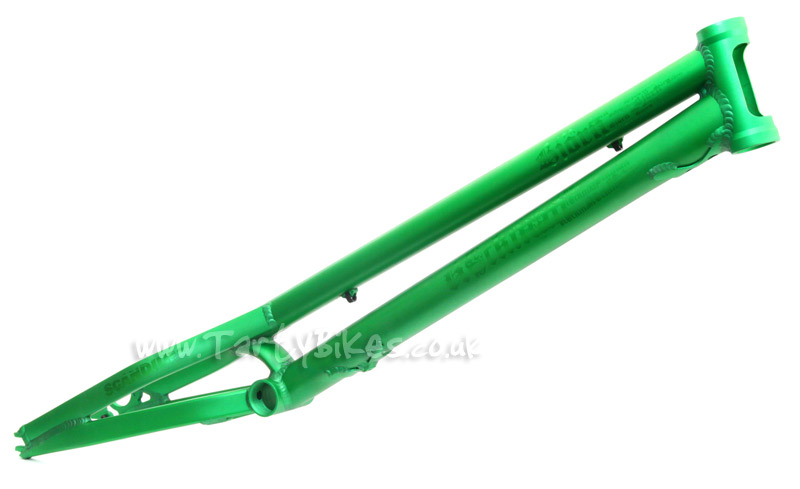

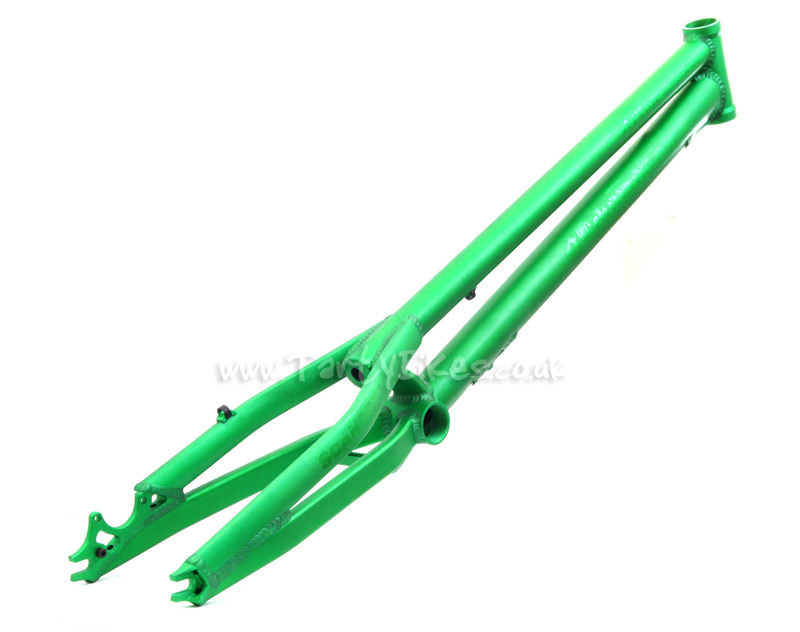

- Brand new frame from Rockman for 2010, designed and tested by our own team rider Bjorn Levin!
- Created using Scandium for the front triangle - a material with a tensile strength that bridges the gap between aluminium and titanium.

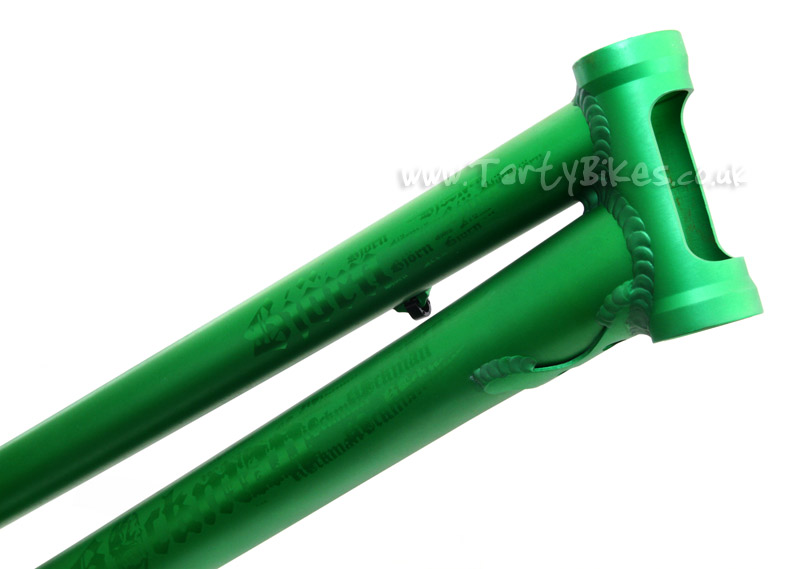

- 110mm long head tube has a large hole machined into it to reduce weight as much as possible.

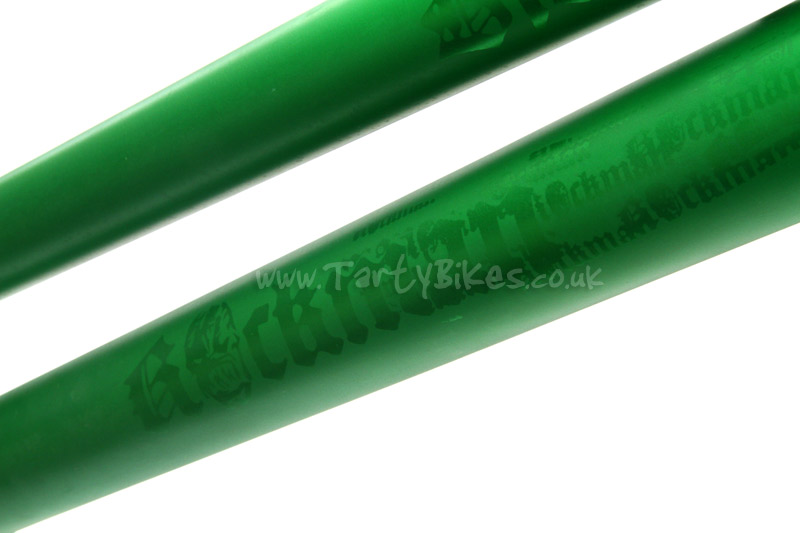

- High quality, durable graphics formed in the factory by applying stickers to the frame, lightly shot-blasting it and then removing the stickers to create a cool satin frame/gloss graphic look.

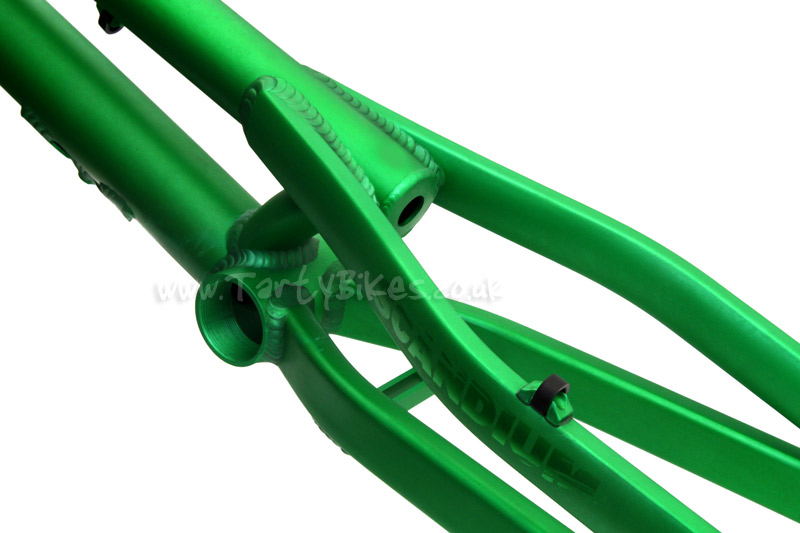

- Large machined down tube gusset to create a stronger head tube join.

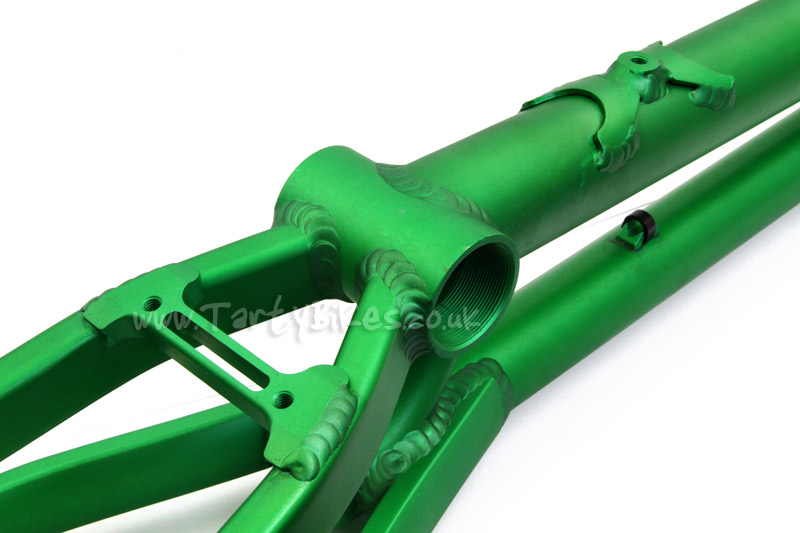

- Large, gusseted bash guard mount on the down tube helps dissipate some of the force from usage of the guard.

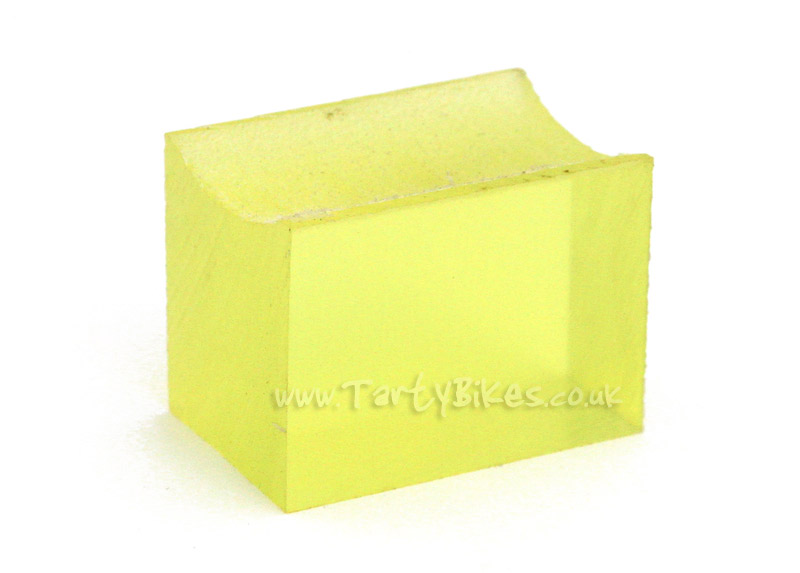

- Frame comes supplied with a small bash plate rubber as the frame itself has no bash guard support on the BB shell, thus making the frame lighter.

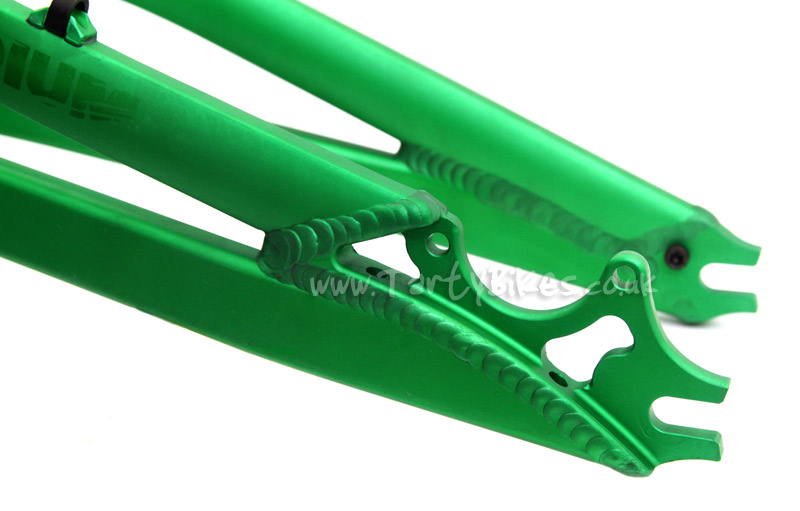

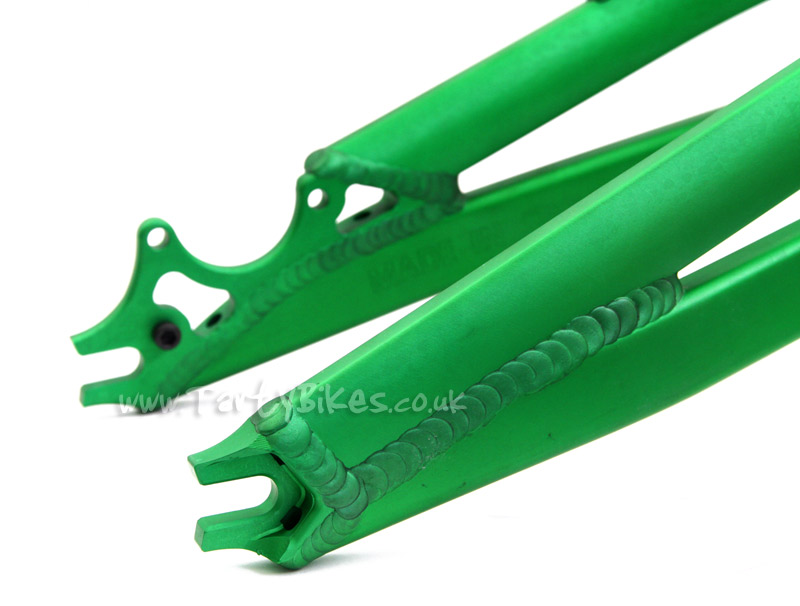

- IS disc mount integrated into the dropout (use #3 Hope caliper for 160mm rotor).
- 116mm spaced micro dropouts which come supplied with bolts enabling you to use snail cams.

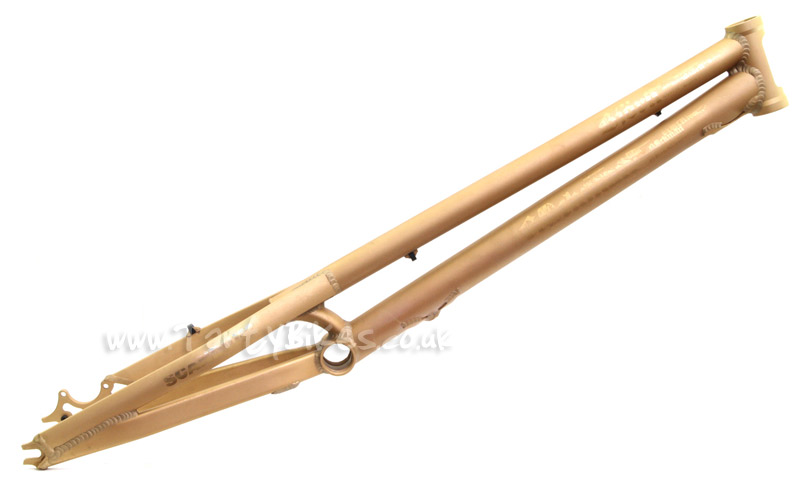

- Available in a choice of either anodised Green, Bronze or Gold.
- Weight: 1.235kg (The lightest 20" frame available!)
- Created using Scandium for the front triangle - a material with a tensile strength that bridges the gap between aluminium and titanium.
- 110mm long head tube has a large hole machined into it to reduce weight as much as possible.
- High quality, durable graphics formed in the factory by applying stickers to the frame, lightly shot-blasting it and then removing the stickers to create a cool satin frame/gloss graphic look.
- Large machined down tube gusset to create a stronger head tube join.
- Large, gusseted bash guard mount on the down tube helps dissipate some of the force from usage of the guard.
- Frame comes supplied with a small bash plate rubber as the frame itself has no bash guard support on the BB shell, thus making the frame lighter.
- IS disc mount integrated into the dropout (use #3 Hope caliper for 160mm rotor).
- 116mm spaced micro dropouts which come supplied with bolts enabling you to use snail cams.
- Available in a choice of either anodised Green, Bronze or Gold.
- Weight: 1.235kg (The lightest 20" frame available!)
Geometry:
Wheelbase: 1025mm
Chainstay Length: 350mm
BB Rise: +80mm
Head Angle: 72.5 degrees
Centre of BB shell to top centre of head tube: 610mm (24.01")
