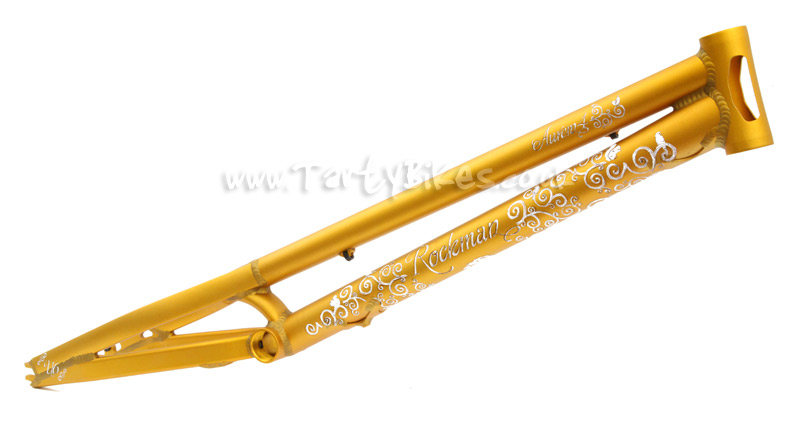

- New frame from RockMan Bikes, the 4th generation of their Aurem frame.
- Updated bash plate mounts for 2011.
- Constructed from U6 aluminium alloy.

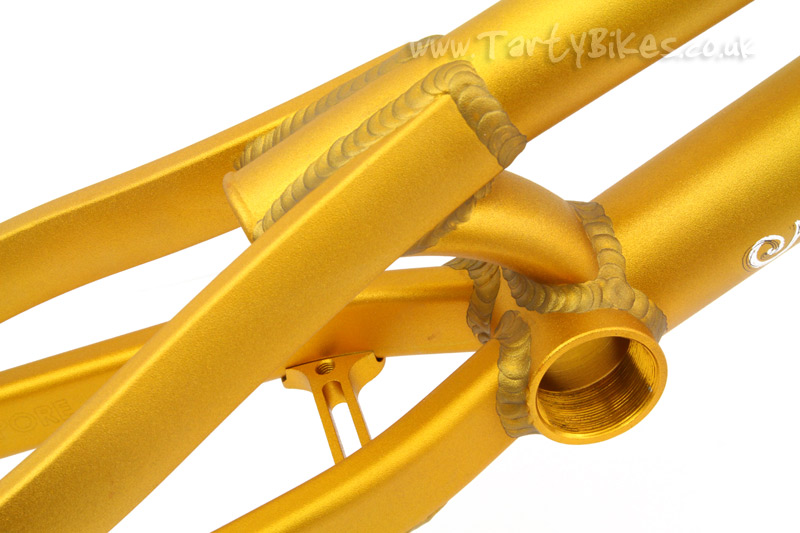

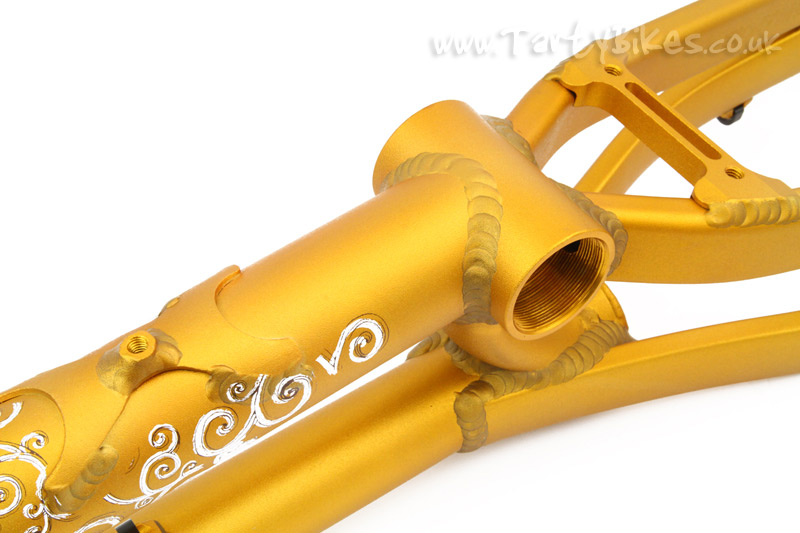

- 68mm BB shell.
- Externally butted standard 1 1/8" head tube (110mm length) with downtube gusset to increase strength.
- Hole in the front of the head tube looks cool and reduces weight.

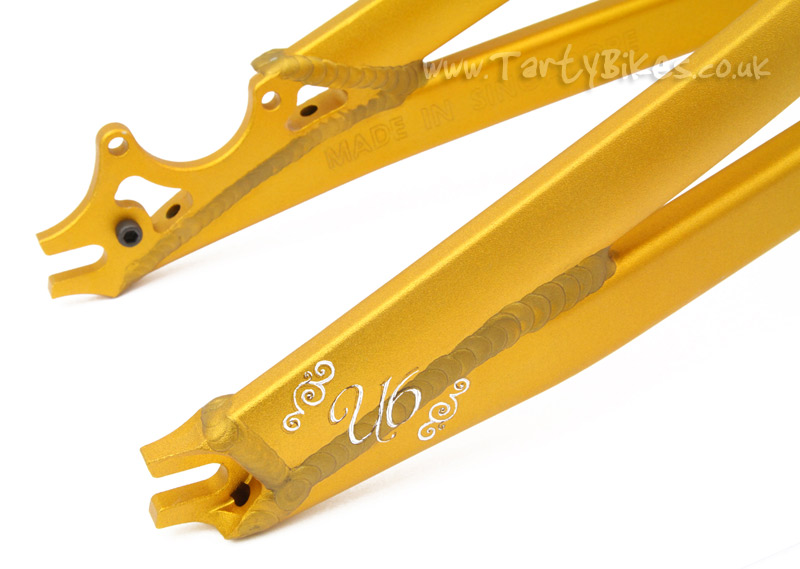

- Neat and simple CNC machined dropouts are spaced at 116mm and can be used with snail cams to tension the chain.
- Disc Only (international standard spacing).

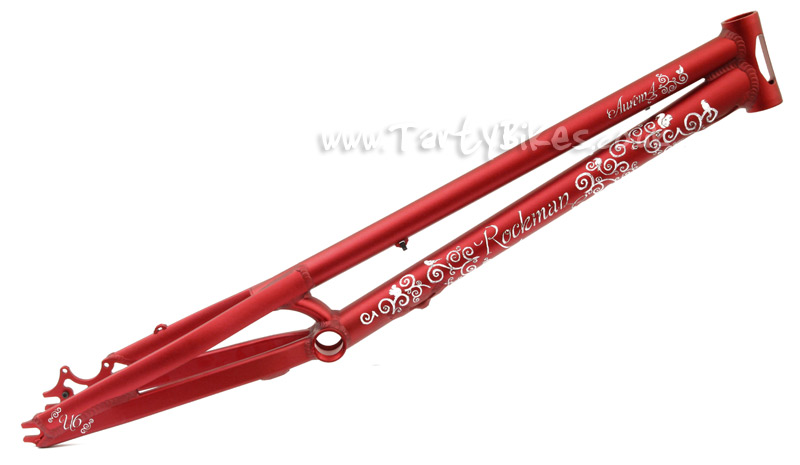

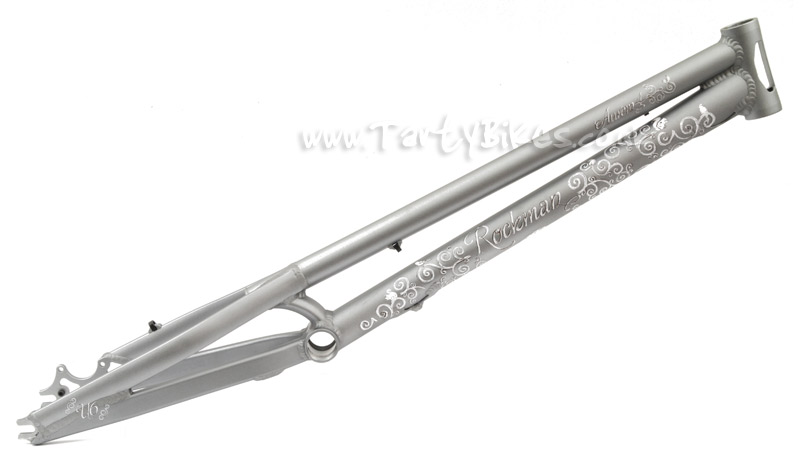

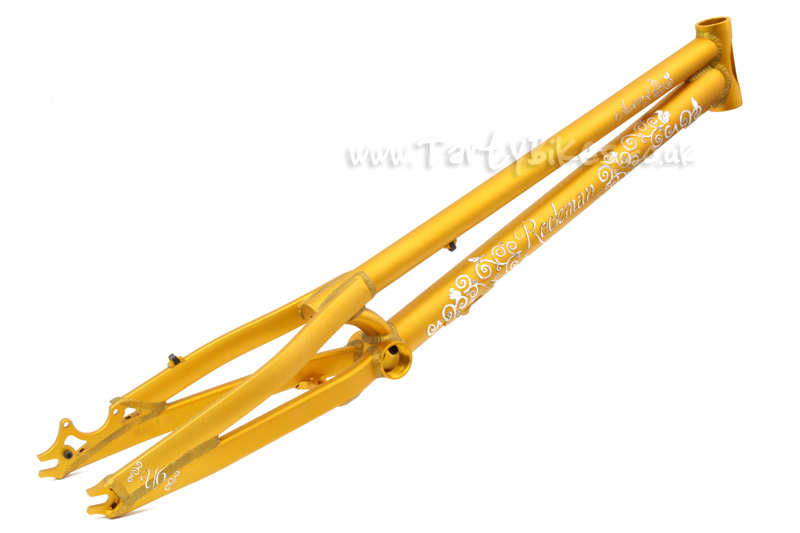

- Anodised Red, Silver or Gold finish available.
- Weight: 1.304kg/2.874lbs.
Geometry
Wheelbase: 1020mm
Chainstay Length: 350mm
BB Rise: +85mm
Head Angle: 71 degrees
Centre of BB shell to top centre of head tube: 610mm (24")
- Updated bash plate mounts for 2011.
- Constructed from U6 aluminium alloy.
- 68mm BB shell.
- Externally butted standard 1 1/8" head tube (110mm length) with downtube gusset to increase strength.
- Hole in the front of the head tube looks cool and reduces weight.
- Neat and simple CNC machined dropouts are spaced at 116mm and can be used with snail cams to tension the chain.
- Disc Only (international standard spacing).
- Anodised Red, Silver or Gold finish available.
- Weight: 1.304kg/2.874lbs.
Geometry
Wheelbase: 1020mm
Chainstay Length: 350mm
BB Rise: +85mm
Head Angle: 71 degrees
Centre of BB shell to top centre of head tube: 610mm (24")
Try-All Shift Front 20''
£24.17
Save 36%
Gusset Double Six Sprocket
£10.21
Echo TR
£55.32
RockMan Single Caged
£42.55
Try-All Carbon Riser
£95.83
Kenda Unboxed 19/20"
£3.40
RockMan 20" Disc
£118.30
Monty 19/20''
From £4.68 to £6.67
hello. I want ask about geometry, on the site wheelbase is 1020 mm , but with wich fork? because, rockman fork has a 26mm offset , so if I put a trialtech fork (with 45mm offset) wheel base will be 1039mm ?? please help KArol
Posted by karol on 10/10/2011
Reply from TartyBikes on 10/10/2011
Hi Karol - I believe those measurements were made with the Echo Urban 20" fork (35mm offset). Thanks, Mark
