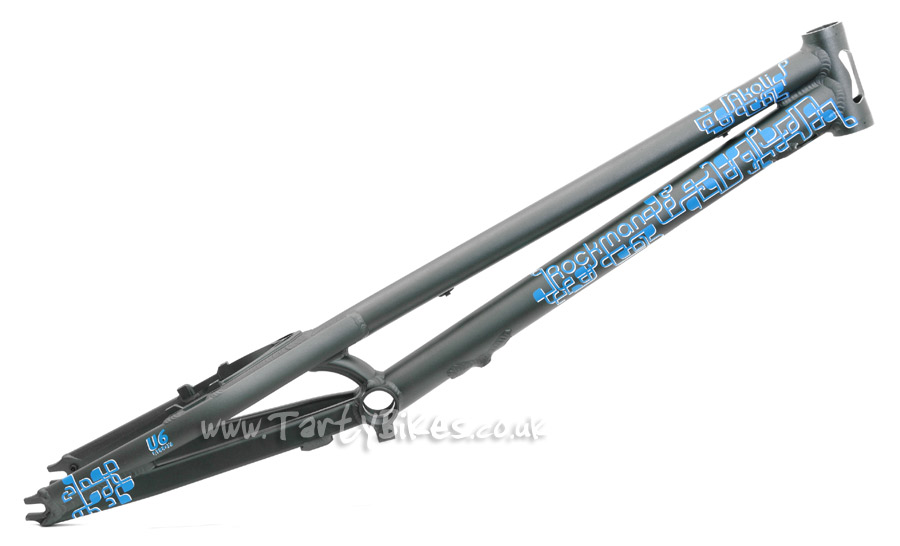

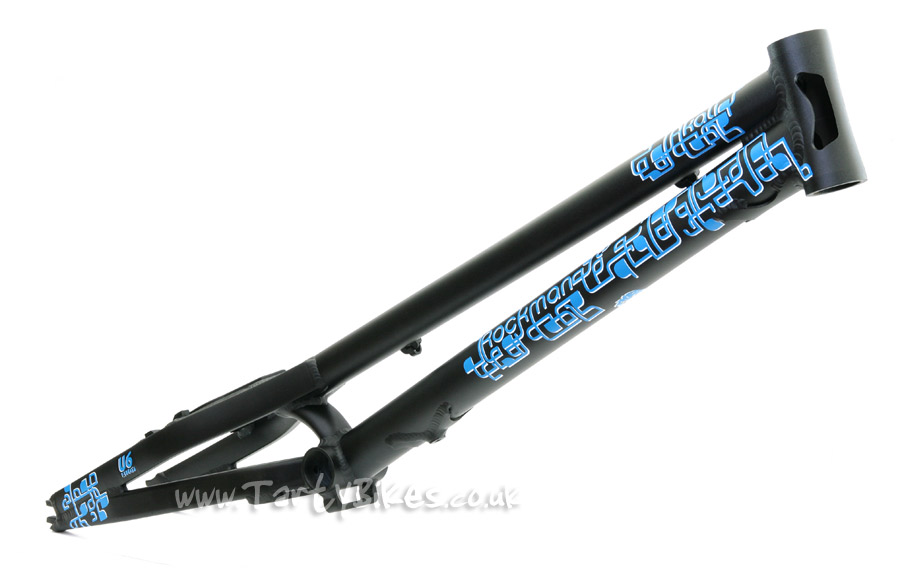

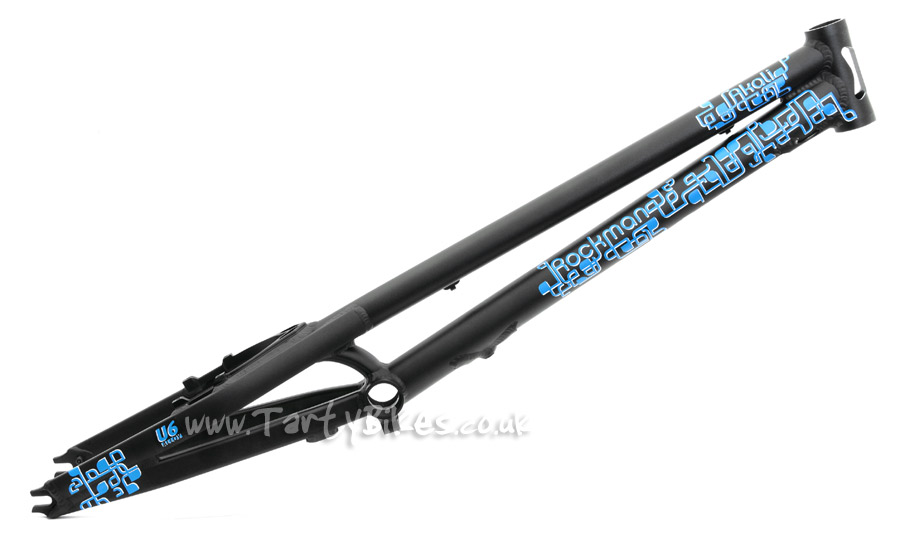

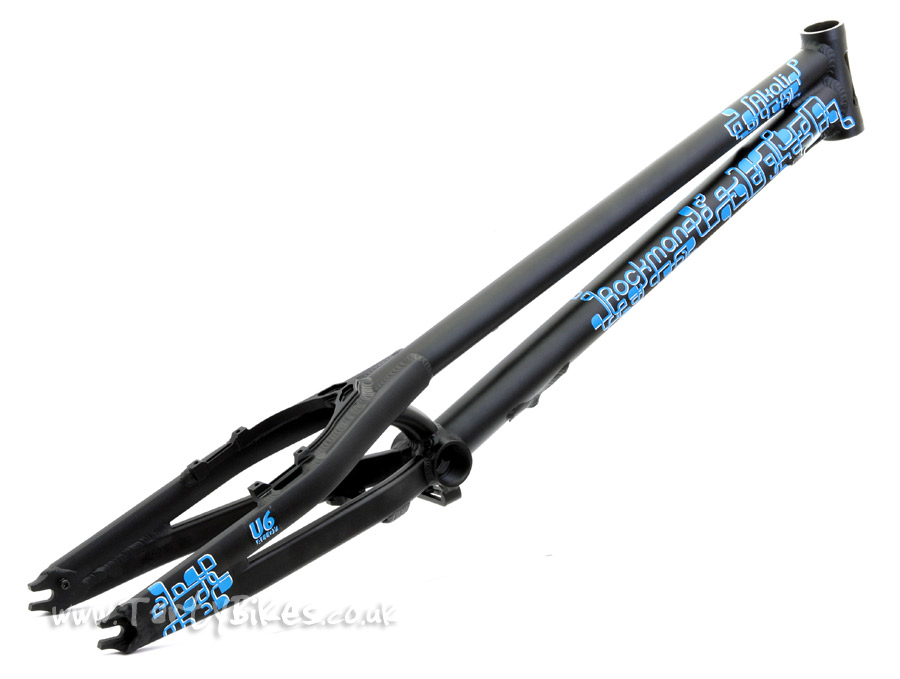

- The latest frame from RockMan Bikes.
- Constructed from U6 aluminium alloy.
- 68mm BB shell.
- Externally butted standard 1 1/8" head tube (110mm length) with downtube gusset to increase strength.

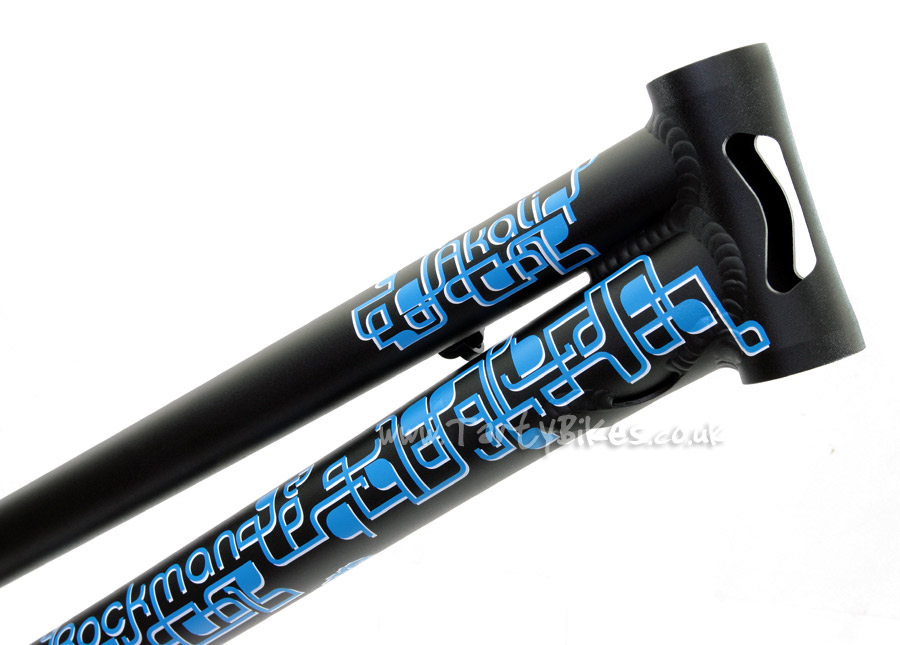

- Hole in the front of the head tube looks cool and reduces weight.
- Neat and simple CNC machined dropouts are spaced at 116mm and can be used with snail cams to tension the chain.
- Relatively thin tubing keeps the weight down.

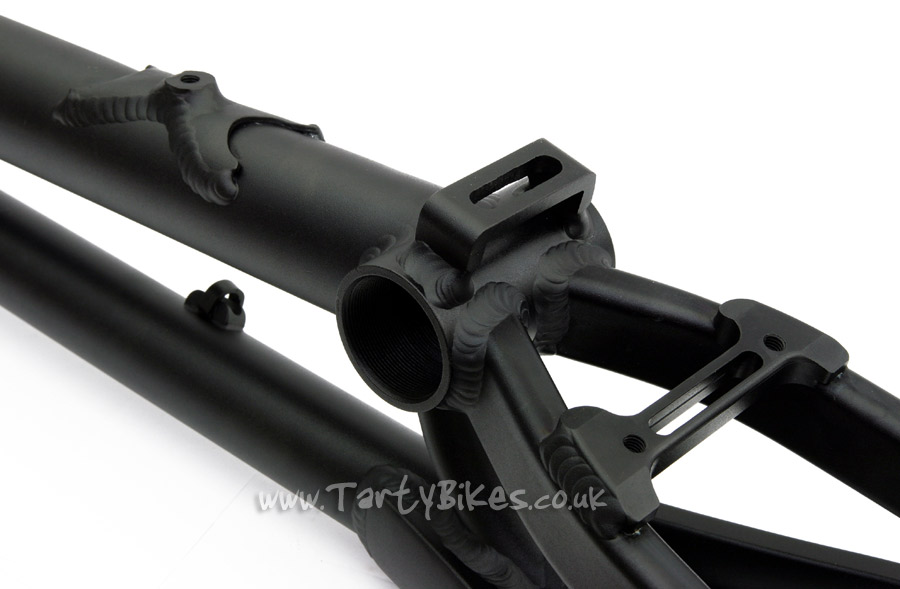

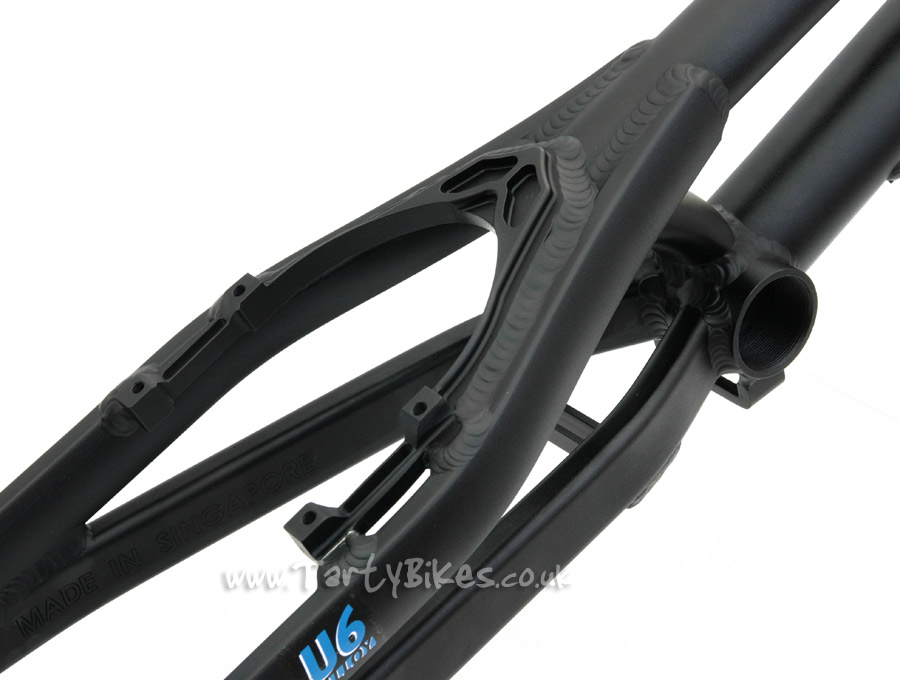

- Dedicated HS33 mounts (100mm spacing) are minimal and are one-piece with the sleek built in booster which increases brake stiffness and power.
- Anodised Black and Grey finish available, both with high quality vibrant water transfer graphics.
- Weight: 1.42kg/3.14lbs
- Constructed from U6 aluminium alloy.
- 68mm BB shell.
- Externally butted standard 1 1/8" head tube (110mm length) with downtube gusset to increase strength.
- Hole in the front of the head tube looks cool and reduces weight.
- Neat and simple CNC machined dropouts are spaced at 116mm and can be used with snail cams to tension the chain.
- Relatively thin tubing keeps the weight down.
- Dedicated HS33 mounts (100mm spacing) are minimal and are one-piece with the sleek built in booster which increases brake stiffness and power.
- Anodised Black and Grey finish available, both with high quality vibrant water transfer graphics.
- Weight: 1.42kg/3.14lbs
Geometry (to be confirmed)
Wheelbase: 1005mm
Chainstay Length: 350mm
BB Rise: +80mm
Head Angle: 71.5 degrees
Centre of BB shell to top centre of head tube: 590mm (23.2")
