TartyBikes : Ozonys Curve V3 24", Green Graphics

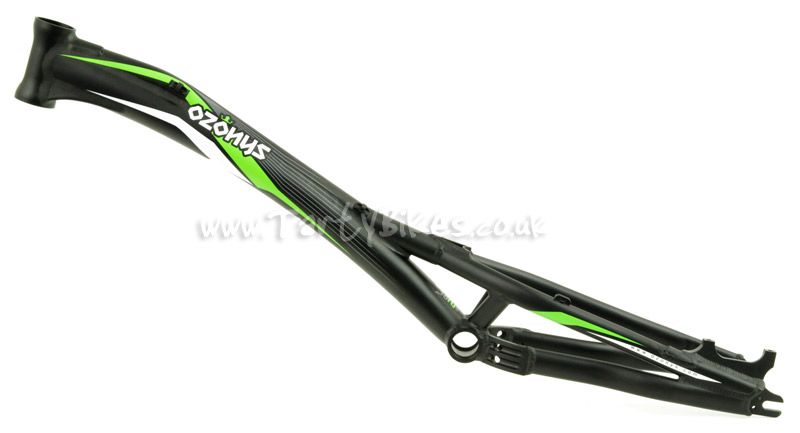

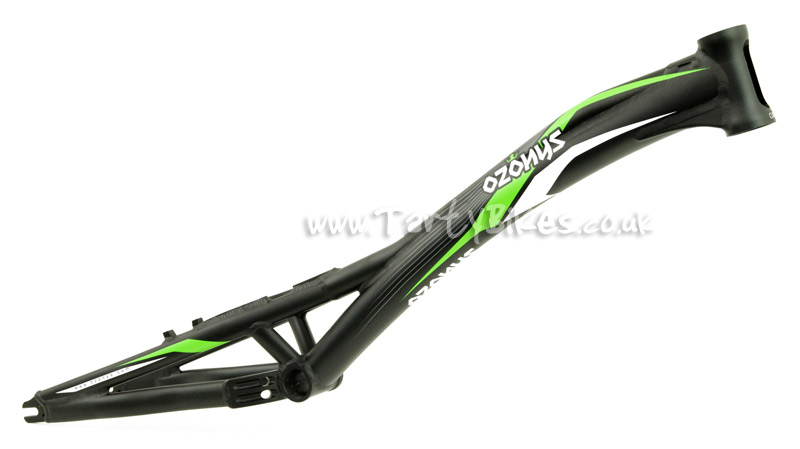

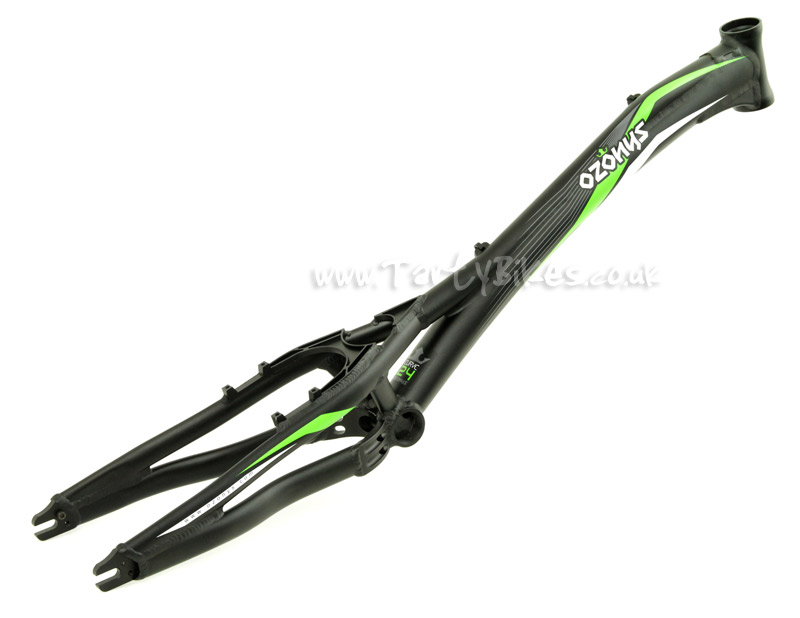

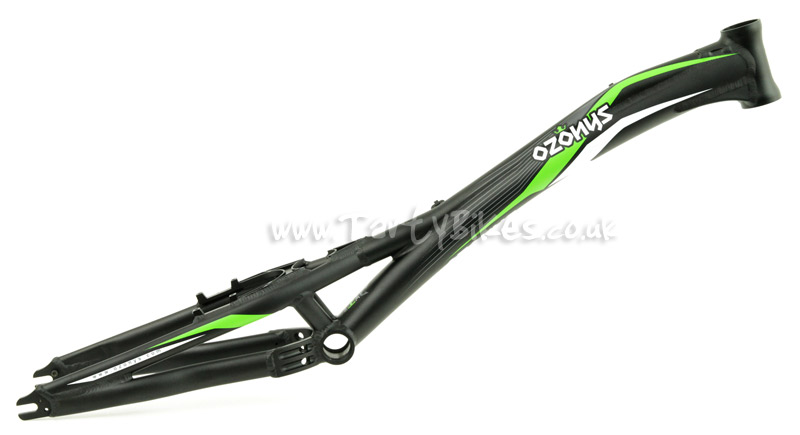

- Based heavily upon the 20" and 26" Curve models, the Curve V3 24" frame shares the same unique profile.
- Joined top and down tubes give the frame a distinctive look, as well as giving the most clearance possible.

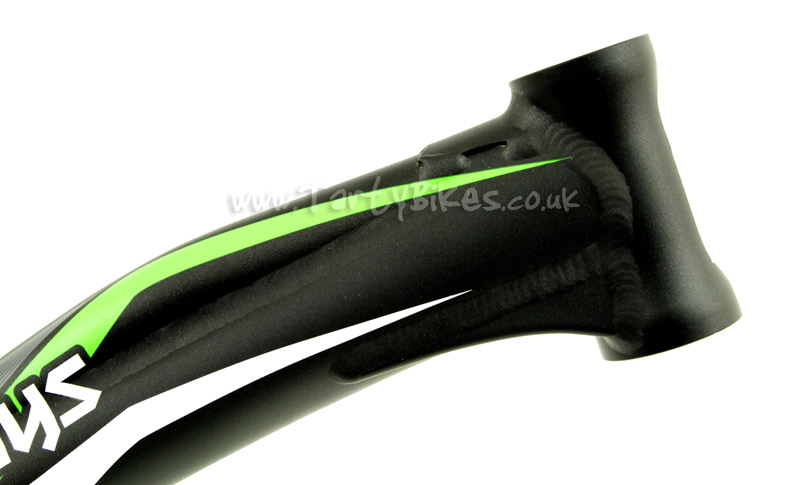

- Externally butted and machined out 100mm head tube (to fit an internal headset) has gussets at the top and down tubes, to help strengthen the head tube area of the frame.
- Standard head tube model has slightly thicker tubing.
- Twin seat tubes to help stiffen the rear end of the frame.

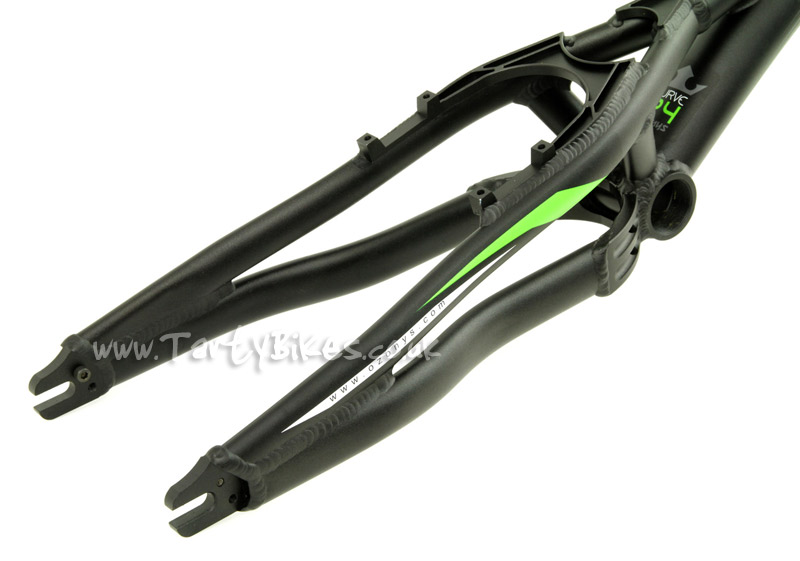

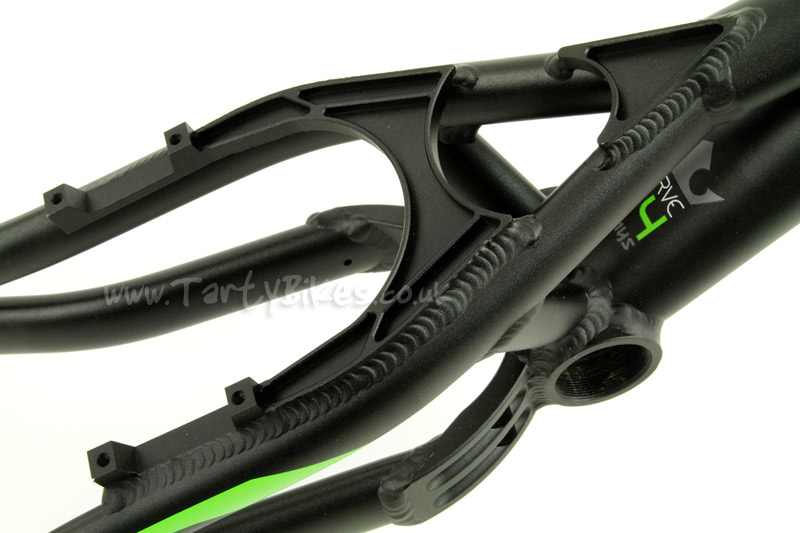

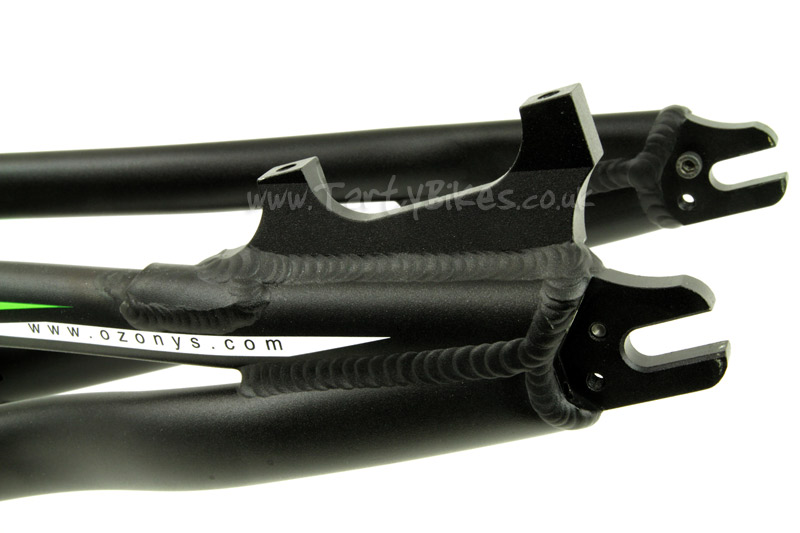

- 100mm spaced dedicated 4-bolt mounts have an integrated booster system to help stiffen the brake to make it as responsive as possible.
- Reinforced Post Mount disc brake mount is at a +20mm position, allowing the use of a Post Mount brake with a 180mm rotor with no adaptors.

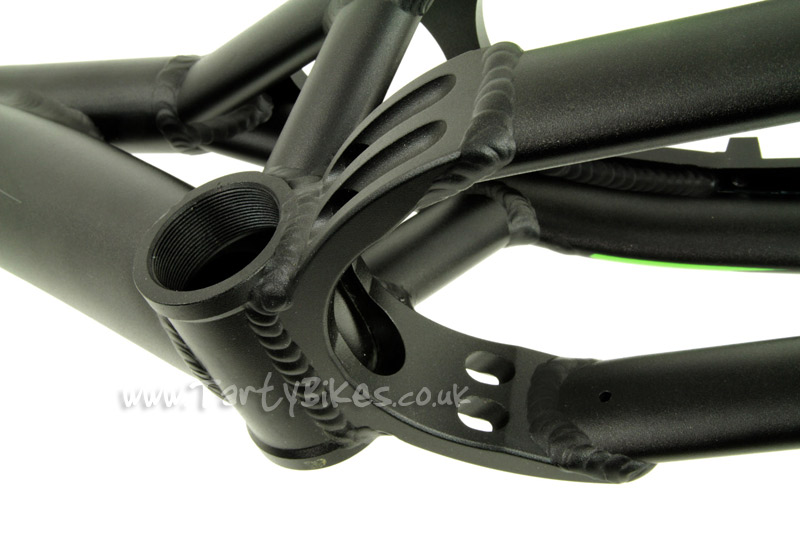

- Lightweight CNC Machined chainstay yoke for increased pedalling response, and the use of wider rear tyres, has two recesses machined into it to remove any un-necessary weight.
- Large hole machined into the rear of the BB yoke to remove material where it isn't required.
- Neat gusset at the top of the seat stay join to help reinforce this area of the frame.
- Down tube ovalises at the BB join to give as much weld area as possible, increasing strength and stiffness significantly.
- Contoured chain and seat stays give as much clearance as possible.

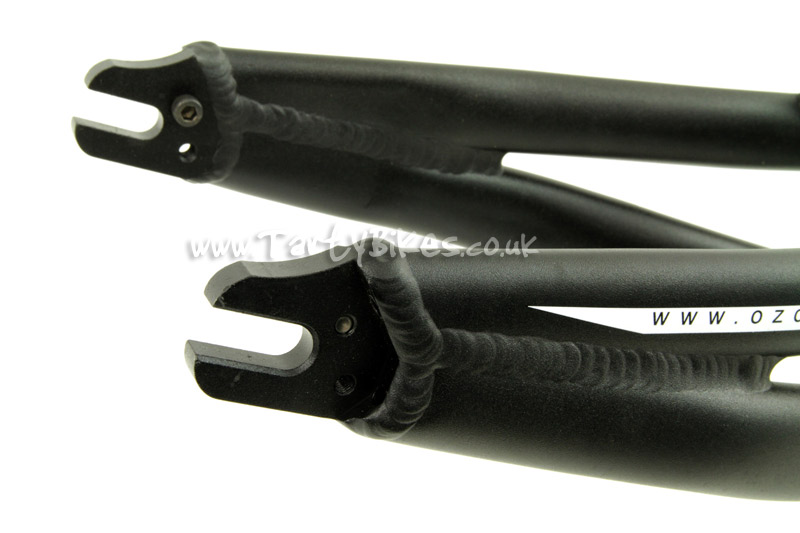

- Neat horizontal dropouts, spaced at 135mm, have two snail cam bolt mounting positions to allow the widest possible compatibility with different setups.
- Available in 4-Bolt Only or Post Mount Only options.

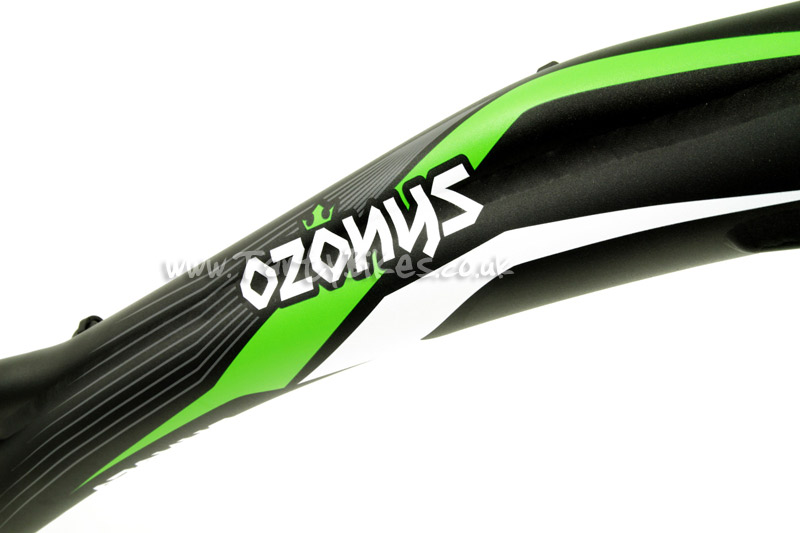

- Anodised black finish is complimented well with stylish silver and green water transfer graphics that wrap around the frames contours.
- Weight (4-Bolt Only and Post Mount Only models): 1.427kg

Geometry (When measured with Echo Urban 402mm/45mm fork)

Wheelbase: 1050mm
Chainstay length: 360mm
BB Rise: +70mm
Head Angle: 71.5
Centre of BB shell to top centre of head tube: 630mm (24.8")
