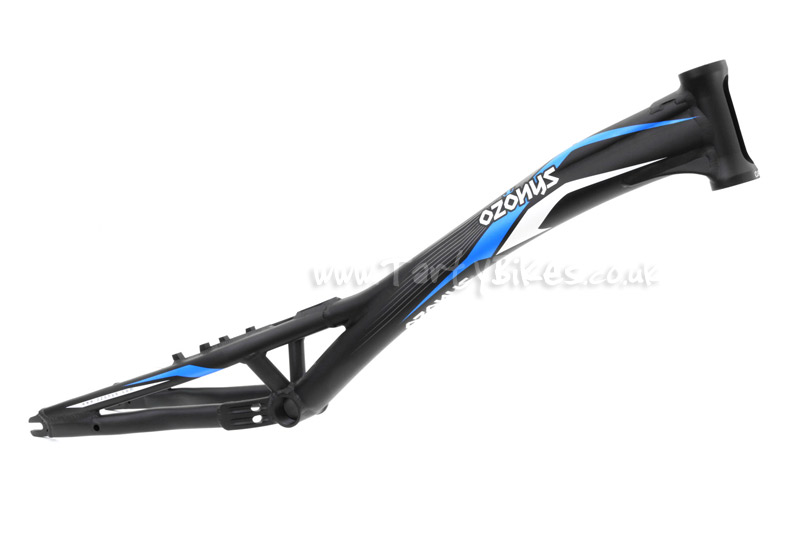

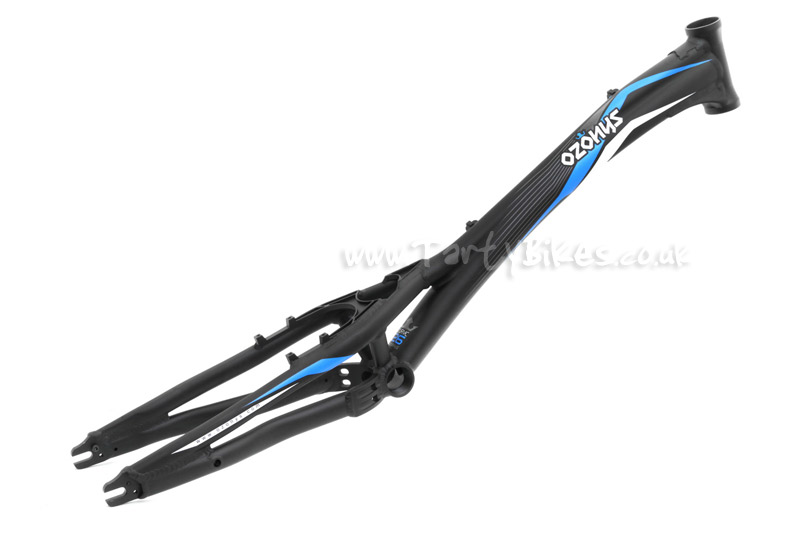

TartyBikes : Ozonys Curve V3, Blue Graphics

- Updated for 2012, the Ozonys Curve has been tweaked slightly from the previous model to feature slightly thicker tubing as well as new graphics.
- Joined top and down tubes give the frame a distinctive look, as well as giving the most clearance possible.

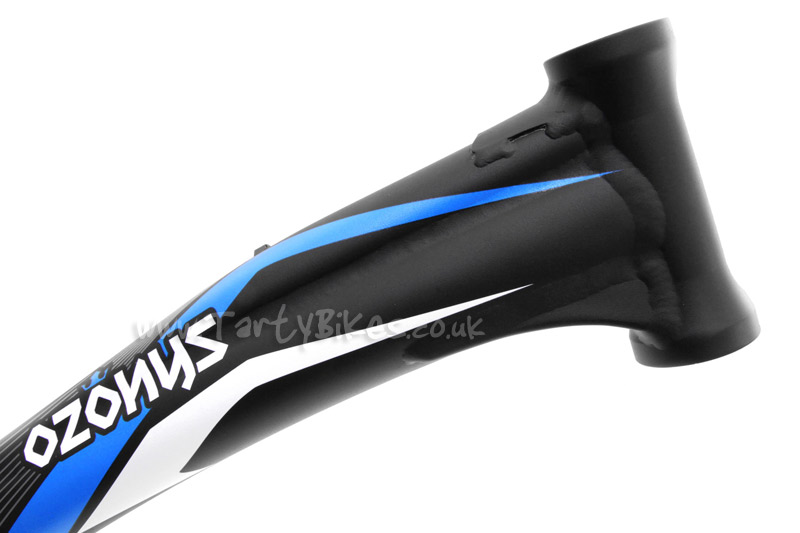

- Externally butted and machined out 125mm head tube (to fit an internal headset on 'Internal Head Tube' model OR standard headset on 'Standard Head Tube Model') has gussets at the top and down tubes, to help strengthen the head tube area of the frame.
- Standard head tube model has slightly thicker tubing.

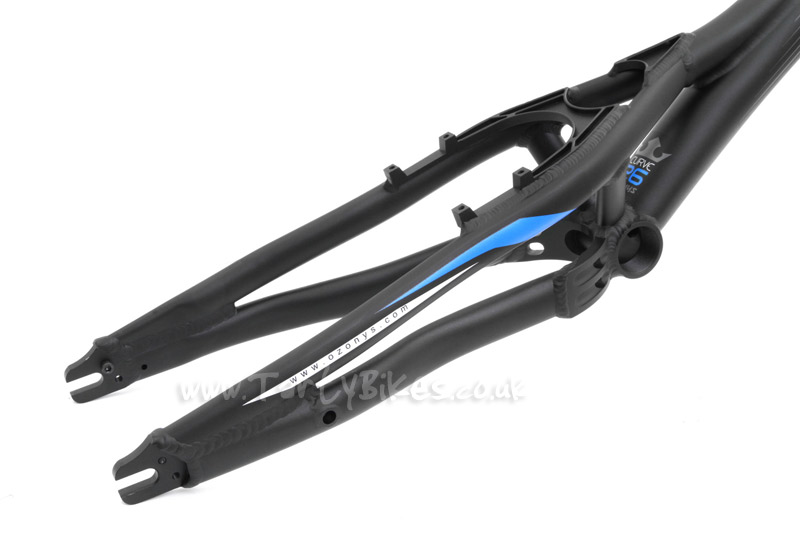

- Twin seat tubes to help stiffen the rear end of the frame.

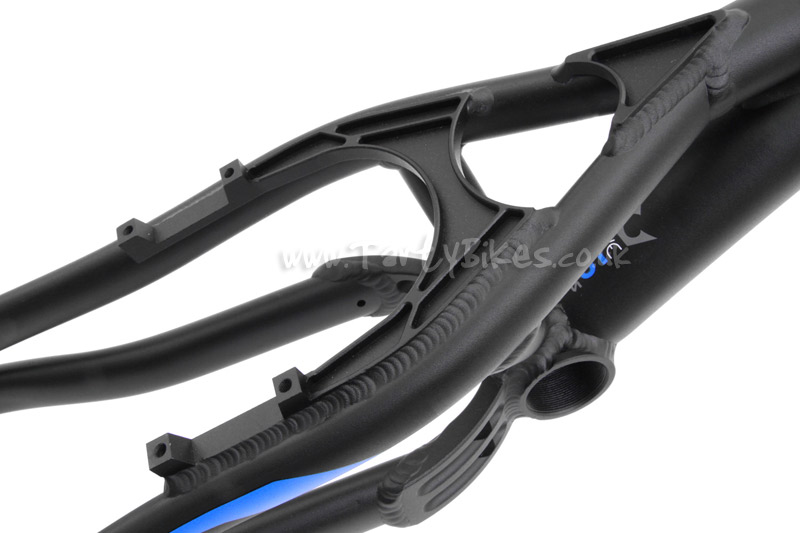

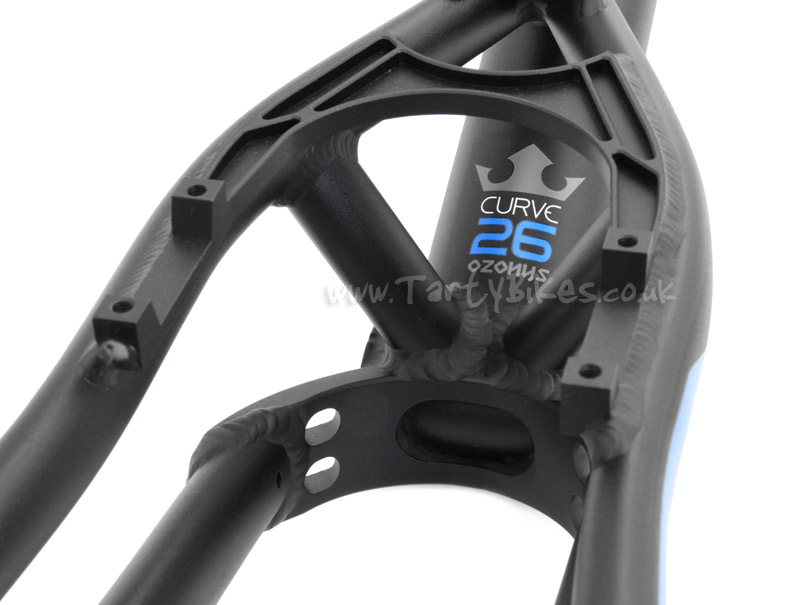

- 100mm spaced dedicated 4-bolt mounts have an integrated booster system to help stiffen the brake to make it as responsive as possible.
- Lightweight CNC Machined chainstay yoke for increased pedalling response, and the use of wider rear tyres, has two recesses machined into it to remove any un-necessary weight.
- Large hole machined into the rear of the BB yoke to remove material where it isn't required.
- Neat gusset at the top of the seat stay join to help reinforce this area of the frame.
- Down tube ovalises at the BB join to give as much weld area as possible, increasing strength and stiffness significantly.
- Contoured chain and seat stays give as much clearance as possible.
- Neat horizontal dropouts, spaced at 135mm, have two snail cam bolt mounting positions to allow the widest possible compatibility with different setups.
- Drive-side chainstay features a boss for Ozonys' own sprung tensioner should you prefer to use it.

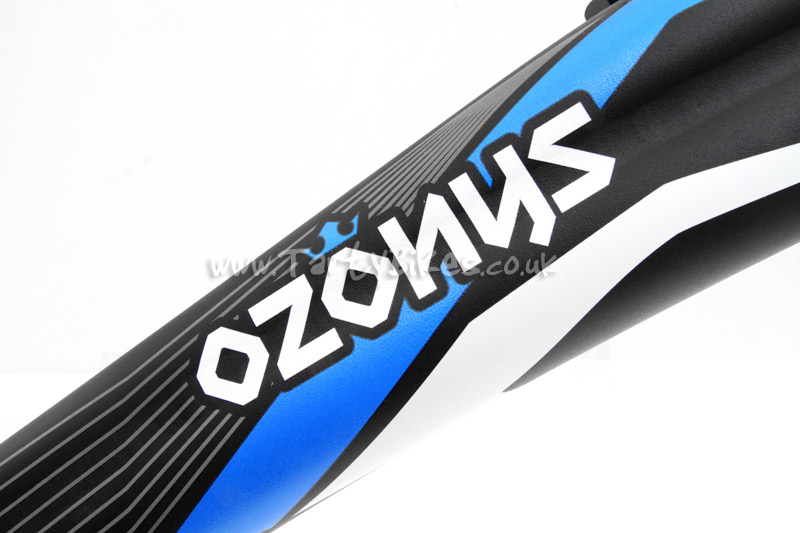

- Anodised black finish is complimented well with stylish silver and blue water transfer graphics that wrap around the frames contours.
- Weight: internal head tube model 1.528kg/3.37lbs, standard head tube model 1.615kg/3.56lbs
