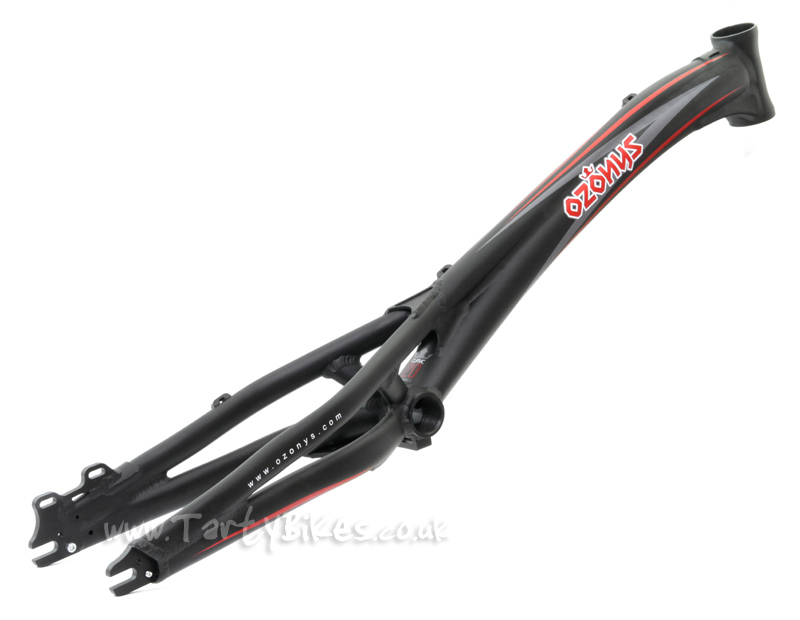

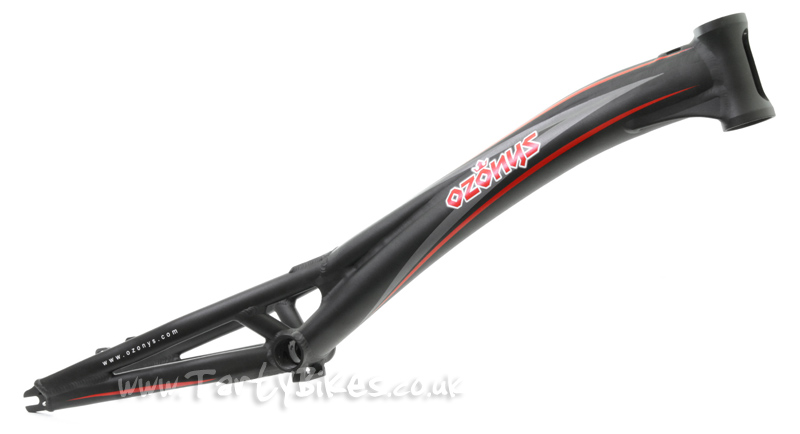

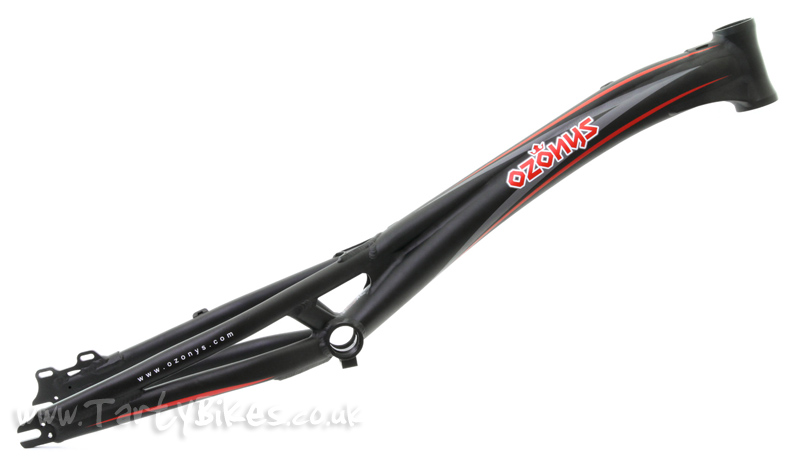

TartyBikes : Ozonys Curve V2

- New for 2011, an updated version of the original Curve 20" frame - tweaked to be as light as possible.

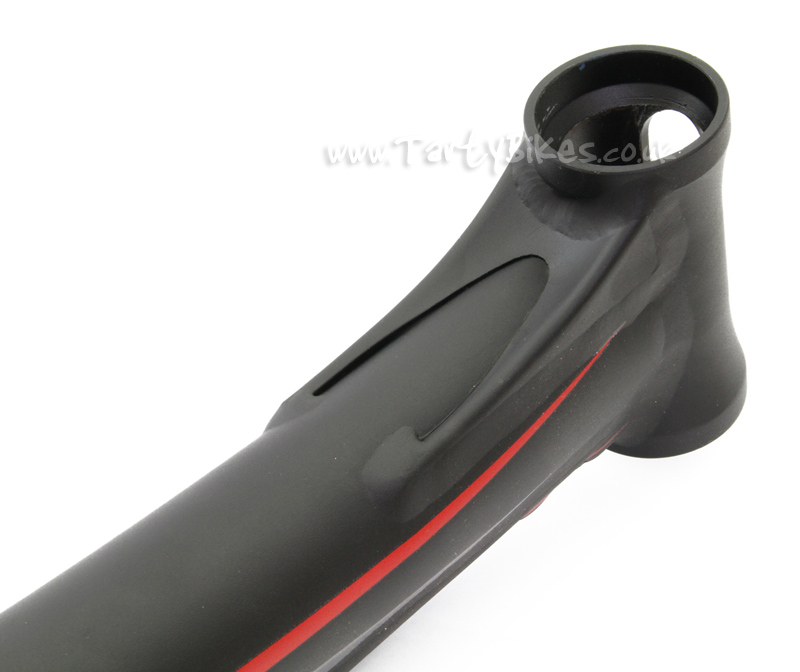

- Joined top and down tubes give the frame a distinctive look, as well as giving the most clearance possible.

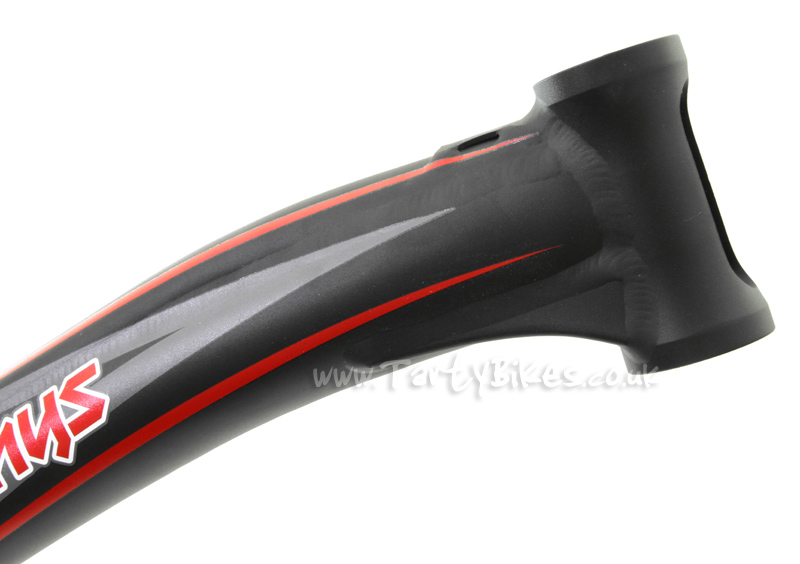

- Externally butted and machined out 100mm head tube (to fit an internal headset) has gussets at the top and down tubes, to help strengthen the head tube area of the frame.
- Twin seat tubes to help stiffen the rear end of the frame.

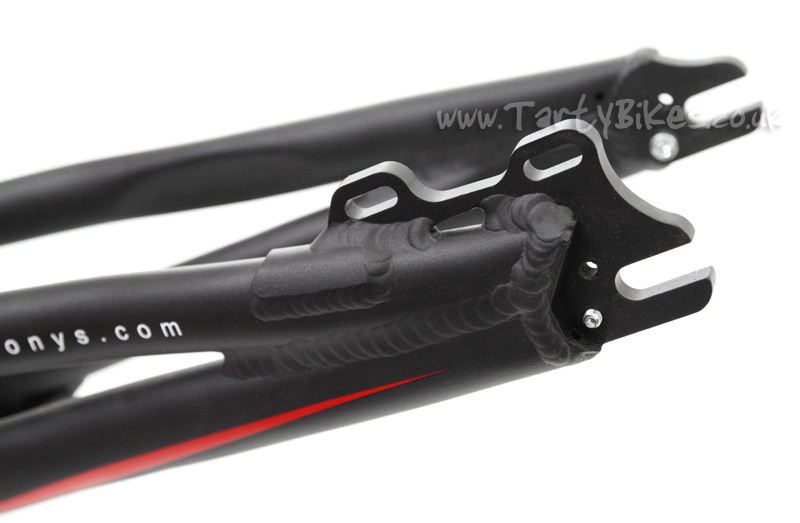

- Slotted IS disc mount has a large gusset at the top of the mount to increase strength.

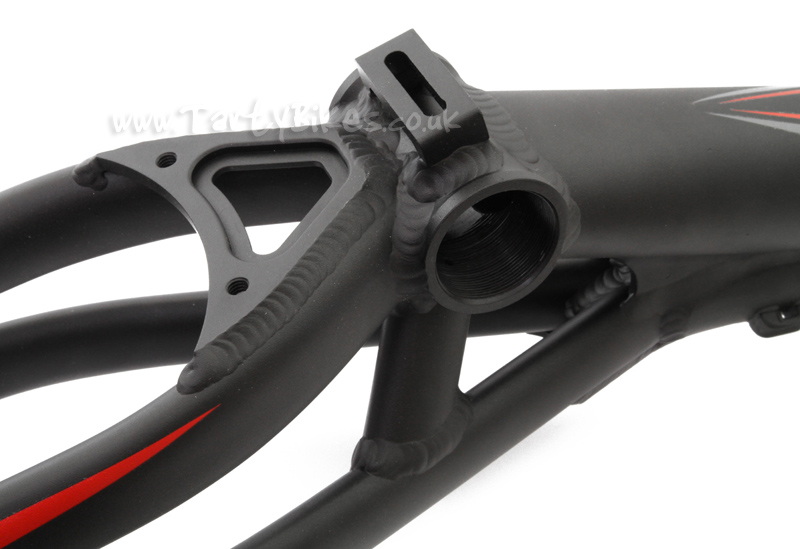

- Neat gusset at the top of the seat stay join to help reinforce this area of the frame.

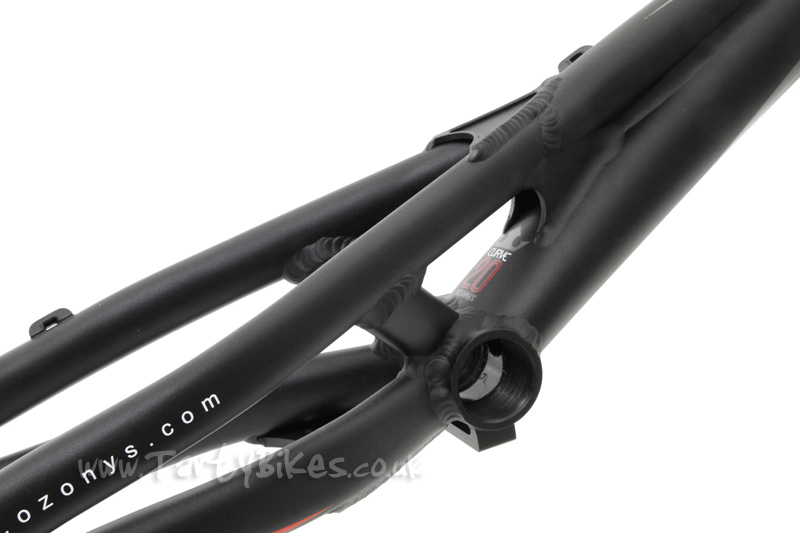

- Down tube ovalises at the BB join to give as much weld area as possible, increasing strength and stiffness significantly.
- Contoured chain and seat stays give as much clearance as possible.
- Please note it is not possible to use a bash plate with this frame - you must use a bash ring.

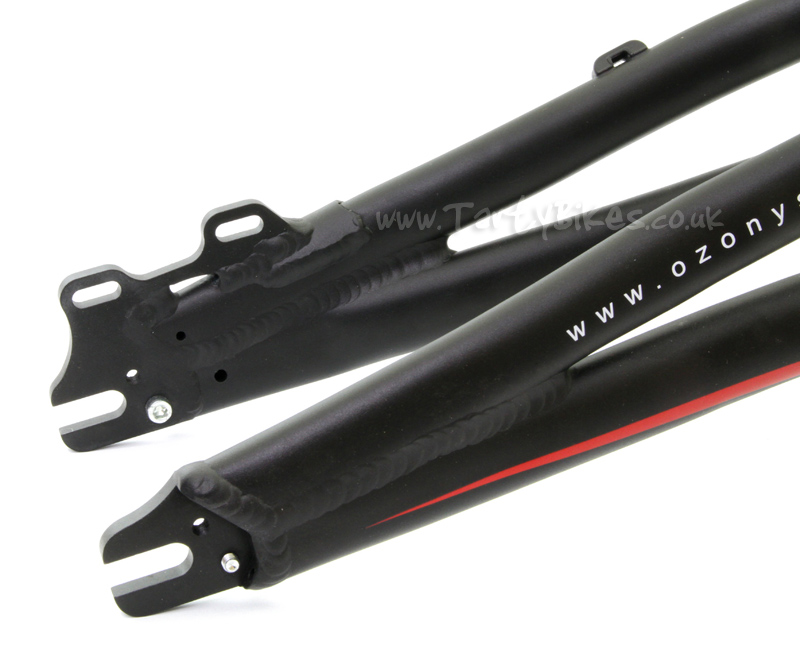

- Neat horizontal dropouts, spaced at 116mm, have two snail cam bolt mounting positions to allow the widest possible compatibility with different setups.
- Anodised black finish is complimented well with stylish silver and red water transfer graphics that wrap around the frame's contours.
- Weight: 1.313kg/2.894lbs
