Onza Zoot Pro Frame Kit

Quick find code: 011354

0 stars out of 5 (Not yet rated)

£307.50

In Stock In Stock

Onza Zoot Pro Frame Kit

Click an image to enlarge

Previous set of images

Onza Zoot Pro Frame Kit

Onza Zoot Pro Frame Kit

Onza Zoot Pro Frame Kit

Onza Zoot Pro Frame Kit

Onza Zoot Pro Frame Kit

Onza Zoot Pro Frame Kit

Onza Zoot Pro Frame Kit

Onza Zoot Pro Frame Kit

Onza Zoot Pro Frame Kit

Onza Zoot Pro Frame Kit

Onza Zoot Pro Frame Kit

Next set of images

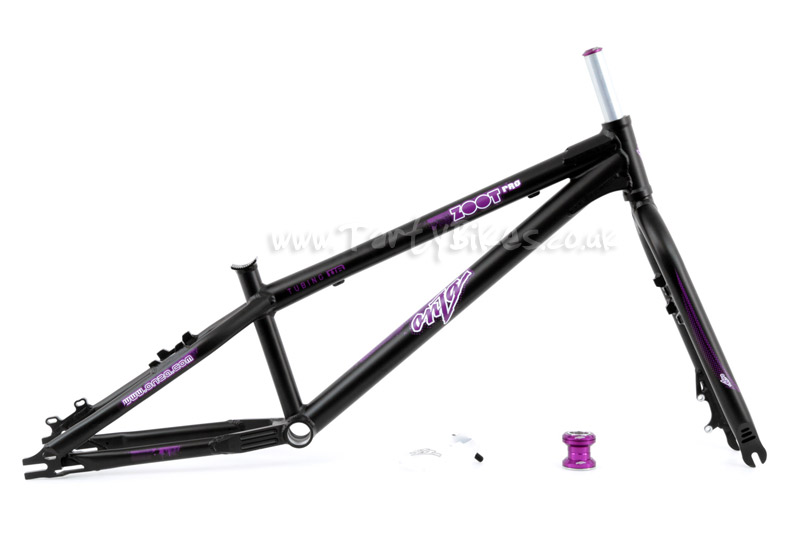

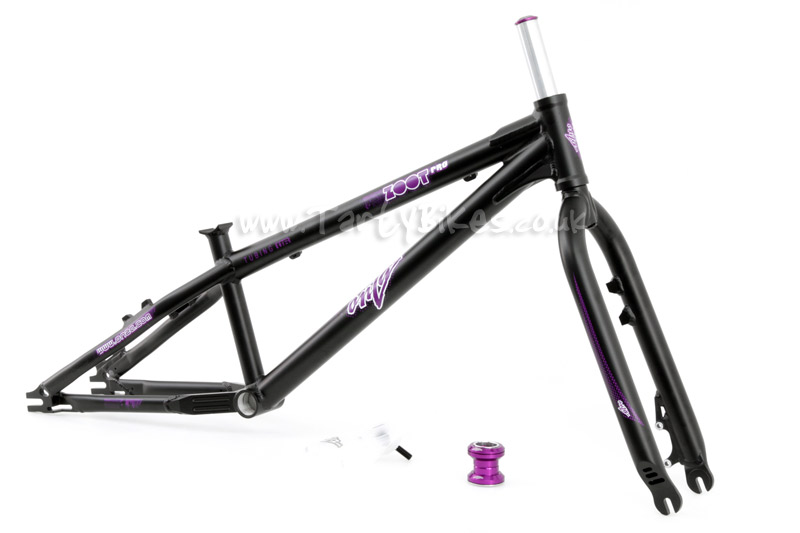

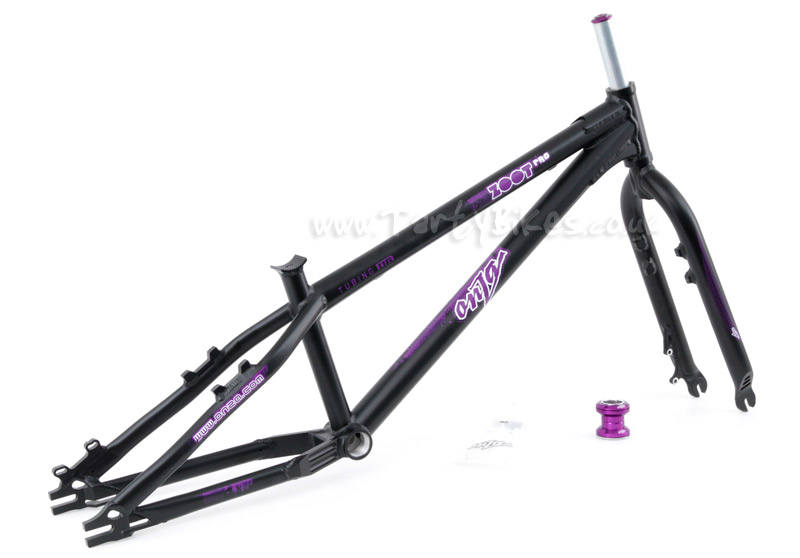

- Updated for 2012, Onza's Zoot Pro framekit.

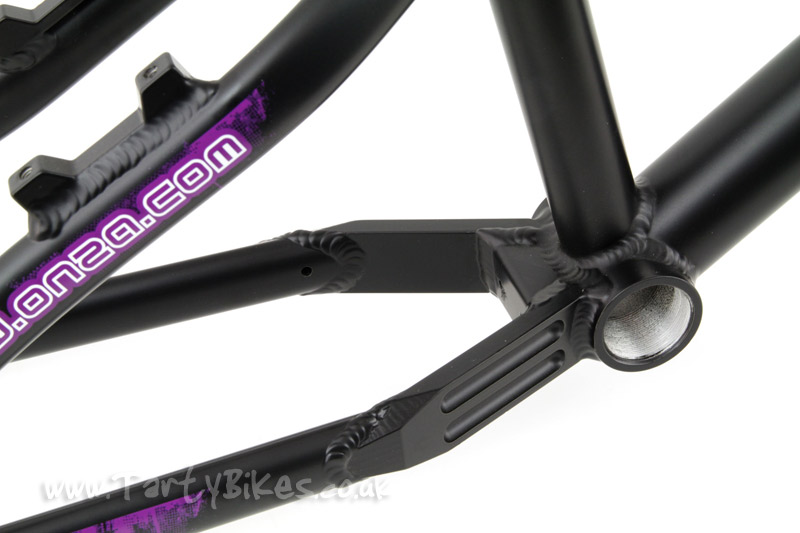

- Based upon the popular Onza Zoot full bike's frame, the Zoot Pro features 4-bolt mounts instead of V-brake bosses, and also sports a satin black finish with striking purple graphics.

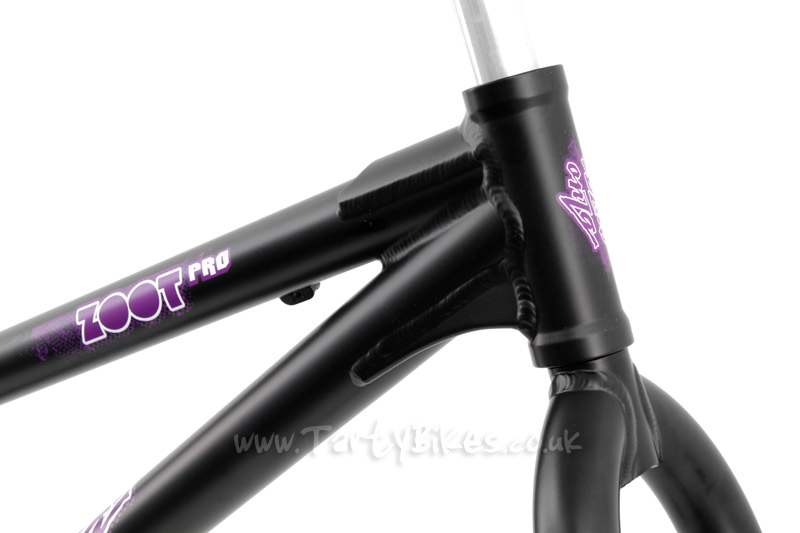

- Large gusset under the down tube and head tube join to strengthen the frame at that vulnerable point.
- Features an integrated Pivotal seat post which helps to save weight and give the frame a cleaner look.

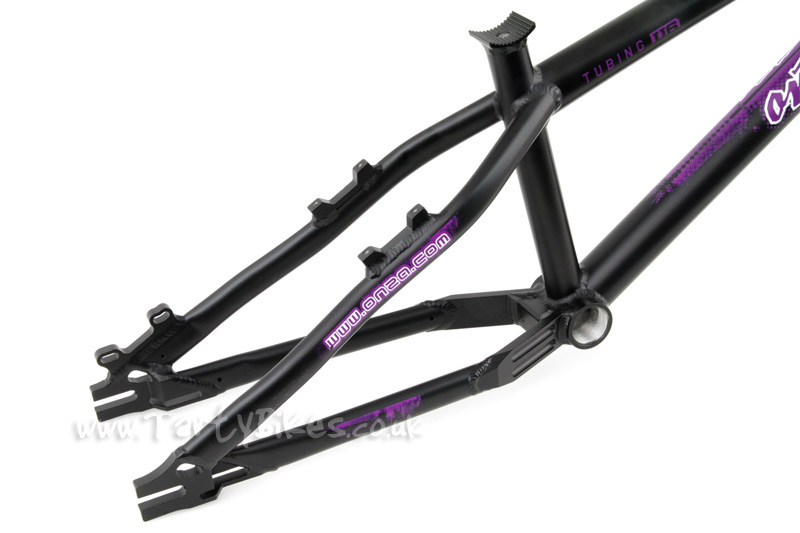

- Utilises Onza's integrated tensioner dropout design.
- The frame uses proven geometry to give a great compromise between out-and-out trials riding and more BMX inspired street riding.

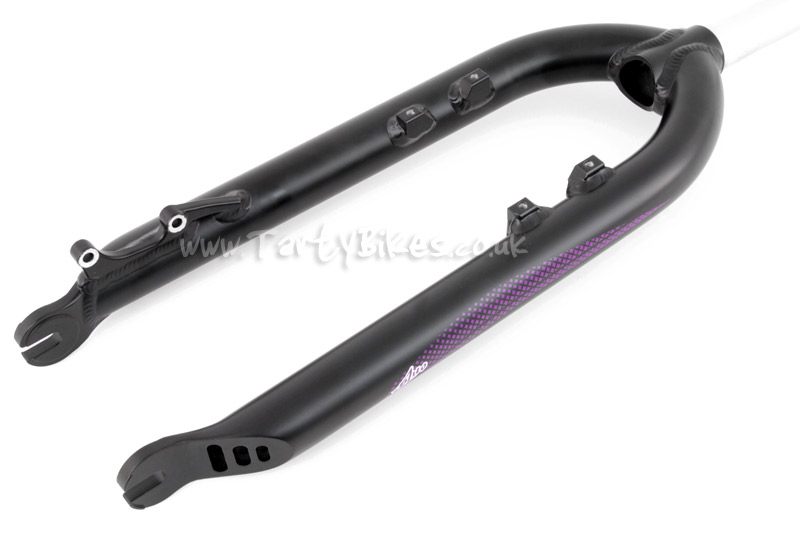

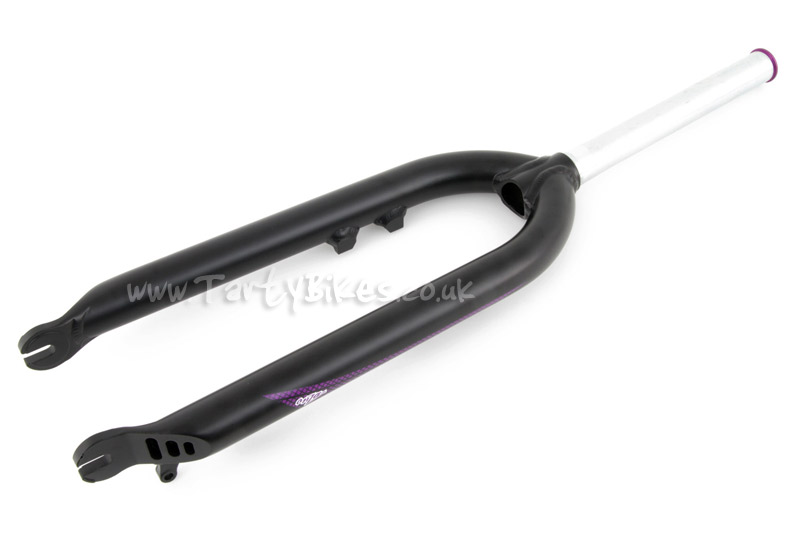

- Brand new 24" Zoot Pro forks feature stylish dropouts as well as large diameter fork legs to make them as strong as possible.
- Available with 4-bolt and disc mounts on the forks to allow the use of either a rim or disc brake.

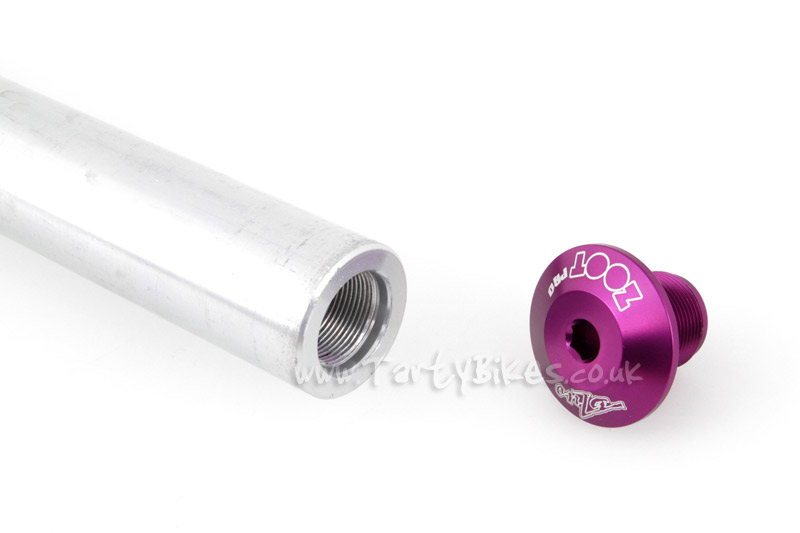

- Thicker walls on the fork steerer tube make the forks even stronger, and they also feature a screw-in top cap rather than using a traditional star-nut.

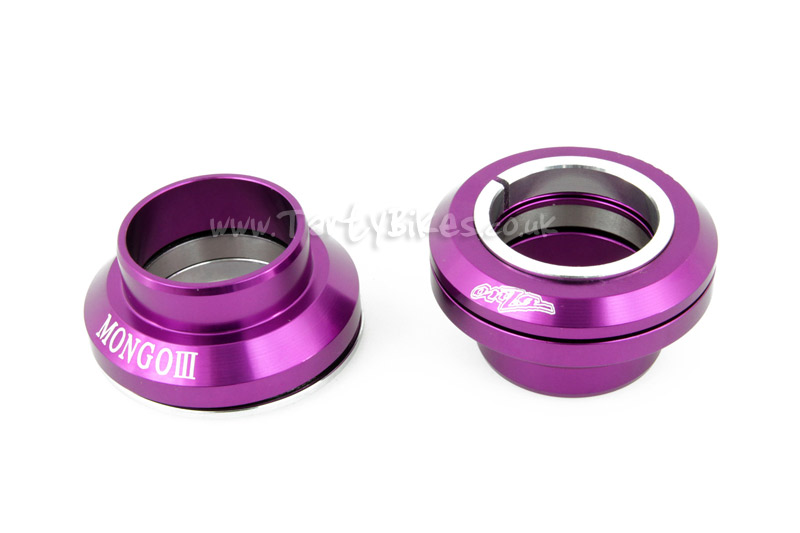

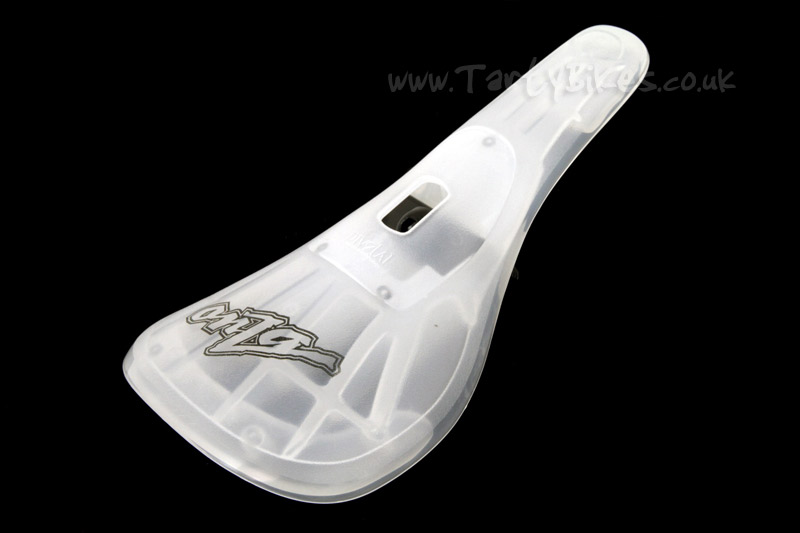

- Sold complete with translucent white Pivotal seat and 1 1/8" sealed cartridge bearing headset.
- Complete weight: 2.982kg (Frame incl. seat & tensioners: 1.911kg. Fork: 948g. Headset: 140g)

Geometry (Measured with matching fork):

Wheelbase: 1040mm
Chainstay Length: 375mm
BB Rise: 40mm
Head Angle: 71.5 degrees
Centre of BB shell to top centre of head tube: 655mm
