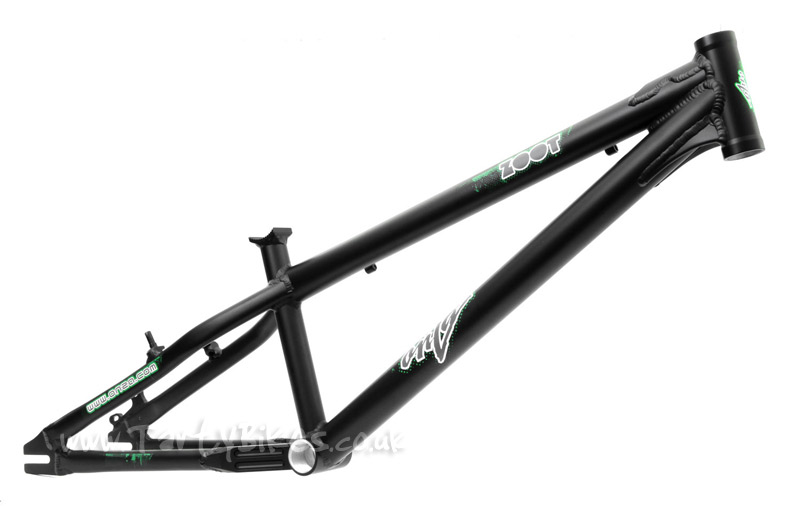

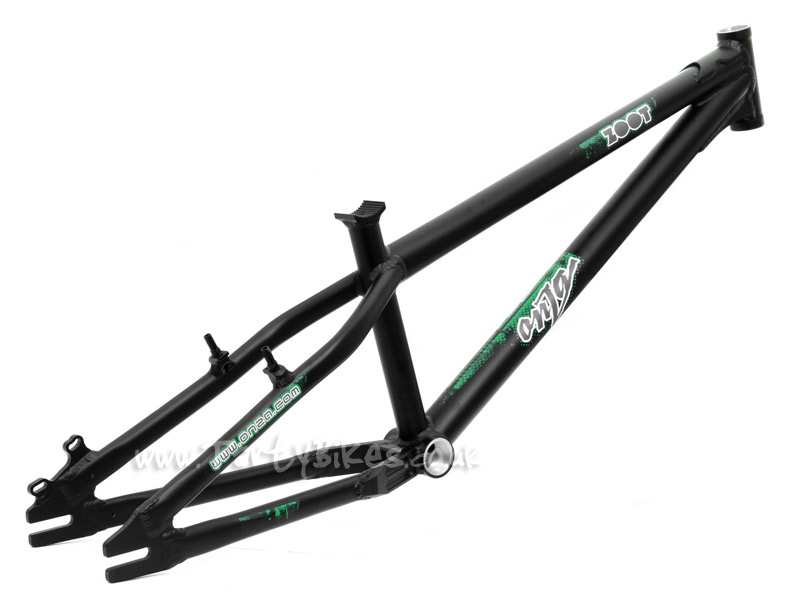

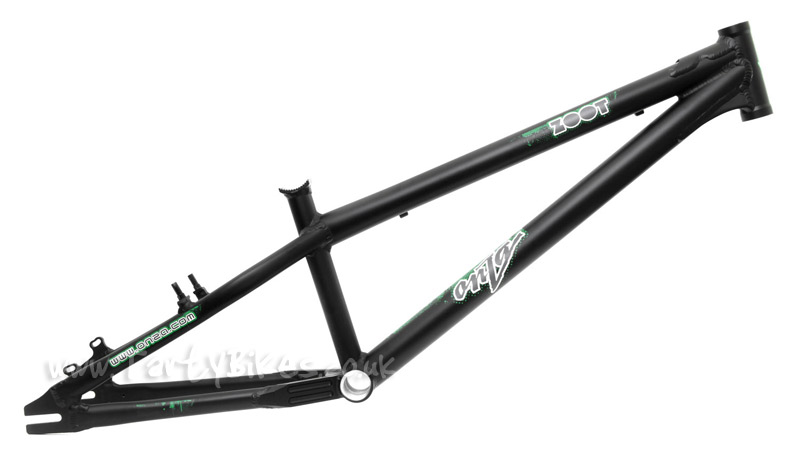

- Great value 24" frame from Onza!
- As used in the Onza Zoot 24" bike.

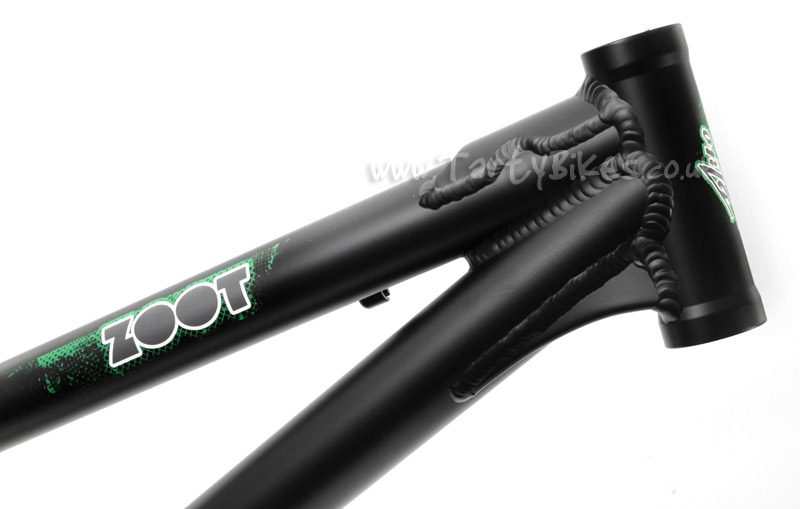

- Large gussets on the top and down tubes at the head tube join ensure a stiff and strong front end.
- The frame uses proven geometry to give a great compromise between out-and-out trials riding and more BMX inspired street riding.

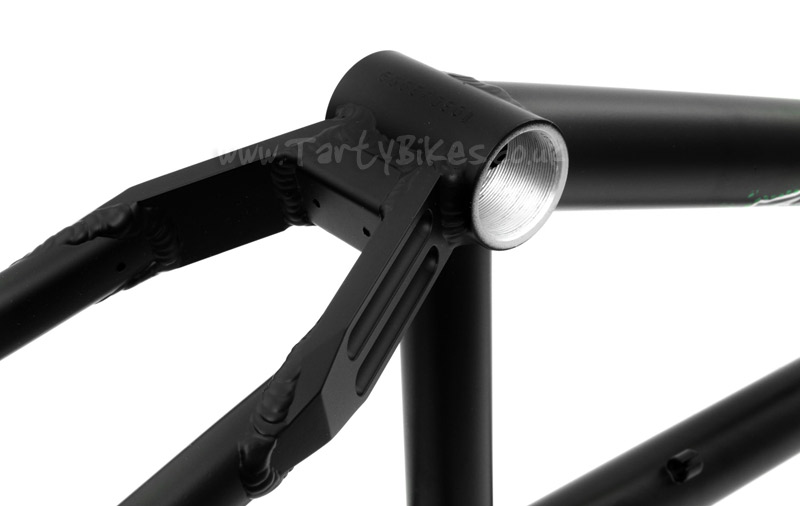

- Gusseted chainstay and BB yoke increases the strength in this high stress area of the frame.
- Reinforcing rings at the top and bottom of the 120mm long standard head tube help prevent flaring.

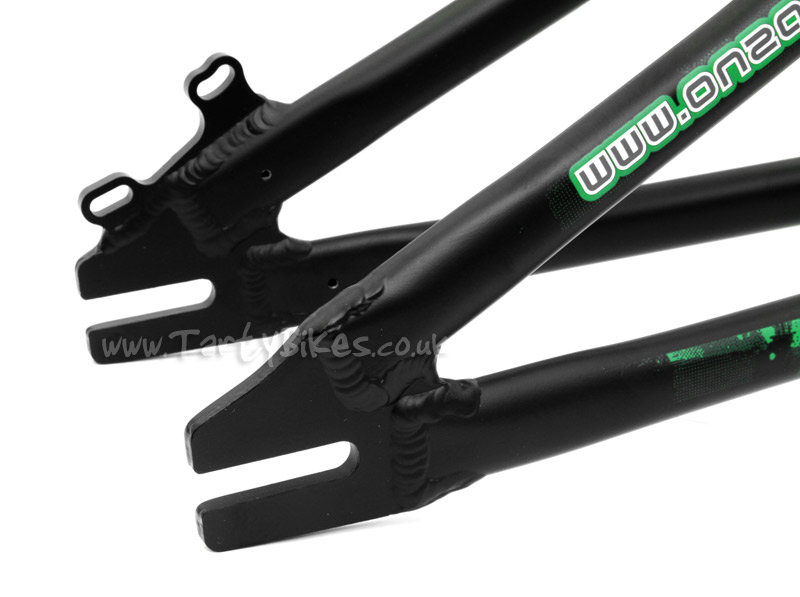

- Features 135mm spaced horizontal dropouts.

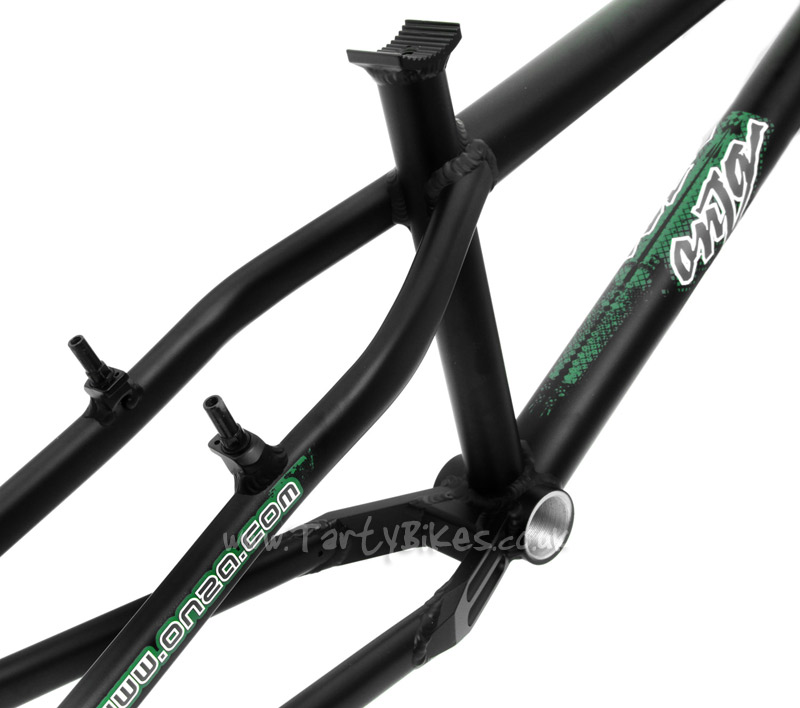

- Built-in Pivotal post gives the frame a cleaner look without having to use a seat post clamp!
- Stylish matte black finish is complimented well by the striking green Onza graphics.
- 98mm spaced V-brake mounts are supplied on the frame for use with a rim brake, as well as a slotted IS disc mount.
- Weight: 1.805kg/3.979lbs
- As used in the Onza Zoot 24" bike.
- Large gussets on the top and down tubes at the head tube join ensure a stiff and strong front end.
- The frame uses proven geometry to give a great compromise between out-and-out trials riding and more BMX inspired street riding.
- Gusseted chainstay and BB yoke increases the strength in this high stress area of the frame.
- Reinforcing rings at the top and bottom of the 120mm long standard head tube help prevent flaring.
- Features 135mm spaced horizontal dropouts.
- Built-in Pivotal post gives the frame a cleaner look without having to use a seat post clamp!
- Stylish matte black finish is complimented well by the striking green Onza graphics.
- 98mm spaced V-brake mounts are supplied on the frame for use with a rim brake, as well as a slotted IS disc mount.
- Weight: 1.805kg/3.979lbs
Geometry (measured with Onza Zoot 405mm x 45mm fork):
Wheelbase: 1040mm
Chainstay Length: 375mm
BB Rise: 35mm (approximately equivalent to 10mm rise on a 26" bike)
Head Angle: 74°
Reach from centre of BB shell to centre top of head tube: 655mm (25.5")
Onza Sealed Disc Front
£25.53
Wellgo Platform
£12.50
Save 23%
BBB Forged
£16.67
KMC Z610 HX, 3/32"
£11.67
Echo TR Rear 24"
From £24.99 to £29.79
Save up to 16%
Onza VP-458a
From £11.92 to £12.77
Shimano Acera
£10.21
will the Maxxis Hi Roller Dual Ply 24" fit with an onza zoot ?
Posted by jamie on 04/12/2010
Reply from TartyBikes on 08/12/2010
Hi, Yes, it should fit no problem. Thanks, Adam
