TartyBikes : Onza Limey

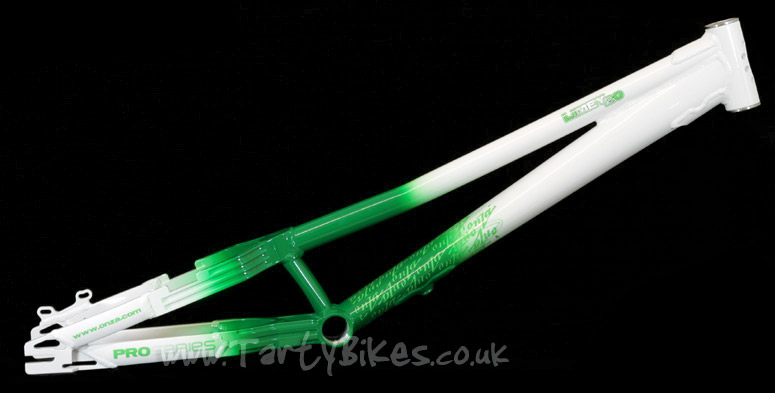

- One of two new 20" frames from Onza, designed for use on street and natural.

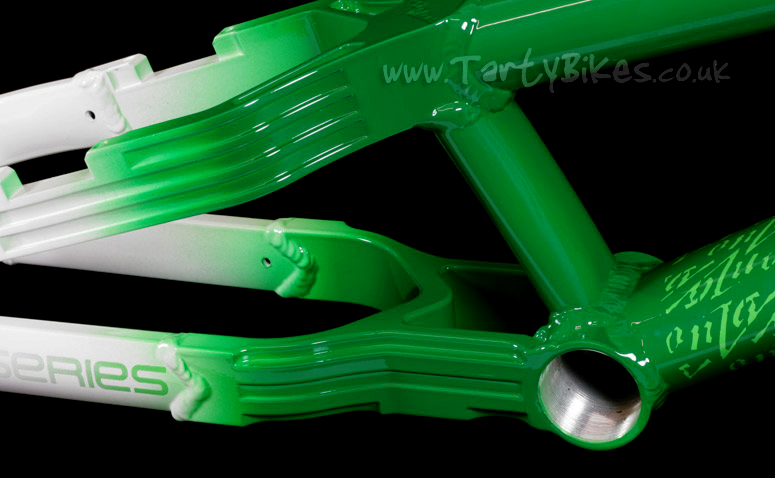

- The frame features a new CNC machined chainstay yoke to increase weld area and ensure high stiffness.

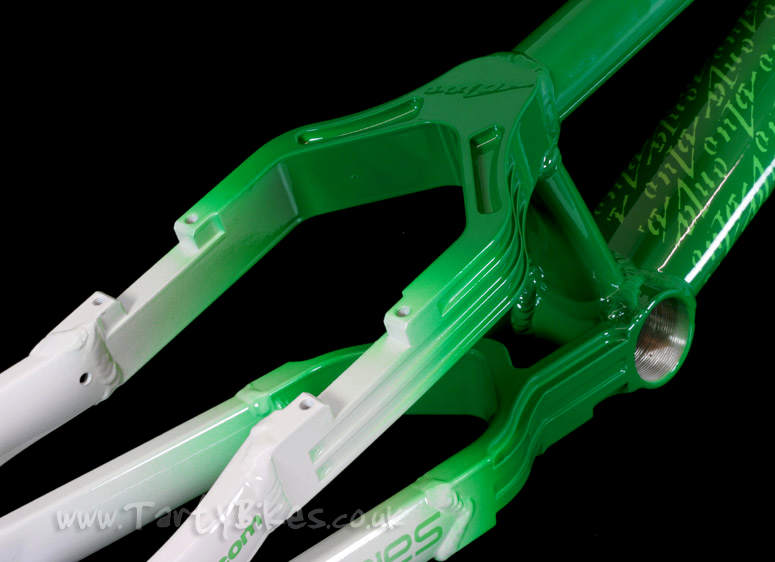

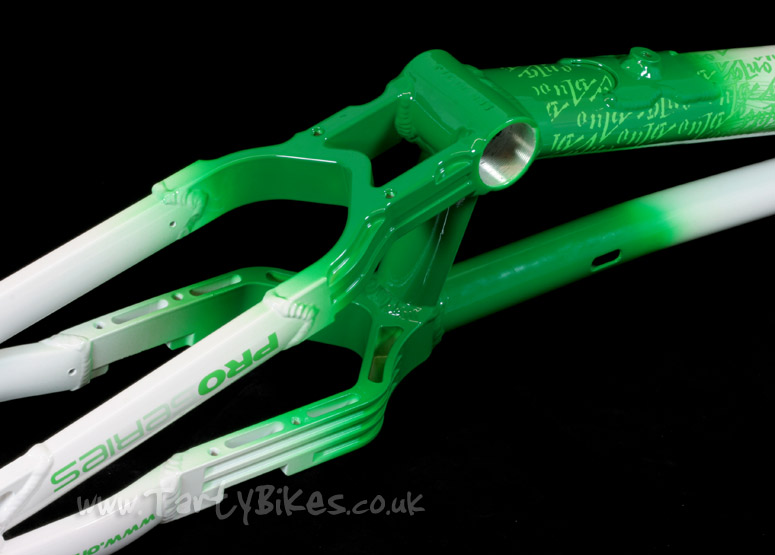

- One piece CNC machined brake arch and seat stay yoke houses the sunken 4-bolt HS33 mounts spaced at 103mm.
- Dual-ovalised down tube increases weld contact area at the head tube, while offering a wide join at the BB shell, increasing strength and stiffness.

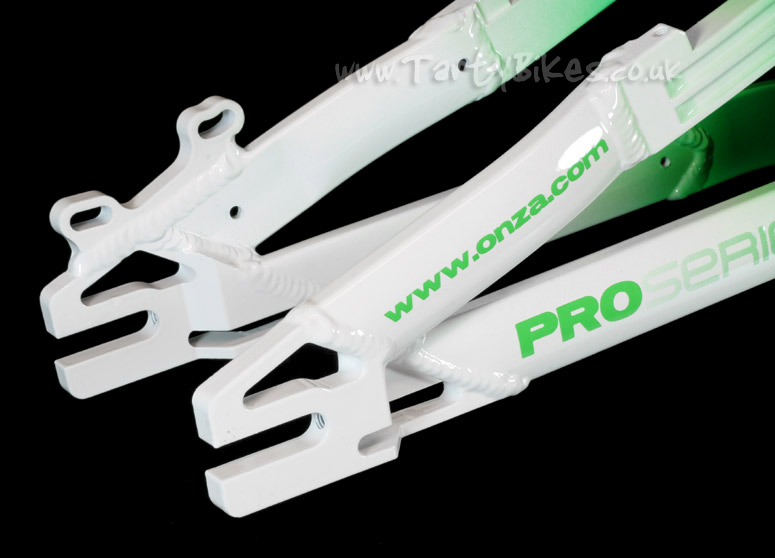

- CNC machined dropouts with International Standard disc mount do away with the need for snail cams or chain tugs, their internal thread means you can use an M6 bolt to push your wheel backwards and tension the chain!
- Small gussets between the seat stays and top tube add stiffness and responsiveness.

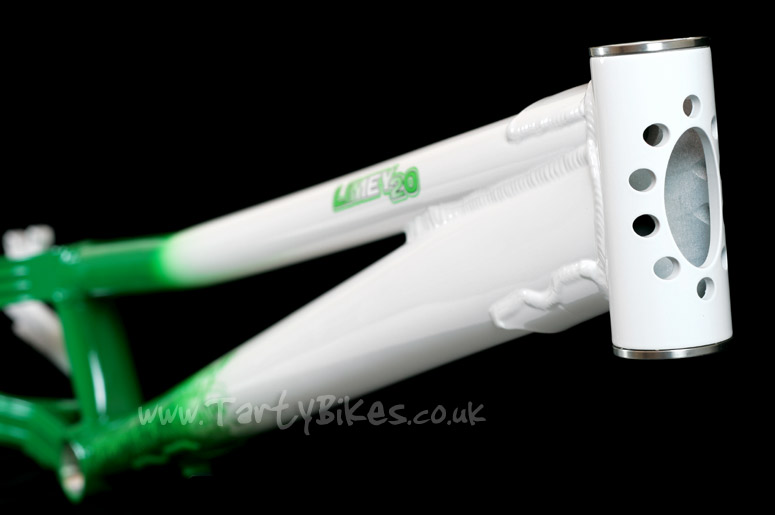

- New Onza extra-drilled 106mm long head tube with stainless steel rings allows the frame to take a standard 1 1/8" headset.

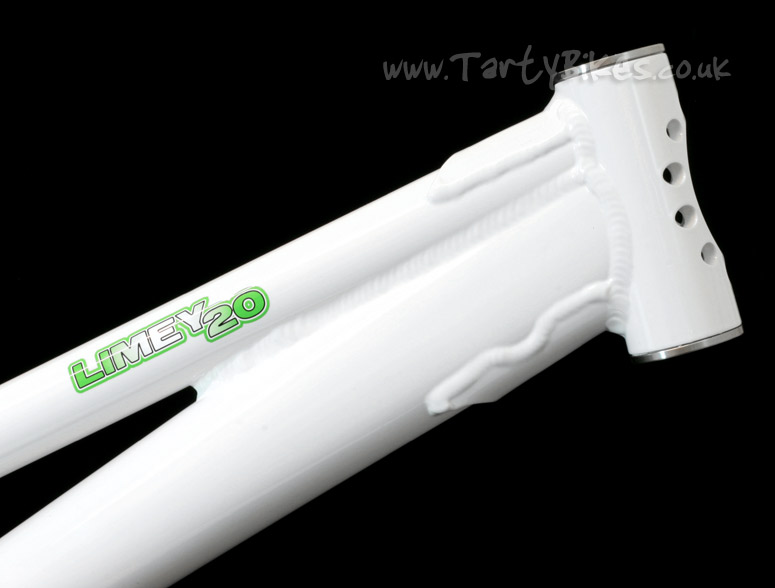

- Super low standover height has been achieved by welding the top and down tubes together, this also creates a stiffer and stronger front end.
- Green and white finish with new Onza Pro Series graphics.
- Weight: 1.90kg/4.19lbs

Geometry (when measured with Echo Lite fork, sold separately)

Wheelbase: 1005mm
Chainstay Length: 350mm
BB Rise: 50mm
Head Angle: 72 degrees
Centre of BB shell to top centre of head tube: 600mm (23.5")

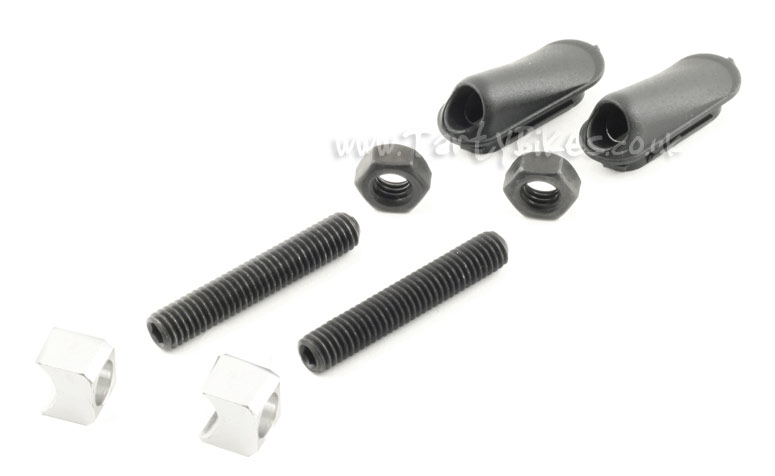

Also includes chain tensioner bolts and cable guides for the internally routed cables as pictured.

Please note that this frame does not include a Bashplate. Either the Echo Lite, Echo SL or Koxx XTP models will fit.
