TartyBikes : Onza Genesis

- Top quality, no-frills 26" trials frame from Onza!
- Designed from the ground up for 2012, this is the same frame used on the Genesis complete bike.
- Constructed from top quality 6061-U6 aluminium.
- Internal head tube (110mm long) has a large hole machined out of it to save weight, and is also externally butted to help remove any excess material.

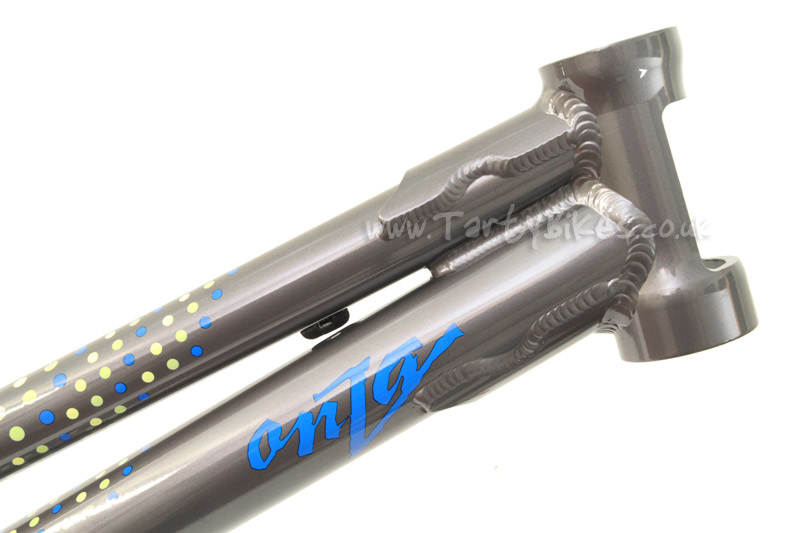

- Large gussets help join the top and down tubes to the head tube, improving strength and stiffness.
- Dedicated 4-bolt mounts (spaced at 100mm) and built-in brake booster are CNC machined from one piece of aluminium, helping to improve brake stiffness and frame strength.

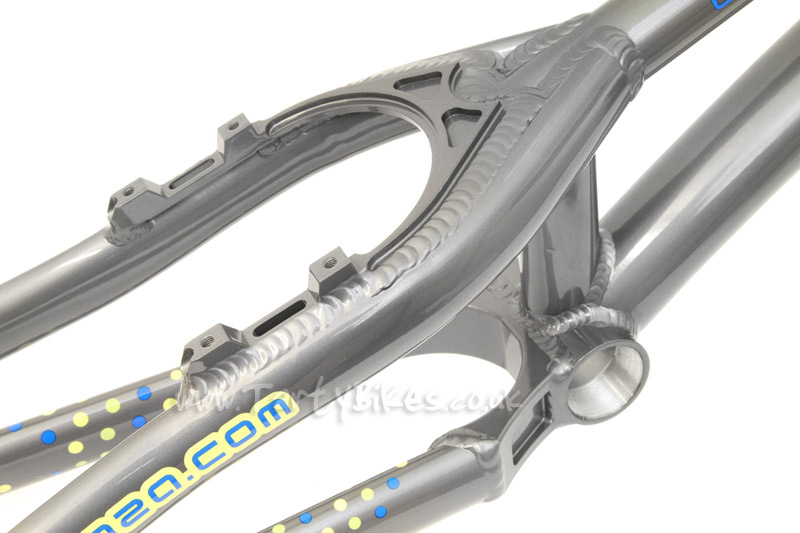

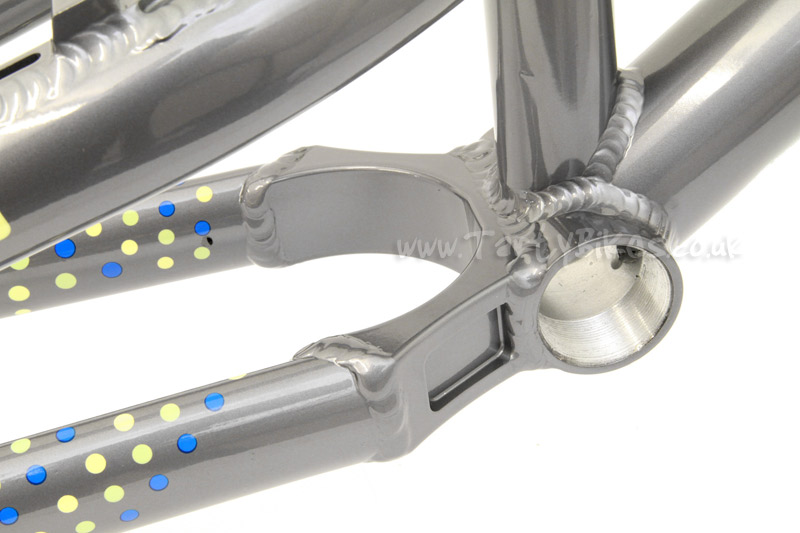

- CNC machined BB yoke stiffen the rear of the frame up and improve tyre and freewheel clearance.

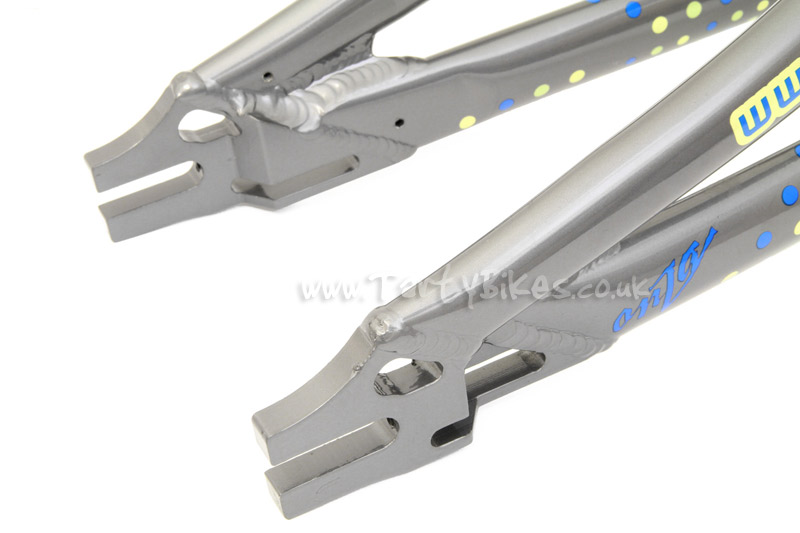

- 135mm spaced dropouts feature Onza's own integrated tensioner system, meaning no more snail cams or hanger-mounted chain tensioners!
- Only available in dark grey with blue and yellow Genesis graphics.
- Weight: 1.565kg

Geometry (When measured with Echo Urban fork, sold separately)

This frame comes with a 6 month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any warranty claim.
