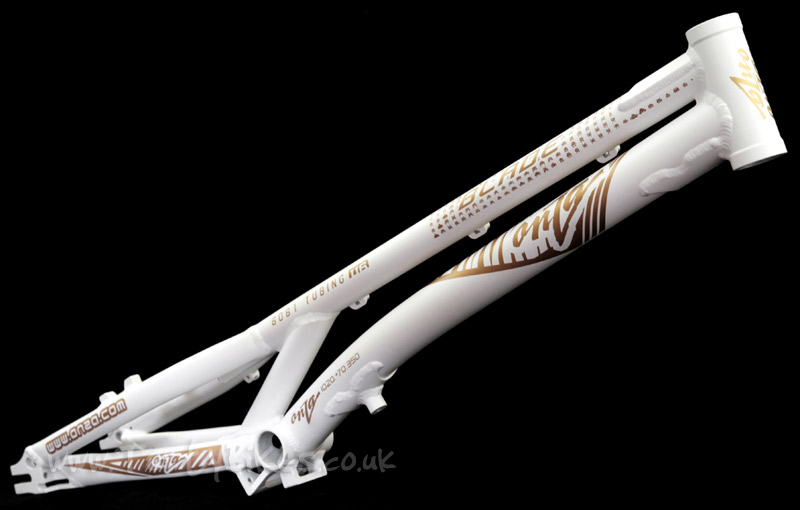

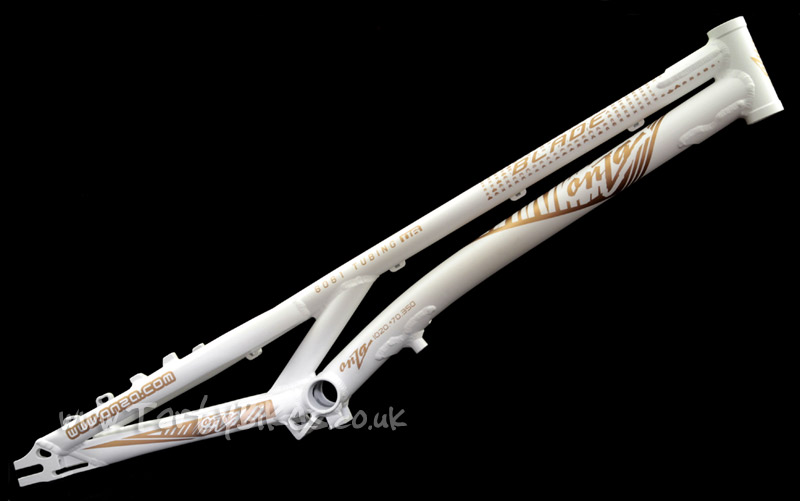

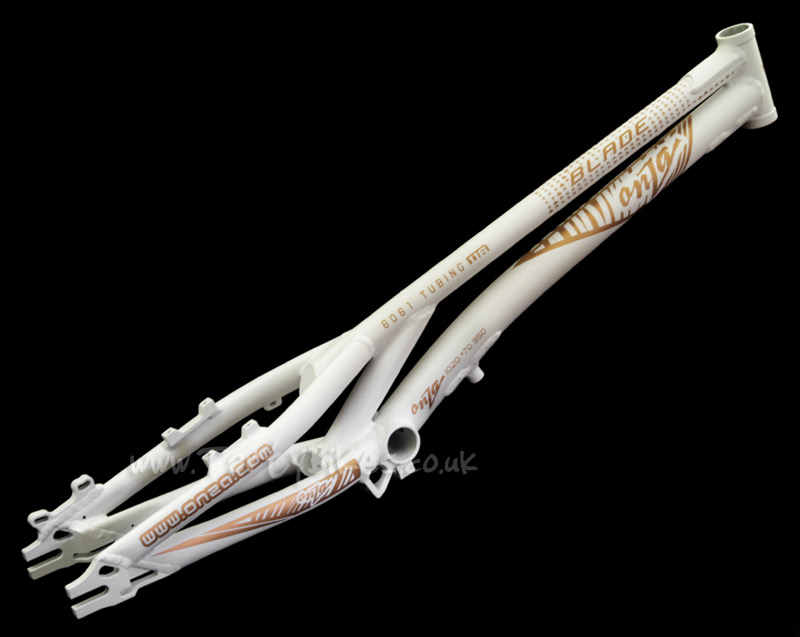

- Simple and functional 20" frame from Onza.

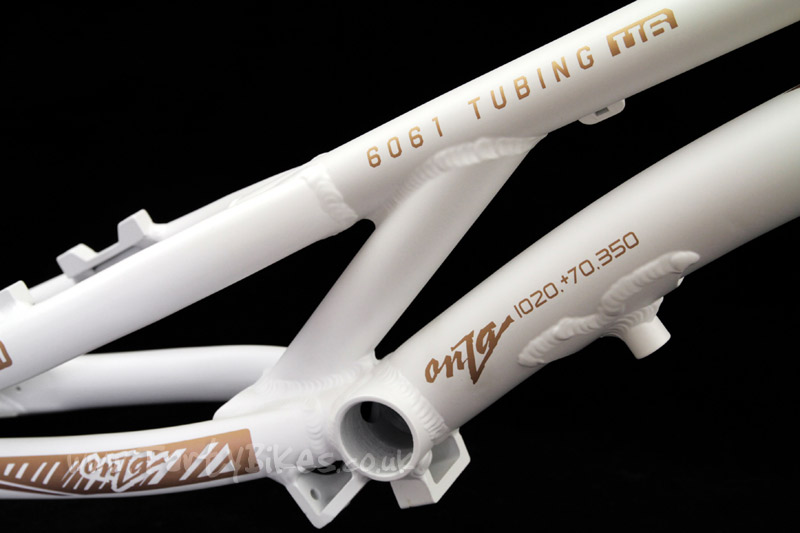

- Full 6061-U6 aluminium construction keeps the cost right down while still maintaining good strength.

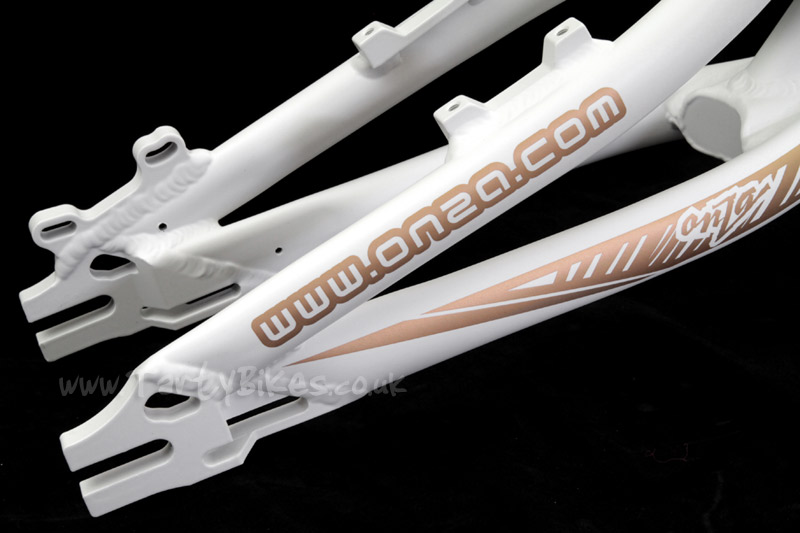

- CNC Machined dropouts (spaced at 110mm, including disc mount) and unique chainstay yoke help stiffen the frame and provide large weld areas for the tubes.

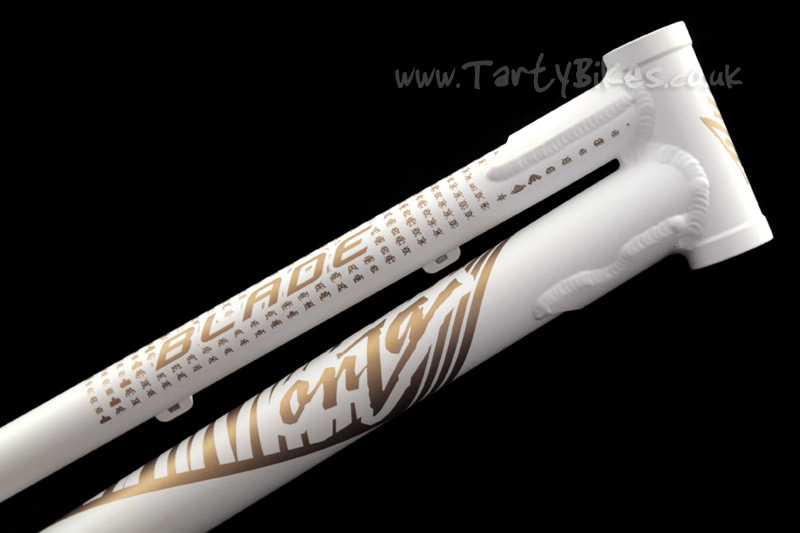

- Down tube and top tube gussets at the head tube directs stress away from the ends of the tubes, improving frame life.

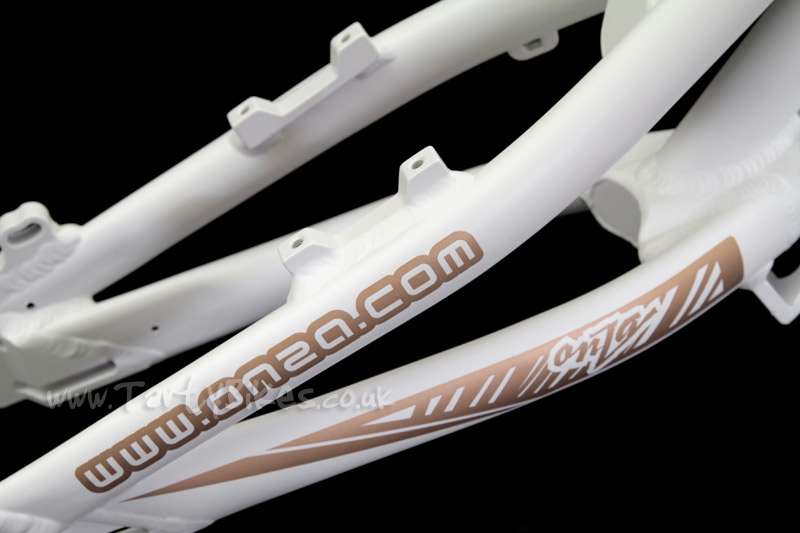

- Comes complete with dedicated 4-Bolt HS33 mounts (spaced at 98mm) allowing the frame to accept even the widest of trials rims.
- Features a slotted, International Standard disc mount.
- Very low standover height allows for maximum body movement.
- Unique chain tensioner arrangement allows the use of a single M6 bolt on either side to tension the chain (tensioners included).
- Tough matte white painted finish is finished off with stylish golden graphics.
- Takes standard 1 1/8" headset, 110mm long head tube and 68mm BB shell.
- Weight: 1.518kg/3.34lbs without bashplate (not supplied).
- Full 6061-U6 aluminium construction keeps the cost right down while still maintaining good strength.
- CNC Machined dropouts (spaced at 110mm, including disc mount) and unique chainstay yoke help stiffen the frame and provide large weld areas for the tubes.
- Down tube and top tube gussets at the head tube directs stress away from the ends of the tubes, improving frame life.
- Comes complete with dedicated 4-Bolt HS33 mounts (spaced at 98mm) allowing the frame to accept even the widest of trials rims.
- Features a slotted, International Standard disc mount.
- Very low standover height allows for maximum body movement.
- Unique chain tensioner arrangement allows the use of a single M6 bolt on either side to tension the chain (tensioners included).
- Tough matte white painted finish is finished off with stylish golden graphics.
- Takes standard 1 1/8" headset, 110mm long head tube and 68mm BB shell.
- Weight: 1.518kg/3.34lbs without bashplate (not supplied).
Geometry (When measured with Echo Lite fork, sold separately)
Wheelbase: 1020mm
Chainstay Length: 350mm
BB Rise: 70mm
Head Angle: 71 degrees
Centre of BB shell to top centre of head tube: 605mm (23.8")
First Blog Z
£7.66
RockMan 72 Click
£33.19
Try-All Shift Front 26"
£42.55
Tensile 60 Click
£34.04
Try-All Stiky Lite Rear 26"
£46.81
IceToolz Crank Puller
£5.00
Magura TPA Kit for HS33
£3.40
Is this frame classed as long and what bashplates would fit this? thanks
Posted by elliott on 26/01/2011
Reply from TartyBikes on 27/01/2011
Hi Elliot - This is technically a 'long' frame as it's the longer version of the Onza Comp frame. Bashplates like the Neon, Onza, Monty and Because would fit this frame. Thanks, Mark
