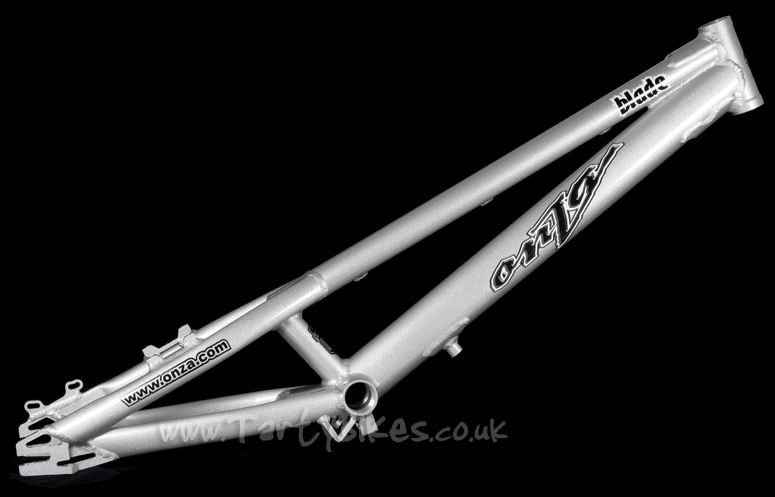

- Now at a great reduced price, the 2009 Blade frame from Onza.
- Full 6061-U6 construction gives a great balance of strength and weight, whilst keeping costs down.

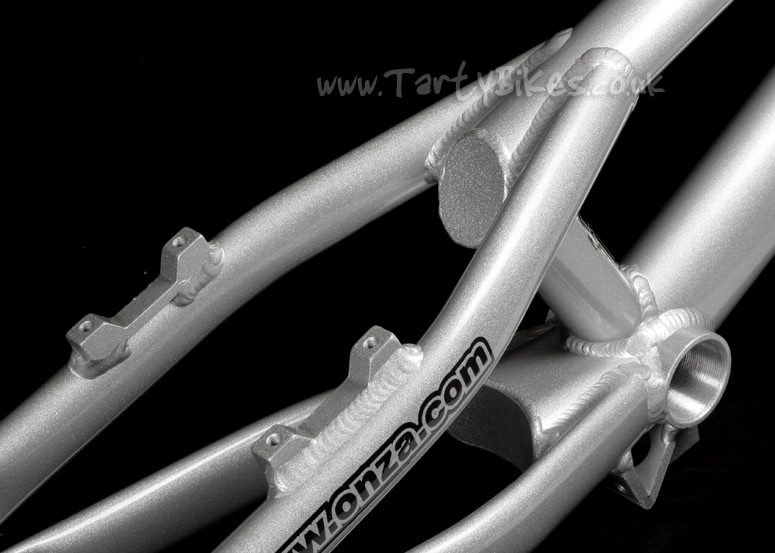

- 100mm spaced dedicated 4-bolt mounts allow the use of even the widest trials rims.

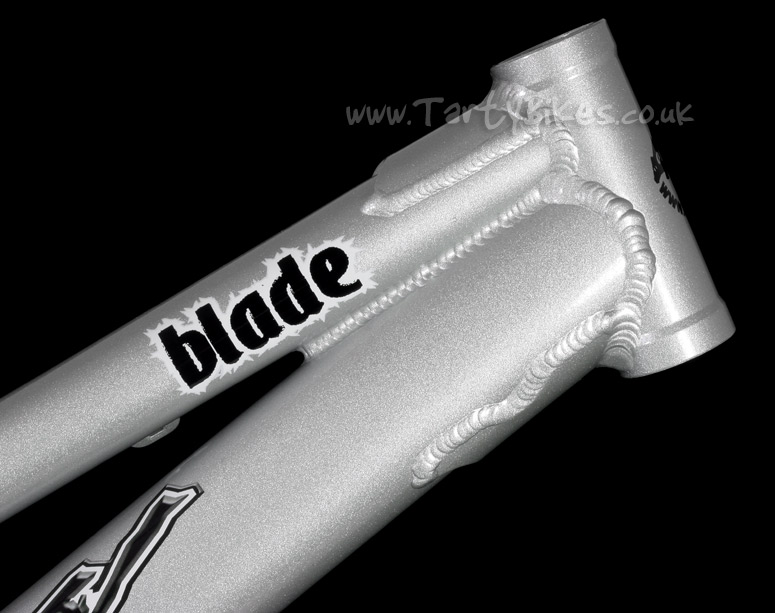

- 110mm long, standard 1 1/8" headtube has reinforcing rings top and bottom to help prevent flaring.

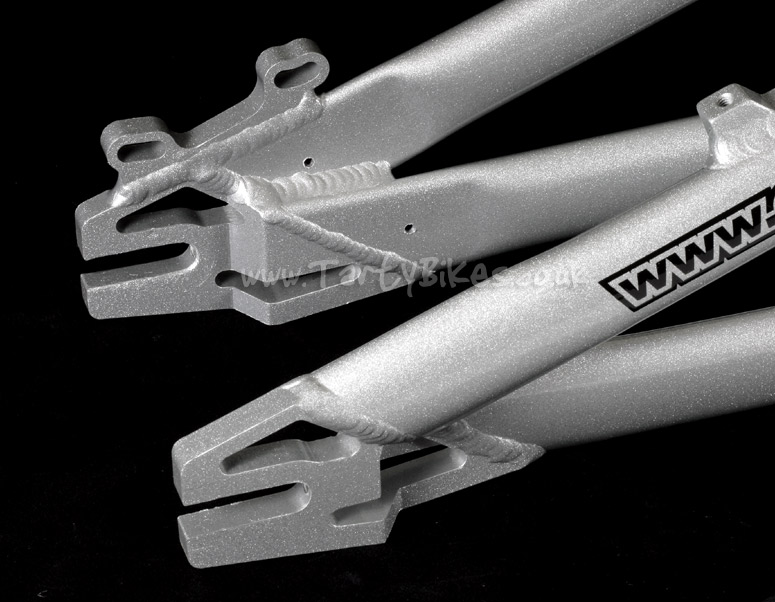

- CNC Machined dropouts (spaced at 110mm, including slotted IS disc mount) and unique chainstay yoke help stiffen the frame and provide large weld areas for the tubes.
- Down tube and top tube gussets at the head tube directs stress away from the ends of the tubes, improving frame life.

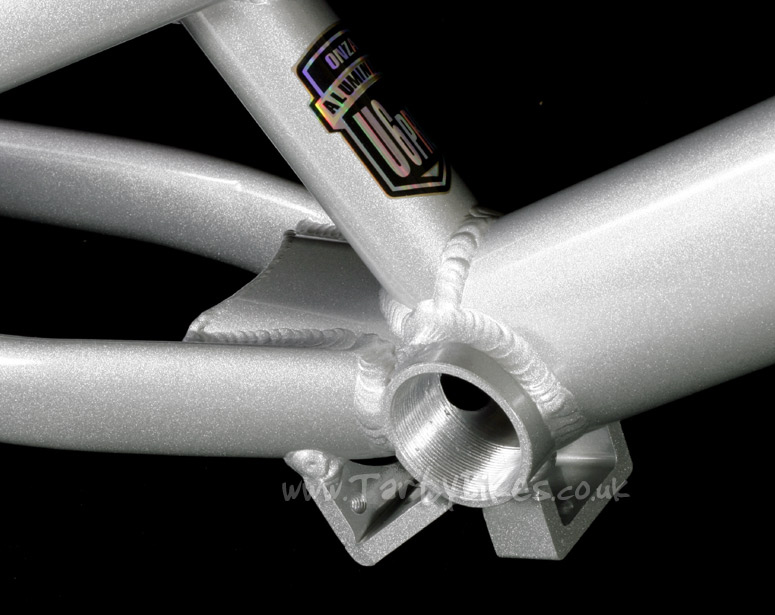

- Sturdy, reinforced bash plate mounts help dissipate the forces put through the frame.
- Painted silver finish is teamed up with bold Onza graphics to give the frame a distinctive look.
- Weight: 1.584kg/3.492lbs
Geometry (When measured with Echo Urban 360mm/35mm forks):
Wheelbase: 1010mmChainstay length: 362mm
BB Rise: 50mm
Head Angle: 70.5°
Centre of BB shell to top centre of head tube: 600mm
Bonz Forged
£21.28
RockMan 7050 Riser
£29.17
Magura Hose (1.5m)
£3.40
Echo SL Headset
£34.04
RockMan Pads
From £13.62 to £15.32
Echo TR Rear
From £37.50 to £40.43
KMC Z510, 1/8"
£6.67
First Blog Z
£7.66
go this frame about 2 weeks ago . super light and very responsive :D but im bummed that theres now a huge scratch on the top tube :/ my chain witch i got brand new off this site snapped while doing a 5 ft gap and i faceplanted hard but anyway great frame defo would recomend it to any1 getting into the sport :)
Reply from TartyBikes on 01/08/2011
Hello - We recommend double checking when you join your chain that it's joined spot-on, as if it's a little bit off it can lead to the chain snapping prematurely. The vast majority of chain-snaps occur where the chain is joined, so by making sure that's all done correctly you can greatly reduce the chances of your chain snapping. I'm glad you like the frame though, they're great value for money!
