TartyBikes : Neon X-Ray 26" 2012

- Triangular tubing for the top and down tube increases frame strength and gives a greater weld area.
- Full 6061-T6 heat-treated construction.

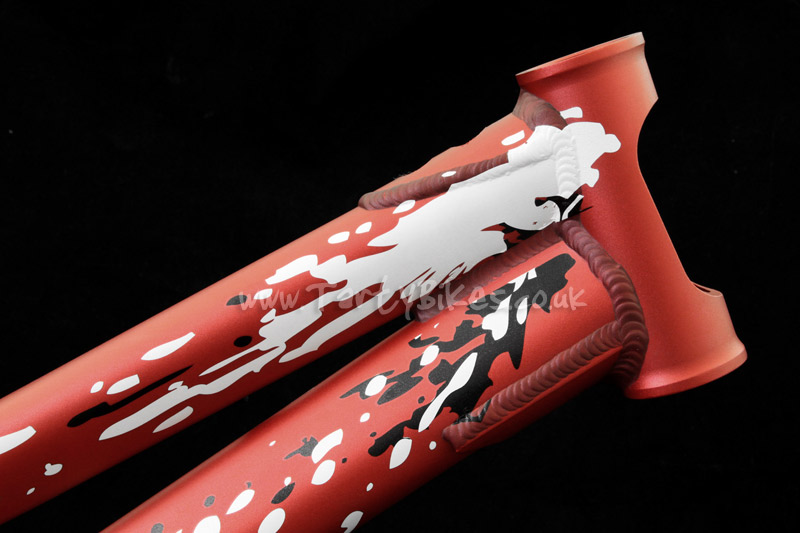

- Large gussets on the top and down tube help create a strong, stiff head tube join.

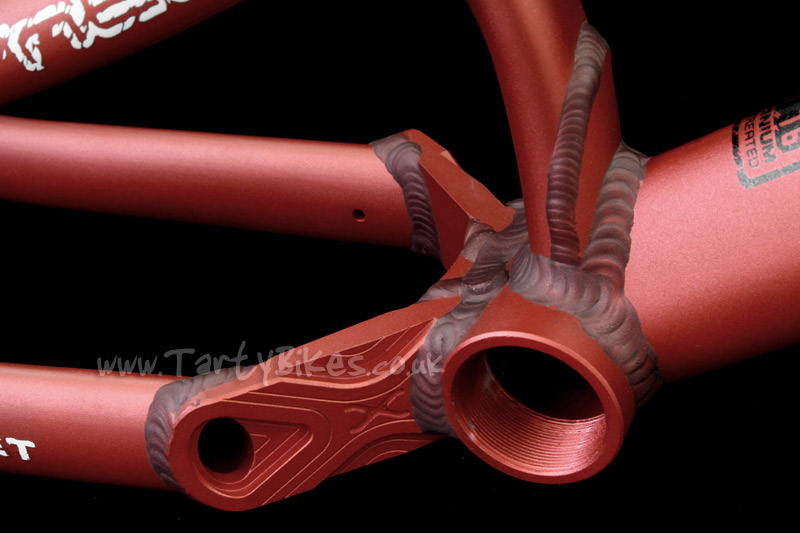

- Machined out, reinforced BB yoke gives the maximum possible tyre clearance whilst retaining strength and stiffness.

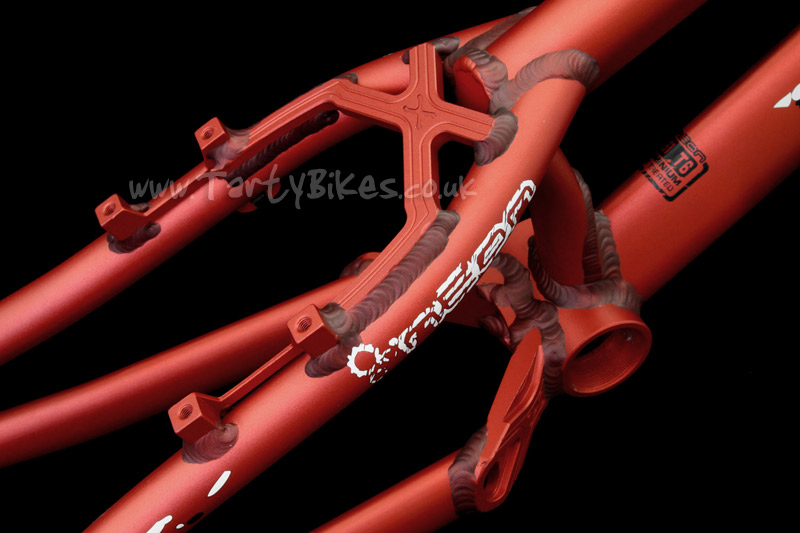

- 'X-Ray' built-in brake booster gives a stiffer, more responsive brake feel.
- Dedicated 4-bolt mounts spaced at 100mm.

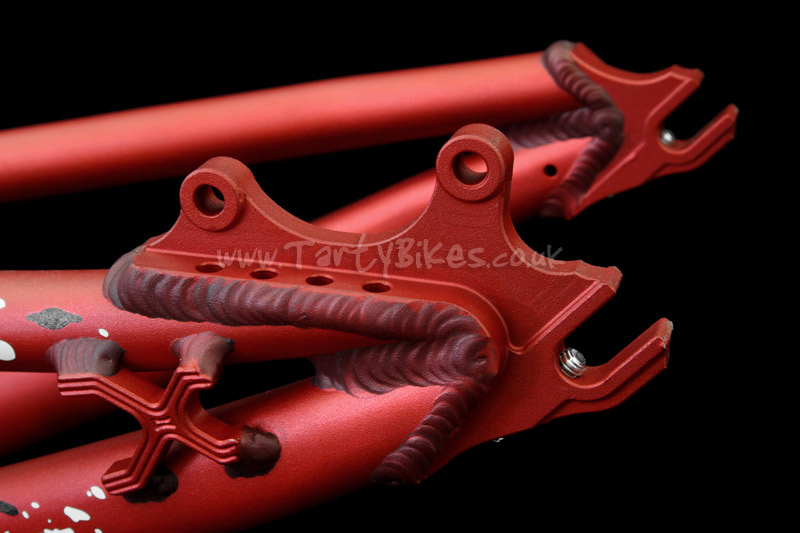

- Reinforced IS disc mount increases braking options.
- 115mm long standard headtube is externally butted and machined to save weight. Large cut-out also helps shave excess weight.

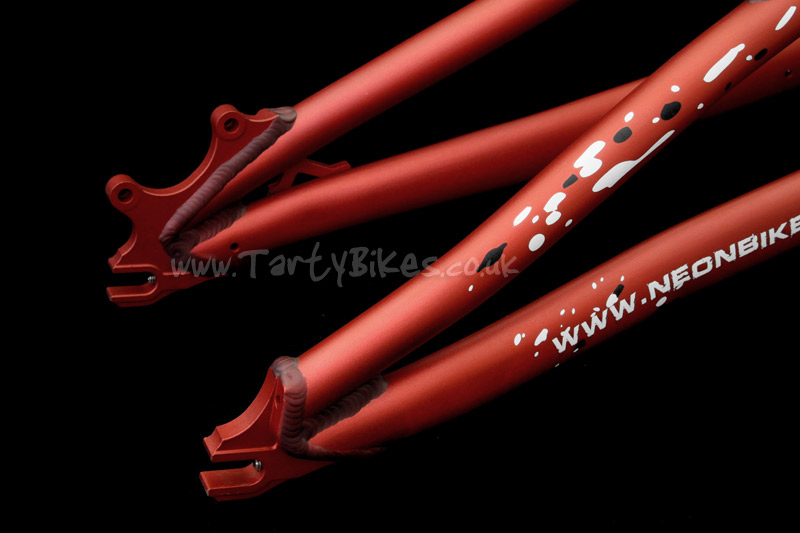

- 135mm spaced minimal horizontal dropouts now feature neat built-in chain tensioners to make getting perfect chain tension even easier than ever.
- Gussets (finished with 'X' logos) placed at key points of the frame to add more strength and increase stiffness.
- New-for-2012 anodised finish is durable and long-lasting, combined with colour-matching X-Ray graphics to give the frame a great look.

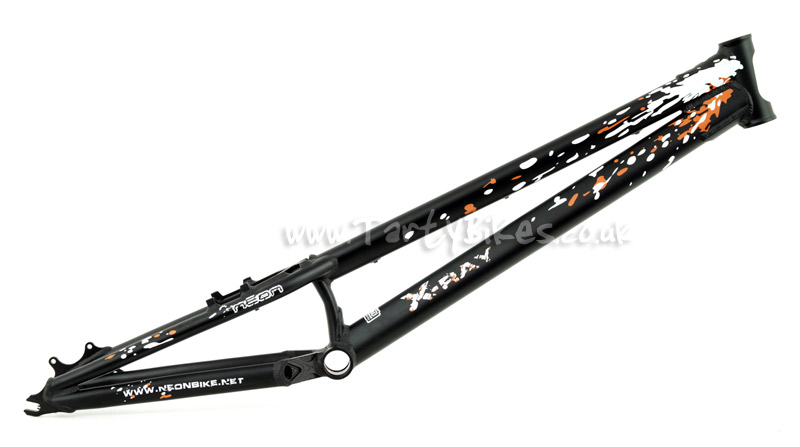

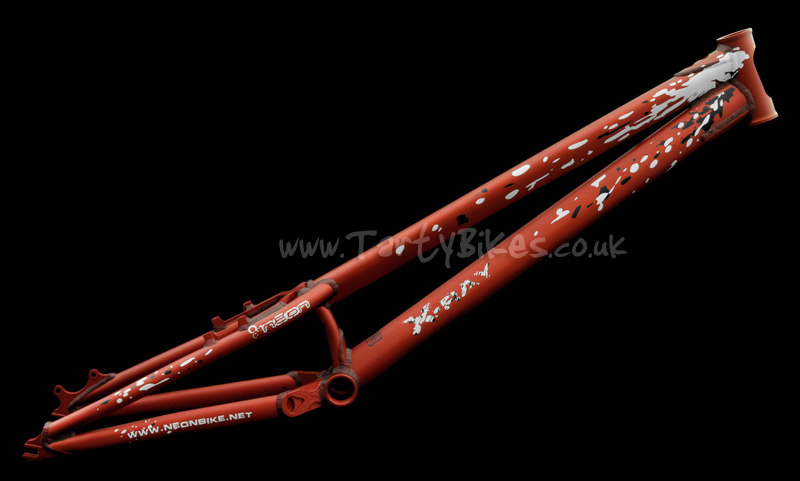

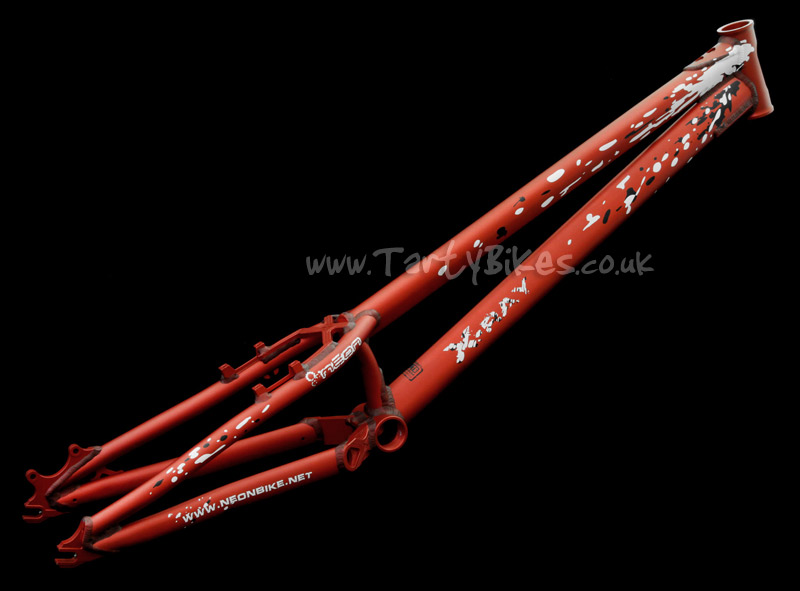

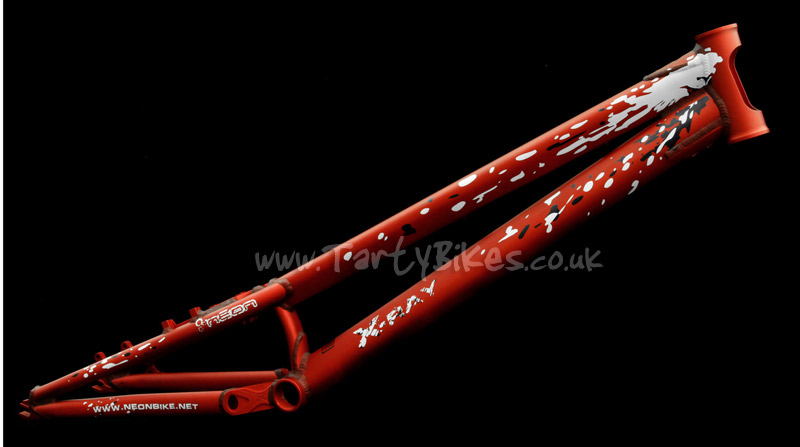

- Available in Black or Red.
- Weight: 1.607kg

Geometry (When measured with Echo Urban fork, sold separately)

Wheelbase: 1095mm
Chainstay Length: 380mm
BB Rise: 55mm
Head Angle: 72 degrees
Centre of BB shell to top centre of head tube: 665mm
