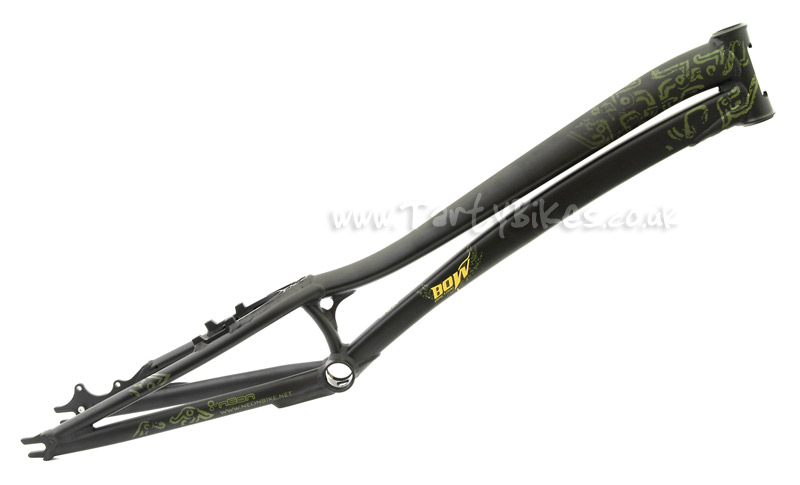

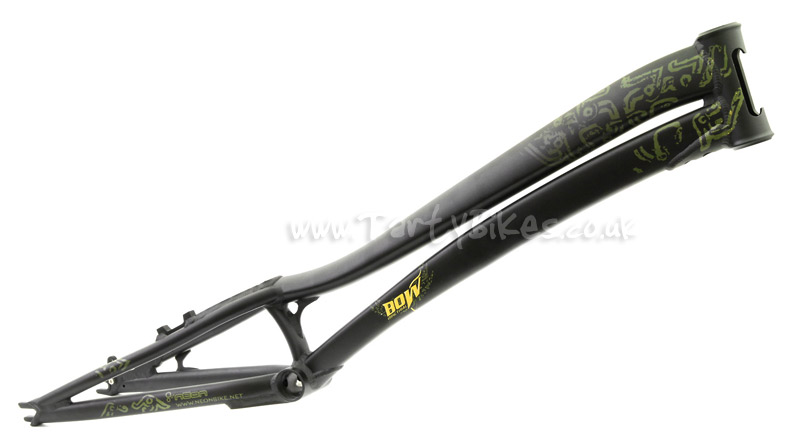

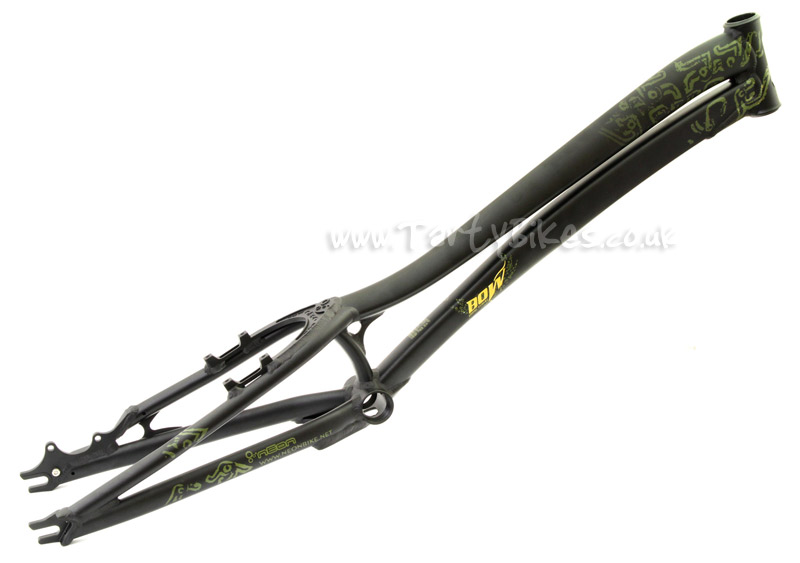

- New entry into the 24" trials frame market, the Neon Bow 24" 2012.
- Based upon the 20" and 26" Neon Bow frames from previous years, the new model features a few tweaks to increase strength and save weight where possible.

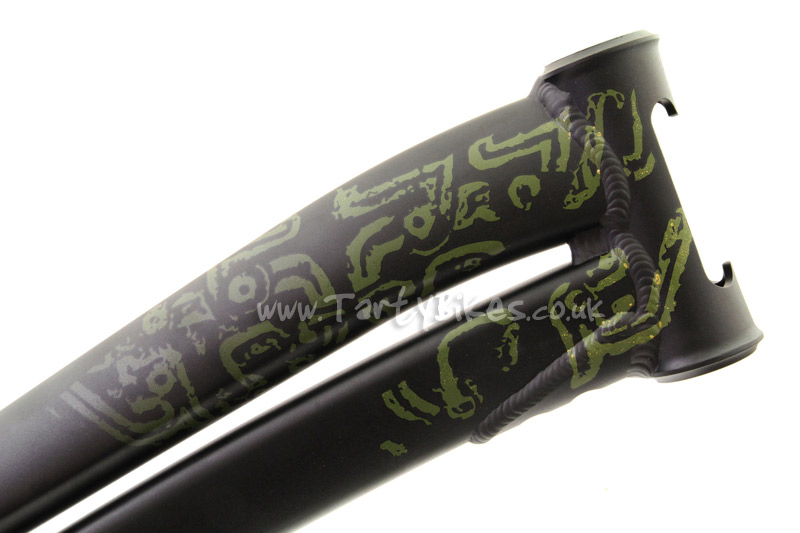

- Features Neon's standard head tube (120mm long), externally butted with a large machined out hole to save weight.
- Sleek tubing profile reduces weight whilst increasing frame strength and giving a greater weld area.

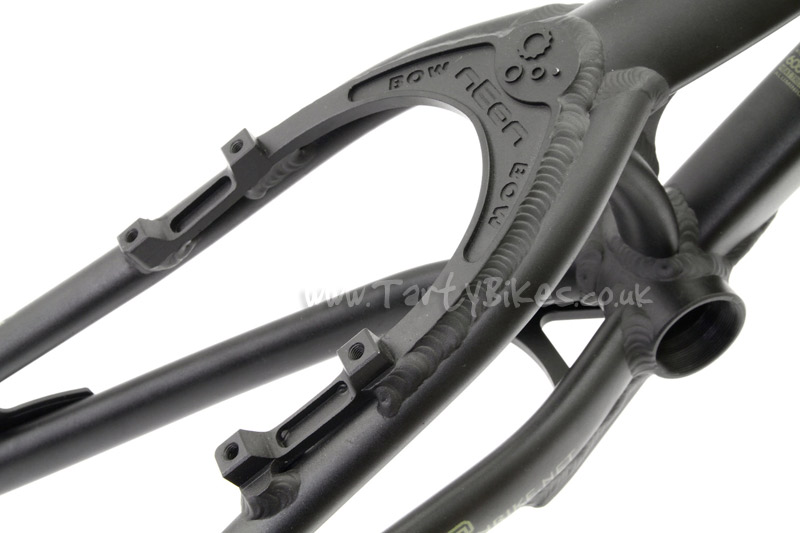

- Reinforcing plate on the underside of the chainstay and BB yoke join helps improve frame strength in this key area.

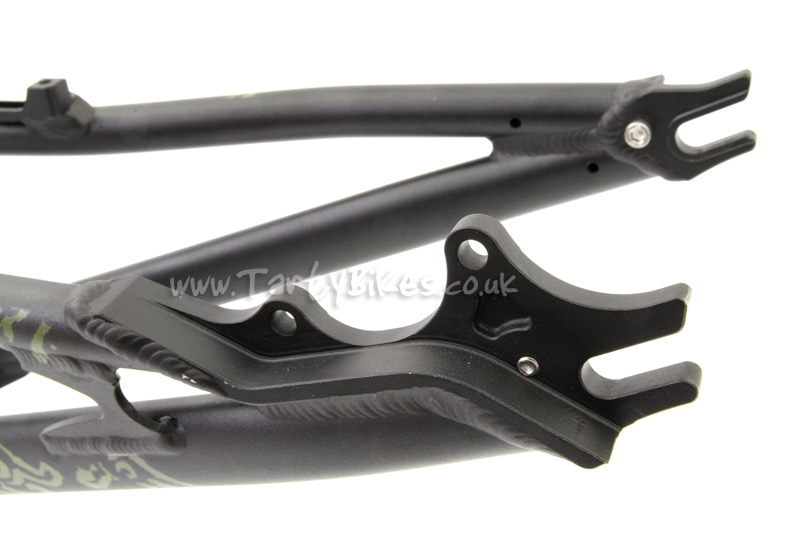

- Dedicated 4-bolt mounts (spaced at 100mm) with CNC'd built-in brake booster give a stiffer, more responsive brake feel.

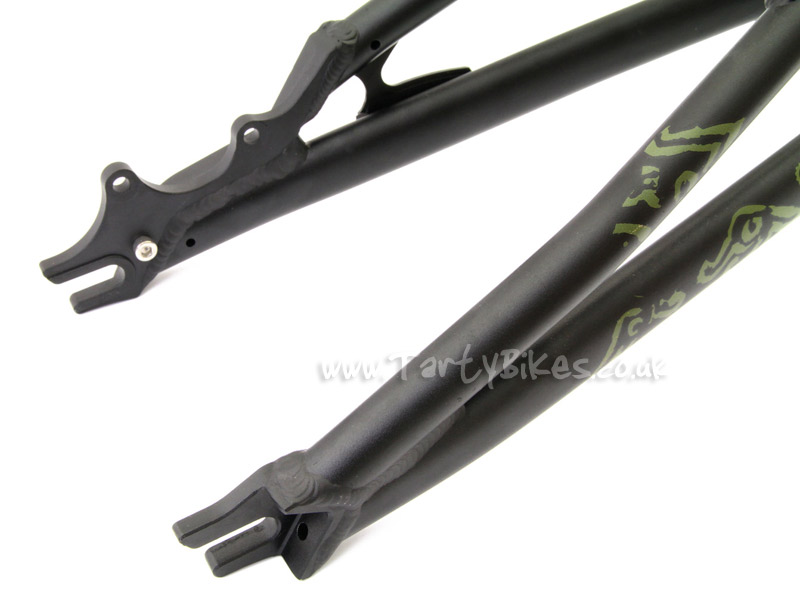

- Minimal horizontal dropouts spaced at 135mm offer a range of adjustment whilst being small and out of the way.
- Thick IS disc mount with additional brace allows the use of a rear disc brake.
- Gussets placed at key points of the frame to add more strength and increase stiffness.
- Available in anodised Black only.
- Weight: 1.467kg
- Based upon the 20" and 26" Neon Bow frames from previous years, the new model features a few tweaks to increase strength and save weight where possible.
- Features Neon's standard head tube (120mm long), externally butted with a large machined out hole to save weight.
- Sleek tubing profile reduces weight whilst increasing frame strength and giving a greater weld area.
- Reinforcing plate on the underside of the chainstay and BB yoke join helps improve frame strength in this key area.
- Dedicated 4-bolt mounts (spaced at 100mm) with CNC'd built-in brake booster give a stiffer, more responsive brake feel.
- Minimal horizontal dropouts spaced at 135mm offer a range of adjustment whilst being small and out of the way.
- Thick IS disc mount with additional brace allows the use of a rear disc brake.
- Gussets placed at key points of the frame to add more strength and increase stiffness.
- Available in anodised Black only.
- Weight: 1.467kg
Geometry (When measured with 405mm x 30mm fork, sold separately)
Wheelbase: 1045mm
Chainstay Length: 360mm
BB Rise: 70mm
Head Angle: 70 degrees
Centre of BB shell to top centre of head tube: 635mm (25.00")
