TartyBikes : Monty 220 Kamel

- Updated for 2011, Monty's 221 Pr frame was extremely popular and has now been updated to the 220 Kamel.

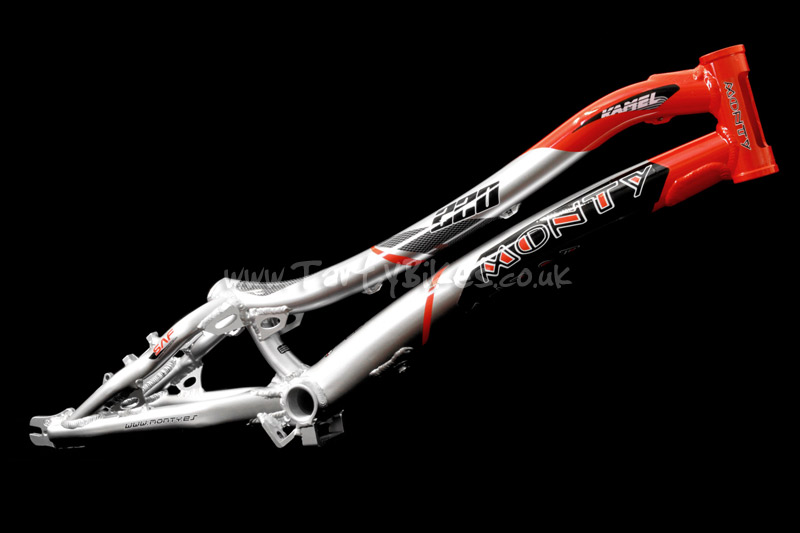

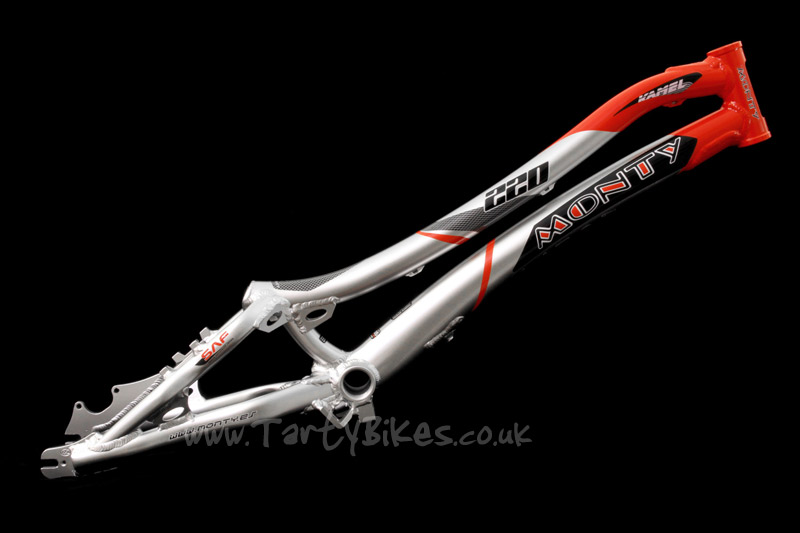

- Constructed from Monty 7005-T6 Aluminium frame, the frame has a 'shock absorbing' concave design as seen on the top of the range 221 Ti. Each frame is TIG welded to exacting standards.

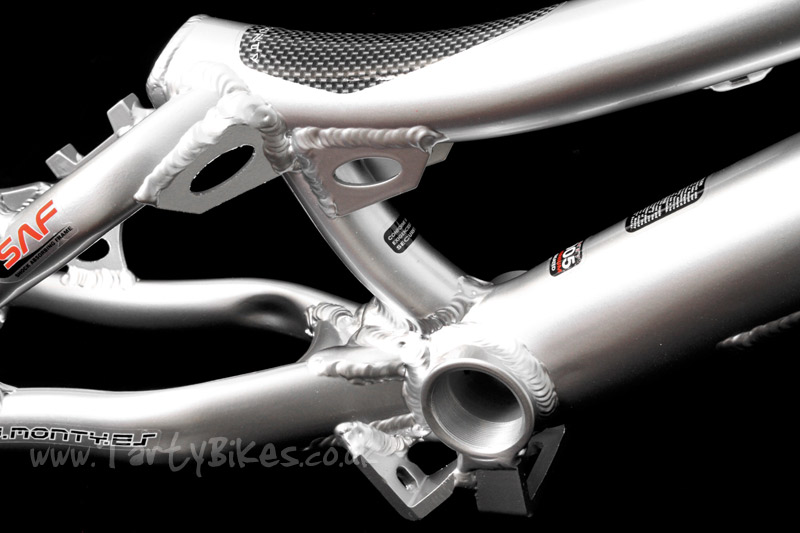

- Large diameter downtube provides large weld areas for the BB shell and head tube.
- Top and down tube gussets at the head tube direct stress away from the ends of the tubes, improving frame life.
- Comes with dedicated 4-bolt HS33 mounts (spaced at 98mm) featuring a built-in booster, and also an International Standard rear disc mount with bracing bar!
- Standard 110mm rear axle spacing takes a majority of rear hubs, and 68mm BB shell.
- Low standover height allows for maximum body movement.
- Please note that there is no bashplate included with this frame.
- Takes standard 1 1/8" headset, with 120mm head tube length.

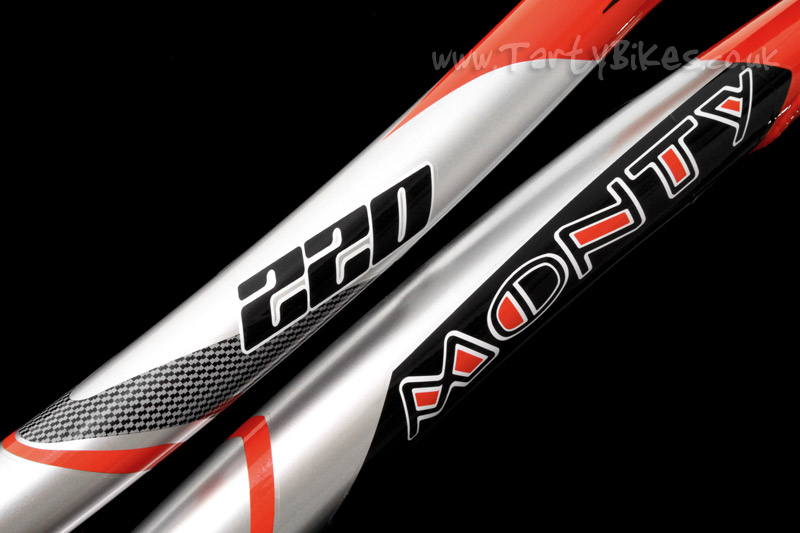

- Silver and Red finish with stylish carbon effect Monty graphics.
- Weight: 1.986kg/4.373lbs.

Geometry (when measured with 370mm x 40mm fork, sold separately)

Wheelbase: 1005mm
Chainstay Length: 362mm
BB Rise: 70mm
Head Angle: 72 degrees
Centre of BB shell to top centre of head tube: 590mm (23.2")

Please note that this frame does not include a Bashplate. Either of the Monty, Onza or Because models will fit.

This frame comes with a 6 month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any warranty claim.
