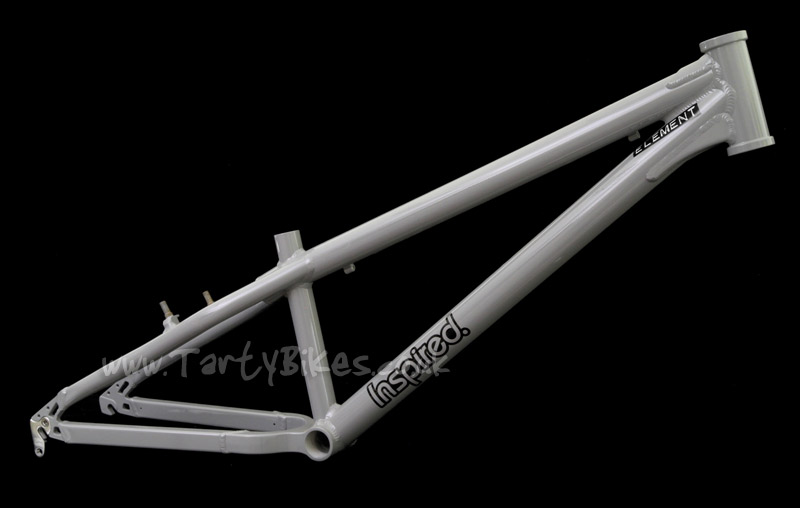

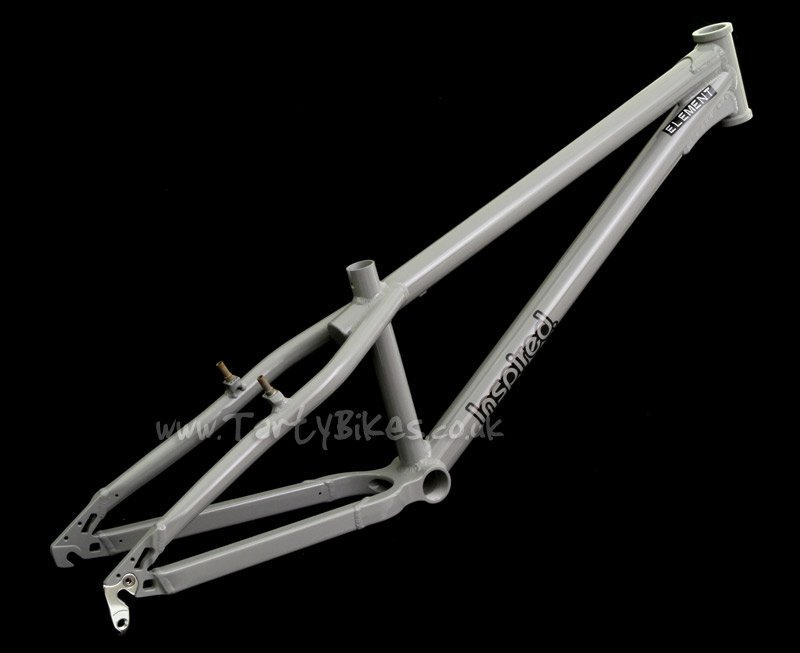

- New from Inspired, the Element 2012 frame - as used in the Inspired Element 26" Complete Bike.
- Based on the design of the 24" Element, the 26" model has the same great attention to detail and benefits from the same level of quality and toughness.
- Constructed from 7005-T6 aluminium throughout.

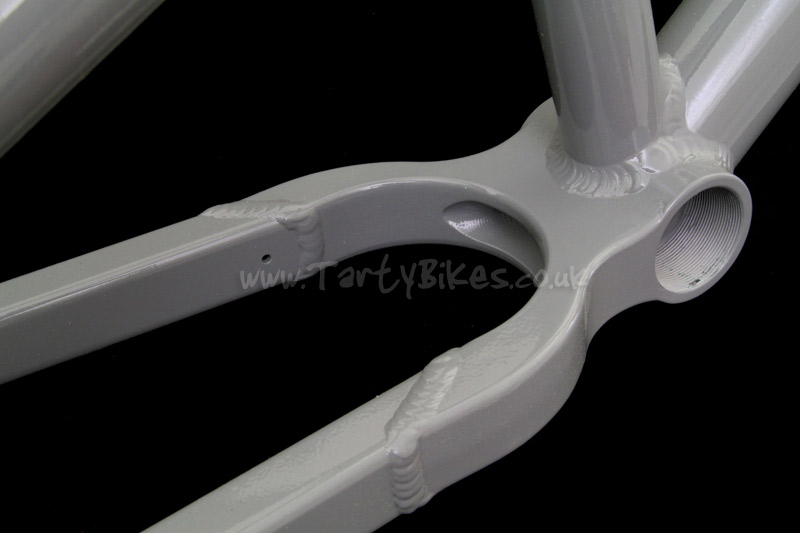

- One piece CNC machined chainstay yoke and 68mm bottom bracket shell is super thick and tough, yet offers plenty of tyre clearance.

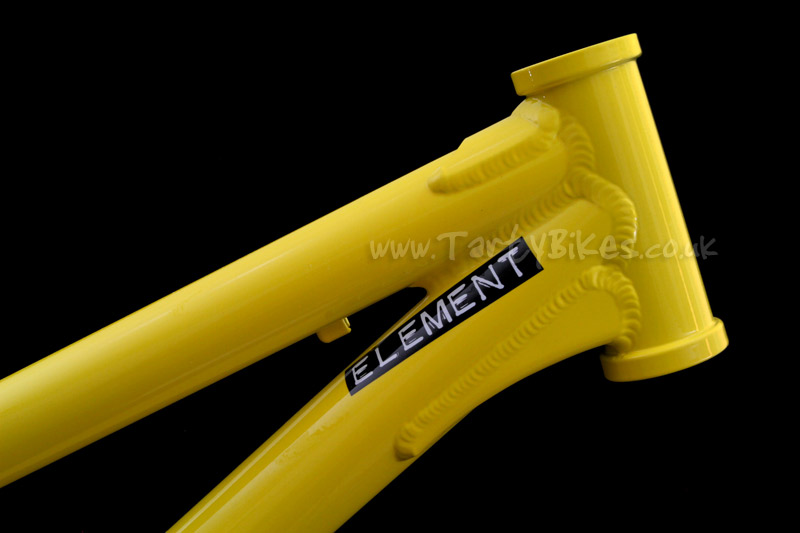

- The frame also features gussets at the top and down tube where they meet the head tube. The downtube gusset is different to that found on most frame, with more weld area for maximum toughness.
- Extra thick 2.0mm downtube to shrug off the knocks.
- Head tube takes standard 1/8" headsets, 120mm length, with super thick ring re-inforcing to help prevent flaring.

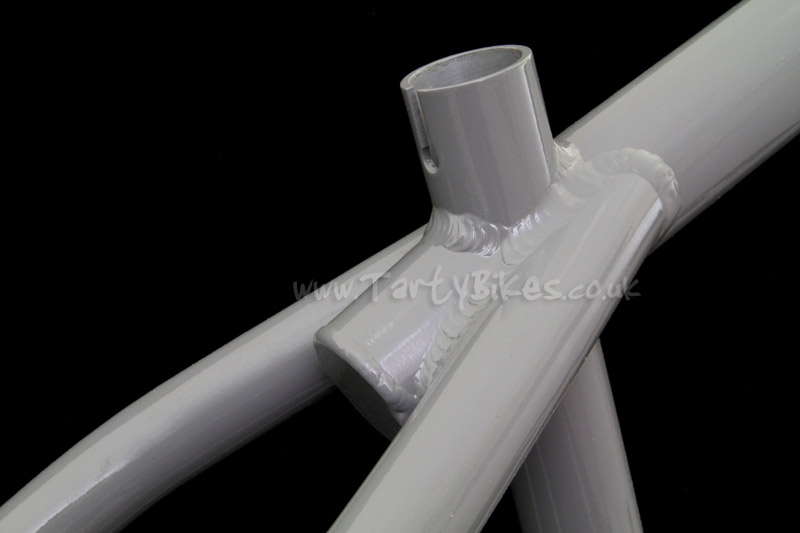

- Takes a 31.8mm seat clamp and 27.2mm seat post.
- Dedicated V-brake mounts spaced at 95mm.

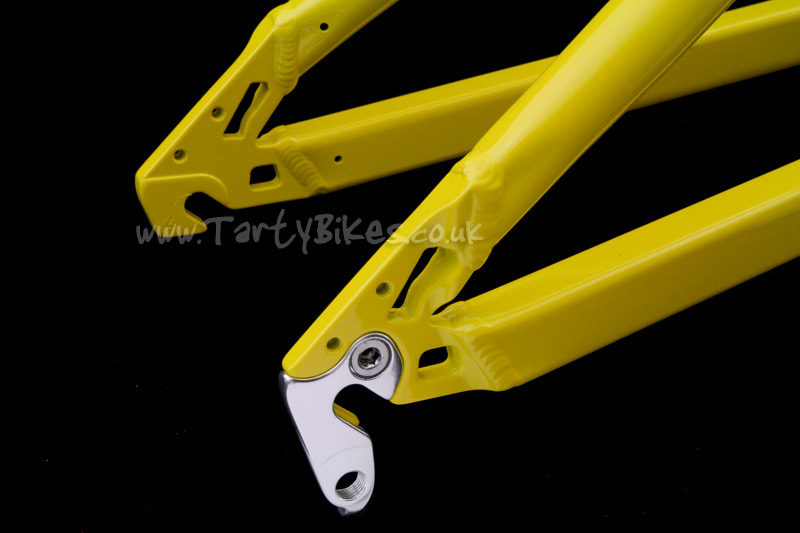

- Super tough forged (lighter than CNC machined for the same strength) dropouts spaced at 135mm take a strong derailleur hanger with re-inforcing rib down the back.
- Available in gloss Grey or Yellow.
- Weight: 2.173kg
Geometry (measured with Inspired Element fork):
- Wheelbase: 1045mm- Chainstay: 390mm
- BB Height: +20mm
- Head Angle: 73˚
- Centre of bottom bracket to top centre of head tube: 665mm
