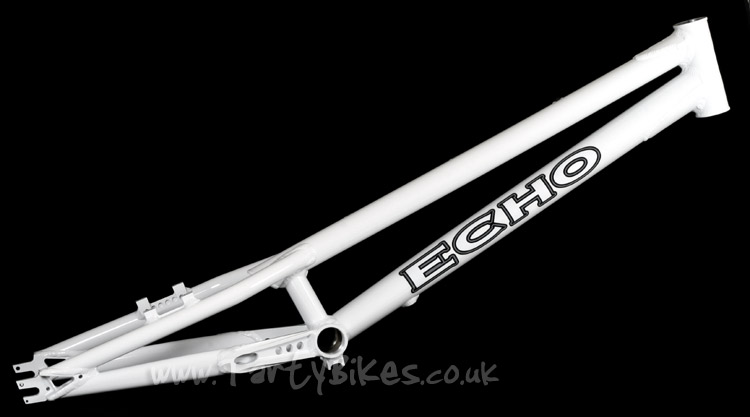

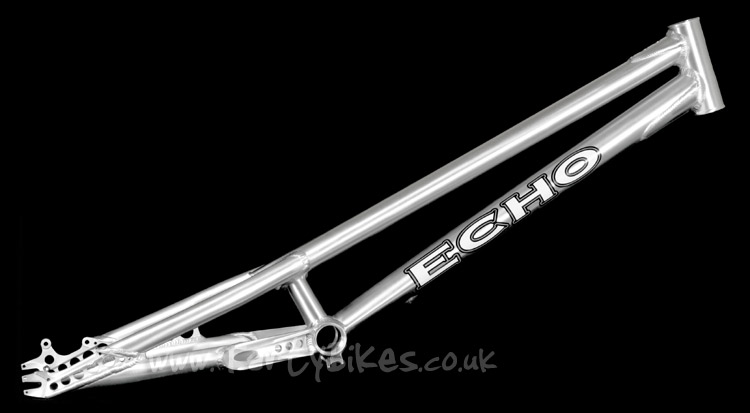

- New for 2009 from Echo, their long-running mod frame has now been lightened up.
- Double butted main tubes reduce weight in the centre but still allow for strong welding at the ends.

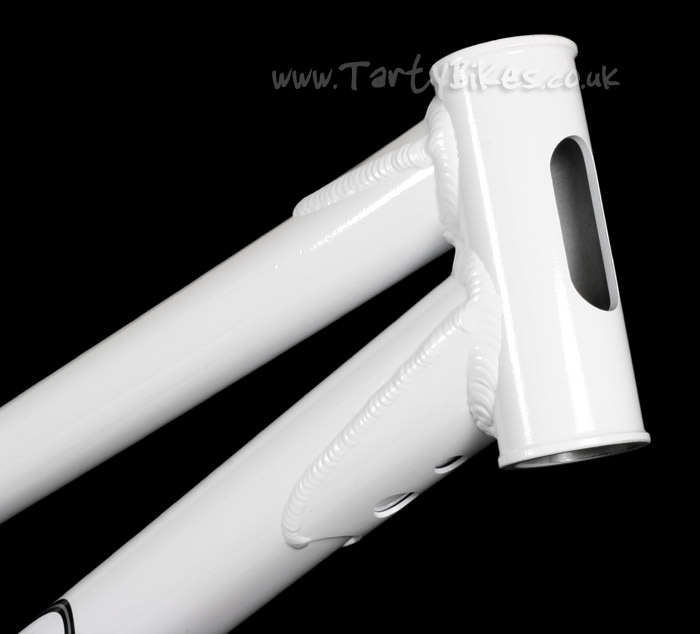

- Externally butted head tube has drilled gussets at the top and down tubes, to help strengthen the head tube area of the frame.

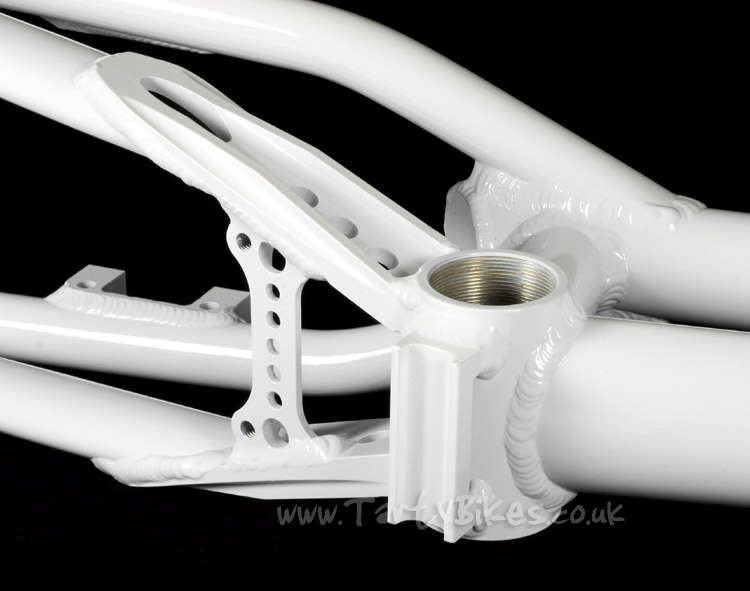

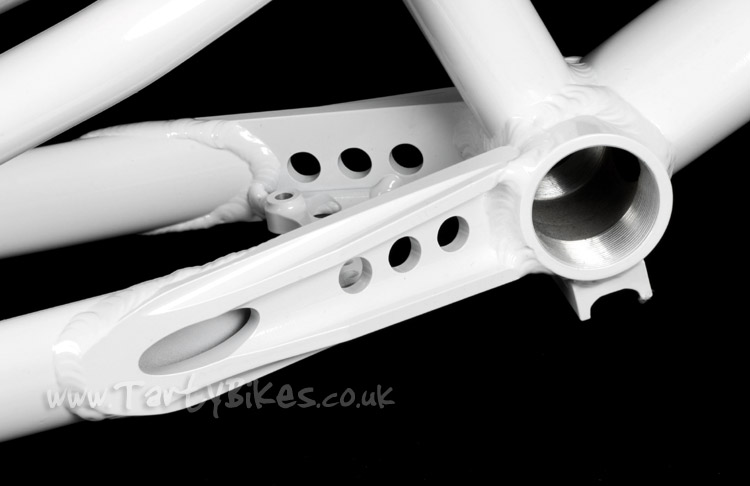

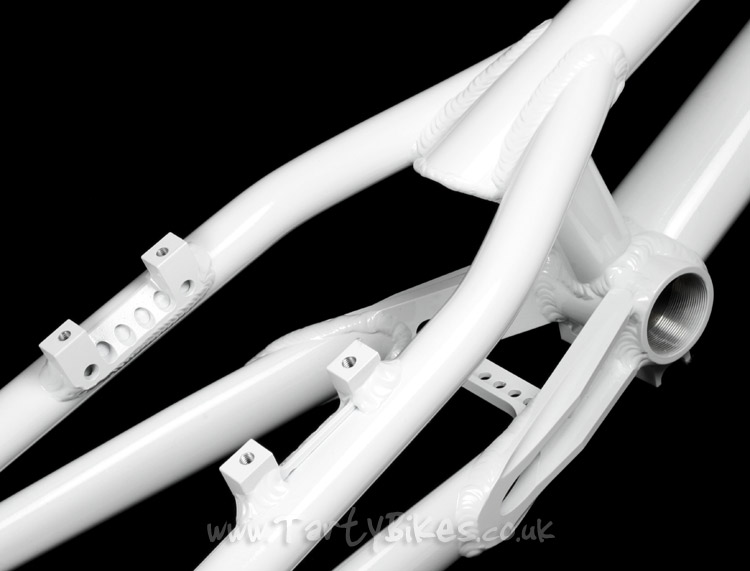

- Lightweight CNC Machined BB shell plates and bashplate mounts keep weight low but ensure good pedalling response and stiffness.

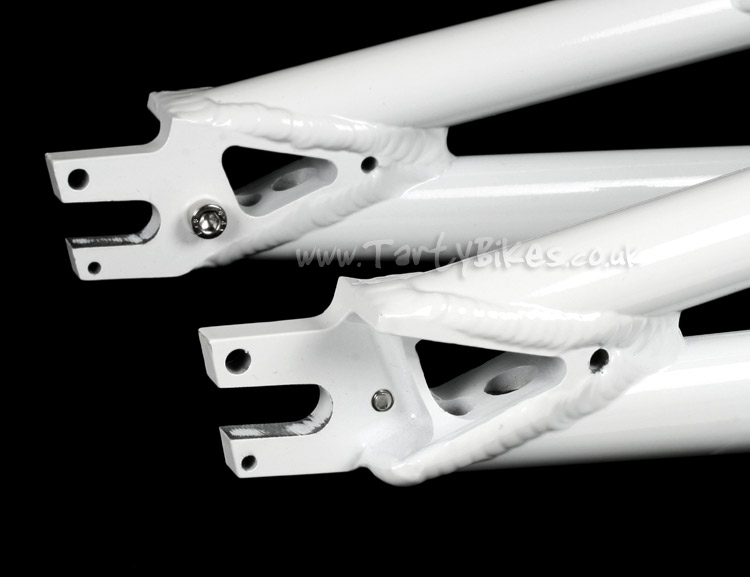

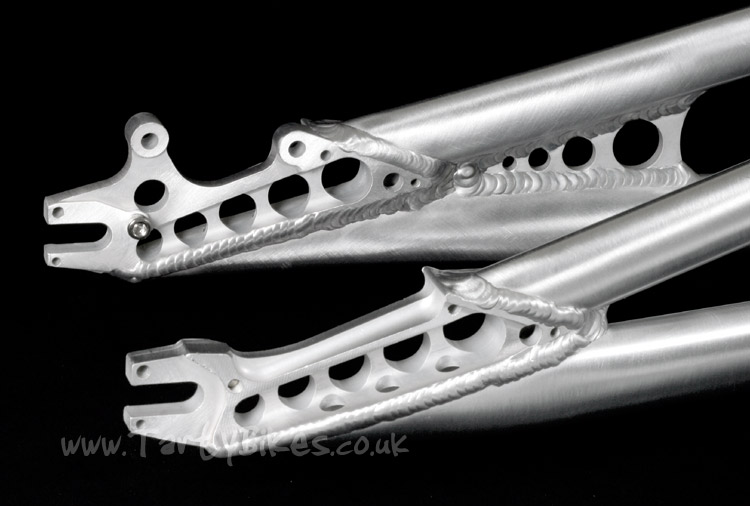

- Dedicated CNC machined 4-Bolt Magura mounts or International Standard disc mount.
- Takes standard 116mm spaced rear axle and 1 1/8" headset.
- Available in White or Silver, Disc Only or 4-Bolt Only.
- Weight: 1.470kg/3.24lbs (Disc only, Silver), 1.529kg/3.37lbs (4-Bolt, White).
- Double butted main tubes reduce weight in the centre but still allow for strong welding at the ends.
- Externally butted head tube has drilled gussets at the top and down tubes, to help strengthen the head tube area of the frame.
- Lightweight CNC Machined BB shell plates and bashplate mounts keep weight low but ensure good pedalling response and stiffness.
- Dedicated CNC machined 4-Bolt Magura mounts or International Standard disc mount.
- Takes standard 116mm spaced rear axle and 1 1/8" headset.
- Available in White or Silver, Disc Only or 4-Bolt Only.
- Weight: 1.470kg/3.24lbs (Disc only, Silver), 1.529kg/3.37lbs (4-Bolt, White).
Geometry (When measured with Echo Lite 370mm x 45mm fork, available separately)
Wheelbase: Disc 1010mm, 4-Bolt 1005mm
Chainstay Length: 362mm
BB Rise: 55mm
Head Angle: 72 degrees
Centre of BB shell to top centre of head tube: Disc 610mm (24"), 4-Bolt 605mm (23.75")
Echo Titanium
£109.79
IceToolz Trail Buddy
£18.72
Trialtech Race Forged
£25.53
Trialtech Sport Riser Bar
£41.70
Echo Urban 2012 20"
£74.17
Inspired Logo Mug
£6.38
Please could you suggest a stem that would fit in nicely with this frames geo? Many thanks.
Posted by theo on 16/02/2012
Reply from TartyBikes on 17/02/2012
Hi Theo - I think either of the Trialtech Race Forged stems would work well with this frame. The shorter version would be best if you plan on spending a lot of time on the rear wheel, whereas the longer version would be best if you plan on doing bunnyhops, pedal ups, rolling gaps and other moves than involve being on 2 wheels. Your height will come into it too to an extent - if you're shorter then the 165mm version would be ideal, but if you're taller then the 180mm would be best. Thanks, Mark
