TartyBikes : Echo Pure SL 2011 (With BB)

- Improving upon the original Echo Pure 2011 frame, the Echo Pure SL 2011 gives a lighter alternative!
- Constructed using double butted tubing on the top and down tubes to help reduce weight in the centre of the tube, whilst still keeping more material at the ends to improve weld strength.
- Features Echo's 'Spanish' BB system, which uses a large press-fit bearing - this gives a longer BB life, whilst still using a strong M15 ISIS spindle. BB is supplied with the frame, including Echo SL Alloy Crank Bolts!

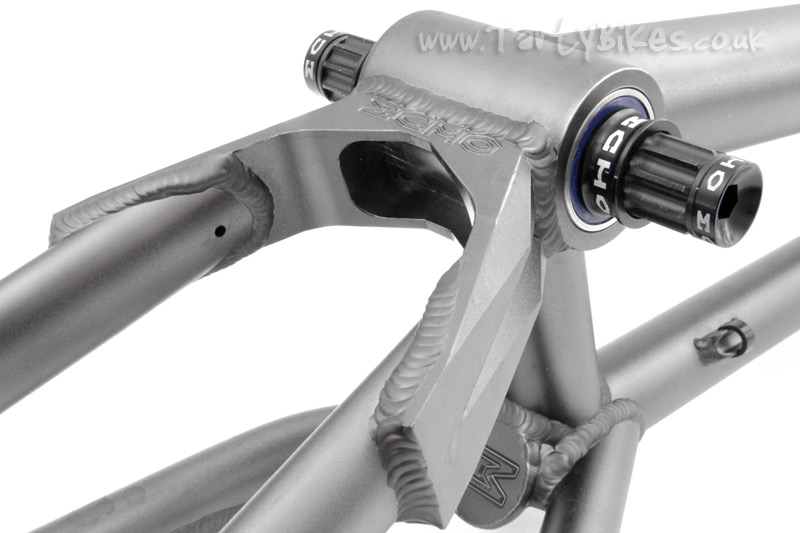

- Large, CNC machined BB yoke increases weld contact area at this crucial join, increasing the strength of the frame.

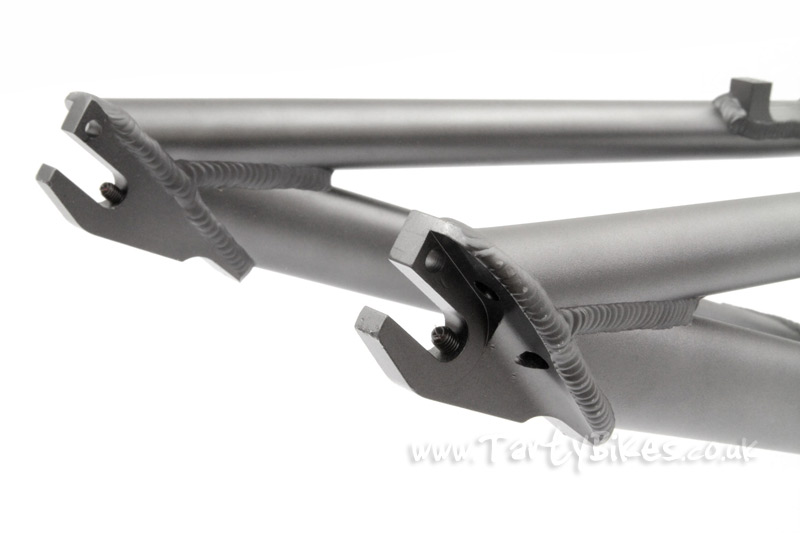

- Neat, CNC machined horizontal dropouts spaced at either 116mm or 135mm feature a low-profile integrated tensioner design, as seen on the previous Czar 24" frame.

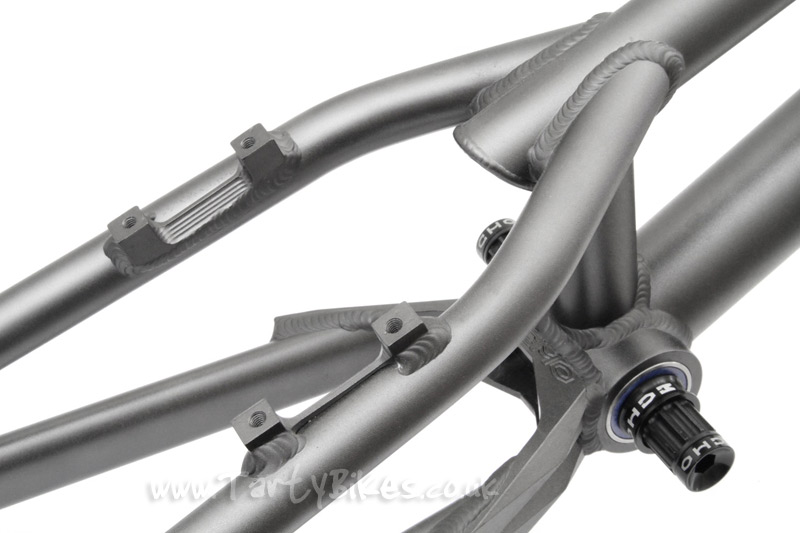

- Dedicated 4-bolt mounts spaced at 101mm.
- Standard head tube (105mm long) has a large hole machined out to reduce weight.

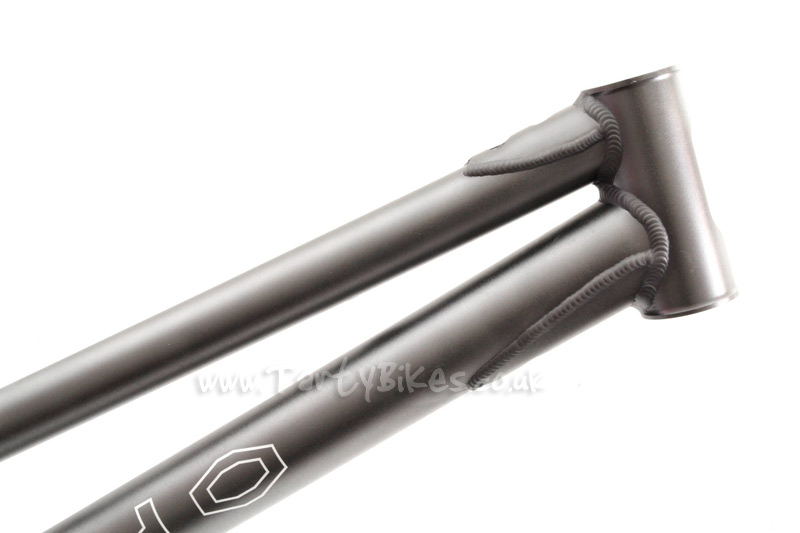

- Top and down tube gussets at the head tube direct stress away from the ends of the tubes, improving frame life.

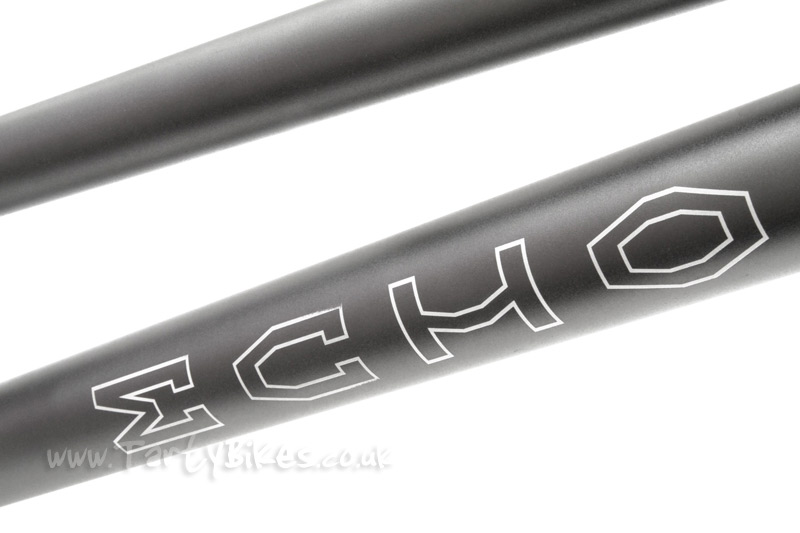

- Available in anodised grey with stylish laser-etched logos.
- Recommended for 18:15 gear ratio and front freewheel only.
- Weight: 1.444kg (Without BB), 1.706kg (With steel BB).

Geometry (When measured with Echo SL fork, sold seperately):

This frame comes with a 6 month warranty covering manufacturing and materials defects. Due to the nature of butted tubing it is more likely to dent in the thinner central area of the tubing. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any warranty claim.
