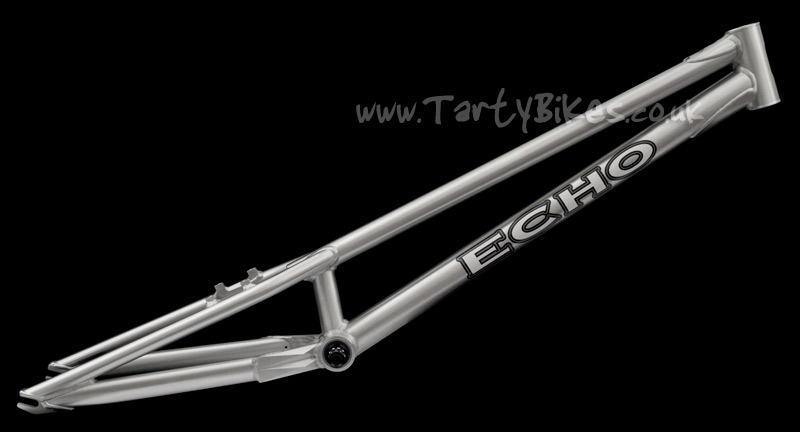

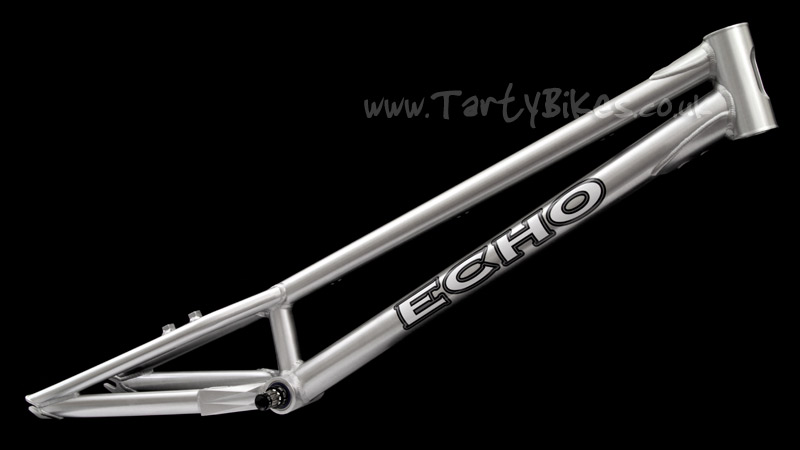

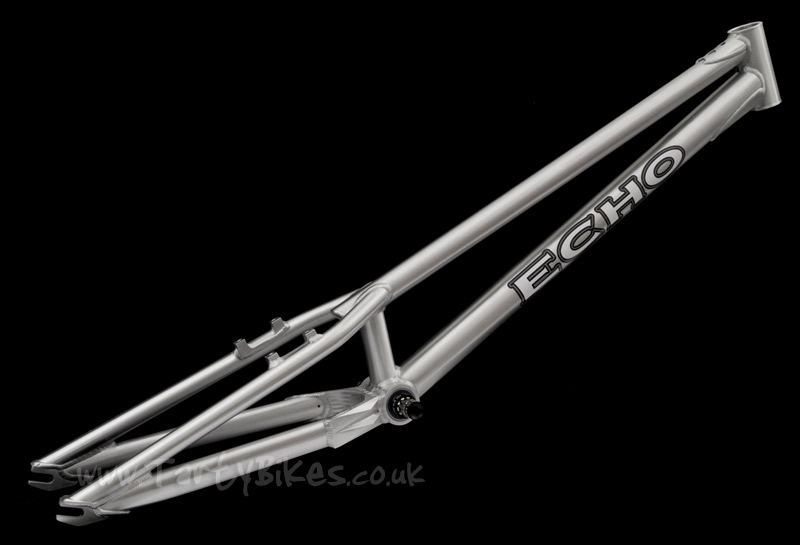

- Updated for 2012, the latest Echo Pure frame.

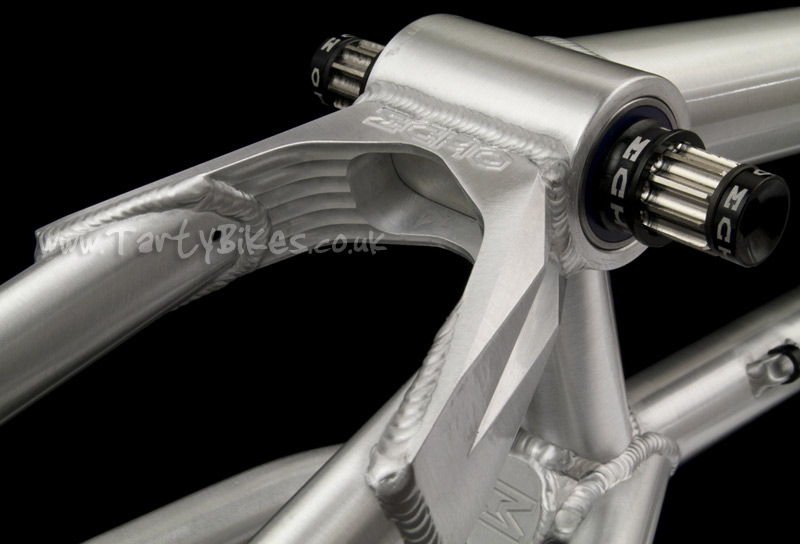

- Features Echo's 'Spanish' BB system, which uses a large press-fit bearing - this gives a longer BB life, whilst still using a strong M15 ISIS spindle. BB is supplied with the frame!

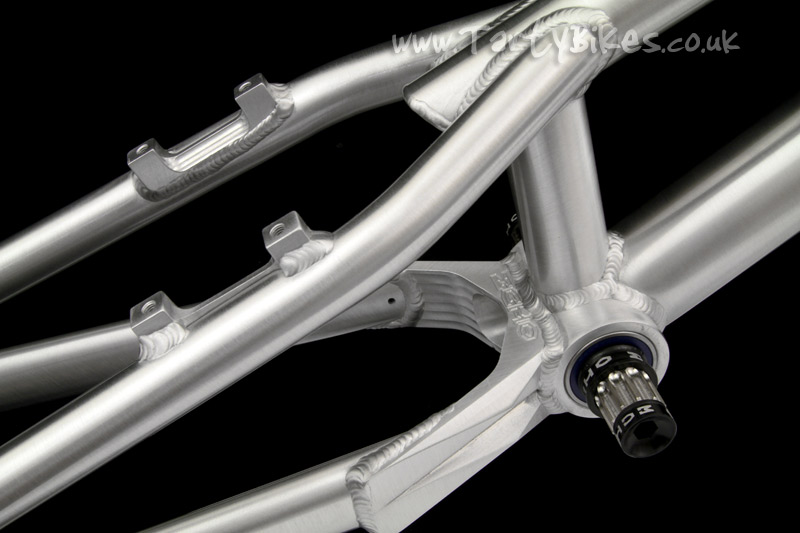

- Large, CNC machined BB yoke increases weld contact area at this crucial join, increasing the strength of the frame.
- Neat, CNC machined horizontal dropouts spaced at 116mm feature a low-profile integrated tensioner design, as seen on the previous Czar 24" frame.
- Dedicated 4-bolt mounts spaced at 101mm.
- Standard head tube (105mm long) has a large hole machined out to reduce weight.

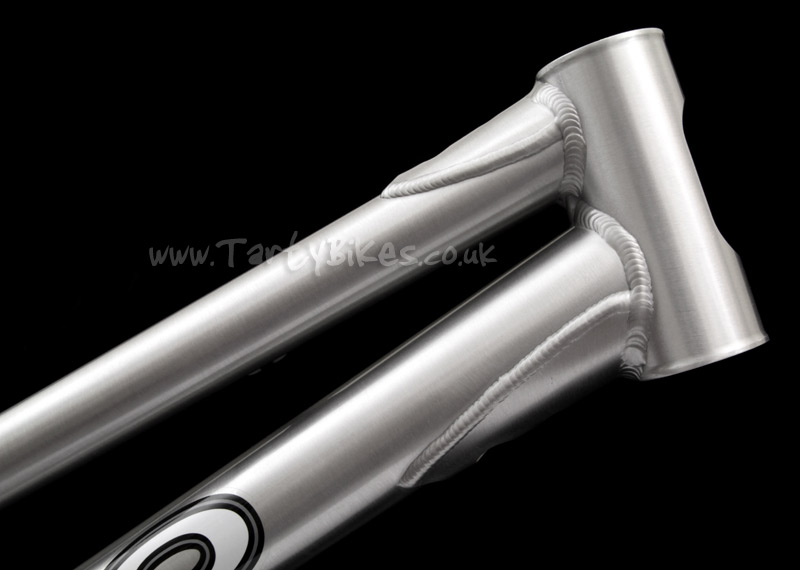

- Top and down tube gussets at the head tube direct stress away from the ends of the tubes, improving frame life.
- Available in brushed silver only.
- Recommended for 18:15 gear ratio and front freewheel only.
- Weight: 1.517kg (Without BB), 1.777kg (With steel BB).
Geometry (When measured with Echo Urban fork, sold separately):
Wheelbase: 1085mmChainstay Length: 380mm (18:15 gear ratio with no half link)
BB Rise: 55mm
Head Angle: 72 degrees
Centre of BB shell to top centre of head tube: 665mm
Trialtech Sport Screw On
From £11.92 to £19.57
Echo SL 26" 2011
£70.83
First Blog Z
£7.66
Onza Axle Bolt and Washers Kit
From £5.00 to £5.83
KMC Z610 HX, 3/32"
£11.67
Echo Titanium
£29.17
Trialtech Sport 26"
£101.28
Can you upgrade to the titanium bb?
Posted by graham on 25/04/2011
Reply from TartyBikes on 26/04/2011
Hi Graham - The frames come with steel BBs installed, and as such we can't accept them as partial payment for an upgrade to a Ti BB (as the outside of the bearings tend to be a little marked from being pressed into the frame). If you'd like us to install a Ti BB for you before sending the frame out to you we can do so, but you'd need to purchase the Ti BB with the frame. Thanks, Mark
